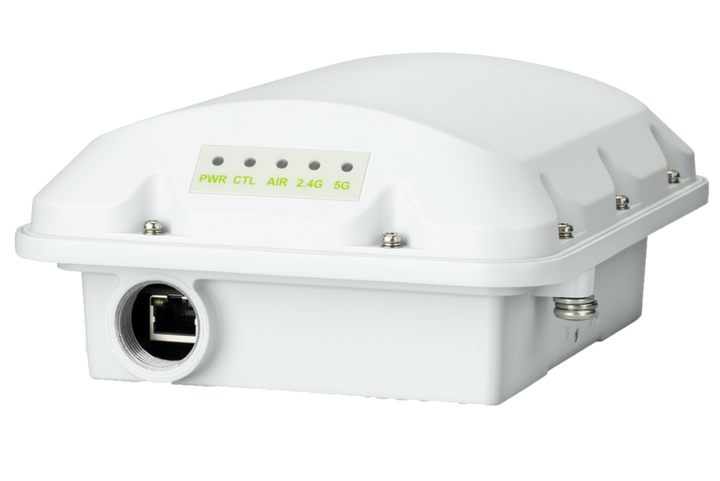

RUCKUS T350se Outdoor Wi-Fi 6 2x2:2 Sector Access Point
PRODUCT DESCRIPTION
RUCKUS T350se Outdoor Wi-Fi 6 2x2:2 Sector Access Point with External Antenna Ports (901-T350-WW51) - Local Warranty
Outdoor Wi-Fi 6 for Plazas, Campuses and Public Venues
The RUCKUS T350se is a dual-band, concurrent 802.11ax (Wi-Fi 6) outdoor access point with 2x2:2 radios on both 2.4 GHz and 5 GHz. RUCKUS rates the T350 series at up to 1774 Mbps (802.11ax) and up to 512 clients per AP, and positions it for high-density outdoor public venues such as airports, convention centres, plazas, malls, smart cities and dense urban spaces.
Managed by a RUCKUS Controller
This is the standard edition (part number prefix 901-), managed from a RUCKUS controller or management platform rather than running as a self-contained Unleashed network. RUCKUS lists SmartZone, ZoneDirector, cloud and standalone management for the T350.
Sector Antenna for Aimed Coverage
The T350se uses an internal 120° sectorized antenna (6 dBi on 2.4 GHz, 8 dBi on 5 GHz) with N-type female connectors for an external antenna, so coverage can be aimed along a street, across a car park or over a sports field. It also has DC input and a USB 2.0 port, and operates from -40°C to 65°C.
Built for Singapore's Outdoors
The T350 series is IP-67 rated, survives winds of up to 266 km/h (165 mph) and ships with a mounting bracket. BeamFlex+ adaptive antennas and SmartMesh self-healing wireless meshing help extend coverage to spots where running cable is hard.
Supplied in Singapore with Local Warranty
RUCKUS sells the T350 series with a limited one-year warranty. SourceIT supplies it locally in Singapore with a GST invoice. An adjustable mounting bracket is included; no PoE injector or power supply. Email sales@sourceit.com.sg with your site layout for a coverage plan and bill of materials.
RUCKUS T350se 901-T350-WW51 Datasheet — Technical Specifications
General
| Product Name | RUCKUS T350se Outdoor Access Point |
| Part Number | 901-T350-WW51 |
| Variant | T350se, 120° sector, 2x2:2 Wi-Fi 6, N-type external antenna connectors, dual band concurrent, PoE or DC input, USB |
| Edition | Standard (non-Unleashed) AP for controller or platform management; Unleashed version is 9U1-T350-WW51 |
| Manufacturer Warranty | Limited one-year warranty (RUCKUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Wireless
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| Radios | Dual-band, concurrent 2.4 GHz and 5 GHz |
| MIMO / Streams | 2x2:2 SU-MIMO and MU-MIMO; 2 spatial streams per band |
| Supported Data Rates | 802.11ax 4 to 1774 Mbps; 802.11ac 6.5 to 867 Mbps; 802.11n 6.5 to 300 Mbps; 802.11a/g 6 to 54 Mbps; 802.11b 1 to 11 Mbps |
| Supported Channels | 2.4 GHz: 1-13; 5 GHz: 36-64, 100-144, 149-165 |
| Client Capacity | Up to 512 clients per AP |
| SSIDs | Up to 31 per AP |
| Antenna | Internal 120° sectorized antenna plus N-type female connectors for an external antenna; gain 2.4 GHz 6 dBi, 5 GHz 8 dBi |
| Max Tx Power | 2.4 GHz 26 dBm; 5 GHz 25 dBm |
Interfaces & Power
| Ethernet | 1 x 1GbE RJ-45, PoE in (802.3at Class 4) |
| DC Input | 12 V terminal block (7 V to 20 V) |
| USB | 1 x USB 2.0, Type A |
| 802.3at PoE (Class 4) | 21.3 W |
| 802.3af PoE | 12.81 W |
| DC (max) | 19.34 W |
| Idle | 8.68 W (PoE) / 7.92 W (DC) |
Radio Management
| Features | BeamFlex+ adaptive antenna technology, ChannelFly dynamic channel management, SmartMesh self-healing wireless meshing |
Security
| Wireless Security | WPA-PSK, WPA-TKIP, WPA2-Personal, WPA2-Enterprise, WPA3-Personal, WPA3-Enterprise, AES, 802.11i |
Physical & Environmental
| Dimensions | 261.7 mm (L) x 209.1 mm (W) x 102.5 mm (H) |
| Weight | 2.2 kg (4.85 lbs) with bracket |
| Mounting | Adjustable mounting bracket included |
| Operating Temperature | -40°C to 65°C |
| Ingress Protection | IP-67 |
| Wind Survivability | Up to 266 km/h (165 mph) |
| Altitude | Up to 3,048 m (10,000 ft), functional operation |
Certifications
| Wi-Fi Alliance | Wi-Fi CERTIFIED a/b/g/n/ac, Wi-Fi CERTIFIED 6, WPA3-Enterprise/Personal |
| Safety / Other | IEC/EN/UL 62368-1, IEC/EN 60950-1, FCC 15B, EN 60601-1-2 medical, EN 50121-1/4 railway EMC, IEC 61373 railway shock & vibration, UL 2043 plenum, EN 62311, WEEE & RoHS, ISTA 2A |
Figures are taken from the RUCKUS T350 series data sheet. For anything not listed, refer to the RUCKUS documents linked under Datasheet & Downloads.
Compatibility & Software Support
Management
This is the standard (non-Unleashed) edition, part number prefix 901-, for networks run from a RUCKUS controller or management platform. The RUCKUS T350 data sheet lists SmartZone, ZoneDirector, cloud and standalone management. If you want controller-less Wi-Fi with no controller hardware or subscription, order the Unleashed part instead.
External Antenna
RUCKUS lists the 911-2140-0000 dual-band external antenna (2.3-2.7 GHz 11.0 dBi; 4.9-5.875 GHz 10.5 dBi) as compatible with the T350se only.
What It Is Suited To
RUCKUS positions the T350 series for high-density outdoor public venues such as airports, convention centres, plazas, malls, smart cities and dense urban spaces.
Package Contents & RUCKUS Access Point Ordering Information
In the Box
One RUCKUS T350se outdoor access point with an adjustable mounting bracket (per the RUCKUS data sheet). No PoE injector, power supply or external antenna is included.
RUCKUS Access Points (Non-Unleashed, 901-) — Ordering Information
| RUCKUS R350 | Wi-Fi 6, 2x2:2, indoor | 901-R350-WW02 |
| RUCKUS R370 | Dual-band Wi-Fi 7, indoor | 901-R370-WW02 |
| RUCKUS R550 | Wi-Fi 6, 2x2:2, indoor | 901-R550-WW00 |
| RUCKUS R560 | Wi-Fi 6E tri-radio, 2x2:2, indoor | 901-R560-WW00 |
| RUCKUS R575 | Tri-band Wi-Fi 7, indoor | 901-R575-WW00 |
| RUCKUS R650 | Wi-Fi 6, 4+2 streams, indoor | 901-R650-WW00 |
| RUCKUS R670 | Tri-band Wi-Fi 7, indoor | 901-R670-WW00 |
| RUCKUS R676 | Tri-band Wi-Fi 7, indoor | 901-R676-WW51 |
| RUCKUS R750 | Wi-Fi 6, 4x4:4, indoor | 901-R750-WW00 |
| RUCKUS R760 | Wi-Fi 6E tri-radio, 4x4:4, indoor | 901-R760-WW00 |
| RUCKUS R770 | Tri-band Wi-Fi 7, indoor | 901-R770-WW00 |
| RUCKUS R850 | Wi-Fi 6, 8x8:8, indoor | 901-R850-WW00 |
| RUCKUS H350 | Wall-plate Wi-Fi 6, 2x2:2 | 901-H350-WW00 |
| RUCKUS H550 | Wall-plate Wi-Fi 6, 802.3af PoE out | 901-H550-WW00 |
| RUCKUS H550 | Wall-plate Wi-Fi 6, 48 V passive PoE out | 901-H550-WW02 |
| RUCKUS H670 | Wall-plate tri-band Wi-Fi 7 | 901-H670-WW00 |
| RUCKUS T350c | Outdoor Wi-Fi 6, 2x2:2, omni | 901-T350-WW20 |
| RUCKUS T350d | Outdoor Wi-Fi 6, 2x2:2, omni, DC/USB/IoT | 901-T350-WW40 |
| RUCKUS T350se (this listing) | Outdoor Wi-Fi 6, 2x2:2, sector + external antenna | 901-T350-WW51 |
| RUCKUS T750 | Outdoor Wi-Fi 6, 4x4:4, omni | 901-T750-WW01 |
| RUCKUS T750SE | Outdoor Wi-Fi 6, 4x4:4, sector + external antenna | 901-T750-WW51 |
| RUCKUS T670 | Outdoor Wi-Fi 7 | 901-T670-WW01 |
| RUCKUS T670sn | Outdoor Wi-Fi 7 | 901-T670-WW51 |
Power, Mounting & Antenna Accessories
RUCKUS lists the 902-0162-XXYY 24W PoE injector, the 902-0125-0000 secure articulating mounting bracket, the 902-1121-0000 spare weatherizing cable gland, the 902-0183-000 spare RJ-45 cable gland, the 902-0127-0000 extended USB cap and the 911-2140-0000 dual-band external antenna (T350se only). Ask us to add the right option to your quote.
Datasheet & Downloads
| RUCKUS data sheet | RUCKUS T350 Series Data Sheet (PDF) |
| RUCKUS product page | RUCKUS T350 Outdoor Access Point |
| Technical documentation | RUCKUS T350 technical documentation |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 901-T350-WW51.
Frequently Asked Questions — RUCKUS T350se 901-T350-WW51
What is the difference between 901-T350-WW51 and 9U1-T350-WW51?
Same T350se hardware. 901- is the standard AP for SmartZone, ZoneDirector, cloud or standalone management; 9U1- ships with Unleashed (embedded controller).
How do the T350c, T350d and T350se differ?
The T350c is omni, PoE-only, -20°C to 65°C. The T350d adds DC input, USB and a BLE/Zigbee IoT radio and runs from -40°C. The T350se has a 120° sector antenna with N-type connectors for an external antenna, plus DC input and USB.
How can it be powered?
802.3at PoE (Class 4, 21.3 W) or 802.3af (12.81 W), or a 12 V DC terminal block accepting 7-20 V (19.34 W max).
Can I fit a higher-gain antenna?
Yes. The T350se has N-type female connectors; RUCKUS offers the 911-2140-0000 dual-band external antenna for it.
What warranty do I get?
RUCKUS sells the T350 series with a limited one-year warranty; SourceIT supplies it with local support and a GST invoice.
