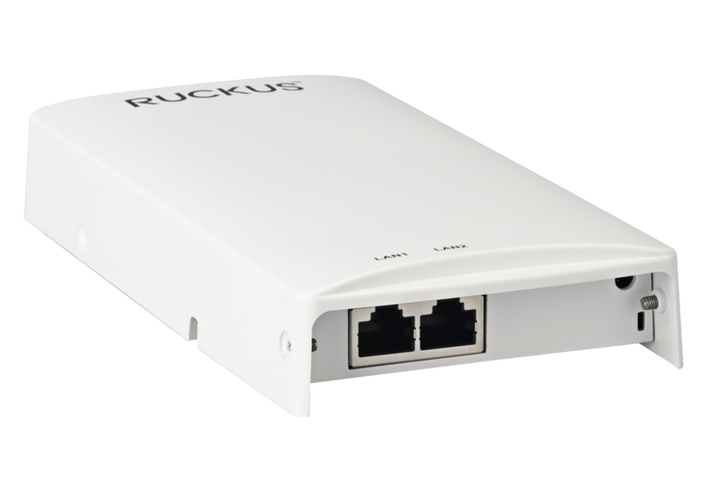

RUCKUS H350 Wall-Plate Wi-Fi 6 2x2:2 Access Point
PRODUCT DESCRIPTION
RUCKUS H350 Wall-Plate Wi-Fi 6 2x2:2 Access Point (901-H350-WW00) - Limited Lifetime Local Warranty
Wall-Plate Wi-Fi 6, IoT and Switch in One
The RUCKUS H350 is a wall-mounted dual-band 802.11ax (Wi-Fi 6) access point with 2x2:2 radios, integrated BLE and Zigbee, and two extra 1GbE LAN ports for wired devices in the room. RUCKUS rates it at up to 1774 Mbps (802.11ax) and up to 512 clients per AP.
Controller-Managed Edition
This is the standard edition (part number prefix 901-) for networks run from a RUCKUS SmartZone or ZoneDirector controller, or from cloud management. For controller-less Wi-Fi, the Unleashed part 9U1-H350-WW00 is the one to order.
Fits a Standard Wall Box
The H350 installs over an electrical wall box or a standard US or EU single-gang wall jack, with an optional bracket for offset and surface mounting. It runs from a single 802.3af (Class 3) PoE uplink.
Built for Rooms, Not Arenas
RUCKUS positions the H350 for low-density enterprise, hospitality, MDU, small and medium-size businesses, retail, restaurants and small or branch offices.
Supplied in Singapore with Local Warranty
RUCKUS sells the H350 with a limited lifetime warranty. SourceIT supplies it locally in Singapore with a GST invoice. Email sales@sourceit.com.sg with your room count for a bill of materials.
RUCKUS H350 901-H350-WW00 Datasheet — Technical Specifications
General
| Product Name | RUCKUS H350 Wall-Plate Access Point |
| Part Number | 901-H350-WW00 |
| Edition | Standard (non-Unleashed) AP; Unleashed version is 9U1-H350-WW00 |
| Manufacturer Warranty | Limited lifetime warranty (RUCKUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Wireless
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| Radios | Dual-band 2.4 GHz and 5 GHz |
| MIMO / Streams | 2x2:2 (2.4 GHz and 5 GHz); 2x2 SU-MIMO and MU-MIMO |
| Channelization | 20, 40, 80 MHz |
| Supported Data Rates | 802.11ax 4 to 1774 Mbps; 802.11ac 6.5 to 867 Mbps; 802.11n 6.5 to 300 Mbps; 802.11a/g 6 to 54 Mbps; 802.11b 1 to 11 Mbps |
| Peak PHY Rate | 2.4 GHz 574 Mbps; 5 GHz 1200 Mbps |
| Supported Channels | 2.4 GHz: 1-13; 5 GHz: 36-64, 100-144, 149-165 |
| Client Capacity | Up to 512 clients per AP |
| SSIDs | 8 per radio |
| Antenna | BeamFlex+ adaptive antennas with polarization diversity; gain up to 1 dBi |
| Max Tx Power | 2.4 GHz 19 dBm; 5 GHz 22 dBm (aggregate) |
| Min Receive Sensitivity | -100 dBm |
| IoT | Integrated BLE and Zigbee (1 radio, switchable) |
Interfaces & Power
| Uplink | 1 x 1GbE RJ-45, PoE in 802.3af Class 3 |
| LAN Ports | 2 x 1GbE RJ-45 |
| Power Consumption | 12.54 W |
Security
| Wireless Security | WPA-PSK, WPA-TKIP, WPA2 AES, WPA3-Personal, WPA3-Enterprise, 802.11i, Dynamic PSK, OWE |
| Other | WIPS/WIDS, 802.1X authenticator and supplicant |
Physical & Environmental
| Dimensions | 89.5 mm (W) x 178.5 mm (L) x 29.3 mm (H) |
| Weight | 276 g without bracket; 346 g with bracket |
| Mounting | Electrical wall box; standard US and EU single-gang wall jack; optional bracket for offset and wall mount |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | Up to 95%, non-condensing |
Certifications
| Wi-Fi Alliance | Wi-Fi CERTIFIED 6, WPA3-Enterprise/Personal |
| Safety / Other | EN 60950-1, EN 62311, WEEE & RoHS |
Figures are taken from the RUCKUS H350 data sheet. For anything not listed, refer to the RUCKUS documents linked under Datasheet & Downloads.
Compatibility & Software Support
Management
This is the standard (non-Unleashed) edition, part number prefix 901-, for networks run from a RUCKUS controller or management platform. The RUCKUS H350 data sheet lists SmartZone, ZoneDirector, Unleashed, standalone and cloud management for the H350 hardware. If you want controller-less Wi-Fi with no controller or subscription, order the Unleashed part 9U1-H350-WW00 instead.
Mixing with Other RUCKUS Gear
Wi-Fi 6 clients get the full 802.11ax feature set; 802.11a/b/g/n/ac devices remain supported. Any 802.3af PoE switch port, such as a RUCKUS ICX, powers it.
What It Is Suited To
Hotel rooms, multi-dwelling units, small offices, retail and restaurants — rooms that need Wi-Fi plus a couple of wired jacks rather than high-density coverage.
Package Contents & RUCKUS Access Point Ordering Information
In the Box
One RUCKUS H350 wall-plate access point. The RUCKUS data sheet does not publish the box contents; the surface-mount bracket 902-0136-0000 is listed as an optional accessory.
RUCKUS Access Points (Non-Unleashed, 901-) — Ordering Information
| RUCKUS R350 | Wi-Fi 6, 2x2:2, indoor | 901-R350-WW02 |
| RUCKUS R370 | Dual-band Wi-Fi 7, indoor | 901-R370-WW02 |
| RUCKUS R550 | Wi-Fi 6, 2x2:2, indoor | 901-R550-WW00 |
| RUCKUS R560 | Wi-Fi 6E tri-radio, 2x2:2, indoor | 901-R560-WW00 |
| RUCKUS R575 | Tri-band Wi-Fi 7, indoor | 901-R575-WW00 |
| RUCKUS R650 | Wi-Fi 6, 4+2 streams, indoor | 901-R650-WW00 |
| RUCKUS R670 | Tri-band Wi-Fi 7, indoor | 901-R670-WW00 |
| RUCKUS R676 | Tri-band Wi-Fi 7, indoor | 901-R676-WW51 |
| RUCKUS R750 | Wi-Fi 6, 4x4:4, indoor | 901-R750-WW00 |
| RUCKUS R760 | Wi-Fi 6E tri-radio, 4x4:4, indoor | 901-R760-WW00 |
| RUCKUS R770 | Tri-band Wi-Fi 7, indoor | 901-R770-WW00 |
| RUCKUS R850 | Wi-Fi 6, 8x8:8, indoor | 901-R850-WW00 |
| RUCKUS H350 (this listing) | Wall-plate Wi-Fi 6, 2x2:2 | 901-H350-WW00 |
| RUCKUS H550 | Wall-plate Wi-Fi 6, 802.3af PoE out | 901-H550-WW00 |
| RUCKUS H550 | Wall-plate Wi-Fi 6, 48 V passive PoE out | 901-H550-WW02 |
| RUCKUS H670 | Wall-plate tri-band Wi-Fi 7 | 901-H670-WW00 |
| RUCKUS T350c | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW20 |
| RUCKUS T350d | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW40 |
| RUCKUS T350se | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW51 |
| RUCKUS T750 | Outdoor Wi-Fi 6, 4x4:4 | 901-T750-WW01 |
| RUCKUS T750SE | Outdoor Wi-Fi 6, 4x4:4 | 901-T750-WW51 |
| RUCKUS T670 | Outdoor Wi-Fi 7 | 901-T670-WW01 |
| RUCKUS T670sn | Outdoor Wi-Fi 7 | 901-T670-WW51 |
Power & Mounting Accessories
RUCKUS lists the 902-0162 24W PoE injector, the 902-0170 30W power supply and the 902-0136-0000 optional surface-mount bracket. Ask us to add the right option to your quote.
Datasheet & Downloads
| RUCKUS data sheet | RUCKUS H350 Data Sheet (PDF) |
| RUCKUS data sheet (web) | RUCKUS H350 Data Sheet (HTML) |
| RUCKUS product page | RUCKUS H350 Access Point |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 901-H350-WW00.
Frequently Asked Questions — RUCKUS H350 901-H350-WW00
What is the difference between 901-H350-WW00 and 9U1-H350-WW00?
Same H350 hardware. 901- is the standard AP for SmartZone, ZoneDirector or cloud management; 9U1- ships with Unleashed (embedded controller, no controller or subscription needed).
What PoE does it need?
A single 802.3af (Class 3) PoE uplink; RUCKUS lists power consumption at 12.54 W.
Can I plug wired devices into it?
Yes. It has two 1GbE LAN ports for devices such as a TV, phone or desktop. The H350 data sheet lists no PoE out port — for PoE out, see the H550.
H350 or H550?
The H550 adds a 4-port switch with one PoE out port, dual-concurrent BLE and Zigbee, and a USB port, but needs an 802.3bt uplink for all features.
What warranty do I get?
RUCKUS sells the H350 with a limited lifetime warranty; SourceIT supplies it with local support and a GST invoice.
