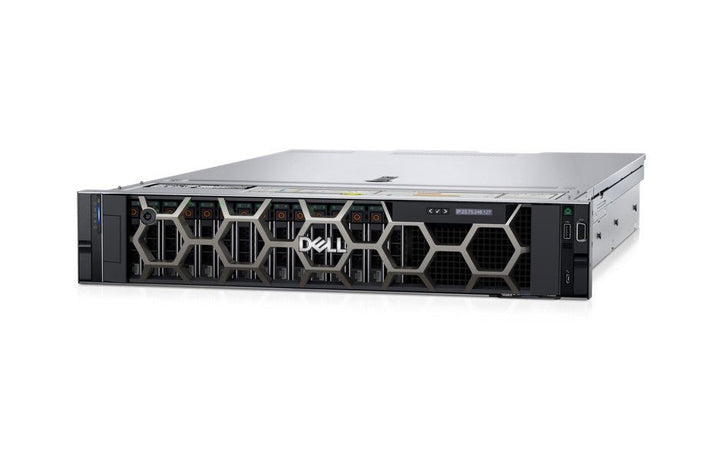

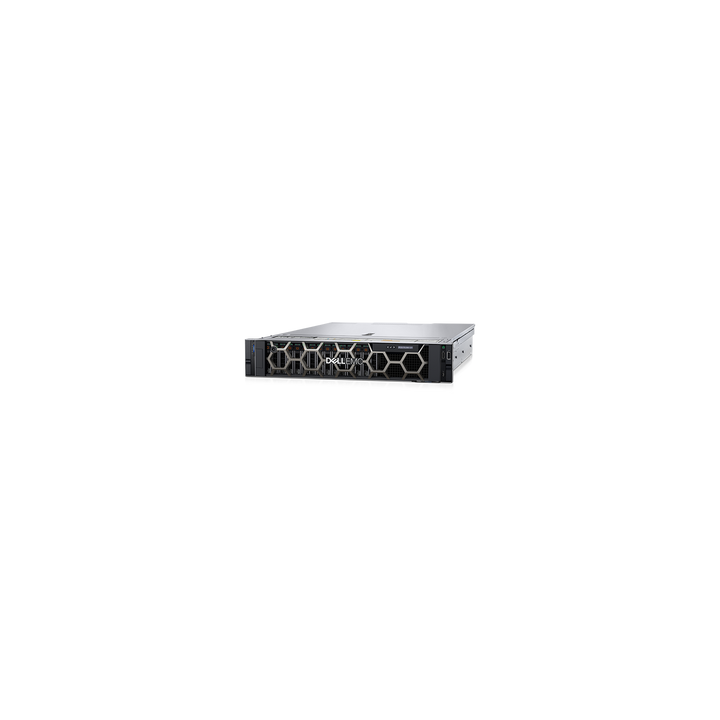

Dell PowerEdge R550 2U Rack Server
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
Dell PowerEdge R550 2U Rack Server (Configure-to-Order) - Local Warranty
Dual-Socket 2U Flexibility at a Value Price
The Dell PowerEdge R550 is a 2U rack server with up to two 3rd Generation Intel Xeon Scalable processors (up to 24 cores each) and 16 DDR4 RDIMM slots for up to 1 TB of memory at up to 2933 MT/s, built for organisations that want extra storage and expansion room without paying for a flagship platform. The R550 belongs to Dell's previous (15th) PowerEdge generation; the current-generation equivalent is the PowerEdge R760xs.
Room for Drives and Cards
Front bays take up to 16 x 2.5-inch or 8 x 3.5-inch SAS/SATA drives (up to 128 TB), with PERC hardware RAID, BOSS-S2 boot, three PCIe Gen4 slots plus one Gen3 slot and an optional OCP 3.0 network card.
Managed and Secured by iDRAC9
Every R550 ships with Dell's iDRAC9 controller, Quick Sync 2 wireless option and the OpenManage portfolio for remote monitoring and lifecycle management, backed by a Silicon Root of Trust, signed firmware, Secure Boot and System Lockdown.
Dell PowerEdge R550 Datasheet — Technical Specifications
General
| Product Name | Dell PowerEdge R550 Rack Server |
| Generation | Dell PowerEdge 15th Generation (Intel) |
| Form Factor | 2U rack server |
| Order Type | Configure-to-Order (CPUs, memory, drives, RAID, NIC, PSU and support term chosen per order) |
| Local Warranty (Singapore) | Dell warranty and support term selected at configuration; 3 years minimum recommended |
Processor & Memory
| Processors | Up to two 3rd Generation Intel Xeon Scalable processors, up to 24 cores each |
| Memory Slots | 16 DDR4 DIMM slots, registered ECC DDR4 RDIMMs only |
| Maximum Memory | 1 TB |
| Memory Speed | Up to 2933 MT/s |
Storage
| Front Drive Bays | Up to 16 x 2.5" SAS/SATA (max 122.88 TB); up to 8 x 3.5" SAS/SATA (max 128 TB); or up to 8 x 2.5" SAS/SATA (max 61.44 TB) |
| Internal Controllers | PERC H345, PERC H745, PERC H755, HBA355i, S150 software RAID |
| External Controllers | PERC H840, HBA355e |
| Boot | Internal dual SD module, internal USB 3.0, or BOSS-S2 (hardware RAID, 2 x M.2 SSDs) |
Expansion & Networking
| PCIe Slots | 3 x PCIe Gen4 slots and 1 x PCIe Gen3 slot |
| GPU Support | Not supported |
| Embedded NIC | 2 x 1GbE LOM |
| Network Options | 1 x OCP 3.0 (optional) |
| Front Ports | 1 x iDRAC Direct (Micro-AB USB), 1 x USB 2.0, 1 x VGA |
| Rear Ports | 1 x dedicated iDRAC Ethernet, 1 x USB 2.0, 1 x USB 3.0, 1 x VGA, 1 x serial (optional) |
| Internal Port | 1 x USB 3.0 (optional) |
Management & Security
| Embedded Management | iDRAC9, iDRAC Service Module, iDRAC Direct, Quick Sync 2 wireless module |
| OpenManage | OpenManage Enterprise with Power Manager, SupportAssist and Update Manager plug-ins; OpenManage Mobile |
| Integrations | BMC Truesight, Microsoft System Center, Red Hat Ansible Modules, VMware vCenter and vRealize Operations Manager; connections for IBM Tivoli Netcool/OMNIbus, IBM Tivoli Network Manager IP Edition, Micro Focus Operations Manager, Nagios Core and Nagios XI |
| Security | Silicon Root of Trust, cryptographically signed firmware, Secure Boot, Secure Erase, System Lockdown (requires iDRAC9 Enterprise or Datacenter), TPM 1.2/2.0 (FIPS, CC-TCG certified), TPM 2.0 China NationZ |
| Bezel | Optional LCD bezel or security bezel |
Power, Cooling & Physical
| Power Supplies | Hot-swap redundant: 600 W Platinum, 700 W Titanium, 800 W Platinum, 1100 W Titanium (mixed mode) or 1100 W -48 V DC |
| Cooling | Air cooling; up to five cold-swap standard fans |
| Dimensions (H x W x D) | 86.8 x 482 x 721.69 mm (with bezel); 685.78 mm deep without bezel |
How to Configure Your Server — Sizing Checklist
Servers are built to order. Answer the questions below so we can size the right configuration for you.
Step 1: Hardware Requirements
- Which server form factor do you need: tower or rackmount?
- How many CPU cores, how much RAM and how much usable storage capacity do you require?
- How many processors: single-socket (1S), dual-socket (2S) or four-socket (4S)?
- Which RAID configuration do you need? Any specific HDD or SSD type, such as 7.2K or 10K rpm drives?
- Which network interface is required: 1GbE Base-T, SFP+ or Fibre Channel?
- How many years of maintenance support do you need? (Minimum 3 years)
Step 2: Deployment & Services
- How many server units are required?
- Will you run virtual machine workloads? Do you need a VMware licence, or Windows Server with Hyper-V?
- How do you store data today? Do you have existing NAS or SAN storage?
- How do you back up today? Would you like a backup proposal, such as an IDPA 8TB appliance?
- Do you require burn-in test services?
- Do you need hard disk retention services?
Operating Systems, Management & Workloads
Operating Systems & Hypervisors
Canonical Ubuntu Server LTS, Citrix Hypervisor, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi. Check Dell's OS support matrix for the exact versions certified on your chosen processor.
Management Tools
iDRAC9 gives out-of-band console, monitoring and alerting from day one. OpenManage Enterprise manages fleets of PowerEdge servers, and integrations bring the R550 into VMware vCenter, Microsoft System Center and Red Hat Ansible workflows.
Typical Workloads
Server virtualisation, file and backup storage, collaboration, mid-size databases and software-defined storage where drive count matters more than maximum core count.
Package Contents & Dell PowerEdge 15th Generation Ordering Information
What Is Supplied
The R550 is built to order: chassis with the processor(s), memory, drives, RAID controller, network options and power supplies specified on your quotation, plus rack rails, bezel and power cords where ordered.
Dell PowerEdge 15th Generation
| Model | Key feature |
| PowerEdge R250 | 1U, 1-socket Intel Xeon E-2300 |
| PowerEdge R350 | 1U, 1-socket Intel Xeon E-2300, hot-plug drives |
| PowerEdge R450 | 1U, 2-socket 3rd Gen Intel Xeon Scalable |
| PowerEdge R550 (this listing) | 2U, 2-socket 3rd Gen Intel Xeon Scalable |
| PowerEdge R650 | 1U, 2-socket 3rd Gen Intel Xeon Scalable, high density |
| PowerEdge R750 | 2U, 2-socket 3rd Gen Intel Xeon Scalable |
Datasheet & Downloads
| Dell spec sheet | Dell PowerEdge R550 Spec Sheet (PDF) |
| Technical guide | Dell PowerEdge R550 Technical Guide (PDF) |
| Manuals & drivers | PowerEdge R550 manuals and documents on Dell Support |
Frequently Asked Questions — Dell PowerEdge R550
Is this a fixed configuration?
No. The R550 is configure-to-order. Processors, memory, drives, RAID controller, network cards, power supplies and the support term are specified to your workload; use the sizing checklist above to brief us.
How much memory can it take?
16 DDR4 RDIMM slots for up to 1 TB, running at up to 2933 MT/s.
How much storage does it hold?
Up to 16 x 2.5-inch SAS/SATA drives (122.88 TB) or 8 x 3.5-inch SAS/SATA drives (128 TB) at the front.
R550 or R750?
The R550 is the value 2U dual-socket choice (up to 24 cores per CPU, 1 TB memory, SAS/SATA drives). The R750 adds up to 40 cores per CPU, 32 DIMM slots, NVMe drives, GPU support and optional liquid cooling.
Which generation is this?
The R550 is a 15th Generation PowerEdge server. The current-generation equivalent is the PowerEdge R760xs.
