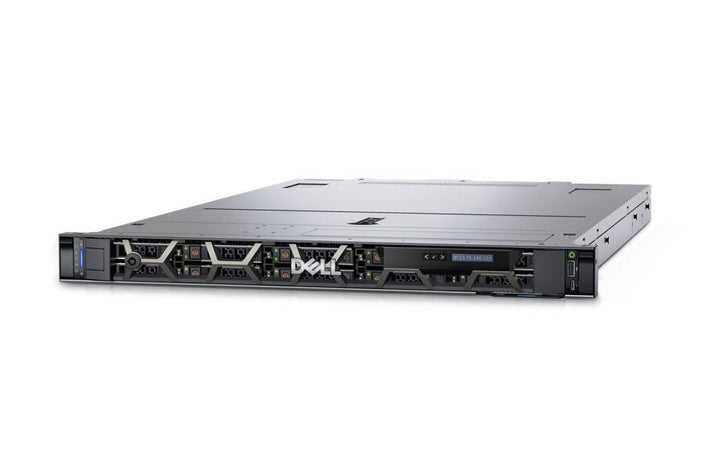

Dell PowerEdge R650 Rack Server

Dell PowerEdge R650 Rack Server (Advance CTO, Please Enquire for Further Information) - Local Warranty

High-Density 1U Rack Server for Modern Data Centers

The Dell PowerEdge R650 Rack Server is a compact 1U dual-socket enterprise server designed for high-density deployments. It is ideal for data centers requiring powerful performance within limited rack space, supporting workloads such as virtualization, databases, and enterprise applications.

Powered by 3rd Gen Intel Xeon Scalable Processors

Built with 3rd Generation Intel Xeon Scalable processors, the R650 supports dual CPUs with up to 40 cores each, delivering strong compute power for demanding workloads including analytics, VDI, and AI/ML environments.

High-Speed Memory and Scalability

The server features up to 32 DDR4 DIMM slots with 8 memory channels per CPU, enabling large memory capacity and high bandwidth performance. This makes it suitable for memory-intensive applications and virtualized environments.

Flexible Storage with NVMe Support

The PowerEdge R650 supports SAS, SATA, and NVMe drives, with configurations of up to 12 NVMe drives for high-speed data access. This flexibility ensures optimal performance for storage-heavy workloads and databases.

PCIe Gen4 Expansion for High Throughput

Equipped with PCIe Gen4 slots, the R650 enables faster data transfer and supports GPUs, high-speed networking, and storage expansion, making it future-ready for evolving enterprise workloads.

Advanced Cooling and Efficient Design

Designed for efficiency, the R650 includes enhanced airflow and optional advanced cooling solutions to handle increasing power demands while maintaining performance in dense rack environments.

Enterprise Management and Security

The server integrates Dell OpenManage with iDRAC, providing centralized monitoring, automation, and lifecycle management. It also features a cyber-resilient architecture with secure boot, firmware protection, and system lockdown capabilities.

Technical Specification

Processor
• Dual-socket server (2 x CPU supported)
• Intel Xeon Scalable Processors (3rd Gen)
• Up to 40 cores per CPU
• Optimised for virtualization, databases, and high-density workloads

Memory
• Up to 32 DIMM slots (16 per CPU)
• DDR4 memory up to 3200 MT/s
• Up to ~4TB (LRDIMM) or ~2TB (RDIMM) capacity
• 8 memory channels per CPU for high bandwidth

Storage
• Flexible configurations:
• Up to 12 x 2.5” SAS/SATA/NVMe drives
• Up to 4 x 3.5” drives
• NVMe support for ultra-fast performance
• RAID supported via Dell PERC controllers

Form Factor & Design
• 1U rack-mounted server (high-density design)
• Fits standard 19” rack environments
• Optimised airflow for compact deployments

Chipset / Platform
• Intel platform (C620 series)
• PCIe Gen4 support for high-speed I/O
• Designed for modern data center workloads

Expansion & Slots
• Up to 3 x PCIe Gen4 slots
• OCP 3.0 network adapter support
• Optional GPU support (limited, low-profile)

Networking
• Integrated Gigabit Ethernet
• Optional 10GbE / 25GbE / Fibre Channel
• OCP NIC 3.0 for flexible networking

Management
• Dell iDRAC9 with Lifecycle Controller
• OpenManage Enterprise integration
• Remote monitoring, automation, provisioning

Security (Enterprise Grade)
• Silicon Root of Trust
• TPM 2.0
• Secure Boot & System Lockdown
• Cyber-resilient architecture

Power Supply
• Dual hot-plug PSU (redundant supported)
• Options: ~800W, 1100W, 1400W
• High-efficiency (Platinum/Titanium)

Cooling
• High-performance fan modules
• Optimised for dense 1U thermal environment

Operating System Support
• VMware ESXi
• Microsoft Windows Server
• Red Hat Enterprise Linux
• Ubuntu / SUSE Linux

Dimensions & Build
• 1U rack form factor
• Approx weight up to ~21kg (fully configured)
• Tool-less serviceable design

Use Case
• High-density virtualization (VMware / Hyper-V)
• Database & analytics workloads
• Virtual Desktop Infrastructure (VDI)
• Software-defined storage
• Private cloud / edge deployments

Positioning
• 1U high-density alternative to R750 (2U)
• Better for space-constrained racks
• Slightly less expandable vs R750 but more compact
• Ideal for compute-heavy, space-optimised environments

How to Configurate Server?

Step 1:
What is the Server Form Factor? Tower or Rackmount Server?
What is the number of CPU Core or Ram or HDD usable size require?
What is the number of CPU Processor? 1S or 2S or 4S?
What is the RAID Configuration? Any specific HDD or SSD? 7.2K or 10K?
What is the specific NIC is required? Base-T 1G or SFP+? Or Fibre Channel?
What is the number of year maintenance support required? Minimum 3 years

Step 2:
How many number of unit Server?
Any VM workload? Required any VMware license? Or Window OS Hyper-V?
How do you store data currently? Any NAS or SAN Storage?
How do you doing the backup? Required any backup proposal? IDPA 8TB?
Do you require burn-in test services?
Do you need hard disk retention services?
