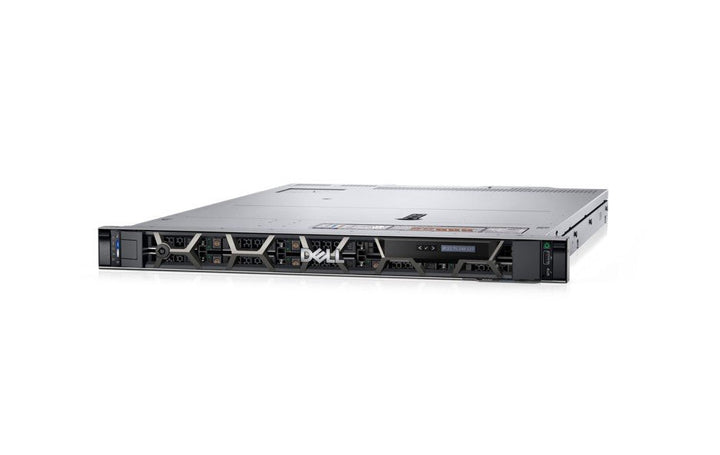

Dell PowerEdge R450 Rack Server

Dell PowerEdge R450 Rack Server (Advance CTO, Please Enquire for Further Information) - Local Warranty

Compact 1U Rack Server for Space-Constrained Environments

The Dell PowerEdge R450 Rack Server is a 1U dual-socket server designed for organizations that need performance in a compact footprint. It is ideal for space-constrained data centers, branch offices, and SMB deployments, delivering strong performance in a rack-dense form factor.

Powered by 3rd Gen Intel Xeon Scalable Processors

Built with 3rd Generation Intel Xeon Scalable processors, the R450 supports up to two CPUs with up to 24 cores each, providing reliable compute power for virtualization, business applications, and light enterprise workloads.

Efficient Memory and Scalable Performance

The server supports up to 16 DDR4 DIMM slots with speeds up to 2933 MT/s, delivering sufficient memory bandwidth for virtual machines and general-purpose workloads. It is optimized for cost-efficient performance scaling.

Flexible Storage Options for Growing Needs

The PowerEdge R450 offers flexible storage configurations, supporting up to 8 x 2.5” drives or 4 x 3.5” drives (SAS/SATA/SSD). This makes it suitable for file storage, backup, and entry-level database workloads.

PCIe Gen4 Expansion for Future Growth

Equipped with PCIe Gen4 slots, the server enables faster data transfer and supports expansion cards such as RAID controllers and network adapters, ensuring scalability for future requirements.

Optimised for SMB and Light Virtualisation

The R450 is positioned as a value-optimized server, making it ideal for small IT infrastructure, edge deployments, and light virtualization workloads without the cost of higher-end models like R650 or R750.

Technical Specification

Processor
• Dual-socket server (supports up to 2 CPUs)
• Intel Xeon Scalable Processors (3rd Gen)
• Up to 24 cores per CPU
• Designed for entry to mid-level enterprise workloads

Memory
• Up to 16 DIMM slots (8 per CPU)
• DDR4 memory up to 3200 MT/s
• Maximum capacity up to ~1TB
• ECC memory supported for reliability

Storage
• Flexible configurations:
• Up to 8 x 2.5” SAS/SATA drives
• Up to 4 x 3.5” drives
• Supports NVMe (config dependent)
• RAID supported via Dell PERC controllers
• Optional BOSS (Boot Optimized Storage) M.2

Form Factor & Design
• 1U rack-mounted server
• High-density, space-saving design
• Optimised for small data centres and edge deployments

Chipset / Platform
• Intel platform (C620 series family)
• PCIe Gen4 support for high-speed I/O
• Scalable architecture for growing workloads

Expansion & Slots
• Up to 2 x PCIe Gen4 slots
• OCP 3.0 network adapter support
• Limited GPU support (not GPU-focused)

Networking
• Onboard: Dual-port 1GbE LAN (Broadcom 5720)
• Optional 10GbE / 25GbE via OCP NIC
• Flexible enterprise networking options

Management
• Dell iDRAC9 with Lifecycle Controller
• OpenManage Enterprise integration
• Remote monitoring, provisioning, automation

Security (Enterprise Grade)
• Silicon Root of Trust
• TPM 2.0 hardware security
• Secure Boot & System Lockdown
• End-to-end cyber-resilient architecture

Power Supply
• Dual hot-plug PSU (redundant supported)
• Options: ~600W / 800W
• High-efficiency (80 PLUS Platinum)

Cooling
• Optimised fan system for 1U chassis
• Efficient airflow for dense rack deployment

Ports & Connectivity
• Front: USB 2.0, iDRAC Direct
• Rear: USB 3.0, VGA
• Internal: Dedicated management port
• Optional serial port

Graphics
• Integrated Matrox G200
• 16MB video memory
• Basic display for server management

Operating System Support
• VMware ESXi
• Microsoft Windows Server
• Red Hat Enterprise Linux
• Ubuntu / SUSE Linux

Dimensions & Build
• 1U rack form factor
• Approx weight: ~16–18kg (config dependent)
• Tool-less serviceable chassis

Use Case
• Small business IT infrastructure
• Lightweight virtualization (VMware / Hyper-V)
• File server / backup server
• Web hosting / application server
• Edge computing deployments

Positioning
• Entry-level 1U enterprise server
• More affordable vs R650 / R750
• Lower memory + expansion ceiling
• Ideal for SMB and cost-sensitive deployments

Quick Take
• Best for small IT setups and branch offices
• Compact and cost-efficient
• Not suited for heavy workloads or large-scale virtualization
• Step-up path: R650 (more compute) / R750 (more expansion)

How to Configurate Server?

Step 1:
What is the Server Form Factor? Tower or Rackmount Server?
What is the number of CPU Core or Ram or HDD usable size require?
What is the number of CPU Processor? 1S or 2S or 4S?
What is the RAID Configuration? Any specific HDD or SSD? 7.2K or 10K?
What is the specific NIC is required? Base-T 1G or SFP+? Or Fibre Channel?
What is the number of year maintenance support required? Minimum 3 years

Step 2:
How many number of unit Server?
Any VM workload? Required any VMware license? Or Window OS Hyper-V?
How do you store data currently? Any NAS or SAN Storage?
How do you doing the backup? Required any backup proposal? IDPA 8TB?
Do you require burn-in test services?
Do you need hard disk retention services?
