Dell PowerEdge R750 2U Rack Server
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION

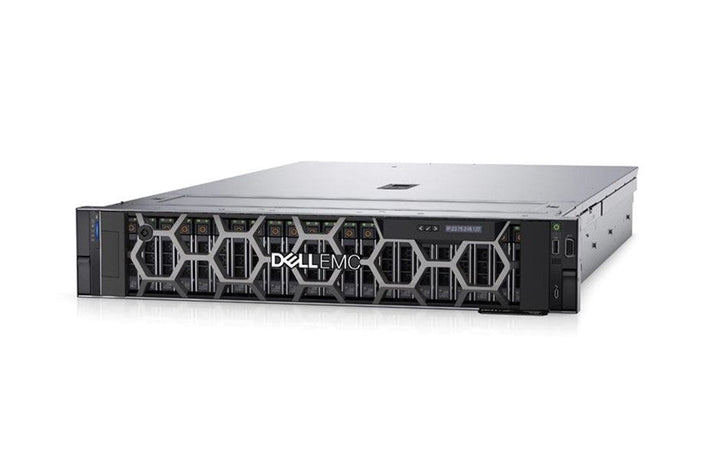

Dell PowerEdge R750 2U Rack Server (Configure-to-Order) - Local Warranty
Full-Featured 2U Enterprise Performance
The Dell PowerEdge R750 is a full-featured 2U enterprise server for demanding workloads, with up to two 3rd Generation Intel Xeon Scalable processors (up to 40 cores each) and 32 DDR4 DIMM slots for up to 2 TB of RDIMM or 8 TB of LRDIMM memory at up to 3200 MT/s, plus Intel Persistent Memory 200 series support. The R750 belongs to Dell's previous (15th) PowerEdge generation; the current-generation equivalent is the PowerEdge R760.
Storage, GPUs and PCIe Gen4 Expansion
Front bays take up to 24 x 2.5-inch SAS/SATA/NVMe or 12 x 3.5-inch SAS/SATA drives, with up to four rear 2.5-inch bays. Up to eight PCIe Gen4 slots, an OCP 3.0 network slot and up to two 300 W double-width GPUs suit virtualisation, databases, VDI and AI inference.
Managed and Secured by iDRAC9
Every R750 ships with Dell's iDRAC9 controller, Quick Sync 2 wireless option and the OpenManage portfolio for remote monitoring and lifecycle management, backed by a Silicon Root of Trust, signed firmware, Secure Boot and System Lockdown.
Dell PowerEdge R750 Datasheet — Technical Specifications
General
| Product Name | Dell PowerEdge R750 Rack Server |
| Generation | Dell PowerEdge 15th Generation (Intel) |
| Form Factor | 2U rack server |
| Order Type | Configure-to-Order (CPUs, memory, drives, RAID, NIC, PSU and support term chosen per order) |
| Local Warranty (Singapore) | Dell warranty and support term selected at configuration; 3 years minimum recommended |
Processor & Memory
| Processors | Up to two 3rd Generation Intel Xeon Scalable processors, up to 40 cores each |
| Memory Slots | 32 DDR4 DIMM slots, registered ECC DDR4 DIMMs only |
| Maximum Memory | 2 TB RDIMM or 8 TB LRDIMM |
| Persistent Memory | Up to 16 Intel Persistent Memory 200 series slots, 8 TB max |
| Memory Speed | Up to 3200 MT/s |
Storage
| Front Drive Bays | Up to 12 x 3.5" SAS/SATA (max 192 TB); up to 8 x 2.5" NVMe (max 122.88 TB); up to 16 x 2.5" SAS/SATA/NVMe (max 245.76 TB); or up to 24 x 2.5" SAS/SATA/NVMe |
| Rear Drive Bays | Up to 2 x 2.5" SAS/SATA/NVMe (max 30.72 TB) or up to 4 x 2.5" SAS/SATA/NVMe (max 61.44 TB) |
| Internal Controllers | PERC H345, PERC H745, PERC H755, PERC H755N, HBA355i, S150 software RAID |
| External Controllers | PERC H840, HBA355e |
| Boot | BOSS-S1 or BOSS-S2 (hardware RAID, 2 x M.2 SSDs, 240 GB or 480 GB) |
Expansion & Networking
| PCIe Slots | Up to 8 x PCIe Gen4 slots (up to 6 x16) with support for SNAP I/O modules |
| GPU Support | Up to two 300 W double-width, three 150 W single-width or six 75 W single-width accelerators |
| Embedded NIC | 2 x 1GbE LOM |
| Network Options | 1 x OCP 3.0 (x8 PCIe lanes) |
| Front Ports | 1 x iDRAC Direct (micro-USB), 1 x USB 2.0, 1 x VGA |
| Rear Ports | 1 x USB 2.0, 1 x USB 3.0, 2 x RJ-45, 1 x serial (optional), 1 x VGA (optional for liquid cooling configuration) |
| Internal Port | 1 x USB 3.0 |
Management & Security
| Embedded Management | iDRAC9, iDRAC Service Module, iDRAC Direct, Quick Sync 2 wireless module |
| OpenManage | OpenManage Enterprise with Power Manager, SupportAssist and Update Manager plug-ins; OpenManage Mobile |
| Integrations | BMC Truesight, Microsoft System Center, Red Hat Ansible Modules, VMware vCenter and vRealize Operations Manager; connections for IBM Tivoli Netcool/OMNIbus, IBM Tivoli Network Manager IP Edition, Micro Focus Operations Manager, Nagios Core and Nagios XI |
| Security | Silicon Root of Trust, cryptographically signed firmware, Secure Boot, Secure Erase, System Lockdown (requires iDRAC9 Enterprise or Datacenter), TPM 1.2/2.0 (FIPS, CC-TCG certified), TPM 2.0 China NationZ |
| Bezel | Optional LCD bezel or security bezel |
Power, Cooling & Physical
| Power Supplies | 700 W Titanium, 800 W Platinum, 1100 W Titanium, 1400 W Platinum, 1800 W Titanium, 2400 W Platinum or 2800 W Titanium (mixed mode), or 1100 W DC (-48 to -60 V) |
| Cooling | Air cooling; optional processor liquid cooling |
| Fans | Up to six hot-plug fans (Standard, High Performance Silver or High Performance Gold) |
| Dimensions (H x W x D) | 86.8 x 482 x 772.14 mm (with bezel); 758.3 mm deep without bezel |
How to Configure Your Server — Sizing Checklist
Servers are built to order. Answer the questions below so we can size the right configuration for you.
Step 1: Hardware Requirements
- Which server form factor do you need: tower or rackmount?
- How many CPU cores, how much RAM and how much usable storage capacity do you require?
- How many processors: single-socket (1S), dual-socket (2S) or four-socket (4S)?
- Which RAID configuration do you need? Any specific HDD or SSD type, such as 7.2K or 10K rpm drives?
- Which network interface is required: 1GbE Base-T, SFP+ or Fibre Channel?
- How many years of maintenance support do you need? (Minimum 3 years)
Step 2: Deployment & Services
- How many server units are required?
- Will you run virtual machine workloads? Do you need a VMware licence, or Windows Server with Hyper-V?
- How do you store data today? Do you have existing NAS or SAN storage?
- How do you back up today? Would you like a backup proposal, such as an IDPA 8TB appliance?
- Do you require burn-in test services?
- Do you need hard disk retention services?
Operating Systems, Management & Workloads
Operating Systems & Hypervisors
Canonical Ubuntu Server LTS, Citrix Hypervisor, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi. Check Dell's OS support matrix for the exact versions certified on your chosen processor.
Management Tools
iDRAC9 gives out-of-band console, monitoring and alerting from day one. OpenManage Enterprise manages fleets of PowerEdge servers, and integrations bring the R750 into VMware vCenter, Microsoft System Center and Red Hat Ansible workflows.
Typical Workloads
Server virtualisation and consolidation, VDI, SQL and Oracle databases, software-defined storage (vSAN, Azure Stack HCI), and GPU-accelerated AI inference and analytics.
Package Contents & Dell PowerEdge 15th Generation Ordering Information
What Is Supplied
The R750 is built to order: chassis with the processor(s), memory, drives, RAID controller, network options and power supplies specified on your quotation, plus rack rails, bezel and power cords where ordered.
Dell PowerEdge 15th Generation
| Model | Key feature |
| PowerEdge R250 | 1U, 1-socket Intel Xeon E-2300 |
| PowerEdge R350 | 1U, 1-socket Intel Xeon E-2300, hot-plug drives |
| PowerEdge R450 | 1U, 2-socket 3rd Gen Intel Xeon Scalable |
| PowerEdge R550 | 2U, 2-socket 3rd Gen Intel Xeon Scalable |
| PowerEdge R650 | 1U, 2-socket 3rd Gen Intel Xeon Scalable, high density |
| PowerEdge R750 (this listing) | 2U, 2-socket 3rd Gen Intel Xeon Scalable |
Datasheet & Downloads
| Dell spec sheet | Dell PowerEdge R750 Spec Sheet (PDF) |
| Technical guide | Dell PowerEdge R750 Technical Guide (PDF) |
| Manuals & drivers | PowerEdge R750 manuals and documents on Dell Support |
Frequently Asked Questions — Dell PowerEdge R750
Is this a fixed configuration?
No. The R750 is configure-to-order. Processors, memory, drives, RAID controller, network cards, power supplies and the support term are specified to your workload; use the sizing checklist above to brief us.
How much memory can it take?
32 DDR4 DIMM slots for up to 2 TB of RDIMM or 8 TB of LRDIMM memory at up to 3200 MT/s, plus Intel Persistent Memory 200 series support.
Does it support NVMe and GPUs?
Yes. Up to 24 front 2.5-inch SAS/SATA/NVMe bays, and up to two 300 W double-width GPUs or six 75 W single-width accelerators.
Can it be liquid cooled?
Yes. Processor liquid cooling is an option alongside standard air cooling.
Which generation is this?
The R750 is a 15th Generation PowerEdge server. The current-generation equivalent is the PowerEdge R760.
