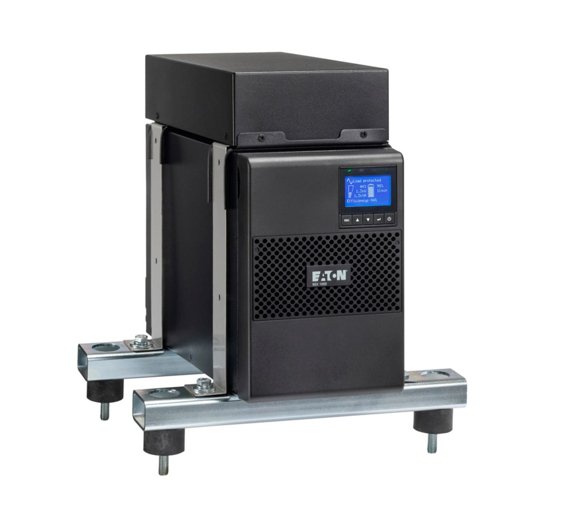

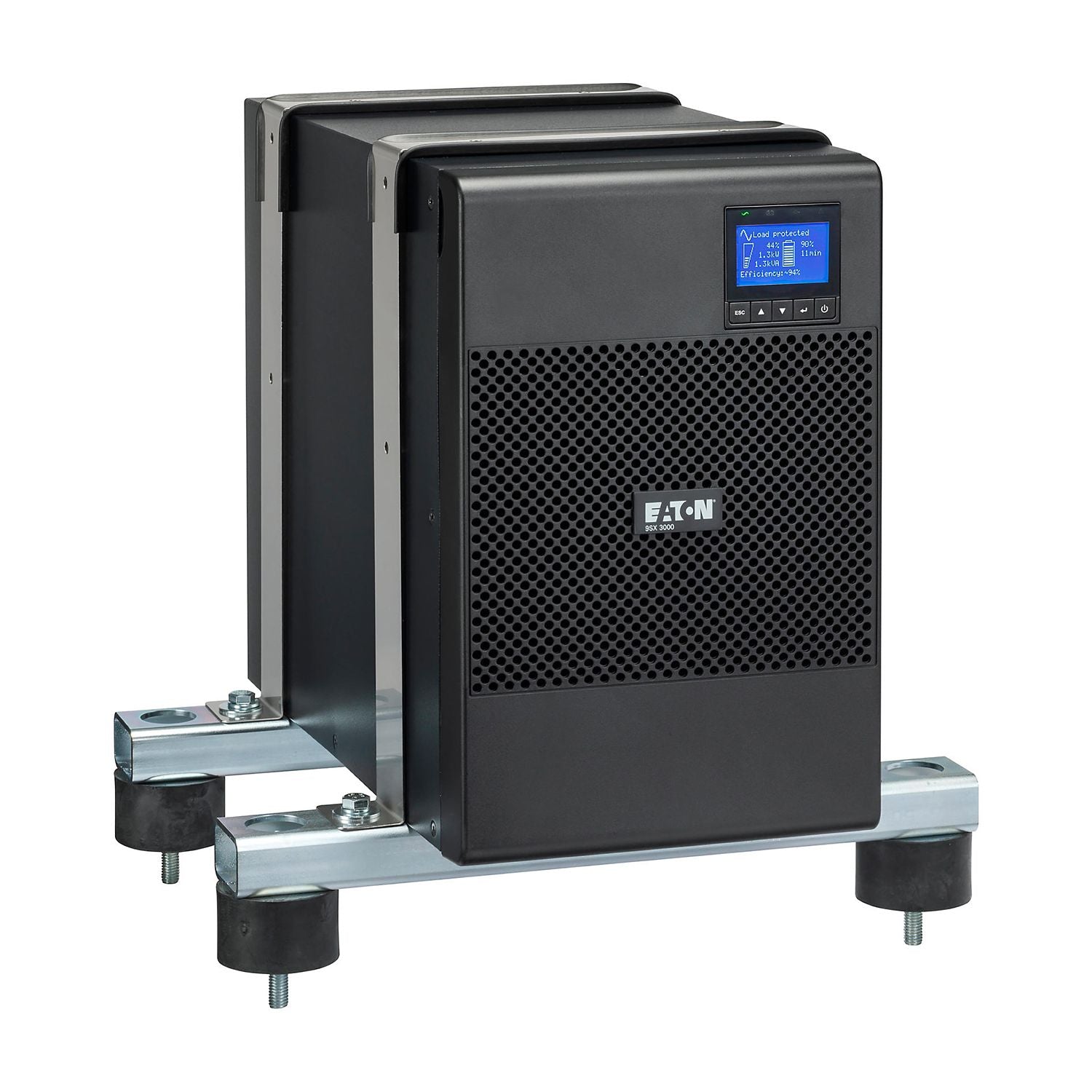

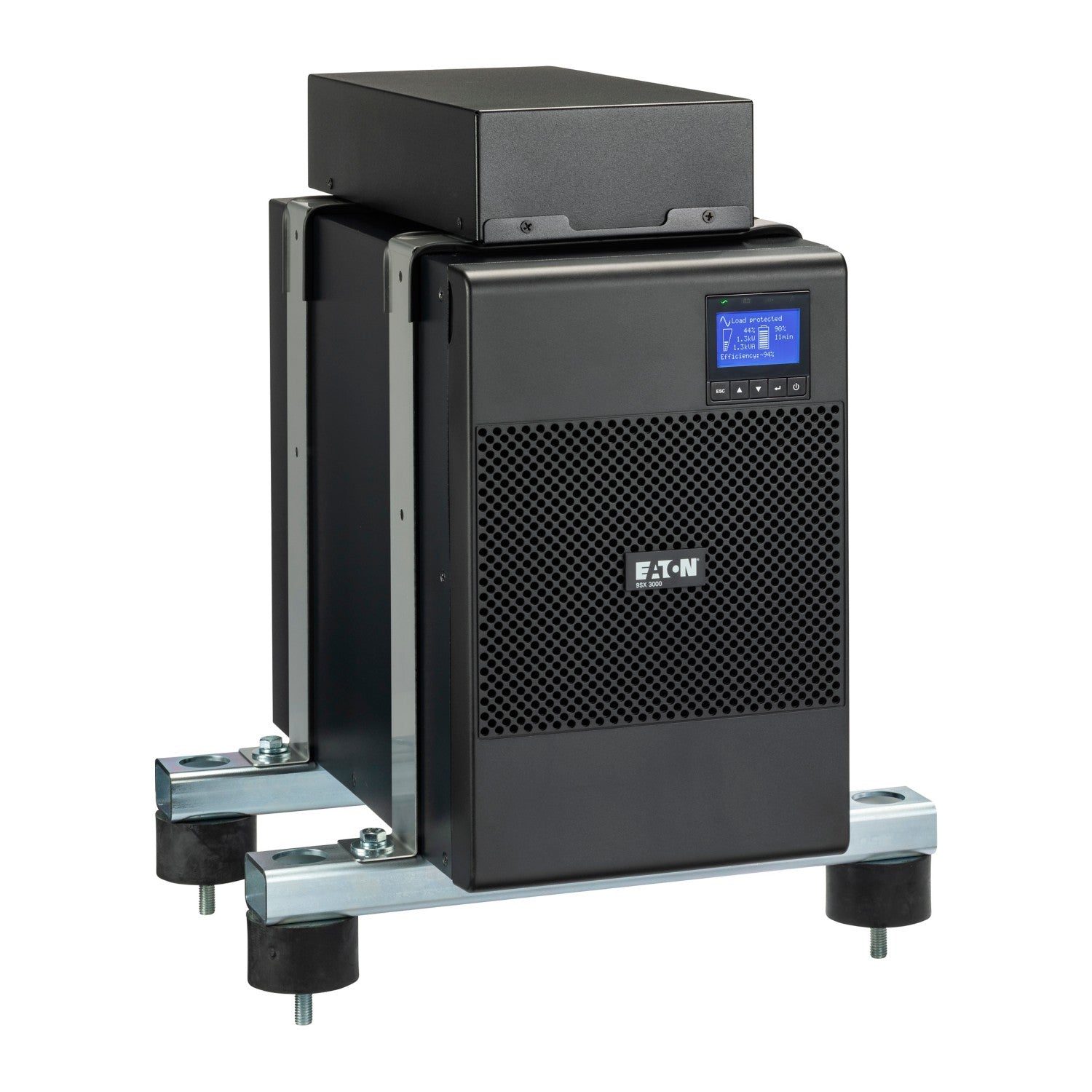

Eaton 9SX3000IM 3000VA Marine Tower Models 230V

Eaton 9SX3000IM 3000VA Marine Tower Models 230V (9103-83958) - 3 Years Local Warranty

Eaton 9SX 3000VA Marine Tower UPS – Powerful Protection for Marine Equipment

The Eaton 9SX 3000VA Marine Tower UPS 230V is specifically designed for marine environments, offering superior protection for your critical marine equipment. With a 3000VA/2700W power capacity, this high-performance uninterruptible power supply ensures your onboard systems, including navigation tools, communication equipment, and other essential devices, remain powered during power fluctuations or interruptions. The Eaton 9SX Marine UPS is ideal for vessels that require consistent and reliable power protection to operate safely and effectively.

Marine-Grade Durability for Harsh Environments

Built to withstand the tough conditions of marine environments, the Eaton 9SX 3000VA Tower UPS is designed with marine-grade durability. It meets rigorous marine standards, making it perfect for offshore, coastal, and inland waterways applications. The UPS is engineered to handle the challenges posed by salt, humidity, and fluctuating temperatures, ensuring your equipment stays protected in harsh conditions. Whether you're operating a vessel in the open sea or navigating through port areas, this UPS offers the robustness required for uninterrupted power protection.

Lithium-Ion Technology for Longer Battery Life and Faster Recharging

The Eaton 9SX 3000VA Marine Tower UPS is equipped with advanced lithium-ion battery technology, which provides exceptional battery life and faster recharge times compared to traditional lead-acid batteries. Lithium-ion batteries not only last longer but also help to reduce maintenance and operational costs. These batteries ensure that your critical systems are always backed by reliable power, and their quick recharging capabilities minimize downtime during power outages. For marine operators, this means more efficient operations and reduced risk of power failure.

Enhanced Monitoring and Remote Management Capabilities

With the Eaton 9SX 3000VA Marine Tower UPS, you gain access to comprehensive monitoring features that provide real-time insights into the status of your power protection system. The UPS comes with a clear and intuitive LCD display that shows key information such as load capacity, battery health, and input/output voltage. Additionally, the UPS supports remote management capabilities via network management cards, allowing you to monitor and control the system from a distance, ensuring you can maintain full oversight of your equipment at all times.

Scalable Power Protection with Flexibility for Marine Applications

The Eaton 9SX 3000VA Marine Tower UPS is designed to meet the unique needs of marine applications. Its modular and scalable design allows you to add external battery packs for extended runtime, providing a tailored solution for your vessel’s power needs. Whether you require more backup time during long voyages or need a compact solution for limited space, the Eaton 9SX UPS can be easily expanded. This flexibility ensures that your marine operations can continue smoothly, with reliable power that adapts to your needs.

Technical Specifications

General
Model: 9SX3000IM
Part Number: 9103-83958
Product Name: Eaton 9SX3000IM 3000VA Marine Tower UPS 230V
Manufacturer: Eaton
Product Type: Marine Online Double-Conversion UPS
UPS Topology: Online Double Conversion (VFI)
Form Factor: Tower
Power Capacity: 3000VA / 2700W
Output Power Factor: 0.9
Input Voltage: 230V AC
Output Voltage: 230V AC
Application: Marine, Offshore, Navigation Systems, Communication Systems, Industrial Automation, Critical Power Protection
Marine Certification: DNV-GL Certified
Warranty: 2 Years Limited Warranty

Power Specifications
Rated Capacity: 3000VA / 2700W
UPS Topology: Online Double Conversion
Output Power Factor: 0.9
Output Waveform: Pure Sine Wave
Input Nominal Voltage: 230V (200/208/220/230/240V Configurable)
Output Nominal Voltage: 230V (200/208/220/230/240V Configurable)
Input Voltage Range: 200V – 276V AC
Extended Input Voltage Range: 140V – 276V AC (with derating)
Input Frequency Range: 40Hz – 70Hz
Output Frequency: 50/60Hz
Frequency Converter Mode: Supported (50Hz ↔ 60Hz)
Marine Mode: Output Frequency Follows Input Frequency
Input Power Factor: >0.99
Efficiency: Up to 92.4%
Eco Mode Efficiency: Up to 97.4%
Internal Automatic Bypass: Supported
Auto Restart: Supported

Battery Specifications
Battery Type: Sealed Lead Acid (VRLA)
Battery Management: Eaton ABM® Advanced Battery Management
Battery Charging: Temperature Compensated Charging
Battery Replacement: Hot-Swappable
Automatic Battery Testing: Supported
Deep Discharge Protection: Supported
External Battery Modules (EBM): Supported
Maximum External Battery Modules: Up to 4
Automatic EBM Recognition: Supported
Extended Runtime Capability: Supported

Marine Features
Marine Environment Certified: Yes
DNV-GL Type Approval: Supported
Marine Filter: Supported
Conformal Coated Boards: Supported
High Temperature Compatibility: Supported
Vibration Resistant Installation: Supported
Marine Installation Kit: Available
Deck Mounting: Supported
Bulkhead Mounting: Supported
Offshore Deployment Ready: Supported
Corrosion Resistant Design: Supported

Runtime Specifications
Runtime Extension: Supported
External Battery Expansion: Supported
Long Duration Backup Applications: Supported
Load Segment Runtime Optimization: Supported
Critical Load Prioritization: Supported

Input Specifications
Input Connector: IEC C20
Input Phase: Single Phase
Input Cord Length: 1.8m
Input Protection: Integrated
Input Monitoring: Supported

Output Specifications
Total Output Outlets: 9
IEC C13 Outlets: 8
IEC C19 Outlets: 1
Output Voltage Regulation: ±2%
Programmable Load Segments: Supported
Critical Load Management: Supported
Load Shedding: Supported

Display & User Interface
Display Type: Multilingual Graphical LCD Display
Real-Time Power Monitoring: Supported
Input/Output Metering: Supported
Battery Monitoring: Supported
Load Monitoring: Supported
Energy Consumption Metering: Supported
Alarm Notifications: Supported
Event Logging: Supported
Status Monitoring: Supported

Management & Communication
USB HID Port: Supported
RS232 Serial Port: Supported
Remote Power Off (RPO): Supported
Output Relay Contacts: Supported
Dry Contacts: 2 Outputs, 1 Input (DB9)
Communication Expansion Slot: 1
Network Management Card: Optional
SNMP Monitoring: Supported (Optional Card)
Remote Monitoring: Supported
Software Support: Eaton Intelligent Power Manager (IPM)
Software Support: Eaton Intelligent Power Protector (IPP)

Protection Features
Online Double Conversion Protection
Voltage Regulation
Frequency Regulation
Brownout Protection
Overvoltage Protection
Undervoltage Protection
Short Circuit Protection
Overload Protection
Internal Automatic Bypass
Battery Deep Discharge Protection
Critical Load Segmentation
Continuous Power Conditioning

Environmental Specifications
Operating Temperature: 0°C to 40°C
Operating Humidity: 0% to 96% Non-Condensing
Maximum Operating Altitude: 3000m
Noise Level: Less Than 45 dB at 1 Meter

Design & Construction
Color: Black
Form Factor: Tower
Construction Type: Free Standing Model
Marine-Grade Design: Supported
Heavy-Duty Industrial Construction: Supported
Vibration Absorber Compatible: Supported

Physical Specifications
Dimensions (H × W × D): 346 × 214 × 412 mm
Weight: 34 kg
Installation Type: Tower
Mounting Options: Deck, Bulkhead or Shelf Installation

Package Contents
Eaton 9SX3000IM Marine UPS
Quick Start Guide
2 × IEC Output Cables
USB Cable
RS232 Serial Cable

Features
3000VA / 2700W Capacity
Online Double Conversion Topology
DNV-GL Marine Certification
Pure Sine Wave Output
ABM Battery Management Technology
Hot-Swappable Batteries
Graphical LCD Display
USB and Serial Connectivity
Optional Network Management Card
Marine Filter Support
Conformal Coated Electronics
Frequency Converter Mode
Up to 4 External Battery Modules Supported
Designed for Marine & Offshore Applications

Performance & Features
The Eaton 9SX3000IM is specifically engineered for marine and offshore environments where power reliability is critical. It continuously regulates voltage and frequency through online double-conversion technology while protecting sensitive navigation, communication, automation and bridge systems from power disturbances. The DNV-GL certified design incorporates marine-grade components, coated circuit boards and vibration-resistant installation options, making it suitable for vessels, offshore platforms and maritime applications. Advanced Battery Management technology extends battery life by up to 50% compared to conventional charging methods while optional battery modules provide extended runtime for critical operations.

Key Features
3000VA / 2700W Marine UPS
DNV-GL Certified
Online Double Conversion Technology
Pure Sine Wave Output
Marine & Offshore Approved Design
ABM Battery Management Technology
Hot-Swappable Batteries
8 × IEC C13 Outputs
1 × IEC C19 Output
USB & RS232 Communication
Optional SNMP Management
Graphical LCD Display
Frequency Converter Operation
Up to 4 External Battery Modules
Marine Filter and Installation Kit Support

Typical Use Cases
Marine Navigation Systems
Bridge Control Systems
Marine Communication Equipment
Radar Systems
Vessel Automation Systems
Offshore Oil & Gas Platforms
Marine Control Rooms
Shipboard IT Infrastructure
Maritime Security Systems
Industrial Marine Applications
Critical Marine Monitoring Systems
Marine Networking Equipment

Certifications & Compliance
DNV-GL Certified
IEC/EN 62040-1
IEC/EN 62040-2
UL 1778
CE Marked
TUV Certified
cULus Listed
CSA 22.2
FCC Part 15 Class B
CISPR22 Class B
EAC Certified

UPC / GTIN
UPC: 743172091024
