APC NetShelter SX 24U 600mm Wide 1070mm Deep Server Rack Enclosure
PRODUCT DESCRIPTION
APC NetShelter SX, Server Rack Enclosure, 24U, Black, 1198.5H x 600W x 1070D mm (AR3104) - 5 Years Local Warranty
APC AR3104 — the half-height NetShelter SX: 24U, 600 mm wide, 1070 mm deep

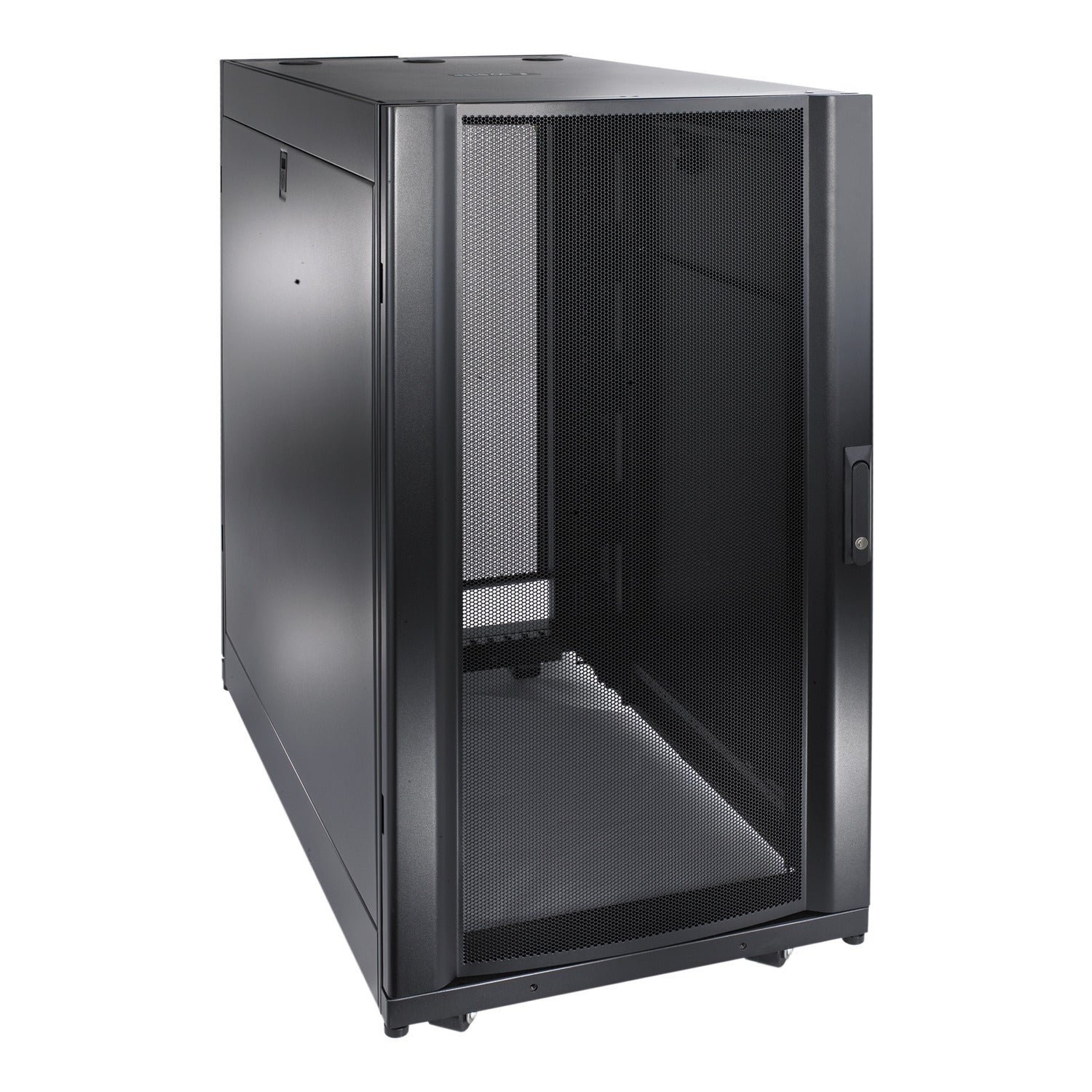

The APC AR3104 is the 24U member of the NetShelter SX family from APC by Schneider Electric: 1198.5 mm high, 600 mm wide and 1070 mm deep, with the same perforated doors, split rear doors, locking side panels, roof, castors and levelling feet as the 42U AR3100 — just half the height. It is the cabinet for a branch office comms room, a lab bench, a retail back office, a clinic or any room where a full-height rack would not fit through the door, under the ceiling or into the budget.
Because it is a genuine SX, everything designed for the 42U enclosure fits it: the same rails, the same 0U accessory channels, the same bolt-down kit, shelves and blanking panels. What changes is the height and, at 89.1 kg net, the ease of getting it up a staircase.
Same 1070 mm depth and the same frame
The 1070 mm depth is deliberate — it is the full server depth, not a shallow network-cabinet depth, so a 24U AR3104 will take a 2U rack server on rails, a 2U or 3U rack UPS with battery pack and a pair of 0U PDUs behind, exactly as the 42U cabinet does. Schneider prints the same 1364 kg static and 1023 kg dynamic ratings for the 24U enclosure, with 16-gauge posts, a 16-gauge front door and 18-gauge rear doors, side panels and roof. A half-height cabinet full of servers is a heavy object, and the rating reflects that.
Perforated split rear doors and lockable everything

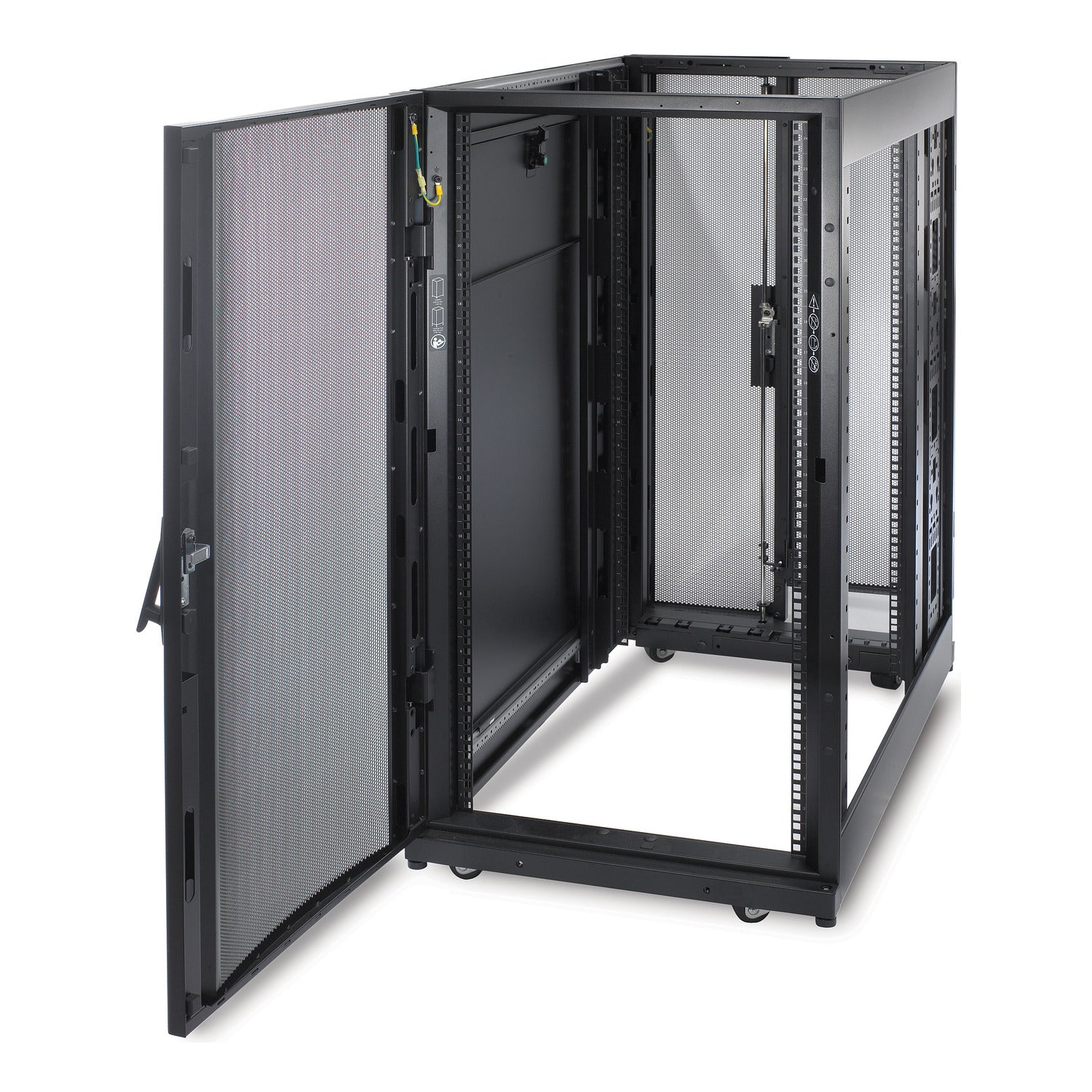

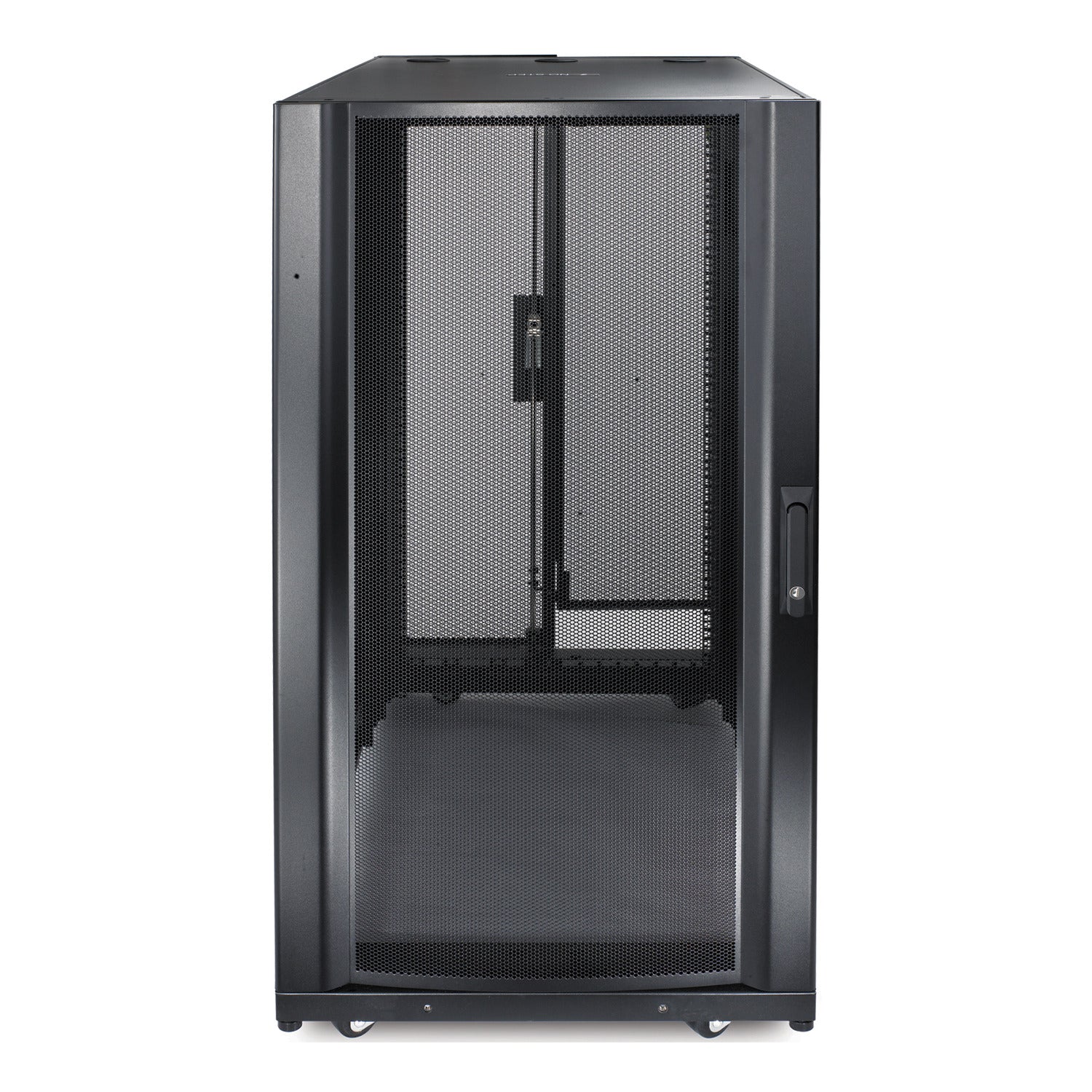

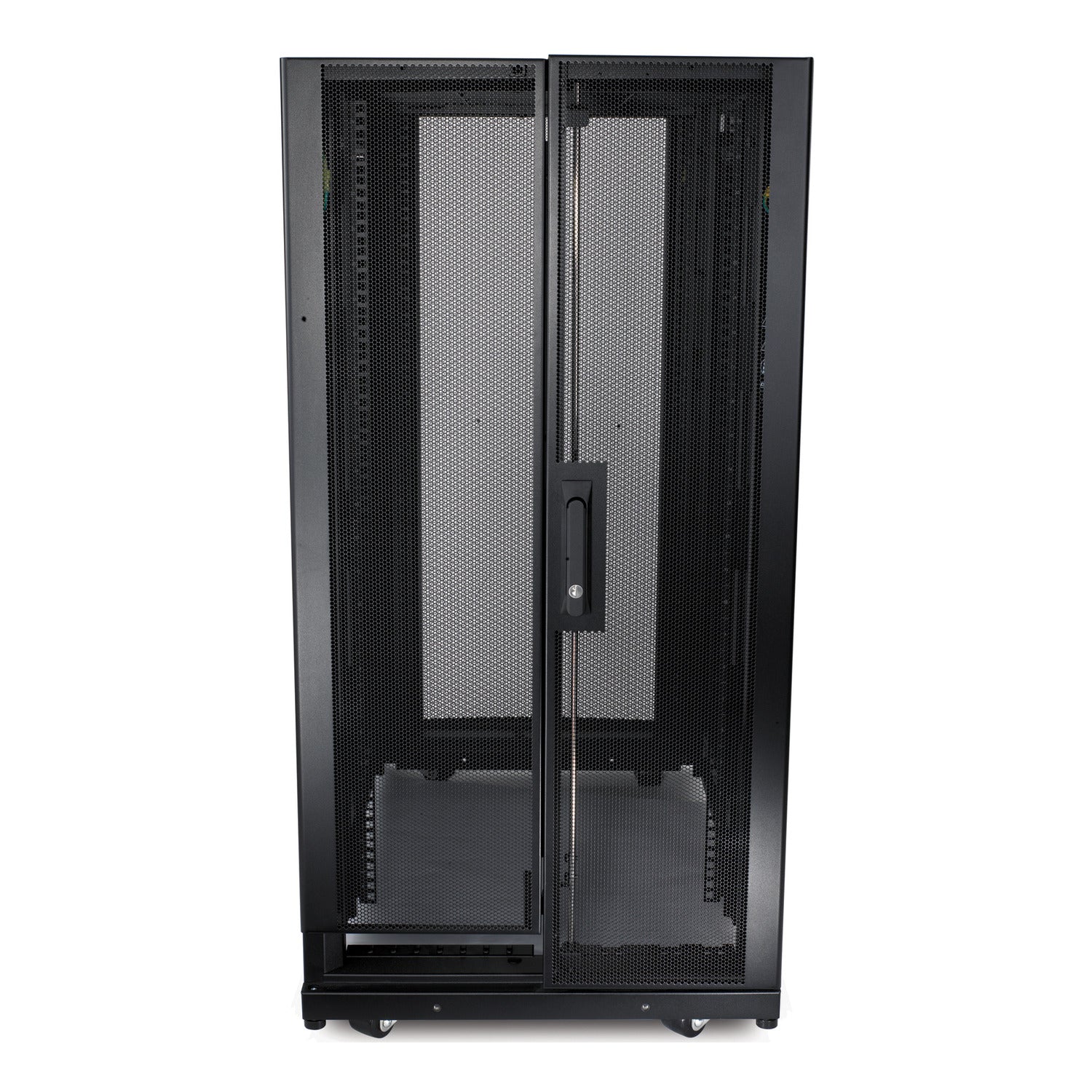

Front and rear doors are perforated for front-to-back airflow, the rear door is split so it needs only a narrow aisle to open, and doors and side panels all lock with keys supplied in the box. The side panels are half-height quick-release panels, so a single technician can lift one off. Roof and base are open for cable entry from above or below, and four 0U accessory channels in the rear take rack PDUs and vertical cable managers without using any of the 24U.
Singapore installation notes
Net weight is 89.1 kg; it ships on a pallet at 106.8 kg, 1322 mm high, 746 mm wide and 1156 mm deep, which fits in most passenger lifts. Schneider requires the cabinet to be earthed and secured to the floor before it is loaded; the AR7701 bolt-down kit is the matching part. Everything SourceIT ships is local Singapore stock with a GST invoice and Schneider's printed 5-year repair-or-replace warranty behind it.
APC AR3104 Datasheet — Technical Specifications
Figures below are taken from the Schneider Electric product page (Singapore) and the APC AR3104 product data sheet as carried by a distributor mirror, cross-checked against the NetShelter SX family documentation. Where Schneider does not publish a value for this exact part number, the row is left out rather than filled in from a similar model.
General
| Part Number (SKU) | AR3104 |
| Official Product Name | APC NetShelter SX, Server Rack Enclosure, 24U, Black, 1198.5H x 600W x 1070D mm |
| Series | APC NetShelter SX (APC by Schneider Electric) |
| Product Type | Floor-standing 19-inch server rack enclosure with sides, half height |
| Colour | Black |
| 5-Year Manufacturer Warranty (APC by Schneider Electric) | 5 years repair or replace, as printed on the Schneider data sheet |
| Local Warranty (Singapore) | Supported locally by SourceIT with a GST invoice |
Dimensions & Capacity
| Rack Height | 24U |
| External Dimensions (H x W x D) | 1198.5 mm x 600 mm x 1070 mm |
| Rack Width | 19 inch (EIA-310-E) |
| Mounting Rails | Adjustable front and rear EIA rails |
| Maximum Static Load | 1364 kg (3000 lb) |
| Maximum Dynamic (Rolling) Load | 1023 kg (2250 lb) |
| Net Weight | 89.1 kg |
Construction & Access
| Front Door | Perforated, 16 gauge, locking, removable |
| Rear Doors | Split perforated doors, 18 gauge, locking, removable |
| Side Panels | Included, 18 gauge, half-height quick-release, locking |
| Roof | Included, 18 gauge |
| Vertical Posts | 16 gauge |
| Locks | Doors and side panels lockable; keys supplied |
| Castors | Pre-installed |
| Levelling Feet | Included |
Airflow & Cable Management
| Airflow | Front-to-back through perforated front and rear doors |
| 0U Accessory Channels | Rear accessory channels for 0U rack PDUs and vertical cable managers |
| Cable Entry | Roof cable openings for overhead entry; open base for raised-floor entry |
| Blanking Panels | Use AR8136BLK 1U toolless panels (pack of 10) in unused U |
| Earthing | Integrated grounding with additional earthing inserts; bond to the building earth before loading |
Physical & Environmental
| Rack Height | 24U |
| Shipping Dimensions (H x W x D) | 1322 mm x 746 mm x 1156 mm, on pallet |
| Shipping Weight | 106.8 kg |
| Standards | UL 2416, UL 60950-1 |
| Environmental | RoHS, China RoHS, REACH (contains no SVHCs) |
Compatibility & Fit
What fits in the frame
Any EIA-310 19-inch equipment up to 24U. The 1070 mm depth means the AR3104 takes the same rack servers and rack UPS chassis as the 42U SX; it is not a shallow "network" cabinet. A typical branch build is a 2U rack UPS such as the Smart-UPS SMT1500RMI2UC at the bottom, a 0U or 1U PDU, a couple of 1U switches, a patch panel and a small server or NAS — well inside 24U with room left for growth.
Rack accessories that belong to this cabinet
The AR7701 bolt-down kit, the AR8122BLK 1U fixed shelf (114 kg) for a desktop switch or tower UPS, and the AR8136BLK toolless blanking panels all fit the AR3104 exactly as they fit the AR3100. All three are on this site.
Power and monitoring
| AP7552 Rack PDU Basic 0U 16 A | Rack PDU Basic 0U, 16 A, 230 V — mounts in the rear 0U channel |
| AP7553 Rack PDU Basic 0U 32 A | Rack PDU Basic 0U, 32 A, 230 V |
| AP7920B NetShelter Switched Rack PDU | Switched Rack PDU, 1U, 16 A |
| AP8853 NetShelter Metered Rack PDU | Metered Rack PDU, 0U, 32 A — has a sensor port of its own |
| AP8858 NetShelter Metered Rack PDU | Metered Rack PDU, 0U |
| AP4421 Rack ATS 10 A | Rack ATS, 10 A, C14 in |
| AP4423 Rack ATS 16 A | Rack ATS, 16 A, C20 in |
| AP4424 Rack ATS 32 A | Rack ATS, 32 A, IEC 309 in |
| NetBotz Rack Monitor 250 (NBRK0250A) | NetBotz Rack Monitor 250, 1U — door, temperature, leak and access monitoring |
For a branch room without a dedicated air-conditioner the NetBotz Rack Monitor 250 (NBRK0250A) or an AP9641 Network Management Card with an AP9335TH temperature and humidity sensor in the UPS SmartSlot will tell you when the room is heating up before the equipment does.
Choosing between the SX sizes
AR3104 when the room, the door or the budget rules out a full-height cabinet; AR3100 for a 42U server rack on the same footprint; AR3340 for a wide, deep networking rack. The Easy Rack ER6202 is the value alternative at 42U, and the AR106VI NetShelter 6U wall-mount enclosure covers a cupboard that cannot take a floor-standing cabinet at all.
Package Contents & APC NetShelter SX Ordering Information
In the box
One assembled NetShelter SX 24U enclosure with front door, split rear doors, two side panels, roof, pre-installed castors, levelling feet, keys and user manual — the list Schneider prints on the data sheet. Shipped on a pallet.
APC NetShelter SX enclosures and accessories at SourceIT
| AR3100 | NetShelter SX 42U, 600 mm W x 1070 mm D — standard server enclosure, 1364 kg static |
| AR3104 (this listing) | NetShelter SX 24U, 600 mm W x 1070 mm D — half-height server enclosure |
| AR3340 | NetShelter SX 42U, 750 mm W x 1200 mm D — networking enclosure, 1701 kg static |
| AR7701 | NetShelter SX bolt-down kit — floor anchoring brackets |
| AR8122BLK | Fixed shelf, 1U, 114 kg rated, black |
| AR8136BLK | 1U toolless blanking panels, pack of 10, black |
| ER6202 / ER6212 / ER8202 | Easy Rack 42U value cabinets in 600 x 1000, 600 x 1100 and 800 x 1000 mm |
| AR106VI NetShelter 6U wall-mount enclosure | NetShelter 6U wall-mount enclosure |
Rack power and monitoring to go with it
| AP7552 Rack PDU Basic 0U 16 A | Rack PDU Basic 0U, 16 A, 230 V — mounts in the rear 0U channel |
| AP7553 Rack PDU Basic 0U 32 A | Rack PDU Basic 0U, 32 A, 230 V |
| AP7920B NetShelter Switched Rack PDU | Switched Rack PDU, 1U, 16 A |
| AP8853 NetShelter Metered Rack PDU | Metered Rack PDU, 0U, 32 A — has a sensor port of its own |
| AP8858 NetShelter Metered Rack PDU | Metered Rack PDU, 0U |
| AP4421 Rack ATS 10 A | Rack ATS, 10 A, C14 in |
| AP4423 Rack ATS 16 A | Rack ATS, 16 A, C20 in |
| AP4424 Rack ATS 32 A | Rack ATS, 32 A, IEC 309 in |
| NetBotz Rack Monitor 250 (NBRK0250A) | NetBotz Rack Monitor 250, 1U — door, temperature, leak and access monitoring |
Datasheet & Downloads
Links open on Schneider Electric's own site. Each one was checked before publication.
Schneider's own datasheet download links redirect to a host that has served wrong-model files, so for the PDF datasheet or manual as a file for a tender, email sales@sourceit.com.sg quoting the SKU and we will send the correct document.
Need a compliance declaration, a CAD file or a written quotation for a tender? Contact SourceIT and we will supply it.
Frequently Asked Questions — APC AR3104
Will a 24U cabinet take a full-depth server?
Yes. The AR3104 is 1070 mm deep — the same as the 42U AR3100 — so a 2U rack server on its rail kit fits with room behind for a 0U PDU and its leads. It is a server cabinet cut to half height, not a shallow wall cabinet.
How heavy is it and will it fit in a lift?
89.1 kg net, 106.8 kg on the pallet at 1322 mm x 746 mm x 1156 mm. That goes in most passenger lifts and through a standard door on its castors once unpacked.
What is the load rating?
Schneider prints 1364 kg static and 1023 kg dynamic for the 24U SX. In practice a 24U cabinet runs out of U long before it runs out of load capacity.
Are the doors perforated and lockable?
Yes. Front and split rear doors are perforated for front-to-back airflow and lock with the supplied keys; the half-height side panels also lock and lift off without tools.
Can I stack two AR3104 cabinets to make a 42U?
No — the AR3104 is not designed to be stacked. If you need 42U, buy the AR3100; two AR3104 cabinets bayed side by side is the alternative when height is the constraint.
Which UPS and PDU pair with it?
For a branch room the Smart-UPS SMT1500RMI2UC or a similar 2U rack UPS with a AP7552 Rack PDU Basic 0U 16 A or EPDU1010B-SCH Easy Rack PDU Basic 1U 0U PDU in the rear channel is the usual build. Add the AP4421 Rack ATS 10 A if two supplies are available.
Does it come with a Singapore warranty and a GST invoice?
Yes. Every APC AR3104 sold by SourceIT comes with local Singapore warranty support and a GST invoice; APC by Schneider Electric prints a 5-year repair-or-replace warranty for the NetShelter SX enclosure, which is the term we pass on.
