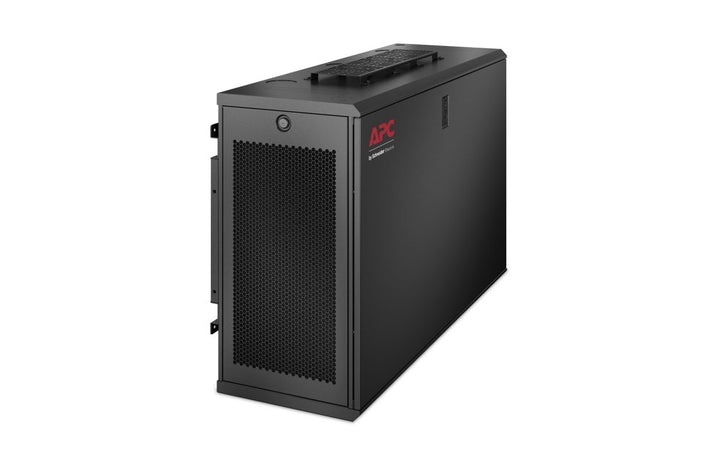

APC NetShelter 6U Low-Profile Wallmount Rack Enclosure
PRODUCT DESCRIPTION
APC NetShelter WX 6U Low-Profile Wallmount Rack Enclosure, Server Depth, 230V Fans (AR106VI) - 5 Years Local Warranty
6U of Server-Depth Rack Space That Hangs on a Wall
The APC NetShelter WX 6U Low-Profile Wallmount Enclosure (AR106VI) puts six usable rack units of EIA-310 19-inch mounting on a wall, with 762 mm of mounting depth - enough for a genuine short-depth server, not just patch panels and a switch. It holds up to 113 kg of static load, and can also stand on the floor with optional casters.
The point of the low-profile design is the room it does not take: the enclosure extends less than 330 mm off the wall, so it fits a corridor, a store room or the back of an office without eating floor space. External dimensions are 648 mm high, 353 mm wide and 968 mm deep.
The 230V Variant - the Right One for Singapore
AR106VI is the 230 V build of this enclosure, with two integrated 230 V fans providing 103.83 l/s of forced ventilation. AR106V is the 120 V build of the same enclosure. On Singapore's 230 V mains the AR106VI is the correct part number; the 120 V AR106V is not.
That active ventilation matters here. A sealed steel box in an unconditioned Singapore corridor becomes an oven; a cabinet with forced ventilation and a MERV 5 / G3 dust filter keeps air moving through the equipment instead of letting it stagnate. Fans move ambient air; they cannot cool below room temperature, so consider the room as well as the cabinet.
Lockable Steel Doors, Removable Side Panels, Proper Cable Entry
Front and rear doors are lockable steel with single-point locking and are reversible, so the cabinet can open the way the room allows. Side panels are included. Two cable entry knockouts, 70 mm and 28 mm, come with brush strip panels, so cabling enters tidily and the ventilation path is not defeated by an open hole.
The enclosure ships fully assembled with 24 M6 cage nuts and mounting screws, so installation is a mounting job rather than a build.
Where It Fits in a Singapore SME or Branch Office
This is the enclosure for a comms cabinet in a shophouse office, a retail back room, a clinic, a school block or a branch site: somewhere with no server room, no raised floor and no spare corner, but a real need to lock away a firewall, a switch, a NAS and a small UPS.
Pair it with a 1U rack PDU and a rack-mount UPS and the whole site's IT sits behind one lockable door. Supplied and invoiced locally in Singapore with GST, and APC backs this enclosure with a 5-year manufacturer warranty.
APC AR106VI Datasheet — Technical Specifications
General
| Part Number (SKU) | AR106VI |
| Schneider Electric Product Name | APC NetShelter 6U Low-Profile Wallmount Rack Enclosure Cabinet 230V Server Depth |
| Range | NetShelter WX Low-profile Cabinet |
| Usable Height | 6U |
| Rail Standard | EIA-310 / EIA-310-E, 19-inch |
| Colour | Black |
| Lifecycle Status | Commercialised |
| EAN | 0731304402015 |
| Warranty | 5-Year Manufacturer Warranty (APC by Schneider Electric) |
| Local Warranty (Singapore) | Yes - supplied and supported locally by SourceIT |
Function & Fit
| Mounting | Wallmount, or standalone on optional casters |
| Equipment Orientation | Vertical |
| Maximum Static Load | 113 kg |
| Mounting Depth | 762 mm |
| Wall Projection | Less than 330 mm from the wall |
| Doors | Lockable steel front and rear doors, single-point locking, reversible |
| Side Panels | Included |
| Ventilation | 2 x integrated 230 V fans, airflow 103.83 l/s |
| Air Filtration | MERV 5 / G3 dust filter |
| Cable Access | 2 x knockouts, 70 mm and 28 mm, with brush strip panels |
Physical
| External Dimensions (H x W x D) | 648 x 353 x 968 mm as published by Schneider Electric; the enclosure is also stated to project less than 330 mm from the wall - confirm the mounting footprint with SourceIT before installation |
| Net Weight | 36.29 kg |
| Shipping Weight | 44.91 kg |
| Certifications | UL 2416 |
| Package Contents | Enclosure shipped fully assembled, 24 x M6 cage nuts and mounting screws, dust filter |
Compatibility & Fit
What fits inside. Six usable rack units of EIA-310 19-inch mounting, 762 mm of mounting depth and a 113 kg static load rating. That is enough for a short-depth 1U or 2U server, a switch stack, a firewall, a patch panel and a 1U or 2U rack-mount UPS.
Check depth, not just U height. Measure the deepest item you plan to fit, add cabling allowance at the rear, and compare the total against the 762 mm mounting depth before ordering. Depth, not U count, is what usually decides whether a wallmount enclosure works.
Which voltage variant to order. AR106VI is the 230 V build, with two integrated 230 V fans - the correct part for Singapore's 230 V, 50 Hz supply. AR106V is the 120 V North American build of the same enclosure. Ordering the wrong one leaves you with fans that will not run correctly on local mains.
Wall and floor mounting. Designed to hang on a wall and project less than 330 mm from it. It can also be used standing, with optional casters. At 36.29 kg empty plus up to 113 kg of equipment, wall fixing must be into structure rated for the combined load - confirm the wall construction before installation.
Rack power to go with it. A 1U rack PDU is the natural companion for a 6U enclosure. In the SourceIT catalogue the Easy Rack PDU Basic 1U (EPDU1010B-SCH) gives six SCHUKO and one C13 outlet from a C14 inlet at 10 A, and the AP9559 Rack PDU Basic 1U gives ten C13 and two C19 outlets at 16 A. Remember each consumes 1U of your six.
Monitoring. An enclosure on a wall in an unconditioned space is exactly where temperature and humidity monitoring earns its keep - see the AP9335TH sensor with an AP9641 card in the rack UPS, or a NetBotz Rack Monitor 250 if you also want door access control.
Not a power product. The AR106VI is a passive steel enclosure. The 230 V in its name refers to the supply for its two integrated fans - it has no power distribution, no metering and no input rating of its own. Power distribution comes from a rack PDU installed inside it.
Package Contents & APC NetShelter WX Ordering Information
In the box: the enclosure shipped fully assembled, 24 x M6 cage nuts and mounting screws, and a MERV 5 / G3 dust filter. Side panels and both lockable doors are part of the enclosure as supplied.
NetShelter WX low-profile wallmount enclosure - voltage variants
| Model | Build |
| AR106VI (this listing) | 6U, server depth, 230 V integrated fans - the Singapore build |
| AR106V | 6U, server depth, 120 V integrated fans - not suited to Singapore mains |
Rack power for a 6U enclosure
| EPDU1010B-SCH | Easy Rack PDU Basic, 1U, 10 A, 2.3 kW - 6 SCHUKO + 1 C13, C14 inlet |
| AP9559 | Rack PDU Basic, 1U, 16 A, 3.7 kW - 10 C13 + 2 C19, C20 inlet |
| AP9565 | Rack PDU Basic, 1U, 16 A, 3.7 kW - 12 C13, no C19, C20 inlet |
Rack-mount UPS that suits a 6U wallmount enclosure
| SMT1500RMI1U | Smart-UPS 1500VA LCD RM 1U 230V - 1U of your 6U |
| SMT1500RMI2UC | Smart-UPS 1500VA LCD RM 2U 230V with SmartConnect - 2U |
Monitoring for the enclosure
| AP9335TH | Temperature and humidity sensor, RJ45, 3.9 m lead - needs a host: an AP9641 card in the rack UPS, or a NetBotz appliance |
| NBRK0250A | NetBotz Rack Monitor 250 - environmental sensing plus badged access control for 2 rack doors |
Datasheet & Downloads
Official Schneider Electric documentation for the APC AR106VI. Links open in a new tab.
- Schneider Electric product page (Singapore) - APC NetShelter 6U Low-Profile Wallmount Enclosure AR106VI
- NetShelter WX Low-profile Cabinet installation and customization manual (990-6229_EN)
Need a specific document, a compliance declaration or a written quotation? Contact SourceIT and we will supply it.
Frequently Asked Questions — APC AR106VI
What does the "VI" in AR106VI mean, and how does it differ from AR106V?
It is the voltage build. AR106VI is the 230 V version, with two integrated 230 V fans - the correct part for Singapore. AR106V is the same enclosure with 120 V fans for the North American market. Schneider's own product names carry the distinction: "230V Server Depth" versus "120V Server Depth". If a supplier offers you an AR106V for a Singapore site, the fans are the problem.
Does the enclosure have a power rating or built-in power distribution?
No. It is a passive steel enclosure. The 230 V in the product name refers only to the supply for its two integrated ventilation fans. Power distribution to your equipment comes from a rack PDU fitted inside - for a 6U cabinet the EPDU1010B-SCH or AP9559 1U units are the usual choices.
How much equipment will it hold?
Six usable rack units on EIA-310 19-inch rails, up to a 113 kg static load, with 762 mm of mounting depth. Depth is the figure that most often decides it: 762 mm of mounting depth takes a genuine short-depth server. Measure your deepest item plus rear cabling allowance against that figure before ordering.
How far does it stick out from the wall?
Less than 330 mm. That is the whole point of the low-profile design: it fits a corridor, store room or office wall without obstructing it, while still offering 762 mm of mounting depth for real equipment. Schneider also publishes external dimensions of 648 x 353 x 968 mm (H x W x D) - ask SourceIT to confirm the mounting footprint for your wall before installation.
Is it lockable, and can the doors be reversed?
Yes to both. Front and rear doors are lockable steel with single-point locking and are reversible, so the cabinet can be hung to suit the space. Side panels are included, and two cable entry knockouts of 70 mm and 28 mm come with brush strip panels to keep the ventilation path intact.
Does it need cooling, and is any fitted?
Two 230 V fans are integrated, giving 103.83 l/s of airflow, with a MERV 5 / G3 dust filter. In an unconditioned Singapore corridor that forced ventilation matters, because a sealed cabinet lets heat build around the equipment - though fans move ambient air and cannot cool below room temperature, so consider the room as well as the cabinet. To know what the cabinet is actually running at, add an AP9335TH sensor on an AP9641 card in the rack UPS - the sensor is a probe and needs that host to report.
Does it come with a Singapore warranty?
Yes. Every APC AR106VI sold by SourceIT comes with local Singapore warranty and a GST invoice; APC backs the AR106VI with a 5-year manufacturer warranty, which is longer than the term carried by most of the APC electronics in this catalogue.
