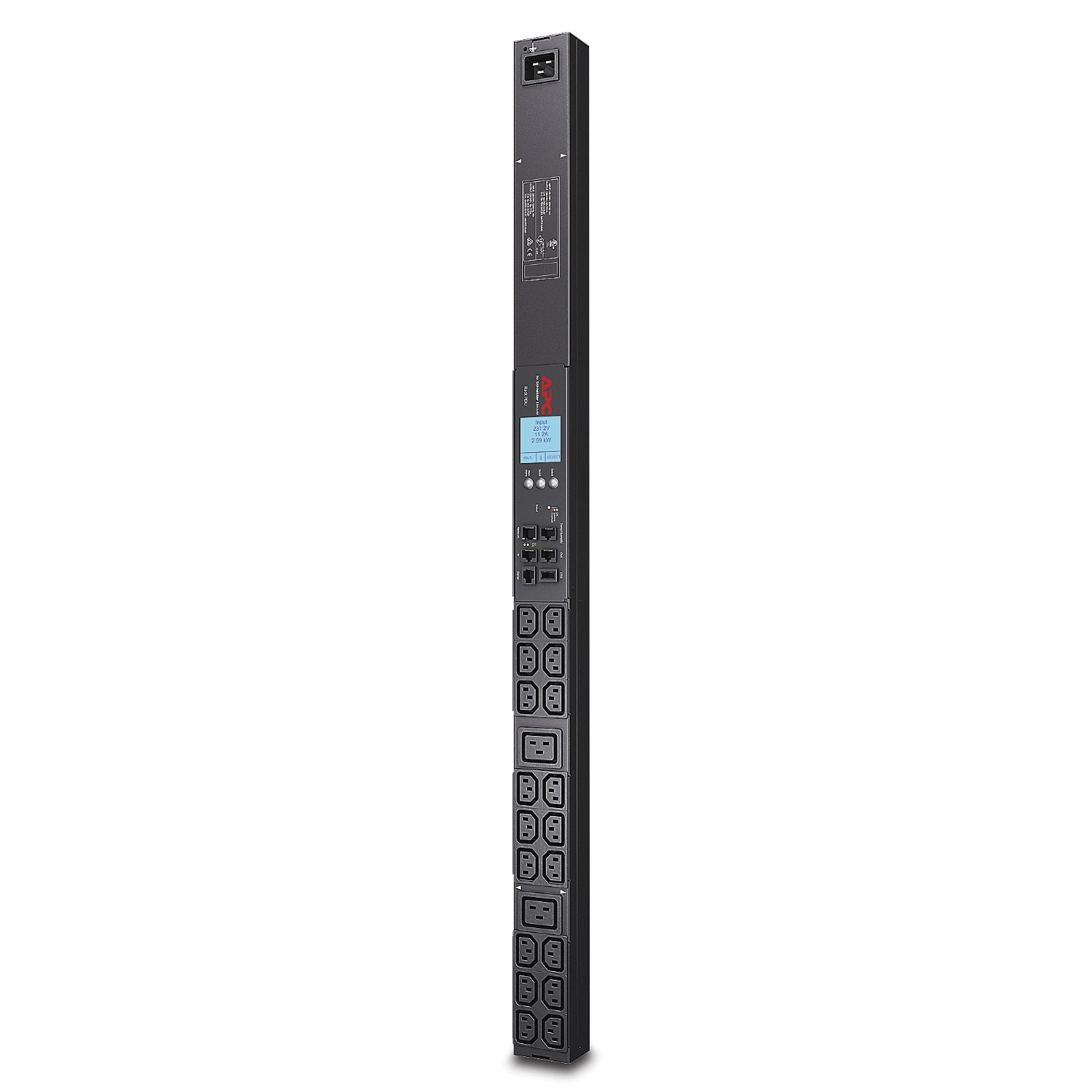

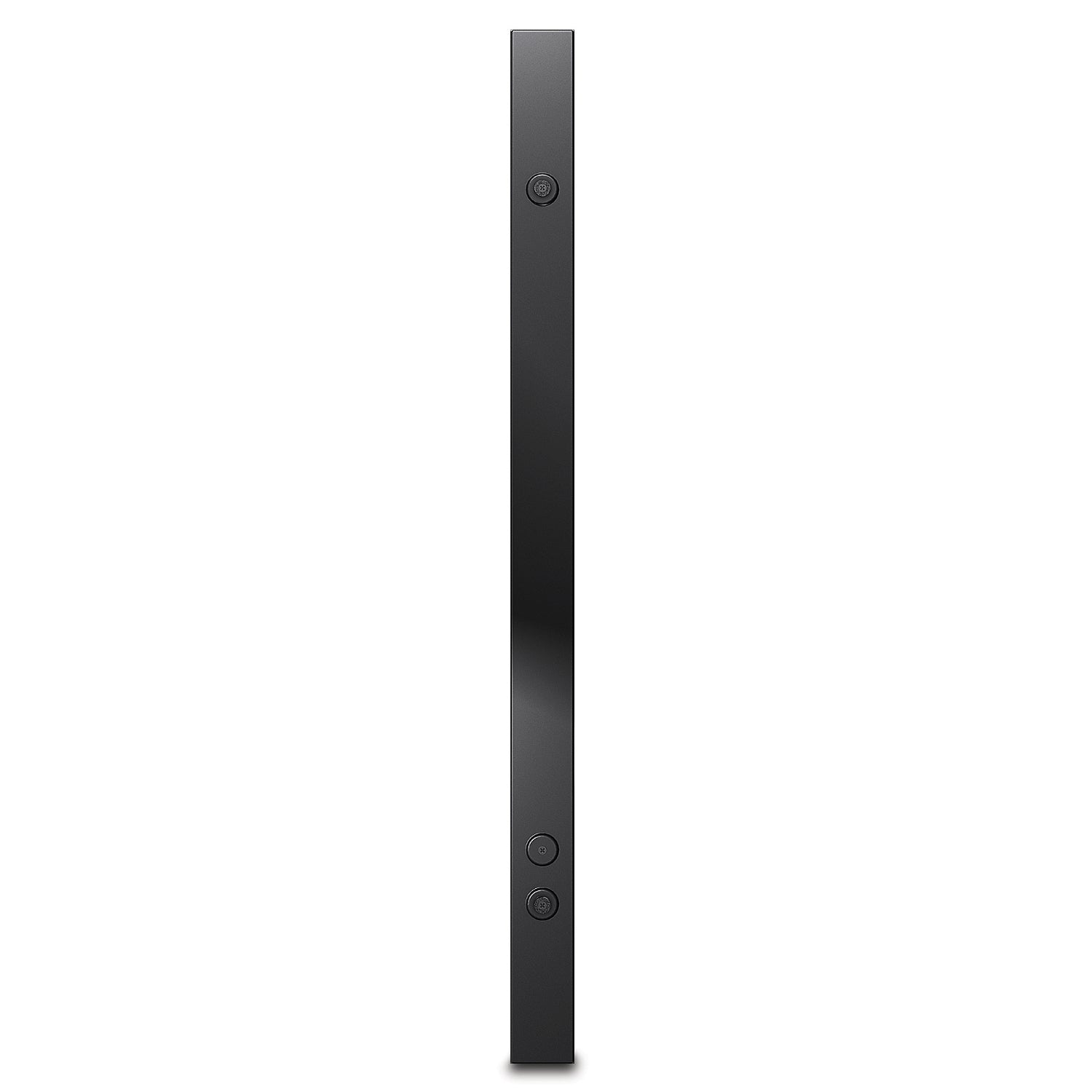

APC NetShelter Metered Rack PDU

APC NetShelter Metered Rack PDU, 0U, 1PH, 3.3kW 208V 16A or 3.7kW 230V 16A, x18 C13 and x2 C19 outlets, C20 inlet (AP8858) - 2 Years Local Warranty

Efficient, Flexible Power Distribution

The APC NetShelter Metered Rack PDU (AP8858) delivers dependable single-phase power for data centers and network closets, supporting up to 3.3kW at 208V or 3.7kW at 230V via a 16A C20 inlet. With 18 C13 and 2 C19 outlets, it cleanly distributes power to a full rack of servers and networking equipment from one unit.

Real-Time Metering and Visibility

An integrated meter and digital display show the current load in amps directly on the PDU, giving you real-time insight into power consumption. This visibility helps you balance loads, optimize energy usage, and avoid overloading circuits, reducing the risk of unexpected downtime.

Remote Management and Alerts

Monitor and manage power from anywhere using SNMP, the web interface, or third-party monitoring tools. Intelligent features such as power usage alarms and threshold alerts provide timely notifications, so you can proactively address issues before they affect critical equipment.

Space-Saving 0U Mounting

The 0U design mounts vertically along the side of the rack, preserving valuable U space for active hardware. Included mounting hardware and compatibility with standard 19-inch racks make installation straightforward and adaptable to a variety of deployment scenarios.

Reliable Protection for Connected Devices

Built-in surge protection helps shield connected equipment from damaging transients, while the rugged construction ensures consistent performance in demanding environments. The AP8858 provides steady, well-managed power that keeps your infrastructure protected and online.

Technical Specifications

• Type: Rack-mounted Metered Power Distribution Unit (PDU)
• Rack Mountable: Yes, 0U (mounts vertically to the side of a rack)
• Input Voltage: 208V AC, 16A (max. 3.3 kW); 230V AC, 16A (max. 3.7 kW)
• Output Voltage: 230V AC
• Outlets: 18 x C13 outlets; 2 x C19 outlets
• Input Connector: C20 (female)
• Power Rating: 3.3kW @ 208V; 3.7kW @ 230V
• Phases: 1 phase (1PH)
• Current Rating: 16A @ 230V; 16A @ 208V
• Total Load Capacity: 3.3kW (208V) or 3.7kW (230V)
• PDU Type: Metered PDU with real-time monitoring
• Monitoring: Provides real-time power usage via an integrated meter; features a digital display showing the current load (amps) on each PDU; allows monitoring of power consumption and environmental data remotely via SNMP, web interface, or third-party monitoring tools
• Mounting: 0U design for vertical mounting on the side of the rack; includes all necessary mounting hardware
• Surge Protection: Yes, includes surge protection to protect connected devices
• Environmental Conditions: Operating Temperature 0°C to 40°C (32°F to 104°F); Humidity 0% to 95% non-condensing
• Certifications: UL; CE; RoHS compliant; cUL
• Dimensions: 0U vertical rack mount (compatible with standard 19-inch racks)
• Weight: Approximately 4.8 kg (10.6 lbs)

Ideal Use Case: Ideal for data center and network-closet racks that need metered single-phase power distribution with remote monitoring through a C20 inlet and a mix of C13 and C19 outlets.

GTIN/UPC: 731304268306
