APC Smart-UPS Ultra On-Line Lithium-Ion 5kVA 5kW 2U Rack/Tower 230V
PRODUCT DESCRIPTION
APC Smart-UPS Ultra On-Line Lithium-Ion 5kVA/5kW 2U Rack/Tower 230V (SRTL5KRM2UI) - 5 Years Local Warranty
5 kW of On-Line Double Conversion in 2U
The APC Smart-UPS Ultra SRTL5KRM2UI is Schneider Electric's high-density on-line UPS: 5000 VA / 5000 W of double-conversion protection with a lithium-ion battery in a 2U rack/tower chassis weighing 29.2 kg. A conventional 5 kVA on-line UPS with lead-acid batteries occupies 3U or more and weighs several times as much; the Ultra uses next-generation semiconductor technology and a lithium-ion battery module to get the same job done in a fraction of the space, which is why Schneider describes the range as half the size and weight with three times the battery life.
The load is fed continuously from the inverter on a 230 V sine wave with less than 2% harmonic distortion, and the unit is a unity power factor build, so the full 5000 W is available. Input and output are 220 / 230 / 240 V with 50/60 Hz auto-sensing, exactly right for a Singapore server room, edge site or industrial control cabinet.
Hardwired Input, Ten IEC Outlets
The input is a single hardwire 1P+N+E connection, installed by a licensed electrical worker on a dedicated circuit; there is no plug type to worry about for Singapore. Output is on 6 x IEC C13 and 4 x IEC C19 outlets with switched outlet groups, so a full rack of servers and a couple of high-draw devices plug straight in without a separate PDU. The input operating window is 180β275 V at half load.
Lithium-Ion Battery, 1.5 Hour Recharge
The internal battery is a 180 V lithium-ion module (Schneider part SRYLBM) with a 5 to 10 year battery life as printed, which Schneider Electric describes as lasting three times a VRLA UPS with no need to replace the battery during the life of the UPS. Recharge is 1.5 hours β a fraction of the lead-acid figure β so the UPS is back to full capacity between one outage and the next. Schneider Electric prints a runtime of 5 minutes at full load (5000 W) and 12 minutes at half load (2500 W) on the internal module; for longer hold-up, up to five SRTL180RM2UBP external lithium-ion packs can be added, each a further 2U.
Network Management Card Built In
Unlike the SmartSlot models, the Ultra ships with a Network Management Card 3 with environmental monitoring pre-installed and a one-year Secure NMC subscription included, so SNMP monitoring, alerting, EcoStruxure Ready remote management and PowerChute Network Shutdown of physical servers, virtual machines and HCI clusters are available out of the box. A temperature sensor (AP9335T) is supplied for the card's universal I/O port. The chassis carries an autorotating LCD that reads correctly in either rack or tower orientation, an Emergency Power Off terminal and a USB port; an optional AP9834 Wi-Fi device adds wireless connectivity.

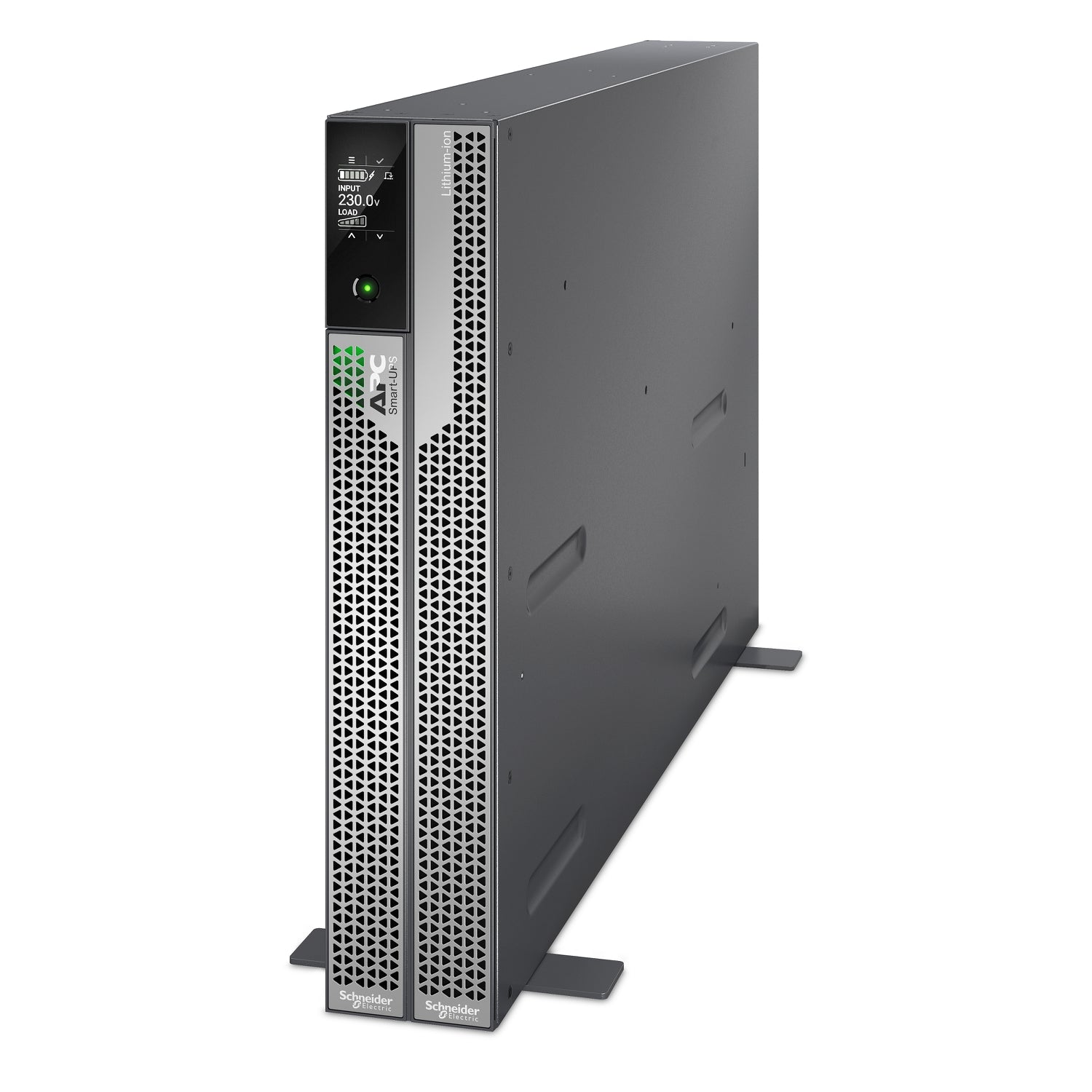

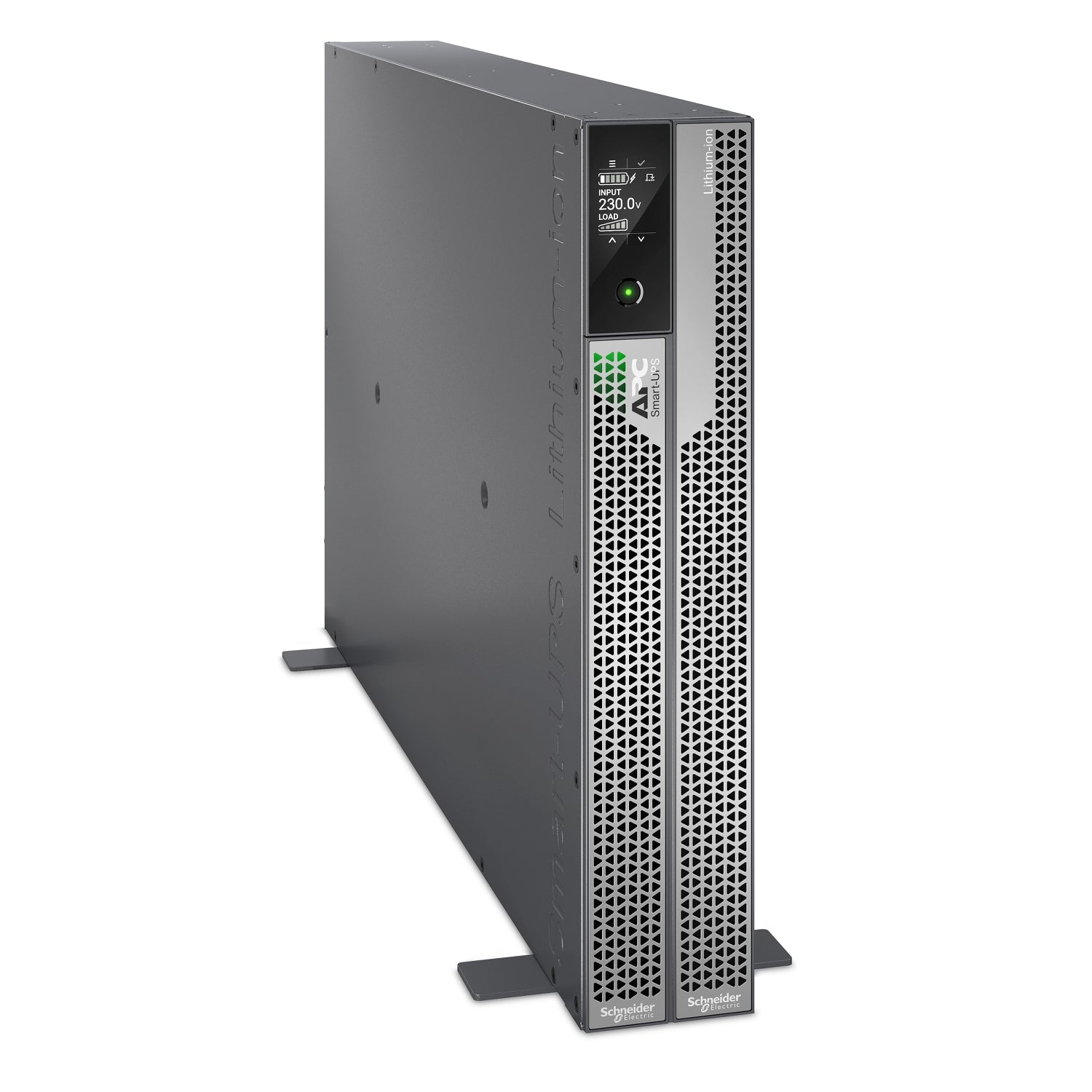

2U Rack/Tower Convertible, Rails Included
At 86 x 432 x 701 mm the SRTL5KRM2UI occupies 2U and needs a 1000 mm or deeper server cabinet; the rail kit is included, and the unit converts to tower for a floor-standing installation. Audible noise is 55 dBA at 1 m and heat dissipation 931 BTU/hour.
Supplied Locally, with GST Invoice and Singapore Warranty
SourceIT supplies the SRTL5KRM2UI as an APC by Schneider Electric product with a full GST invoice and local Singapore warranty support. Schneider Electric's printed term for the Smart-UPS Ultra is five years repair or replace on both the UPS and the internal lithium-ion battery. Because the unit is hardwired, we can introduce a licensed electrical contractor for the installation if you do not have one.
Email sales@sourceit.com.sg with your load in watts, the runtime you need and the cabinet you intend to use, and we will confirm the configuration, the number of external packs and the service bypass arrangement.
APC SRTL5KRM2UI Datasheet β Technical Specifications
General
| Schneider Electric Product Name | APC Smart-UPS Ultra On-Line, 5000VA, Lithium-ion, Rack/Tower 2U, 230V, 6 C13 + 4 C19 IEC outlets, Network Card, Extended runtime, W/rail kit |
| Part Number (SKU) | SRTL5KRM2UI |
| Range | APC Smart-UPS Ultra On-Line, Lithium-ion, high density |
| Topology | Double conversion on-line |
| Form Factor | Rack/Tower convertible, 2U, rail kit included |
| Manufacturer Warranty | 5 years UPS and internal lithium-ion battery β repair or replace (APC by Schneider Electric) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Output
| Output Power Capacity | 5000 VA / 5000 W |
| Output Power Factor | 1.0 β the full 5000 W is available to the load |
| Nominal Output Voltage | 230 V; 220 V and 240 V selectable |
| Output Frequency | 50/60 Hz Β±3 Hz synchronised to mains |
| Output Voltage Distortion | Less than 2% |
| Output Waveform | Sine wave |
| Output Receptacles | 6 x IEC C13 + 4 x IEC C19, switched outlet groups |
| Crest Factor | 3:1 |
| Internal Bypass | Automatic and manual |
| Surge Energy Rating | 1260 joules |
| Efficiency | Not published by Schneider Electric as a figure on the datasheet β ask us |
| Transfer Time | Not published by Schneider Electric β the load is fed continuously from the inverter |
Input
| Nominal Input Voltage | 230 V; 220 V and 240 V |
| Input Voltage Range | 180β275 V AC adjustable (half load) |
| Input Frequency | 40β70 Hz auto-sensing |
| Input Connection | 1 x hardwire, 1P+N+E β installed by a licensed electrical worker |
Batteries & Runtime
| Battery Type | Lithium-ion, 5 to 10 year battery life as printed by Schneider Electric |
| Internal Battery Module | SRYLBM, 180 V DC, 623 VAh runtime capacity |
| Battery Charger Power | 600 W |
| Typical Recharge Time | 1.5 hours |
| Runtime at Full Load (5000 W) | 5 minutes, as printed by Schneider Electric |
| Runtime at Half Load (2500 W) | 12 minutes, as printed by Schneider Electric |
| External Battery Packs | SRTL180RM2UBP lithium-ion pack, 180 V, 2U β up to five per UPS |
| Battery Replacement | Internal SRYLBM battery module; ask us for the replacement procedure before planning a change |
Communications & Management
| Network Management | Network Management Card 3 with environmental monitoring pre-installed; no free SmartSlot |
| Secure NMC Subscription | 1-year Secure Network Management Card subscription included |
| Communication Ports | Network port, USB port, Emergency Power Off terminal, universal I/O sensor port |
| Environmental Sensor | AP9335T temperature sensor supplied |
| Control Panel | Autorotating LCD |
| Audible Alarm | Audible and visible alarms prioritised by severity |
| Remote Management | EcoStruxure Ready; optional AP9834 Wi-Fi device |
| Shutdown Software | PowerChute Network Shutdown for physical servers, virtual machines and HCI clusters |
Physical & Environmental
| Rack Height | 2U |
| Dimensions (H x W x D) | 86 x 432 x 701 mm |
| Net Weight | 29.2 kg |
| Shipping Weight | 38.5 kg |
| Shipping Carton | 39.2 x 58.5 x 98.4 cm |
| Mounting | Rack-mounted with the included rail kit, or tower |
| Audible Noise | 55 dBA at 1 m |
| Heat Dissipation | 931 BTU/hour |
| Ingress Protection | IP20 |
| Finish | Black |
| Operating Environment | 0β40 Β°C, 0β95% relative humidity non-condensing, 0β3000 m |
| Storage Environment | β15 to 45 Β°C, 0β95% relative humidity non-condensing |
| Certifications (as printed) | CE, UKCA |
| Package Contents | UPS with rail kit, AP9335T temperature sensor and software and documentation CD; ask us for the itemised list from the current Schneider datasheet |
Compatibility & Runtime

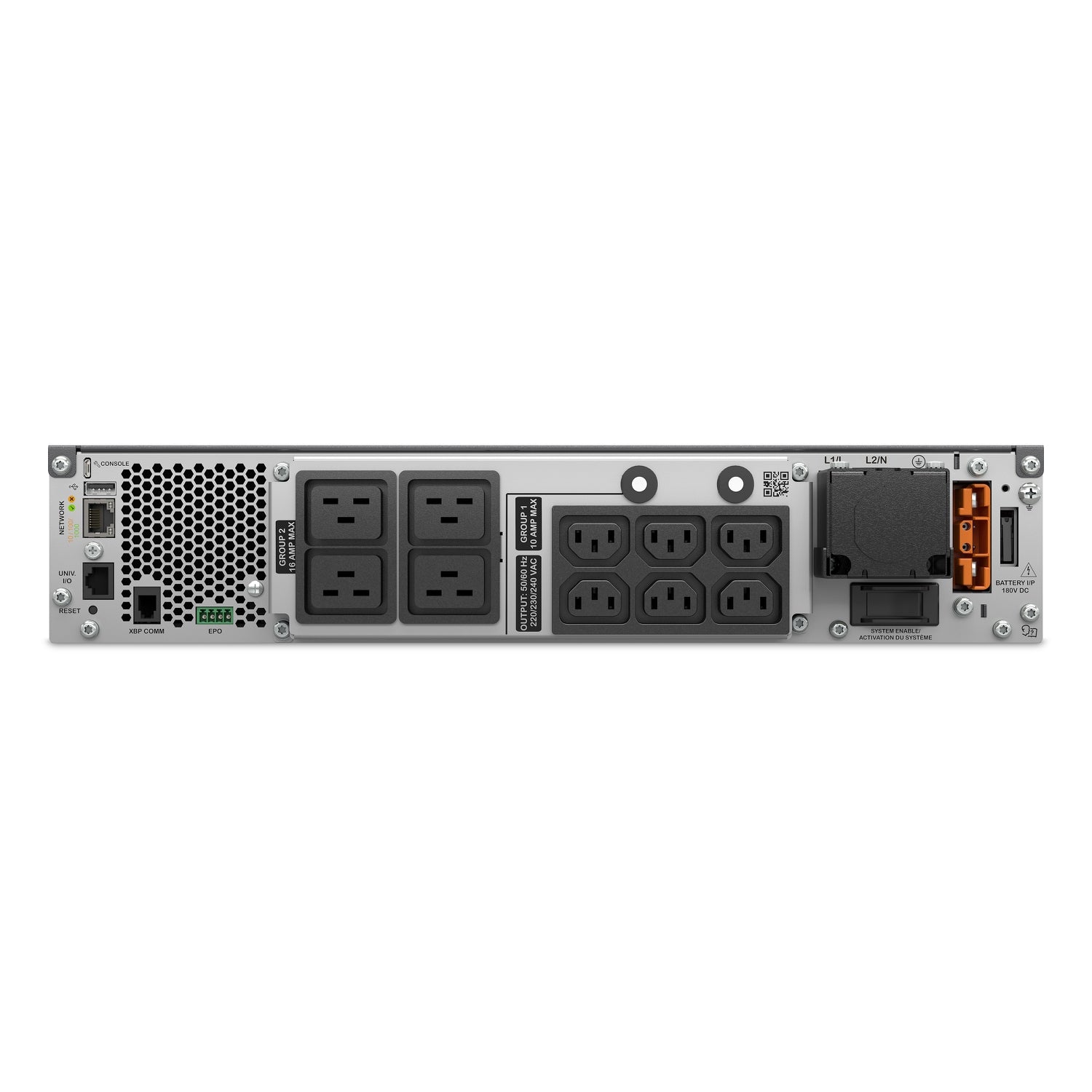

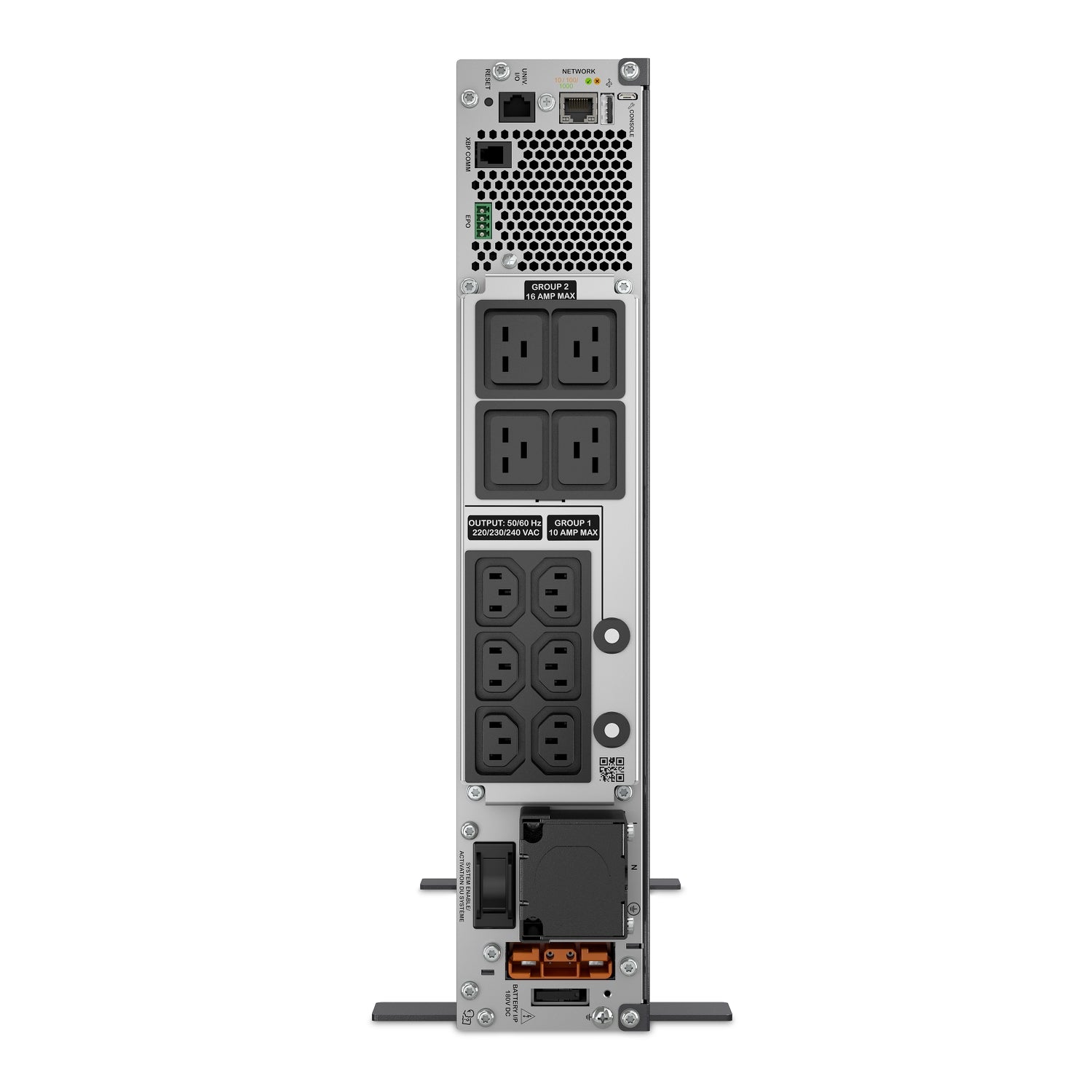

Outlets and What Can Be Plugged In
The SRTL5KRM2UI provides 6 x IEC C13 and 4 x IEC C19 on the output with switched outlet groups, so a rack of servers plus a storage array or two high-draw devices plug straight in. Locking C13 to C14 lead kits such as the AP8704S-WW keep a rack tidy; for more outlets, feed a rack PDU such as the AP7921B from one of the C19 outlets. Size directly on watts: this is a unity power factor build, so compare the continuous watts of the load, with headroom for surge and growth, against 5000 W.
Hardwired Input
The input is a single 1P+N+E hardwire connection, so a licensed electrical worker installs the UPS on a dedicated circuit sized for 5 kW plus battery charging. Schneider Electric lists a service bypass panel as a compatible accessory for this model; the SBP5000RMI2U is our 230 V 5 kVA service bypass panel β ask us to confirm the pairing for your installation so the UPS can be isolated for service without dropping the load.

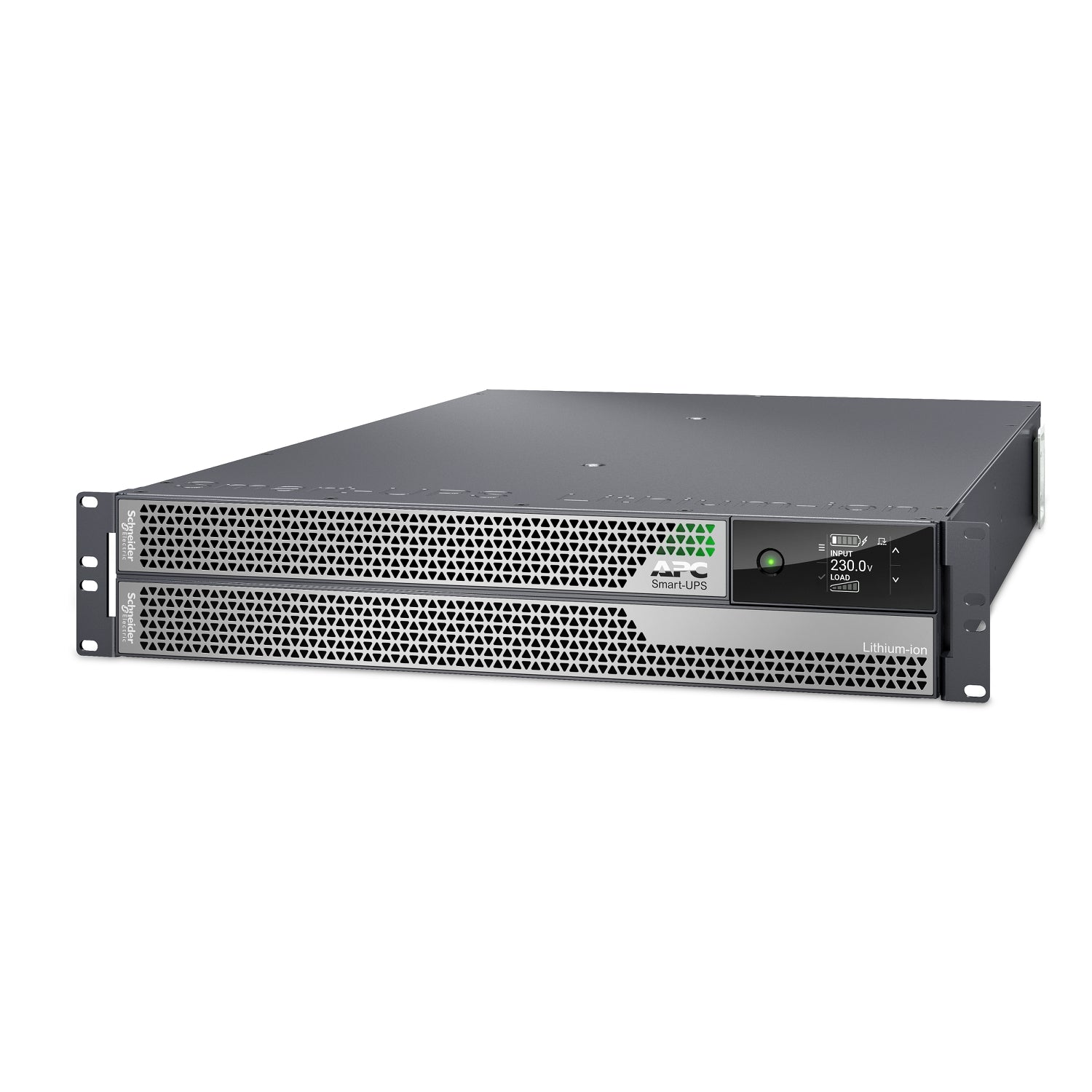

Rack Fit
The chassis occupies 2U at 86 x 432 x 701 mm and 29.2 kg, and needs a 1000 mm or deeper server cabinet. The rail kit is included and the unit converts to tower. Each SRTL180RM2UBP external pack is a further 2U.
Battery and Runtime
Schneider Electric prints 5 minutes at full load (5000 W) and 12 minutes at half load (2500 W) on the internal 180 V module β enough to ride through a supply switch-over or shut servers down gracefully over PowerChute Network Shutdown. For longer hold-up, up to five SRTL180RM2UBP lithium-ion packs can be added. Recharge is 1.5 hours. Send us your load and hold-up time and we will size the pack count from the manufacturer's runtime data.
Management and Software
The Network Management Card 3 with environmental monitoring is pre-installed, with a one-year Secure NMC subscription; there is no free SmartSlot, so no separate network card is needed or fitted. The supplied AP9335T temperature sensor plugs into the card's universal I/O port, and the AP9335TH temperature and humidity sensor is the option if you also want humidity β ask us to confirm. PowerChute Network Shutdown handles graceful shutdown of physical servers, virtual machines and HCI clusters, and the unit is EcoStruxure Ready for cloud monitoring; the optional AP9834 adds Wi-Fi.
Package Contents & Smart-UPS Ultra Ordering Information
In the Box
UPS with rail kit, AP9335T temperature sensor, and a CD with software and documentation. Ask us for the itemised list from the current Schneider datasheet.
Smart-UPS Ultra Range Ordering Information
| SRTL5KRM2UI (this listing) | 5 kVA / 5 kW | Rack/Tower 2U, hardwire in, 6 x C13 + 4 x C19 out, NMC3 built in |
| SRTL3KRM1UINC | 3 kVA / 3 kW | Rack/Tower 1U, lithium-ion, network card |
| SRTL180RM2UBP (ask us) | 180 V lithium-ion external battery pack | 2U, up to five per UPS |
Accessories
| SRTL180RM2UBP | External 180 V lithium-ion battery pack, 2U β up to five per UPS, ask us |
| SRYLBM | Replacement internal lithium-ion battery module β ask us |
| AP9834 | Wi-Fi device for the built-in Network Management Card β ask us |
| AP9335TH | Temperature and humidity sensor for the built-in Network Management Card |
| SBP5000RMI2U | 230 V 5 kVA service bypass panel β confirm pairing with us |
| AP8704S-WW | Locking IEC C13 to C14 power cord kit for the output outlets |
| AP7921B | 1U switched rack PDU, 16 A, 8 x C13 β for additional outlets from a C19 |
The Lead-Acid Smart-UPS SRT 5 kVA and 6 kVA Models
Where lithium-ion and the 2U footprint are not required, the lead-acid Smart-UPS SRT rackmount models at 5 and 6 kVA remain in our catalogue with external VRLA packs.
| SRT5KRMXLI | 5 kVA | Rackmount, internal VRLA, external SRT192RMBP packs |
| SRT6KRMXLI | 6 kVA | Rackmount, internal VRLA, external SRT192RMBP packs |
Datasheet & Downloads
Schneider Electric hosts the official documentation for this product. The links below are the Schneider Electric pages for this part number; each one names the correct model.
| Schneider Electric product page | APC SRTL5KRM2UI on se.com β Singapore site |
| Operation manual, APC Smart-UPS Ultra 5 kVA SRTL5KRM2UT / 2UI / 2UJ (and -HW) | Schneider document SPD_SUO-OM-990-6458_EN β document landing page, Australia site |
| Installation guide, APC Smart-UPS Ultra 5 kVA SRTL5KRM2UT / 2UI / 2UJ (and -HW) | Schneider document SPD_SUO-IM-990-6457_EN β document landing page, UAE (English) site |
| Brochure, APC Smart-UPS Ultra | Schneider document Smart-UPS_Ultra_Brochure_EN β document landing page, USA site |
Schneider's own datasheet and user manual download links redirect to a document host that has repeatedly served the wrong model's file, so we do not publish those links here rather than risk sending you the wrong specification. Email sales@sourceit.com.sg quoting SRTL5KRM2UI and we will send you the current PDF datasheet and user manual directly.
The SRTL180RM2UBP external battery pack has its own installation manual (Schneider reference SPD_SUO-IM-990-6459_EN), which we can send with the datasheet.
Frequently Asked Questions β APC SRTL5KRM2UI
Does the SRTL5KRM2UI have a plug, or is it hardwired?
The input is hardwired β a single 1P+N+E terminal connection installed by a licensed electrical worker on a dedicated circuit. The output is on 6 x IEC C13 and 4 x IEC C19 outlets, so your equipment plugs straight in.
How do I size it?
This is a 5 kVA / 5 kW unity power factor build, so compare the continuous watts of your load, with headroom for start-up surge and growth, directly against 5000 W.
What runtime will I get, and can I extend it?
Schneider Electric prints 5 minutes at full load (5000 W) and 12 minutes at half load (2500 W) on the internal battery module. Up to five SRTL180RM2UBP external lithium-ion packs can be added, each 2U. Send us your load and hold-up time and we will size the pack count.
Is a network card included?
Yes. The Network Management Card 3 with environmental monitoring is pre-installed, with a one-year Secure NMC subscription and an AP9335T temperature sensor in the box. There is no free SmartSlot, so nothing further needs to be bought for SNMP monitoring or PowerChute Network Shutdown.
How long does the battery last, and how fast does it recharge?
Schneider Electric prints a 5 to 10 year battery life for the lithium-ion module and describes it as lasting three times a VRLA UPS with no need to replace the battery during the life of the UPS. Recharge is 1.5 hours. Schneider Electric does not describe changing the module with the load running, so plan a maintenance window for any change and ask us for the procedure.
Why is it only 2U and 29.2 kg?
The Smart-UPS Ultra uses next-generation semiconductor technology and a lithium-ion battery module, which Schneider Electric describes as half the size and weight of a conventional UPS with 2.5 times the power density. A lead-acid 5 kVA on-line UPS needs 3U or more and weighs several times as much.
Do I need a service bypass panel?
It is good practice on a hardwired UPS so the unit can be isolated for service without dropping the load. Schneider Electric lists a service bypass panel as a compatible accessory for this model; ask us to confirm the SBP5000RMI2U pairing for your installation.
Which cabinet does it fit?
At 701 mm deep it needs a 1000 mm or deeper server cabinet. The rail kit is included and the unit converts to tower for a floor-standing installation.
Does it come with a Singapore warranty and a GST invoice?
Yes. Every APC SRTL5KRM2UI sold by SourceIT comes with local Singapore warranty and a GST invoice; APC by Schneider Electric backs the SRTL5KRM2UI with a five-year manufacturer warranty on both the UPS and the internal lithium-ion battery.
