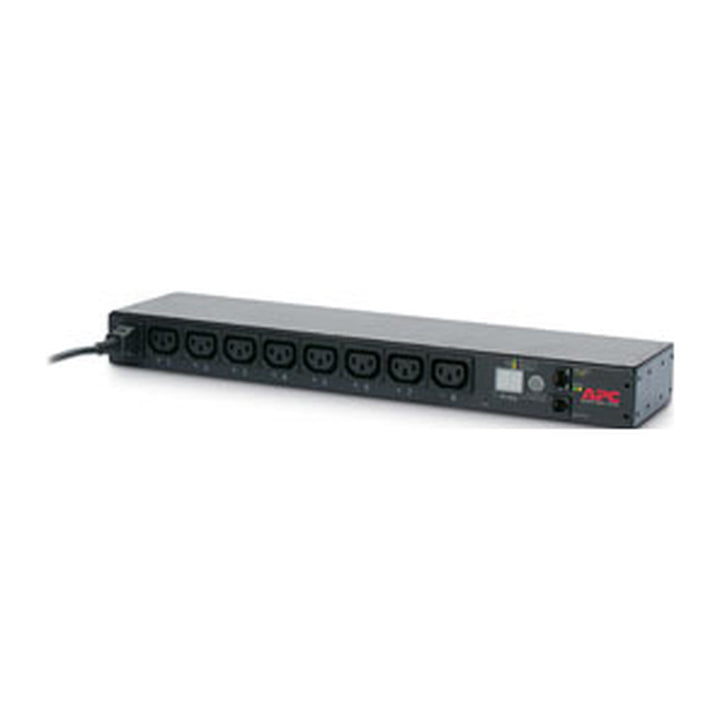

APC NetShelter Switched Rack PDU

APC NetShelter Switched Rack PDU, 1U, 1PH, 2.3kW 230V 10A or 2.5kW 208V 12A, x8 C13 outlets, C14 cord (AP7920B) - 2 Years Local Warranty

Outlet-Level Switched Power Control

The APC NetShelter Switched Rack PDU (AP7920B) gives you remote on/off control of each of its 8 C13 outlets. From a web interface or SNMP management system, you can power outlets individually, reboot hung devices, and schedule power cycles, delivering the flexibility and control needed to maximize uptime for critical equipment.

Remote Management and Monitoring

Manage power usage from anywhere with full remote monitoring and outlet switching. The AP7920B supports real-time visibility and control via web or SNMP, so administrators can respond to issues quickly without a trip to the rack, keeping the network running smoothly.

Reliable, Protected Power Distribution

Rated for 2.3kW at 230V (10A) or 2.5kW at 208V (12A) through a C14 cord, the AP7920B delivers clean, consistent single-phase power. Built-in surge protection and load balancing help shield connected devices from fluctuations, reducing the risk of downtime and equipment damage.

Monitoring, Reporting, and LCD Status

An onboard LCD shows current PDU status and load information at a glance, while the management interface lets you track power usage, set alert thresholds, and generate reports. These insights help optimize energy efficiency and keep you informed and in control of consumption.

Slim 1U Design for Easy Integration

The slim 1U form factor and included mounting brackets make installation simple in NetShelter cabinets or any standard 19-inch rack. Its clean, energy-efficient design integrates seamlessly into data center and server-room environments without cluttering valuable rack space.

Technical Specifications

• Type: Rack-mounted Switched Power Distribution Unit (PDU)
• Rack Mountable: Yes, 1U
• Input Voltage: 230V AC, 10A (max. 2.3 kW); 208V AC, 12A (max. 2.5 kW)
• Output Voltage: 230V AC
• Outlets: 8 x C13 outlets
• Input Connector: C14 (female)
• Power Rating: 2.3kW @ 230V; 2.5kW @ 208V
• Phases: 1 phase (1PH)
• Current Rating: 10A @ 230V; 12A @ 208V
• Total Load Capacity: 2.3kW (230V) or 2.5kW (208V)
• Surge Protection: Yes, includes surge protection for connected devices
• PDU Type: Switched PDU, remote on/off control for each outlet via network interface
• Monitoring: Remote monitoring and individual outlet control
• Mounting: 1U rack-mountable; includes mounting brackets for easy installation in standard 19-inch racks
• LCD Display: Yes, shows current PDU status and load information
• Features: Switched outlets for remote management and control; provides real-time monitoring and outlet switching via web interface or SNMP; high-quality construction for reliable operation in data centers and server rooms; energy-efficient design to reduce power consumption
• Environmental Conditions: Operating Temperature 0°C to 40°C (32°F to 104°F); Humidity 0% to 95% non-condensing
• Certifications: UL; CE; RoHS compliant; cUL
• Dimensions: 1U rack height, standard 19-inch width
• Weight: Approximately 3.6 kg (7.9 lbs)

Ideal Use Case: Ideal for data center and server-room racks that need remote, outlet-level switched power control and monitoring for a small group of devices.

GTIN/UPC: 731304268313
