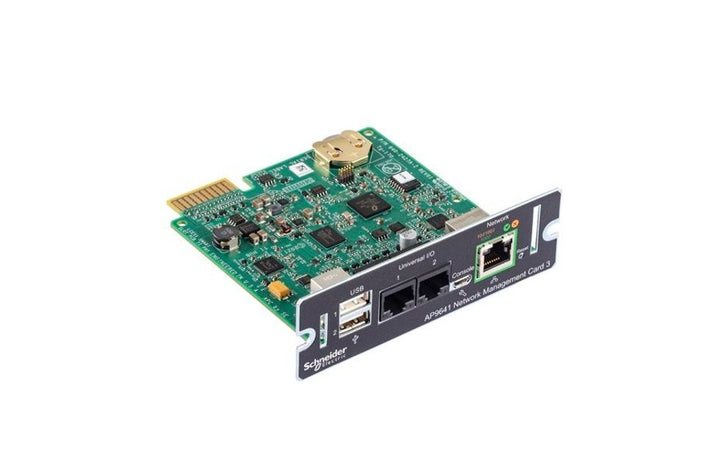

APC UPS Network Management Card 3 w/ Environmental Monitoring
PRODUCT DESCRIPTION
APC UPS Network Management Card 3 with Environmental Monitoring, 2 Universal I/O Ports (AP9641) - 2 Years Local Warranty
Network Management Plus Two Universal I/O Sensor Ports
The APC UPS Network Management Card 3 with Environmental Monitoring (AP9641) does everything the AP9640 does - secure browser, command line and SNMP management of a Smart-UPS from your network - and adds the piece the AP9640 lacks: two universal I/O ports for environmental sensing.
Those ports accept the AP9335T temperature sensor, the AP9335TH temperature and humidity sensor, and the AP9810 dry contact I/O accessory, which brings two input contacts and one output relay. Schneider ships an AP9335T temperature sensor in the box, so the card monitors rack temperature from the day it is installed.
Why Environmental Monitoring Matters in a Singapore Rack
Singapore runs warm and humid year-round, and comms cabinets are frequently in rooms whose cooling is not on the critical circuit. When the air conditioning drops out over a long weekend, rack temperature climbs long before anything fails - and that window is when you want an alert, not a Monday-morning discovery.
With a sensor on the AP9641 the same card that reports mains failure and battery status also reports temperature and relative humidity, with configurable thresholds feeding e-mail, SNMP traps and Syslog. One IP address, one alerting path, both classes of risk.
Full Protocol Coverage Including Modbus RTU Over Serial
The AP9641 supports HTTP and HTTPS with TLS, SSH, Telnet, SNMP v1, v2c and v3, FTP, SCP, BACnet/IP, RADIUS, 802.1X, DHCP, BOOTP, NTP, Syslog, SMTP and IPv4 and IPv6 addressing. It supports both Modbus TCP/IP and - unlike the AP9640 - Modbus RTU over serial through port 2, which matters when the building system you have to integrate with is an older serial head-end rather than an IP one.
Three USB ports are provided: two for firmware work and the optional AP9834 Wi-Fi dongle, plus a micro-USB console port. Connection is 10/100/1000 Base-T Ethernet.
PowerChute Network Shutdown, EcoStruxure IT and a Year of Secure NMC
The card supports PowerChute Network Shutdown for graceful shutdown of physical and virtual servers, and is EcoStruxure IT compatible for estate-wide monitoring. A one-year Secure NMC System subscription is included, keeping firmware current against newly disclosed vulnerabilities - useful evidence for a security audit.
Runs at 0 to 45 °C and 0 to 95% humidity. Supplied and invoiced locally in Singapore with GST.
APC AP9641 Datasheet — Technical Specifications
General
| Part Number (SKU) | AP9641 |
| Schneider Electric Product Name | Network Management Card 3 (NMC3) with Environmental Monitoring, secure remote UPS monitoring and management |
| Form Factor | APC SmartSlot plug-in card |
| Included Subscription | 1-Year Secure NMC System subscription |
| Included Sensor | AP9335T temperature sensor supplied in the box |
| Warranty | 2-Year Manufacturer Warranty (APC by Schneider Electric) |
| Local Warranty (Singapore) | Yes - supplied and supported locally by SourceIT |
Function & Connectivity
| Universal I/O Ports | 2 - accept AP9335T, AP9335TH and AP9810 |
| Network Port | 1 x 10/100/1000 Base-T Ethernet (RJ45) |
| USB Ports | 3 total - 2 x USB (firmware updates, optional AP9834 Wi-Fi dongle) plus 1 x micro-USB console |
| Web & Terminal Access | HTTP, HTTPS (TLS), SSH, Telnet |
| Network Monitoring | SNMP v1, SNMP v2c, SNMP v3, Syslog, SMTP e-mail alerts |
| Building & Industrial | Modbus TCP/IP, Modbus RTU over serial (port 2), BACnet/IP |
| File Transfer | FTP, SCP |
| Authentication & Access | RADIUS, 802.1X (EAPoL) |
| Addressing & Time | IPv4 and IPv6, DHCP, BOOTP, NTP |
| Shutdown Software | PowerChute Network Shutdown supported |
| Management Platform | EcoStruxure IT compatible |
| Firmware (Smart-UPS) | NMC3 firmware v2.5.5.1, released 13 June 2025 |
Physical & Environmental
| Dimensions (H x W x D) | 38 x 121 x 114 mm |
| Net Weight | 0.09 kg |
| Package Weight | 0.34 kg |
| Package Dimensions | 23.5 x 15.9 x 5.1 cm |
| Operating Temperature | 0 to 45 °C |
| Operating Humidity | 0 to 95% non-condensing |
| Operating Altitude | 0 to 10,000 ft |
| Storage Temperature | -5 to 45 °C |
| Storage Altitude | 0 to 15,240 m |
| Certifications | EN 55022 Class A, EN 55024, ICES-003, AS/NZS 3548 (C-Tick) Class A, FCC Part 15 Class A, GOST, VCCI Class A |
Compatibility & Fit
Which UPS families accept the AP9641. The card fits an APC SmartSlot bay, and Schneider's compatibility chart is the same as for the AP9640: single-phase SUA, SUM, SURT, SURTA, SURTD, SUVT, MGE Galaxy 3500, and the current SMT, SMX, SRT, SRC, SMTL, SRTL and SRYL ranges, plus Symmetra LX and Symmetra RM at firmware v1.5.1.1 or later; three-phase Symmetra PX1 20/40/48 kW, Symmetra PX2 96/100/160 kW, Galaxy VM, Galaxy VX, Galaxy PX, Galaxy 3L Pro, Easy UPS 3-Phase Modular and Easy UPS 3M Advanced. Legacy SUA units need post-2008 manufacture and firmware v1.4.2 or later.
In the SourceIT catalogue that covers the Smart-UPS SmartConnect range (SMT and SMC), the Smart-UPS X range - for example the SMX1500RMI2U - and the Smart-UPS On-Line SRT range, such as the SRT5KRMXLI. Smart-UPS X "NC" variants already have a card fitted and no free slot.
What plugs into the universal I/O ports. Two ports, and they accept:
| AP9335T | Temperature sensor - one is supplied in the box with this card |
| AP9335TH | Temperature and humidity sensor, RJ45, 3.9 m lead - stocked by SourceIT |
| AP9810 | Dry contact I/O accessory - adds 2 input contacts and 1 output relay; not stocked, available to order |
One SmartSlot, one card. Most single-phase Smart-UPS models provide exactly one SmartSlot. The AP9641 is generally the strongest use of that slot because it combines network management with sensor ports, where the AP9640 gives network management alone and the AP9613 gives dry contact signalling alone. If you need several dry contacts rather than one or two, the AP9613 remains the right card.
When to use a NetBotz appliance instead. If you need more than two sensors, door access control, leak or smoke detection, or monitoring that is independent of any one UPS, the NetBotz Rack Monitor 250 (NBRK0250A) is the right product - six universal sensor ports, up to 42 wired sensors, and badged access control for two rack doors.
Not for Rack PDUs. APC managed Rack PDUs have their own network port and do not take a Network Management Card.
Package Contents & APC Network Management Card 3 Ordering Information
In the box: Network Management Card 3 with Environmental Monitoring, AP9335T temperature sensor, user manual, USB cable.
APC Network Management Card 3 range and related management options
| Model | What it offers |
| AP9640 | Network management, Gigabit Ethernet, 1 micro-USB console, no sensor ports |
| AP9641 (this listing) | Network management plus 2 universal I/O ports, 3 USB ports, Modbus RTU over serial, AP9335T sensor included |
| AP9613 | Dry contact signalling only - 4 input contacts, 6 output relays, no network |
Sensors and rack monitoring
| AP9335TH | Temperature and humidity sensor, RJ45, 3.9 m lead - plugs straight into a universal I/O port |
| NBRK0250A | NetBotz Rack Monitor 250 - 1U appliance for larger sensor counts and rack door access control |
Smart-UPS models in the SourceIT catalogue that take this card - confirm the SmartSlot is free before ordering
| SMT1500RMI2UC | Smart-UPS 1500VA LCD RM 2U 230V with SmartConnect |
| SMT2200RMI2UC | Smart-UPS 2200VA LCD RM 2U 230V with SmartConnect |
| SMX1500RMI2U | Smart-UPS X 1500VA Rack/Tower LCD 230V |
| SRT5KRMXLI | Smart-UPS SRT 5000VA RM 230V |
Datasheet & Downloads
Official Schneider Electric documentation for the APC AP9641. Links open in a new tab.
- Schneider Electric product page - AP9641 UPS Network Management Card 3 with Environmental Monitoring
- UPS Network Management Card 3 user guide (PDF)
- NMC3 firmware for Smart-UPS - current release
- Schneider Electric FAQ FA237786 - UPS Network Management Card compatibility chart
Need a specific document, a compliance declaration or a written quotation? Contact SourceIT and we will supply it.
Frequently Asked Questions — APC AP9641
What does the AP9641 add over the AP9640?
Two universal I/O ports for environmental sensors, three USB ports instead of one micro-USB console, Modbus RTU over serial through port 2, and support for the optional AP9834 Wi-Fi dongle. An AP9335T temperature sensor is also included in the box. The network management function itself - protocols, web interface, SNMP, PowerChute support - is identical on both cards.
Which sensors can I plug into it?
The AP9335T temperature sensor, the AP9335TH temperature and humidity sensor, and the AP9810 dry contact I/O accessory, which adds two input contacts and one output relay. Two ports means two devices. If you need more sensors than that, look at the NetBotz Rack Monitor 250 instead.
Does a sensor come with the card?
Yes - Schneider's package contents list for the AP9641 includes an AP9335T temperature sensor. If you want humidity as well, add an AP9335TH on the second port; humidity is worth measuring in a Singapore comms cabinet, since sustained high relative humidity shortens the life of both electronics and UPS batteries.
Will it fit my UPS?
It needs a free SmartSlot. Schneider's compatibility chart covers the current SMT, SMX, SRT, SRC, SMTL, SRTL and SRYL ranges, legacy SUA, SUM, SURT, SURTA, SURTD and SUVT units, MGE Galaxy 3500, Symmetra LX and RM, and the three-phase Symmetra PX and Galaxy families. Most single-phase Smart-UPS have one slot only, and the "NC" Smart-UPS X variants ship with it already filled. Send us the UPS part number and we will confirm.
Can it talk to a building management system?
Yes. It supports BACnet/IP, Modbus TCP/IP and Modbus RTU over serial. The serial Modbus option is the reason to choose the AP9641 over the AP9640 when the head-end you have to integrate with is an older serial system rather than an IP one.
Can it shut my servers down automatically?
Yes, with PowerChute Network Shutdown, which the card supports. PowerChute communicates with the card over the network and shuts physical and virtual machines down gracefully before the battery is exhausted. Ask SourceIT about licensing for your host count.
Does it come with a Singapore warranty?
Yes. Every APC AP9641 sold by SourceIT comes with local Singapore warranty and a GST invoice; APC backs the AP9641 with a 2-year manufacturer warranty.
