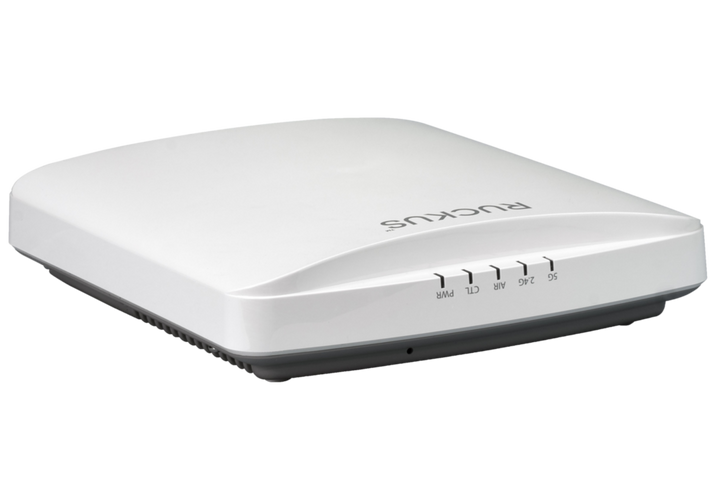

Ruckus R650 Indoor Wi‑Fi 6 4×4:4 Access Point

Ruckus Network R650 High Performance Wi-Fi 6 4x4:4 Indoor Access Point (9U1-R650-WW00) - Local Warranty

Enhance Your Network with the Ruckus R650 High-Performance Wi-Fi 6 Access Point

The Ruckus R650 is a cutting-edge, high-performance indoor access point designed to meet the growing demands of modern networks. Built with Wi-Fi 6 (802.11ax) technology and a 4x4:4 MIMO configuration, the R650 provides superior coverage, faster speeds, and enhanced efficiency for medium to large enterprise environments. Perfect for high-density areas, the R650 ensures reliable connectivity and high throughput for users and devices.

Wi-Fi 6 for Future-Proof Networking

The Ruckus R650 supports Wi-Fi 6 (802.11ax), the latest Wi-Fi standard, offering improved bandwidth, speed, and performance across all connected devices. Wi-Fi 6 also brings reduced latency, better power efficiency, and increased capacity, making it ideal for environments with high-density device usage, such as offices, classrooms, and stadiums.

4x4:4 MIMO for Maximized Efficiency

With a 4x4:4 MIMO antenna configuration, the R650 delivers increased data throughput and more efficient communication, allowing it to serve multiple users simultaneously without compromising performance. This MIMO technology enhances the reliability and speed of connections, even in congested network environments.

Improved Spectrum Efficiency with BeamFlex+

Ruckus’ patented BeamFlex+ technology is embedded in the R650, dynamically adjusting antenna patterns to optimize coverage and minimize interference. This feature improves the Wi-Fi experience by ensuring stronger, more reliable connections in challenging environments, reducing dead zones and increasing coverage.

OFDMA and MU-MIMO for High-Density Environments

The R650 utilizes Orthogonal Frequency Division Multiple Access (OFDMA) and Multi-User, Multiple Input, Multiple Output (MU-MIMO) technologies to efficiently manage network traffic and prioritize data delivery. These features make it ideal for environments with a high concentration of connected devices, such as offices, campuses, and large public venues.

Simplified Network Management

The Ruckus R650 can be managed through Ruckus Cloud, SmartZone, or Unleashed management platforms, offering centralized control, monitoring, and troubleshooting. With a user-friendly interface, you can quickly deploy and manage your network, ensuring optimal performance with minimal downtime.

PoE Support for Easy Installation

The R650 supports Power over Ethernet (PoE), enabling easy installation without the need for separate power cables. This flexibility simplifies deployment and reduces costs by allowing the access point to be powered directly through the Ethernet cable.

Technical Specifications

General
Model: R650
Part Number: 9U1-R650-WW00
Product Name: Ruckus R650 High Performance Wi-Fi 6 4x4:4 Indoor Access Point
Manufacturer: Ruckus Networks
Product Type: Enterprise Indoor Wireless Access Point
Wireless Standard: IEEE 802.11ax (Wi-Fi 6)
Radio Architecture: Dual-Band Concurrent 4x4:4 MU-MIMO
Deployment Type: Indoor Enterprise WLAN
Mounting Options: Ceiling Mount, Wall Mount, T-Bar Mount
Management Options: RUCKUS One, SmartZone, ZoneDirector, Unleashed
Target Environment: Enterprise, Education, Hospitality, Healthcare, Retail, Government
Warranty: Limited Lifetime Warranty (Region Dependent)

Wireless Specifications
Wi-Fi Standard: IEEE 802.11ax (Wi-Fi 6)
Backward Compatibility: 802.11a/b/g/n/ac Wave 2
Frequency Bands: 2.4 GHz and 5 GHz
Radio Configuration: Dual-Band Concurrent
Spatial Streams: 4x4:4 MU-MIMO
Maximum Aggregate Throughput: Up to 3.55 Gbps
2.4 GHz Data Rate: Up to 1,148 Mbps
5 GHz Data Rate: Up to 2,402 Mbps
Maximum Concurrent Clients: Up to 1,024 Devices
Channel Width Support: 20 MHz, 40 MHz, 80 MHz, 160 MHz
Modulation: Up to 1024-QAM
OFDMA: Supported
MU-MIMO: Supported
Uplink MU-MIMO: Supported
Downlink MU-MIMO: Supported
Target Wake Time (TWT): Supported
BSS Coloring: Supported
Beamforming: Supported
Airtime Fairness: Supported
Band Steering: Supported
Load Balancing: Supported

BeamFlex+ Smart Antenna Technology
Antenna Type: Integrated Adaptive Antenna Array
BeamFlex+: Supported
ChannelFly: Supported
Automatic RF Optimization: Supported
Dynamic Antenna Pattern Selection: Supported
Coverage Optimization: Supported
Interference Mitigation: Supported
Signal Enhancement: Supported
Dead Spot Reduction: Supported
Roaming Optimization: Supported

RF Specifications
Transmit Power Control: Dynamic and Manual Configuration
Automatic Channel Selection: Supported
RF Monitoring: Supported
Spectrum Analysis: Supported
Co-Channel Interference Mitigation: Supported
Adjacent Channel Interference Reduction: Supported
SmartRoam Technology: Supported
Dynamic RF Management: Supported

Network Features
IPv4 Support: Supported
IPv6 Support: Supported
Layer 2 Bridging: Supported
Layer 3 Routing: Supported
VLAN Support: Supported
Dynamic VLAN Assignment: Supported
Guest Networking: Supported
Captive Portal: Supported
Wireless Mesh Networking: Supported
Mesh Backhaul: Supported
Quality of Service (QoS): Supported
Application Visibility: Supported
Traffic Prioritization: Supported
Bandwidth Limiting: Supported
Client Isolation: Supported
Fast Roaming: Supported

Security Features
WPA2-Personal: Supported
WPA2-Enterprise: Supported
WPA3-Personal: Supported
WPA3-Enterprise: Supported
Enhanced Open (OWE): Supported
802.1X Authentication: Supported
RADIUS Authentication: Supported
LDAP Authentication: Supported
Active Directory Integration: Supported
Dynamic PSK (DPSK): Supported
MAC Authentication: Supported
Role-Based Access Control: Supported
Rogue AP Detection: Supported
Rogue Client Detection: Supported
Secure Boot: Supported
Secure Firmware Validation: Supported

Wired Connectivity
Ethernet Ports: 1 x 1/2.5 Gigabit Ethernet Port
Ethernet Standards: 10/100/1000/2500 Mbps
PoE Standard: IEEE 802.3af / IEEE 802.3at PoE+
USB Port: 1 x USB 2.0
Management Access: Web GUI, CLI, SNMP, Cloud Management

Power Specifications
Power Input: IEEE 802.3at PoE+
802.3af Support: Supported (Feature Dependent)
External Power Adapter: Optional
Maximum Power Consumption: Approximately 17.9W
Energy Efficient Operation: Supported
Power Saving Features: Supported

Management & Monitoring
RUCKUS One Cloud Management: Supported
SmartZone Management: Supported
ZoneDirector Management: Supported
Unleashed Management: Supported
Web-Based Management: Supported
SNMP Monitoring: Supported
Remote Monitoring: Supported
Firmware Upgrades: Supported
Centralized Configuration: Supported
Real-Time Analytics: Supported
Network Health Monitoring: Supported
Client Analytics: Supported
Application Analytics: Supported
Event Logging: Supported
Remote Diagnostics: Supported
Packet Capture: Supported

Voice & Collaboration Optimization
Wi-Fi Multimedia (WMM): Supported
Voice Prioritization: Supported
Video Prioritization: Supported
VoIP Optimization: Supported
Microsoft Teams Optimization: Supported
Zoom Optimization: Supported
Cisco Webex Optimization: Supported
Fast Roaming for Voice Devices: Supported
Low Latency Communications: Supported

Supported Management Platforms
RUCKUS One Cloud
RUCKUS SmartZone
RUCKUS ZoneDirector
RUCKUS Unleashed

Design & Construction
Color: White
Form Factor: Indoor Access Point
Mounting Type: Ceiling, Wall, T-Bar
Enclosure Material: Commercial-Grade Polycarbonate
Deployment Location: Indoor Use Only
Enterprise-Class Construction: Supported
Low-Profile Design: Supported

Environmental Specifications
Operating Temperature: 0°C to 50°C
Storage Temperature: -40°C to 70°C
Operating Humidity: 10% to 95% Non-Condensing

Physical Specifications
Dimensions: 221 mm x 221 mm x 48 mm
Weight: Approximately 0.9 kg
Color: White
Mounting Options: Ceiling, Wall, T-Bar Mount

Package Contents
Ruckus R650 Wi-Fi 6 Indoor Access Point
Mounting Bracket Kit
Installation Guide
Regulatory Documentation

Key Features
Wi-Fi 6 (802.11ax) Enterprise Access Point
Dual-Band 4x4:4 MU-MIMO Architecture
Up to 3.55 Gbps Aggregate Throughput
BeamFlex+ Adaptive Antenna Technology
ChannelFly Intelligent RF Optimization
Supports Up to 1,024 Concurrent Clients
OFDMA and Target Wake Time Support
2.5 Gigabit Ethernet Uplink Port
WPA3 Enterprise Security
Dynamic PSK Security Technology
Enterprise Mesh Networking Support
Cloud, Controller-Based or Controllerless Deployment
Optimized for High-Density Wireless Environments
Advanced Voice and Video Collaboration Support

Performance & Features
Designed for high-density enterprise wireless deployments
Provides superior coverage through BeamFlex+ smart antenna technology
Optimizes RF performance automatically using ChannelFly technology
Supports demanding voice, video, and collaboration applications
Reduces interference and improves wireless reliability
Enables seamless roaming for mobile users
Delivers enterprise-grade security and centralized management
Supports hybrid workplace and digital transformation initiatives
Ideal for organizations requiring scalable Wi-Fi 6 infrastructure
Built to support large numbers of concurrent wireless clients

Typical Use Cases
Enterprise Office Networks
Meeting Rooms and Boardrooms
Educational Institutions
Hotels and Hospitality Venues
Healthcare Facilities
Retail Stores
Warehouses and Logistics Offices
Manufacturing Environments
Government Agencies
Public Sector Deployments
High-Density User Environments
Hybrid Workplace Deployments
Microsoft Teams Rooms Connectivity
Zoom Rooms Connectivity
Campus-Wide Wireless Networks
Managed Wi-Fi Service Deployments
Business-Critical Wireless Infrastructure Projects
