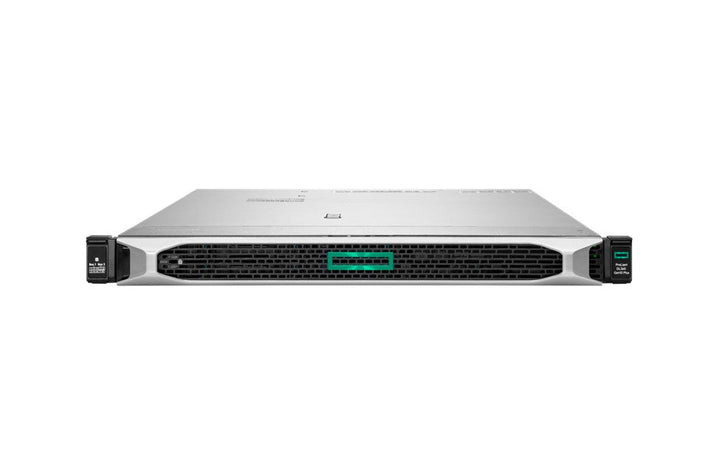

HPE ProLiant DL360 Gen10 Plus 1U Rack Server
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
HPE ProLiant DL360 Gen10 Plus 1U Rack Server (Configure-to-Order) - Local Warranty
Dense 1U, Dual-Socket Intel Xeon Compute
The HPE ProLiant DL360 Gen10 Plus takes up to two 3rd Gen Intel Xeon Scalable processors with up to 40 cores each and 32 DDR4-3200 DIMM slots for up to 8 TB of LRDIMM memory, with Intel Optane Persistent Memory 200 Series support, in a single rack unit.
Flexible Storage and PCIe 4.0 I/O

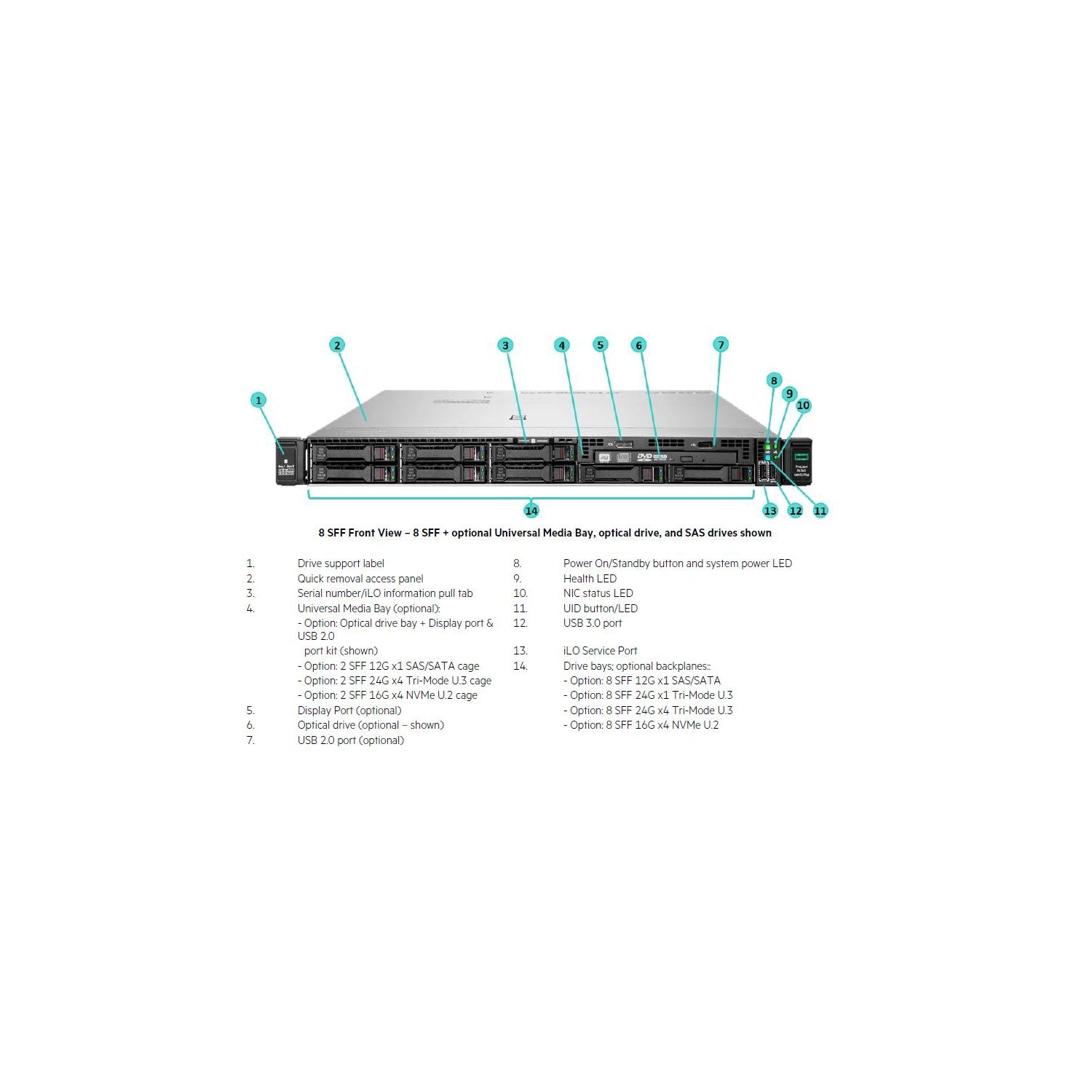

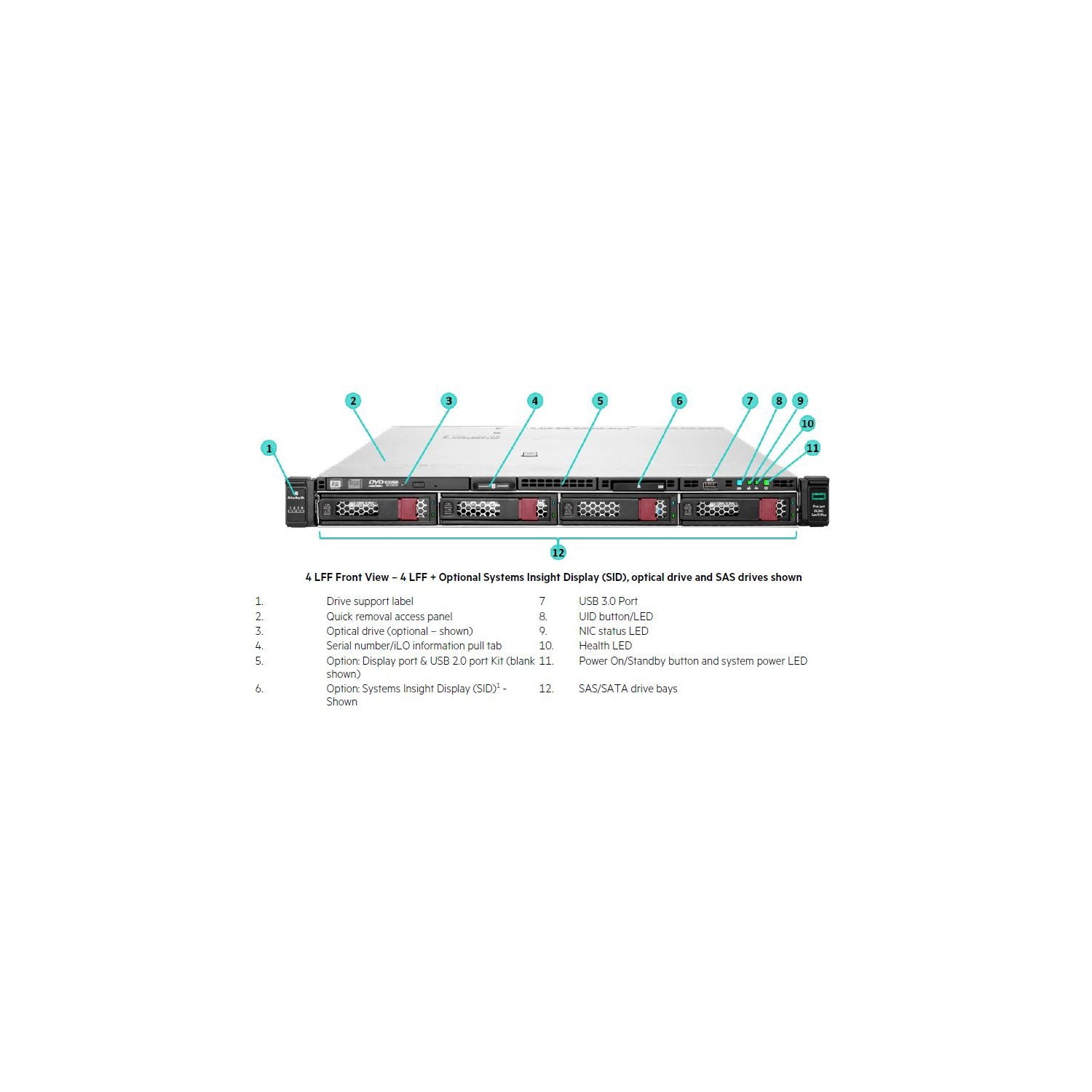

Choose 4 LFF or 8 SFF drive bays with an optional 2 SFF expansion in SAS/SATA, tri-mode U.3 or NVMe. Two PCIe 4.0 x16 slots (a third with the second processor) and an x16 OCP 3.0 slot for networking up to 200GbE suit virtualisation, databases and VDI. HPE's current generation is the ProLiant DL360 Gen11.
Secure, Manageable Platform
HPE iLO 5 with immutable silicon root of trust, UEFI Secure Boot and Secure Start protects the firmware, with TPM 2.0 as an option. HPE's standard warranty is 3 years parts, 3 years labour and 3 years onsite next-business-day.
HPE ProLiant DL360 Gen10 Plus Datasheet — Technical Specifications
General
| Product Name | HPE ProLiant DL360 Gen10 Plus Server |
| Form Factor | 1U rack, 2-socket |
| Order Type | Configure-to-Order (CPU, memory, drive cage, controller, NIC, PSU and support term chosen per order) |
| HPE Standard Warranty | 3 years parts, 3 years labour, 3 years onsite, next business day |
| Local Warranty (Singapore) | Supplied by SourceIT with HPE warranty; HPE Care Pack upgrades available at configuration |
Processor & Memory
| Processors | Up to two 3rd Gen Intel Xeon Scalable processors, up to 40 cores, up to 270 W |
| Memory Slots | 32 DIMM slots (16 per processor, 8 channels per processor), HPE DDR4 Smart Memory RDIMM / LRDIMM |
| Maximum Memory | 2 TB RDIMM; 8 TB LRDIMM |
| Memory Speed | Up to 3200 MT/s |
| Persistent Memory | Intel Optane Persistent Memory 200 Series |
Storage
| Drive Cage Options | 4 x LFF SAS/SATA; or 8 x SFF with optional 2 x SFF: 12G SAS/SATA, 24G x4 tri-mode U.3 or x4 NVMe |
| RAID Controllers | HPE Smart Array E208i, P408i and P816i; Broadcom MR216i and MR416i; Microchip SR932i-p; Intel VROC software RAID |
| Boot Device | HPE NS204i-p NVMe PCIe3 OS Boot Device |
Expansion & Networking

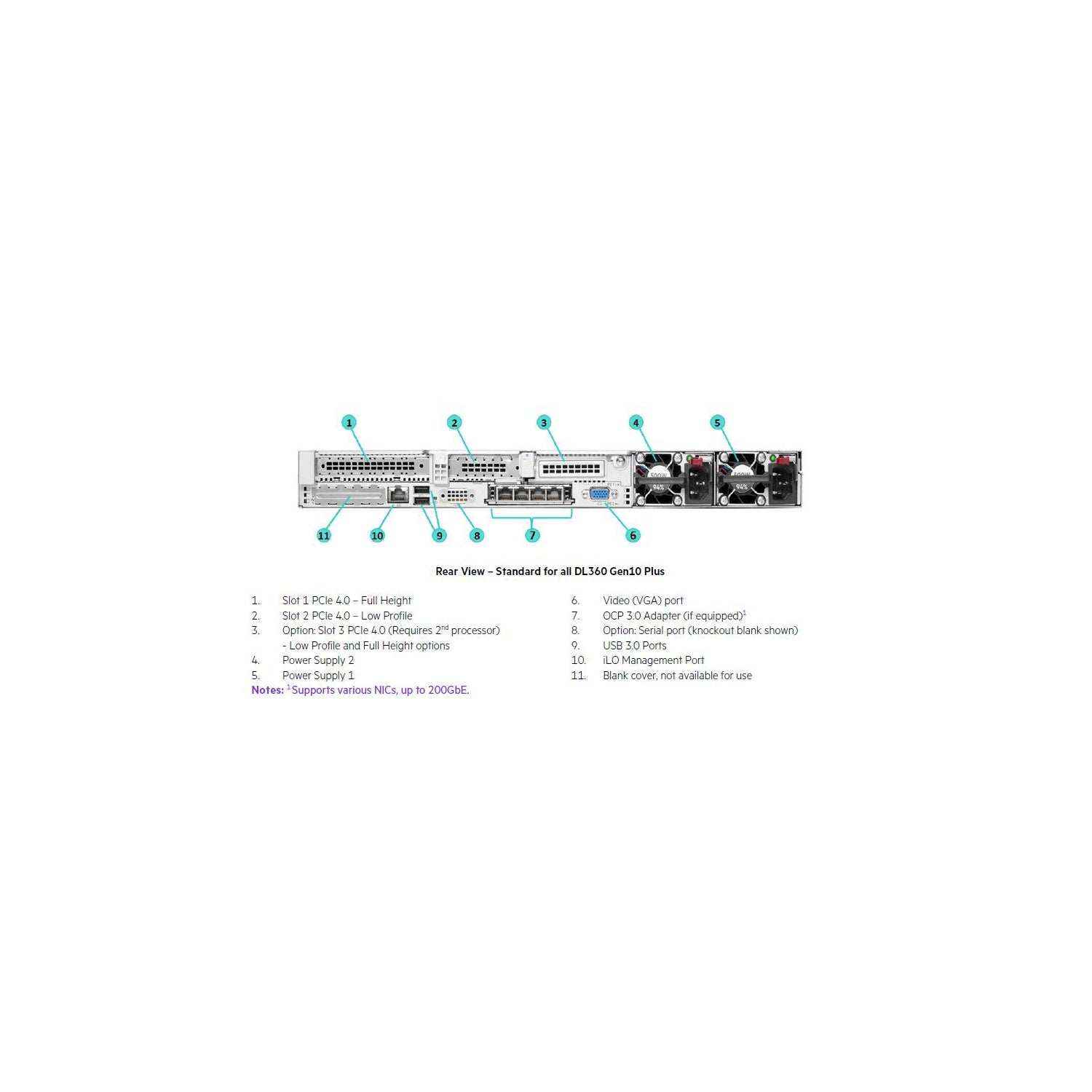

| PCIe Slots | 2 x PCIe 4.0 x16 (1 full height, 1 low profile); optional third x16 slot with the second processor |
| OCP Slot | x16 OCP 3.0 slot (NICs up to 200GbE) |
| Embedded NIC | None on Network Choice models; networking via OCP 3.0 or PCIe adapters |
Management & Security
| Management | HPE iLO 5 |
| Security | HPE iLO immutable silicon root of trust; UEFI Secure Boot and Secure Start; TPM 2.0 (optional); chassis intrusion detection (optional) |
Power & Cooling
| Power Supplies | HPE Flex Slot hot-plug options: 500 W, 800 W and 1600 W Platinum; 800 W and 1800-2200 W Titanium |
| Fans | Hot-plug fans, 5 standard up to 7 with fan redundancy; high-performance fan kit available |
How to Configure Your Server — Sizing Checklist
Servers are built to order. Answer the questions below so we can size the right configuration for you.
Step 1: Hardware Requirements
- Which server form factor do you need: tower or rackmount?
- How many CPU cores, how much RAM and how much usable storage capacity do you require?
- How many processors: single-socket (1S), dual-socket (2S) or four-socket (4S)?
- Which RAID configuration do you need? Any specific HDD or SSD type, such as 7.2K or 10K rpm drives?
- Which network interface is required: 1GbE Base-T, SFP+ or Fibre Channel?
- How many years of maintenance support do you need? (Minimum 3 years)
Step 2: Deployment & Services
- How many server units are required?
- Will you run virtual machine workloads? Do you need a VMware licence, or Windows Server with Hyper-V?
- How do you store data today? Do you have existing NAS or SAN storage?
- How do you back up today? Would you like a backup proposal, such as an IDPA 8TB appliance?
- Do you require burn-in test services?
- Do you need hard disk retention services?
Operating Systems, Management & Workloads
Operating Systems & Hypervisors
Microsoft Windows Server, VMware ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and other certified platforms. Check HPE's Servers Support & Certification Matrices for the exact versions certified on your chosen processor and options.
Management Tools
HPE iLO 5 provides out-of-band remote console, monitoring, alerting and firmware management, with HPE iLO Advanced licences available for extended remote features.
Typical Workloads
Virtualisation and containers, VDI, transactional databases, web and application serving, and space-constrained deployments where 1U density matters.
Package Contents & HPE ProLiant Gen10 Plus Ordering Information
What Is Supplied
The DL360 Gen10 Plus is built to order: chassis with the processors, memory, drive cage, storage controller, network adapters and power supplies specified on your quotation, plus rail kit, bezel and power cords where ordered.
HPE ProLiant Gen10 Plus
| Model | Key feature |
| ProLiant DL20 Gen10 Plus | 1U, 1-socket Intel Xeon E-2300 |
| ProLiant DL325 Gen10 Plus | 1U, 1-socket AMD EPYC |
| ProLiant DL325 Gen10 Plus v2 | 1U, 1-socket AMD EPYC 7003 |
| ProLiant DL360 Gen10 Plus (this listing) | 1U, 2-socket 3rd Gen Intel Xeon Scalable |
| ProLiant DL365 Gen10 Plus | 1U, 2-socket AMD EPYC |
| ProLiant DL380 Gen10 Plus | 2U, 2-socket 3rd Gen Intel Xeon Scalable |
| ProLiant DL385 Gen10 Plus | 2U, 2-socket AMD EPYC |
| ProLiant DL360 Gen11 (current generation) | 1U, 2-socket 4th/5th Gen Intel Xeon Scalable |
Datasheet & Downloads
| HPE QuickSpecs | HPE ProLiant DL360 Gen10 Plus Server QuickSpecs |
| HPE QuickSpecs (web) | HPE ProLiant DL360 Gen10 Plus QuickSpecs on hpe.com |
Frequently Asked Questions — HPE ProLiant DL360 Gen10 Plus
Is this a fixed configuration?
No. The DL360 Gen10 Plus is configure-to-order. Processors, memory, drive cage, RAID controller, network adapters, power supplies and the HPE support term are specified to your workload; use the sizing checklist above to brief us.
How much memory can it take?
32 DDR4 DIMM slots at up to 3200 MT/s: up to 2 TB with RDIMMs or 8 TB with LRDIMMs, plus Intel Optane Persistent Memory 200 Series support.
How many drives fit in 1U?
Up to 10 SFF drives (8 + 2) in SAS/SATA, tri-mode U.3 or NVMe, or 4 LFF drives for high-capacity SAS/SATA.
What warranty does it carry?
HPE's standard warranty is 3 years parts, 3 years labour and 3 years onsite next-business-day. Faster response and longer terms are available as HPE Care Pack upgrades.
DL360 or DL380?
Choose the 1U DL360 Gen10 Plus for compute density. Choose the 2U DL380 Gen10 Plus when you need more drive bays and more PCIe slots.
