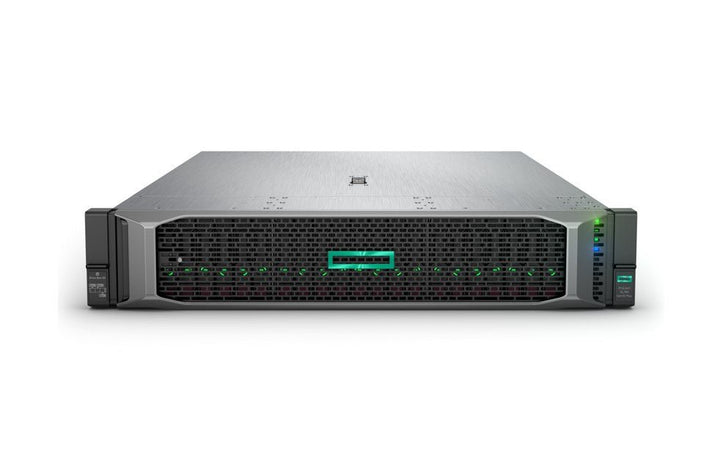

HPE ProLiant DL385 Gen10 Plus 2U Rack Server
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
HPE ProLiant DL385 Gen10 Plus 2U Rack Server (Configure-to-Order) - Local Warranty
Dual-Socket AMD EPYC in 2U
The HPE ProLiant DL385 Gen10 Plus runs up to two AMD EPYC 7002 Series processors with 8 to 64 cores each, and 32 DDR4 DIMM slots for up to 8 TB of memory at up to 3200 MT/s. It is the previous ProLiant generation; the current-generation equivalent is the HPE ProLiant DL385 Gen11.
Storage-Rich, PCIe 4.0 Expansion
Chassis options run from 8 SFF or 8 LFF up to 24 SFF or 12 LFF front bays, expandable with mid-tray and rear cages to 38 SFF or 20 LFF drives. Up to eight PCIe 4.0 slots across three risers plus OCP 3.0 networking suit virtualisation, software-defined storage and data analytics.
Secure, Remotely Managed
HPE iLO 5 with the immutable Silicon Root of Trust protects firmware from the ground up and provides out-of-band remote management. HPE's standard warranty is 3 years parts, 3 years labour and 3 years onsite next-business-day.

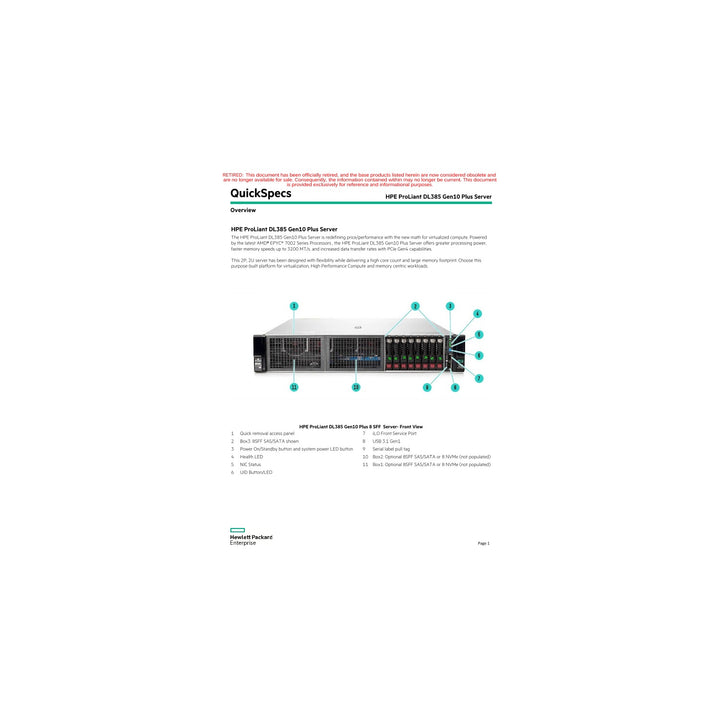

HPE ProLiant DL385 Gen10 Plus Datasheet — Technical Specifications
General
| Product Name | HPE ProLiant DL385 Gen10 Plus Server |
| Generation | HPE ProLiant Gen10 Plus (AMD) |
| Form Factor | 2U rack, 2-socket |
| Order Type | Configure-to-Order (CPU, memory, drive cage, controller, NIC, PSU and support term chosen per order) |
| CTO Chassis Part Numbers | P14278-B21 (8 SFF), P14279-B21 (24 SFF), P14280-B21 (12 LFF), P14281-B21 (8 LFF) |
| HPE Standard Warranty | 3 years parts, 3 years labour, 3 years onsite, next business day |
| Local Warranty (Singapore) | Supplied by SourceIT with HPE warranty; HPE Care Pack upgrades available at configuration |
Processor & Memory
| Processors | Up to two AMD EPYC 7002 Series processors, 8 to 64 cores (AMD EPYC 7003 Series is supported on the DL385 Gen10 Plus v2, not this model) |
| Memory Slots | 32 DIMM slots (16 per processor, 8 channels per processor), DDR4 RDIMM or LRDIMM |
| Maximum Memory | 8 TB (32 x 256 GB LRDIMM) |
| Memory Speed | Up to 3200 MT/s (2933 MT/s with two DIMMs per channel) |
Storage
| Drive Cage Options | 8 SFF, 24 SFF, 8 LFF or 12 LFF front configurations |
| Maximum Drives | Up to 38 SFF (24 front + 8 mid-tray + 6 rear) or 20 LFF (12 front + 4 mid-plane + 4 rear) |
| Storage Controllers | HPE Smart Array E208i-a, P408i-a, P408i-p, P408e-p and P816i-a (model dependent) |
Expansion & Networking
| PCIe Slots | Up to 8 x PCIe 4.0 across primary, secondary and tertiary risers (secondary riser requires the second processor) |
| Embedded NIC | None; choice of OCP 3.0 or stand-up network adapter |
| USB & Video | Up to 7 USB ports (front, rear and internal); 1 rear VGA port |
Management & Security
| Management | HPE iLO 5 with Intelligent Provisioning; iLO Advanced optional |
| Security | Immutable Silicon Root of Trust; TPM 2.0 option |
Power & Cooling
| Power Supplies | HPE Flex Slot hot-plug options from 500 W to 1600 W (Platinum, Titanium, Universal and -48 VDC) |
| Fans | 4 standard fans (8 SFF, 1 processor) or 6 fans (8 LFF, 12 LFF and 24 SFF chassis), model dependent |
How to Configure Your Server — Sizing Checklist
Servers are built to order. Answer the questions below so we can size the right configuration for you.
Step 1: Hardware Requirements
- Which server form factor do you need: tower or rackmount?
- How many CPU cores, how much RAM and how much usable storage capacity do you require?
- How many processors: single-socket (1S), dual-socket (2S) or four-socket (4S)?
- Which RAID configuration do you need? Any specific HDD or SSD type, such as 7.2K or 10K rpm drives?
- Which network interface is required: 1GbE Base-T, SFP+ or Fibre Channel?
- How many years of maintenance support do you need? (Minimum 3 years)
Step 2: Deployment & Services
- How many server units are required?
- Will you run virtual machine workloads? Do you need a VMware licence, or Windows Server with Hyper-V?
- How do you store data today? Do you have existing NAS or SAN storage?
- How do you back up today? Would you like a backup proposal, such as an IDPA 8TB appliance?
- Do you require burn-in test services?
- Do you need hard disk retention services?
Operating Systems, Management & Workloads
Operating Systems & Hypervisors
Microsoft Windows Server, VMware ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and Ubuntu. Check HPE's OS support matrix for the exact versions certified on the DL385 Gen10 Plus.
Management Tools
HPE iLO 5 provides out-of-band remote console, monitoring and alerting, with Intelligent Provisioning for OS deployment. HPE OneView and iLO Advanced add fleet-level management.
Typical Workloads
Virtualisation and containers, software-defined and hyperconverged storage, data analytics and memory-intensive databases that benefit from high core counts and many drive bays.
Package Contents & HPE ProLiant Gen10 Plus Ordering Information
What Is Supplied
The DL385 Gen10 Plus is built to order: chassis with the processors, memory, drive cages, storage controller, network adapters and power supplies specified on your quotation, plus rail kit, bezel and power cords where ordered.
HPE ProLiant Gen10 Plus
| Model | Key feature |
| ProLiant DL20 Gen10 Plus | 1U, 1-socket Intel Xeon E-2300 |
| ProLiant DL325 Gen10 Plus | 1U, 1-socket AMD EPYC |
| ProLiant DL325 Gen10 Plus v2 | 1U, 1-socket AMD EPYC 7003 |
| ProLiant DL360 Gen10 Plus | 1U, 2-socket 3rd Gen Intel Xeon Scalable |
| ProLiant DL365 Gen10 Plus | 1U, 2-socket AMD EPYC |
| ProLiant DL380 Gen10 Plus | 2U, 2-socket 3rd Gen Intel Xeon Scalable |
| ProLiant DL385 Gen10 Plus (this listing) | 2U, 2-socket AMD EPYC |
| ProLiant DL360 Gen11 (current generation) | 1U, 2-socket 4th/5th Gen Intel Xeon Scalable |
Datasheet & Downloads
Frequently Asked Questions — HPE ProLiant DL385 Gen10 Plus
Is this a fixed configuration?
No. The DL385 Gen10 Plus is configure-to-order. Processors, memory, drive cages, storage controller, network adapters, power supplies and the HPE support term are specified to your workload; use the sizing checklist above to brief us.
Which AMD processors does it take?
AMD EPYC 7002 Series processors, from 8 to 64 cores each. AMD EPYC 7003 Series processors are supported on the DL385 Gen10 Plus v2, not on this model.
How many drives can it hold?
Up to 38 SFF drives (24 front, 8 mid-tray and 6 rear) or 20 LFF drives (12 front, 4 mid-plane and 4 rear), depending on chassis and cage options.
What warranty does it carry?
HPE's standard warranty is 3 years parts, 3 years labour and 3 years onsite next-business-day. Faster response and longer terms are available as HPE Care Pack upgrades.
Is there a newer model?
Yes. The HPE ProLiant DL385 Gen11 is the current-generation 2U, 2-socket AMD EPYC server.
