HPE ProLiant DL380 Gen10 Plus 2U Rack Server
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
HPE ProLiant DL380 Gen10 Plus 2U Rack Server (Configure-to-Order) - Local Warranty
Versatile 2U, Dual-Socket Intel Xeon Platform
The HPE ProLiant DL380 Gen10 Plus takes up to two 3rd Gen Intel Xeon Scalable processors with up to 40 cores each (up to 270 W) and 32 DDR4-3200 DIMM slots for up to 2 TB of RDIMM or 8 TB of LRDIMM memory.
Storage Density and PCIe 4.0 Expansion
The 24 SFF chassis scales to 38 SFF drives with mid-tray and rear cages, and the 12 LFF chassis to 20 LFF drives. Up to eight PCIe 4.0 slots across three risers plus OCP 3.0 networking up to 200GbE suit virtualisation, databases and storage-heavy workloads. HPE's current generation is the ProLiant Gen11 range, including the ProLiant DL385 Gen11 and DL380a Gen11.
Secure, Manageable Platform
HPE iLO 5 with immutable silicon root of trust protects the firmware, with TPM 2.0 as an option. HPE's standard warranty is 3 years parts, 3 years labour and 3 years onsite next-business-day.
HPE ProLiant DL380 Gen10 Plus Datasheet — Technical Specifications
General
| Product Name | HPE ProLiant DL380 Gen10 Plus Server |
| Form Factor | 2U rack, 2-socket |
| Order Type | Configure-to-Order (CPU, memory, drive cage, controller, NIC, PSU and support term chosen per order) |
| HPE Standard Warranty | 3 years parts, 3 years labour, 3 years onsite, next business day |
| Local Warranty (Singapore) | Supplied by SourceIT with HPE warranty; HPE Care Pack upgrades available at configuration |
Processor & Memory
| Processors | Up to two 3rd Gen Intel Xeon Scalable processors, up to 40 cores, up to 270 W |

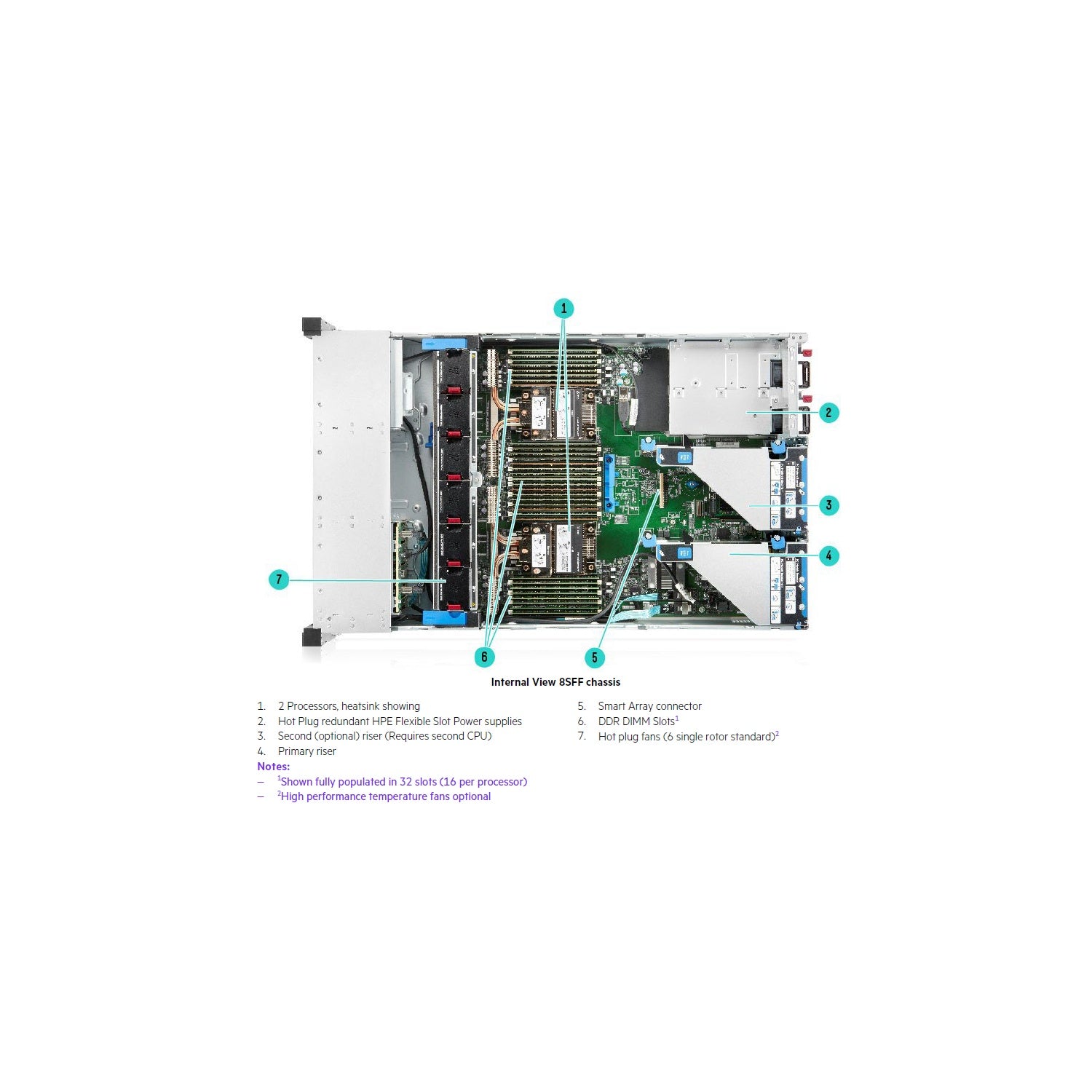

| Memory Slots | 32 DIMM slots (16 per processor, 8 channels per processor), HPE DDR4 Smart Memory RDIMM / LRDIMM |
| Maximum Memory | 2 TB RDIMM (32 x 64 GB); 8 TB LRDIMM (32 x 256 GB) |
| Memory Speed | Up to 3200 MT/s |
Storage

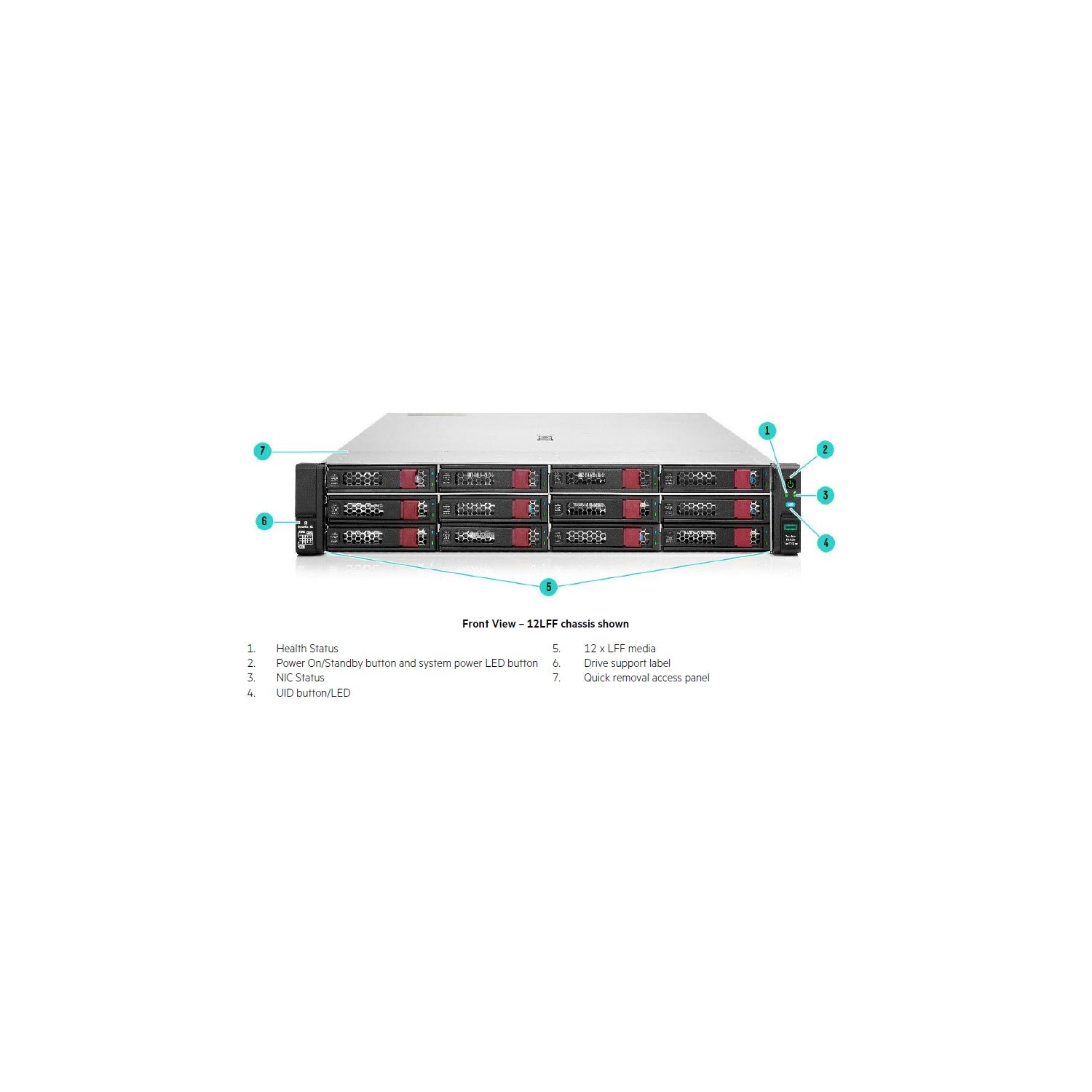

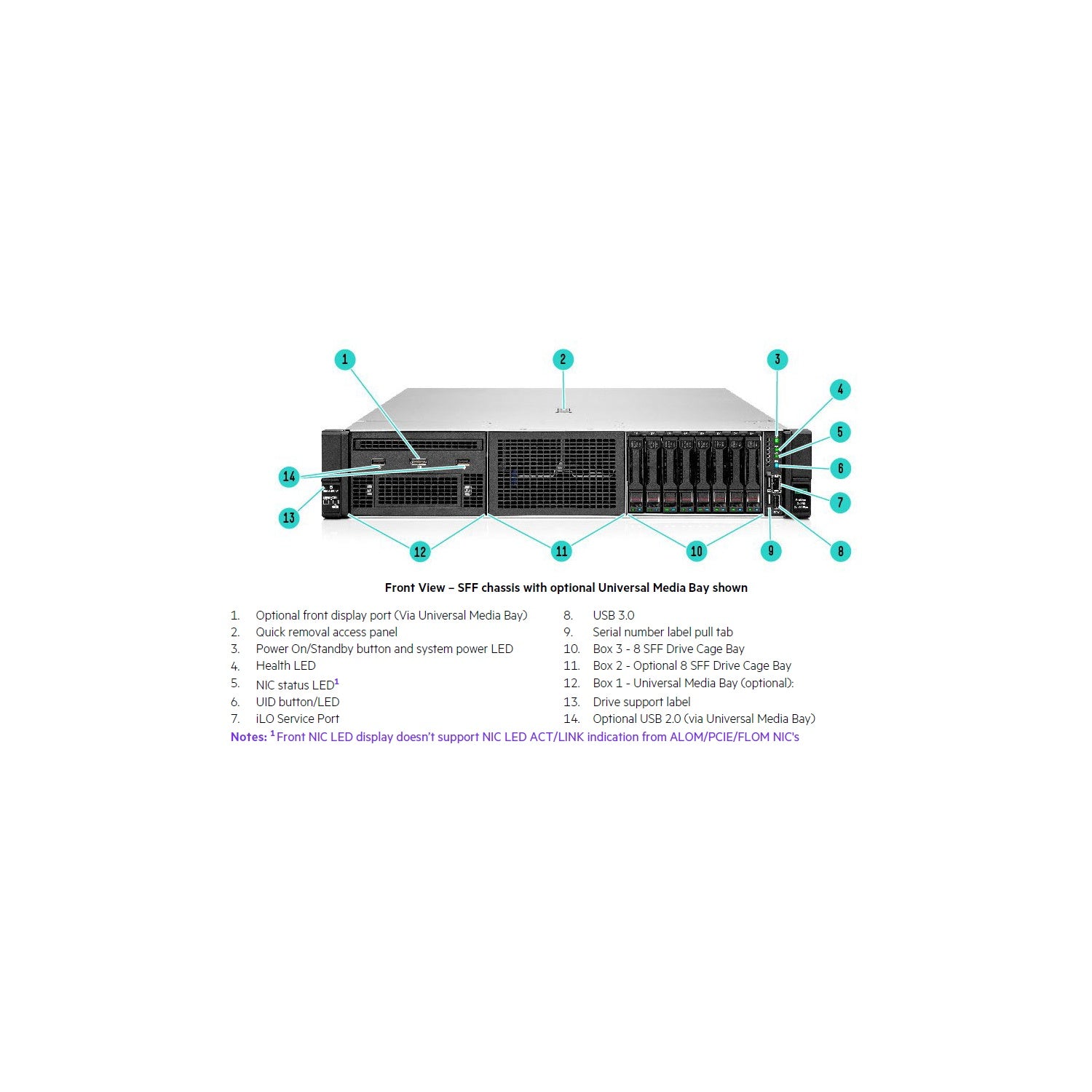

| Chassis Options | 8 SFF (with optional Universal Media Bay); 24 SFF; 8 LFF; 12 LFF |
| Maximum Drives | 24 SFF front + 8 SFF mid-tray + up to 6 SFF rear = 38 SFF; 12 LFF front + 4 LFF mid-tray + 4 LFF rear = 20 LFF |
| RAID Controllers | HPE SR100i software RAID; HPE Smart Array E208i, P408i and P816i; tri-mode MR216i, MR416i and SR932i Gen10 Plus |
Expansion & Networking

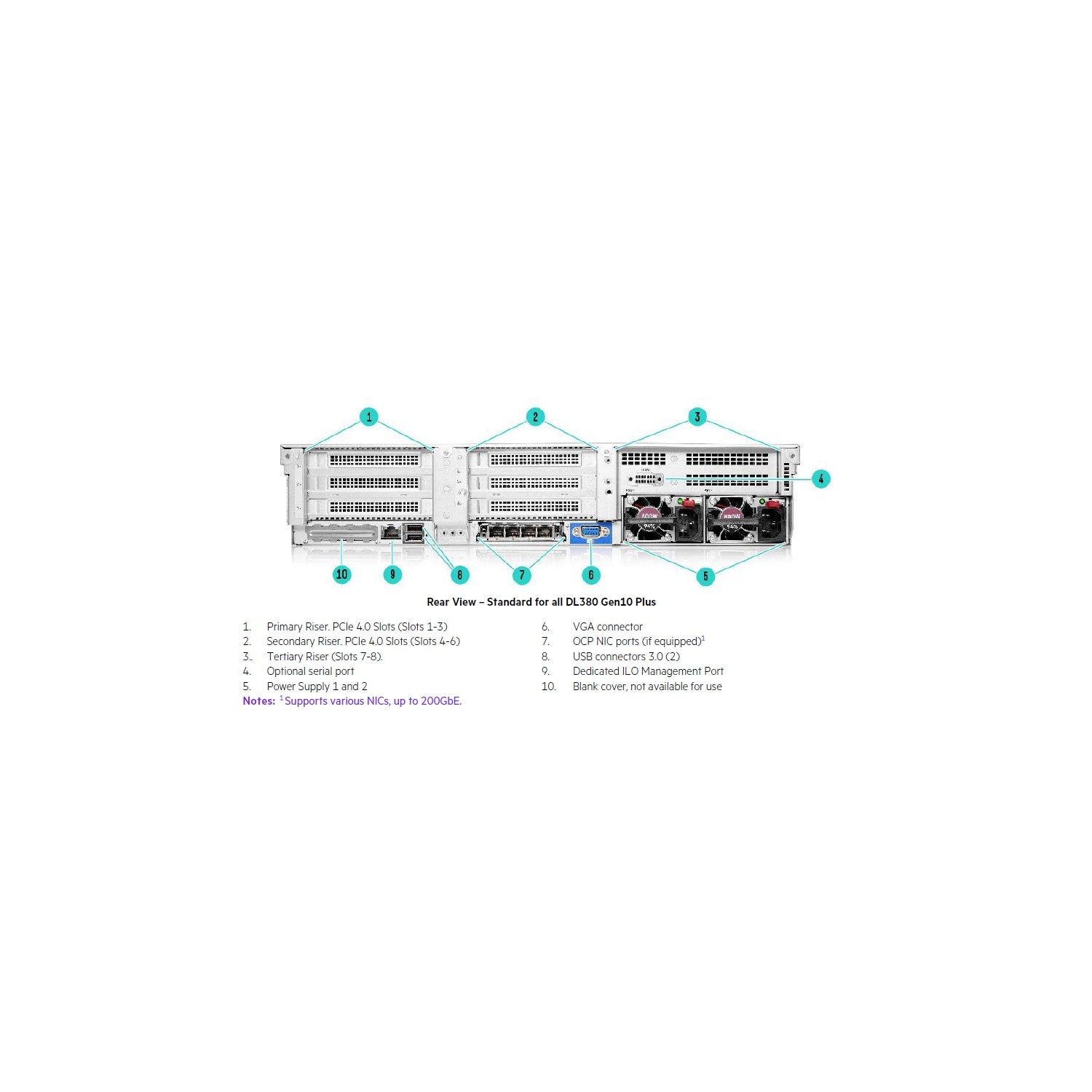

| PCIe Slots | Up to 8 x PCIe 4.0: primary riser 3 slots, secondary riser 3 slots, tertiary riser 2 slots |
| OCP Slot | OCP 3.0 (NICs up to 200GbE) |
| Embedded NIC | None standard; OCP or stand-up network adapter required |
Management & Security
| Management | HPE iLO 5 |
| Security | HPE iLO immutable silicon root of trust; TPM 2.0 (optional) |
Power
| Power Supplies | 1 or 2 HPE Flex Slot hot-plug: 800 W Platinum, 1000 W Titanium, 1600 W Platinum, 1800-2200 W Titanium |
How to Configure Your Server — Sizing Checklist
Servers are built to order. Answer the questions below so we can size the right configuration for you.
Step 1: Hardware Requirements
- Which server form factor do you need: tower or rackmount?
- How many CPU cores, how much RAM and how much usable storage capacity do you require?
- How many processors: single-socket (1S), dual-socket (2S) or four-socket (4S)?
- Which RAID configuration do you need? Any specific HDD or SSD type, such as 7.2K or 10K rpm drives?
- Which network interface is required: 1GbE Base-T, SFP+ or Fibre Channel?
- How many years of maintenance support do you need? (Minimum 3 years)
Step 2: Deployment & Services
- How many server units are required?
- Will you run virtual machine workloads? Do you need a VMware licence, or Windows Server with Hyper-V?
- How do you store data today? Do you have existing NAS or SAN storage?
- How do you back up today? Would you like a backup proposal, such as an IDPA 8TB appliance?
- Do you require burn-in test services?
- Do you need hard disk retention services?
Operating Systems, Management & Workloads
Operating Systems & Hypervisors
Microsoft Windows Server, VMware ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and other certified platforms. Check HPE's Servers Support & Certification Matrices for the exact versions certified on your chosen processor and options.
Management Tools
HPE iLO 5 provides out-of-band remote console, monitoring, alerting and firmware management, with HPE iLO Advanced licences available for extended remote features.
Typical Workloads
Virtualisation and containers, databases and analytics, software-defined and hyperconverged storage, file and backup servers, and mixed workloads that need drive capacity and PCIe expansion.
Package Contents & HPE ProLiant Gen10 Plus Ordering Information
What Is Supplied
The DL380 Gen10 Plus is built to order: chassis with the processors, memory, drive cages, storage controller, network adapters and power supplies specified on your quotation, plus rail kit, bezel and power cords where ordered.
HPE ProLiant Gen10 Plus
| Model | Key feature |
| ProLiant DL20 Gen10 Plus | 1U, 1-socket Intel Xeon E-2300 |
| ProLiant DL325 Gen10 Plus | 1U, 1-socket AMD EPYC |
| ProLiant DL325 Gen10 Plus v2 | 1U, 1-socket AMD EPYC 7003 |
| ProLiant DL360 Gen10 Plus | 1U, 2-socket 3rd Gen Intel Xeon Scalable |
| ProLiant DL365 Gen10 Plus | 1U, 2-socket AMD EPYC |
| ProLiant DL380 Gen10 Plus (this listing) | 2U, 2-socket 3rd Gen Intel Xeon Scalable |
| ProLiant DL385 Gen10 Plus | 2U, 2-socket AMD EPYC |
| ProLiant DL360 Gen11 (current generation) | 1U, 2-socket 4th/5th Gen Intel Xeon Scalable |
Datasheet & Downloads
| HPE QuickSpecs | HPE ProLiant DL380 Gen10 Plus Server QuickSpecs |
| HPE QuickSpecs (web) | HPE ProLiant DL380 Gen10 Plus QuickSpecs on hpe.com |
Frequently Asked Questions — HPE ProLiant DL380 Gen10 Plus
Is this a fixed configuration?
No. The DL380 Gen10 Plus is configure-to-order. Processors, memory, drive cages, RAID controller, network adapters, power supplies and the HPE support term are specified to your workload; use the sizing checklist above to brief us.
How many drives can it hold?
Up to 38 SFF drives (24 front, 8 mid-tray, 6 rear) or up to 20 LFF drives (12 front, 4 mid-tray, 4 rear), depending on chassis and cages.
How much memory can it take?
32 DDR4 DIMM slots at up to 3200 MT/s: up to 2 TB with RDIMMs or 8 TB with LRDIMMs.
What warranty does it carry?
HPE's standard warranty is 3 years parts, 3 years labour and 3 years onsite next-business-day. Faster response and longer terms are available as HPE Care Pack upgrades.
DL380 or DL360?
Choose the 2U DL380 Gen10 Plus for drive capacity and up to eight PCIe slots. Choose the 1U DL360 Gen10 Plus for compute density.
