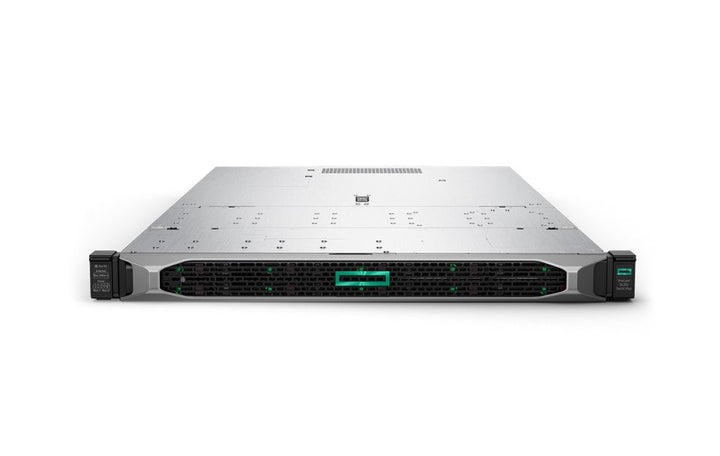

HPE ProLiant DL325 Gen10 Plus v2 1U Rack Server
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
HPE ProLiant DL325 Gen10 Plus v2 1U Rack Server (Configure-to-Order) - Local Warranty
Single-Socket AMD EPYC 7003 in 1U
The HPE ProLiant DL325 Gen10 Plus v2 runs one 3rd Gen AMD EPYC 7003 Series processor with 8 to 64 cores at up to 280 W, delivering high core counts from a single socket for virtualisation and per-socket-licensed workloads.
Memory, NVMe Storage and PCIe 4.0
16 DDR4-3200 DIMM slots hold up to 1 TB of RDIMM or 4 TB of LRDIMM. Choose 4 LFF or 8 SFF drive bays with an optional 2 SFF SAS/SATA or NVMe expansion, plus two PCIe 4.0 x16 slots, an optional third PCIe 4.0 slot and an OCP 3.0 slot. HPE's current generation is the ProLiant DL325 Gen11.
Secure, Manageable Platform
HPE iLO 5 with silicon root of trust, UEFI Secure Boot and Secure Start protect the platform, with TPM 2.0 as an option. HPE's standard warranty is 3 years parts, 3 years labour and 3 years onsite next-business-day.
HPE ProLiant DL325 Gen10 Plus v2 Datasheet — Technical Specifications
General
| Product Name | HPE ProLiant DL325 Gen10 Plus v2 Server |
| Form Factor | 1U rack, 1-socket |
| Order Type | Configure-to-Order (CPU, memory, drive cage, controller, NIC, PSU and support term chosen per order) |
| HPE Standard Warranty | 3 years parts, 3 years labour, 3 years onsite, next business day |
| Local Warranty (Singapore) | Supplied by SourceIT with HPE warranty; HPE Care Pack upgrades available at configuration |
Processor & Memory
| Processor | One 3rd Gen AMD EPYC 7003 Series processor, 8 to 64 cores, 120 W to 280 W |
| Memory Slots | 16 DIMM slots, 8 channels, 2 DIMMs per channel, HPE DDR4 Smart Memory |
| Maximum Memory | 1 TB RDIMM; 4 TB LRDIMM |
| Memory Speed | DDR4-3200 |
Storage
| Drive Cage Options | 4 x LFF SAS/SATA; or 8 x SFF SAS/SATA with optional 2 x SFF SAS/SATA or 2 x NVMe (up to 10 SFF) |
| RAID Controllers | HPE Smart Array E208i-a, P408i-a and P816i-a; Broadcom MegaRAID and Microchip SmartRAID options |
| Boot Device | HPE NS204i-p NVMe PCIe3 OS Boot Device |
Expansion & Networking
| PCIe Slots | Slot 1 PCIe 4.0 x16, slot 2 PCIe 4.0 x16, optional slot 3 PCIe 4.0 |
| OCP Slot | OCP 3.0 slot |
| GPU Support | NVIDIA A2 16 GB |
Management & Security
| Management | HPE iLO 5 |
| Security | HPE iLO silicon root of trust; UEFI Secure Boot and Secure Start; TPM 2.0 (optional); chassis intrusion detection (optional) |
Power & Cooling
| Power Supplies | HPE Flex Slot hot-plug options from 500 W to 1600 W Platinum |
| Fans | Standard and maximum-performance fan kits |
How to Configure Your Server — Sizing Checklist
Servers are built to order. Answer the questions below so we can size the right configuration for you.
Step 1: Hardware Requirements
- Which server form factor do you need: tower or rackmount?
- How many CPU cores, how much RAM and how much usable storage capacity do you require?
- How many processors: single-socket (1S), dual-socket (2S) or four-socket (4S)?
- Which RAID configuration do you need? Any specific HDD or SSD type, such as 7.2K or 10K rpm drives?
- Which network interface is required: 1GbE Base-T, SFP+ or Fibre Channel?
- How many years of maintenance support do you need? (Minimum 3 years)
Step 2: Deployment & Services
- How many server units are required?
- Will you run virtual machine workloads? Do you need a VMware licence, or Windows Server with Hyper-V?
- How do you store data today? Do you have existing NAS or SAN storage?
- How do you back up today? Would you like a backup proposal, such as an IDPA 8TB appliance?
- Do you require burn-in test services?
- Do you need hard disk retention services?
Operating Systems, Management & Workloads
Operating Systems & Hypervisors
Microsoft Windows Server, VMware ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and other certified platforms. Check HPE's Servers Support & Certification Matrices for the exact versions certified on your chosen processor and options.
Management Tools
HPE iLO 5 provides out-of-band remote console, monitoring, alerting and firmware management, with HPE iLO Advanced licences available for extended remote features.
Typical Workloads
Virtualisation and containers, VDI, software-defined storage, databases and analytics, where a single high-core-count AMD EPYC processor reduces per-socket licensing cost.
Package Contents & HPE ProLiant Gen10 Plus Ordering Information
What Is Supplied
The DL325 Gen10 Plus v2 is built to order: chassis with the processor, memory, drive cage, storage controller, network adapters and power supplies specified on your quotation, plus rail kit and power cords where ordered.
HPE ProLiant Gen10 Plus
| Model | Key feature |
| ProLiant DL20 Gen10 Plus | 1U, 1-socket Intel Xeon E-2300 |
| ProLiant DL325 Gen10 Plus | 1U, 1-socket AMD EPYC |
| ProLiant DL325 Gen10 Plus v2 (this listing) | 1U, 1-socket AMD EPYC 7003 |
| ProLiant DL360 Gen10 Plus | 1U, 2-socket 3rd Gen Intel Xeon Scalable |
| ProLiant DL365 Gen10 Plus | 1U, 2-socket AMD EPYC |
| ProLiant DL380 Gen10 Plus | 2U, 2-socket 3rd Gen Intel Xeon Scalable |
| ProLiant DL385 Gen10 Plus | 2U, 2-socket AMD EPYC |
| ProLiant DL360 Gen11 (current generation) | 1U, 2-socket 4th/5th Gen Intel Xeon Scalable |
Datasheet & Downloads

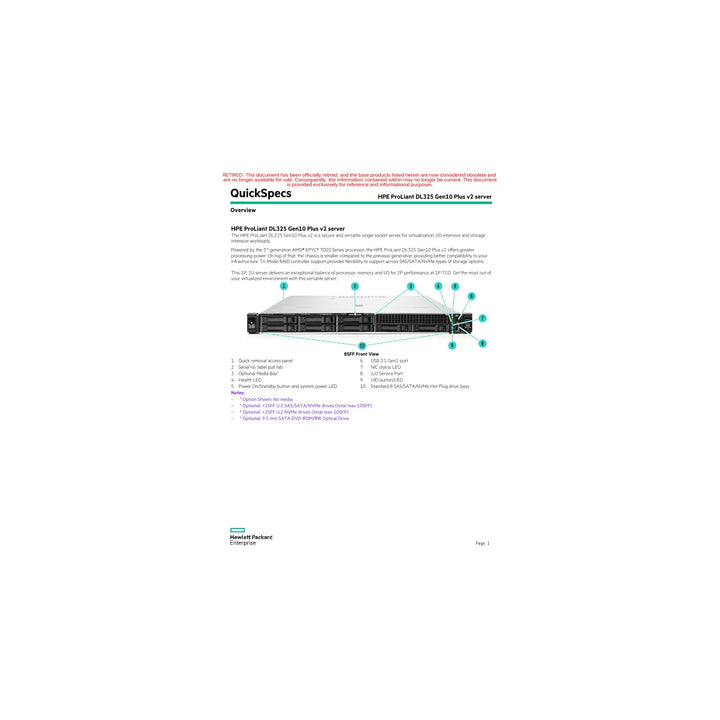

| HPE QuickSpecs | HPE ProLiant DL325 Gen10 Plus v2 Server QuickSpecs |
Frequently Asked Questions — HPE ProLiant DL325 Gen10 Plus v2
Is this a fixed configuration?
No. The DL325 Gen10 Plus v2 is configure-to-order. Processor, memory, drive cage, RAID controller, network adapters, power supplies and the HPE support term are specified to your workload; use the sizing checklist above to brief us.
What is the difference from the DL325 Gen10 Plus?
The v2 model supports 3rd Gen AMD EPYC 7003 Series processors at up to 280 W, where the original DL325 Gen10 Plus uses 2nd Gen EPYC 7002 Series.
How much memory can it take?
16 DDR4-3200 DIMM slots: up to 1 TB with RDIMMs or 4 TB with LRDIMMs.
What warranty does it carry?
HPE's standard warranty is 3 years parts, 3 years labour and 3 years onsite next-business-day. Faster response and longer terms are available as HPE Care Pack upgrades.
Is there a newer model?
Yes. HPE's current generation is the ProLiant DL325 Gen11 with AMD EPYC 9004 Series processors and DDR5 memory.
