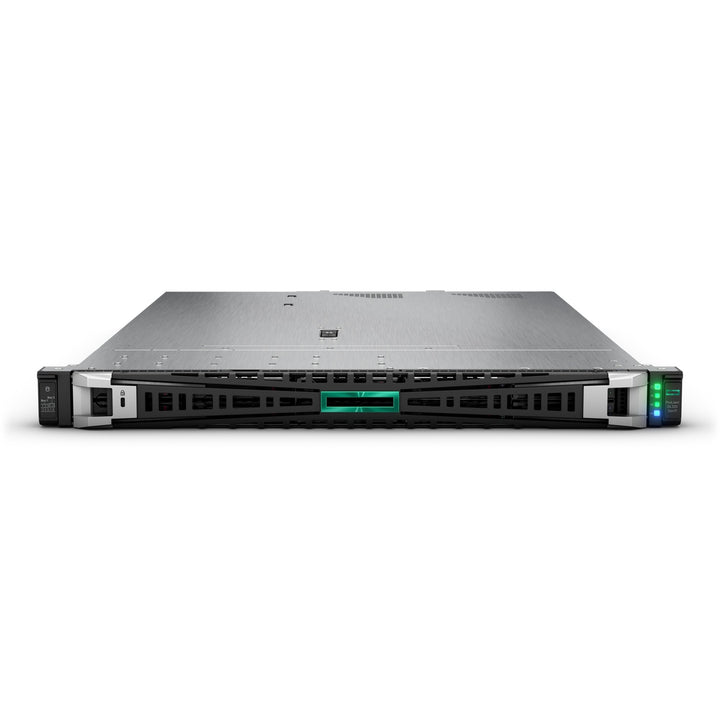

HPE ProLiant DL320 Gen11 1U Rack Server
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
HPE ProLiant DL320 Gen11 1U Rack Server (Configure-to-Order) - Local Warranty
Modular 1U, Single-Socket Intel Xeon Server
The HPE ProLiant DL320 Gen11 takes one 4th or 5th Gen Intel Xeon Scalable processor (up to 60 cores, 125 W to 270 W TDP) and 16 DDR5 RDIMM slots for up to 2 TB at up to 5600 MT/s, in a compact 1U chassis.
Storage or GPU, Your Choice
Drive cages range from 4 LFF or 12 LFF SAS/SATA to 8+2 SFF with NVMe support. A GPU-optimised configuration takes up to four single-wide or two double-wide GPUs with 4 SFF or 8 EDSFF E3.S drives, suiting edge AI and computer vision.
Secure, Cloud-Managed Infrastructure
HPE iLO 6 with silicon root of trust secures the platform from the firmware up, and HPE Compute Ops Management adds cloud-based monitoring and updates. Two embedded 1GbE ports and HPE's 3-year parts, labour and onsite next-business-day warranty come standard.
HPE ProLiant DL320 Gen11 Datasheet — Technical Specifications
General
| Product Name | HPE ProLiant DL320 Gen11 Server |
| Form Factor | 1U rack, 1-socket |
| Order Type | Configure-to-Order (CPU, memory, drive cage, controller, NIC, PSU and support term chosen per order) |
| HPE Standard Warranty | 3 years parts, 3 years labour, 3 years onsite, next business day |
| Local Warranty (Singapore) | Supplied by SourceIT with HPE warranty; HPE Care Pack upgrades available at configuration |
Processor & Memory
| Processors | One 4th or 5th Gen Intel Xeon Scalable processor, up to 60 cores, 125 W to 270 W TDP |
| Memory Slots | 16 DIMM slots (8 channels, 2 DIMMs per channel), HPE DDR5 Smart Memory RDIMM |
| Maximum Memory | 2 TB (16 x 128 GB RDIMM) |
| Memory Speed | Up to 5600 MT/s with 5th Gen; up to 4800 MT/s with 4th Gen Xeon |
Storage
| Drive Cage Options | 4 x LFF SAS/SATA; 8+2 x SFF SAS/SATA with NVMe options; 12 x LFF SAS/SATA; GPU configuration with 4 x SFF SAS/SATA/NVMe or 8 x EDSFF E3.S NVMe |
| RAID Controllers | HPE MR216i-p / MR216i-o, MR408i-o, MR416i-p / MR416i-o, SR932i-p Gen11; HPE Smart Array E208e-p SR Gen10 (external); Intel VROC |
| Boot Device | HPE NS204i-u NVMe Hot Plug Boot Optimized Storage Device |
Expansion & Networking
| PCIe Slots | 2 x PCIe 5.0 x16 full-height, half-length (primary and secondary riser) |
| OCP Slots | 1 x OCP 3.0 (x16, PCIe 5.0) |
| Embedded NIC | Broadcom BCM5720 2-port 1GbE |
| GPU Support | Up to four single-wide or two double-wide GPUs (GPU configuration) |
Management & Security
| Management | HPE iLO 6; HPE Compute Ops Management |
| Security | HPE iLO silicon root of trust, secure boot and firmware validation; TPM 2.0 (optional) |
Power & Cooling
| Power Supplies | HPE Flex Slot hot-plug options: 500 W, 800 W, 1000 W, 1600 W and 1800 W to 2200 W |
| Fans | Standard fan kit (5 fans) or high-performance fan kit (7 fans) |
How to Configure Your Server — Sizing Checklist
Servers are built to order. Answer the questions below so we can size the right configuration for you.
Step 1: Hardware Requirements
- Which server form factor do you need: tower or rackmount?
- How many CPU cores, how much RAM and how much usable storage capacity do you require?
- How many processors: single-socket (1S), dual-socket (2S) or four-socket (4S)?
- Which RAID configuration do you need? Any specific HDD or SSD type, such as 7.2K or 10K rpm drives?
- Which network interface is required: 1GbE Base-T, SFP+ or Fibre Channel?
- How many years of maintenance support do you need? (Minimum 3 years)
Step 2: Deployment & Services
- How many server units are required?
- Will you run virtual machine workloads? Do you need a VMware licence, or Windows Server with Hyper-V?
- How do you store data today? Do you have existing NAS or SAN storage?
- How do you back up today? Would you like a backup proposal, such as an IDPA 8TB appliance?
- Do you require burn-in test services?
- Do you need hard disk retention services?
Operating Systems, Management & Workloads
Operating Systems & Hypervisors
Microsoft Windows Server, VMware ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and Ubuntu. Check HPE's OS support matrix for the exact versions certified on your chosen processor.
Management Tools
HPE iLO 6 provides out-of-band remote console, monitoring and alerting. HPE Compute Ops Management adds cloud-based firmware compliance, monitoring and lifecycle management across a fleet of ProLiant servers.
Typical Workloads
Edge AI and computer vision, virtualisation, software-defined storage, web and application serving, and distributed data workloads that need one powerful processor with expandable storage or GPUs.
Package Contents & HPE ProLiant Gen11 Ordering Information
What Is Supplied
The DL320 Gen11 is built to order: chassis with the processor(s), memory, drives, storage controller, network adapters and power supplies specified on your quotation, plus rail kit, bezel and power cords where ordered.
HPE ProLiant Gen11
| Model | Key feature |
| ProLiant MicroServer Gen11 | Ultra-compact, 1-socket Intel Xeon E-2400 |
| ProLiant ML30 Gen11 | Tower, 1-socket Intel Xeon E-2400 |
| ProLiant ML110 Gen11 | Tower, 1-socket Intel Xeon Scalable |
| ProLiant ML350 Gen11 | Tower, 2-socket Intel Xeon Scalable |
| ProLiant DL20 Gen11 | 1U, 1-socket Intel Xeon E-2400 |
| ProLiant DL145 Gen11 | Edge, 1-socket AMD EPYC 8004 |
| ProLiant DL320 Gen11 (this listing) | 1U, 1-socket Intel Xeon Scalable |
| ProLiant DL325 Gen11 | 1U, 1-socket AMD EPYC |
| ProLiant DL345 Gen11 | 2U, 1-socket AMD EPYC |
| ProLiant DL360 Gen11 | 1U, 2-socket Intel Xeon Scalable |
| ProLiant DL365 Gen11 | 1U, 2-socket AMD EPYC |
| ProLiant DL380a Gen11 | 2U, 2-socket Intel Xeon, GPU-optimised |
| ProLiant DL385 Gen11 | 2U, 2-socket AMD EPYC |
Datasheet & Downloads
| HPE QuickSpecs | HPE ProLiant DL320 Gen11 QuickSpecs |
| HPE product brief | HPE ProLiant DL320 Gen11 Product Brief (PDF) |
| HPE product page | HPE ProLiant DL320 Gen11 on hpe.com |
Frequently Asked Questions — HPE ProLiant DL320 Gen11
Is this a fixed configuration?
No. The DL320 Gen11 is configure-to-order. Processor, memory, drive cage, RAID controller, network adapters, GPUs, power supplies and the HPE support term are specified to your workload; use the sizing checklist above to brief us.
How much memory can it take?
16 DDR5 RDIMM slots for up to 2 TB, at up to 5600 MT/s with 5th Gen Xeon processors.
Can it run GPUs?
Yes. The GPU configuration takes up to four single-wide or two double-wide GPUs, with 4 SFF or 8 EDSFF drives.
DL320 or DL360?
Choose the single-socket DL320 Gen11 for cost-efficient compute, edge AI or storage-heavy 1U builds. Choose the dual-socket DL360 Gen11 when you need more cores and up to 8 TB of memory.
What warranty does it carry?
HPE's standard warranty is 3 years parts, 3 years labour and 3 years onsite next-business-day. Faster response and longer terms are available as HPE Care Pack upgrades.
