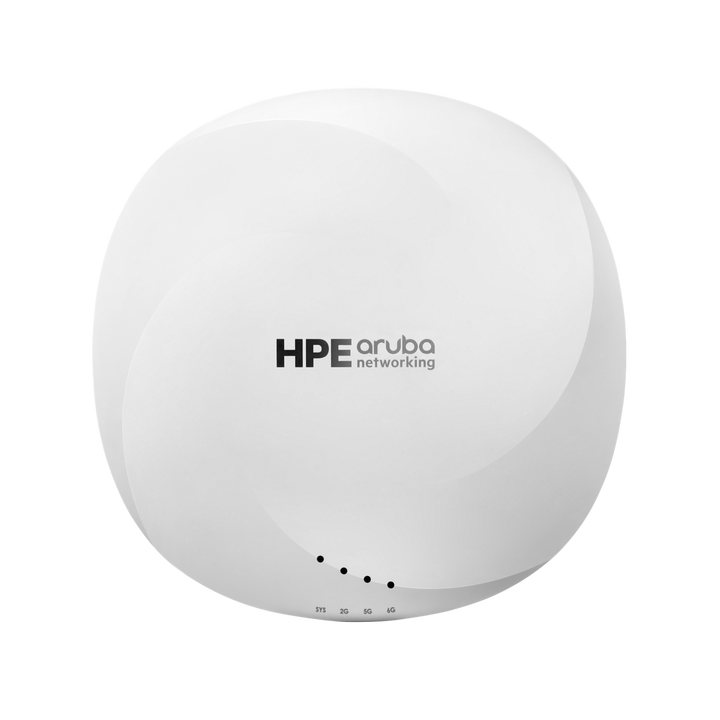

HPE Aruba Networking AP-635 Tri-Radio 2x2 Wi-Fi 6E Indoor Campus Access Point with Dual 2.5GbE
PRODUCT DESCRIPTION
HPE Aruba Networking AP-635 (RW) Wi-Fi 6E Campus Access Point (R7J27A) - Limited Lifetime Local Warranty
Tri-Radio Wi-Fi 6E: 2.4, 5 and 6 GHz at the Same Time
The HPE Aruba Networking AP-635 (RW) is a tri-radio 2x2 802.11ax Wi-Fi 6E campus access point with a dedicated radio for each band. HPE rates it at up to 574 Mbps on 2.4 GHz, 1.2 Gbps on 5 GHz and 2.4 Gbps on 6 GHz, for a maximum aggregate data rate of 3.9 Gbps.
The 6 GHz radio gives Wi-Fi 6E clients access to up to seven 160 MHz channels, while legacy devices continue on 2.4 and 5 GHz.
Ultra Tri-Band Filtering
HPE's Ultra Tri-Band (UTB) filtering allows flexible 5 GHz and 6 GHz channel selection, letting both upper bands operate without interfering with each other.
Dual 2.5GbE Ports with Link Aggregation
Two HPE Smart Rate RJ-45 ports auto-negotiate 100/1000/2500BASE-T and support LACP link aggregation for redundancy, with hitless failover for Ethernet and power.
GPS, IoT and Flexible Deployment
Built-in GPS receivers let APs self-locate, and the integrated Bluetooth 5 and 802.15.4 (Zigbee) radio supports IoT use cases. HPE lists cloud, controller or controllerless operation modes, managed from HPE Aruba Networking Central.
Supplied in Singapore with a Limited Lifetime Warranty
SourceIT supplies the AP-635 (RW) locally with a GST invoice. HPE covers its HPE Aruba Networking campus access points with a hardware limited lifetime warranty.
Not sure which access point fits your site? Email sales@sourceit.com.sg with your floor area, user count and switch PoE budget and we will recommend a model.
HPE Aruba Networking AP-635 R7J27A Datasheet — Technical Specifications
General
| Product Name | HPE Aruba Networking AP‑635 (RW) Tri Radio 2x2 802.11ax Wi‑Fi 6E Internal Antennas Campus AP |
| Part Number | R7J27A (RW — worldwide/rest-of-world regulatory variant) |
| Series | HPE Aruba Networking 630 Series Campus Access Points |
| Manufacturer Warranty | HPE Aruba Networking hardware limited lifetime warranty |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Radios & Data Rates
| Wi-Fi Standard | 802.11ax Wi-Fi 6E |
| Radios | Tri radio, 2x2:2 MIMO in all three bands (2.4, 5, 6 GHz) |
| 2.4 GHz | Up to 574 Mbps (2SS HE40) |
| 5 GHz | Up to 1.2 Gbps (2SS HE80) |
| 6 GHz | Up to 2.4 Gbps (2SS HE160) |
| Aggregate Data Rate | Up to 3.9 Gbps |
| Antennas | Integrated downtilt omni-directional antennas for 2x2 MIMO; peak gain 4.6 dBi (2.4 GHz), 7.0 dBi (5 GHz), 6.3 dBi (6 GHz) |
| Clients | Up to 512 associated client devices per radio; up to 16 BSSIDs per radio (4 on the 6 GHz radio) |
Interfaces
| Ethernet | 2 x HPE Smart Rate RJ-45, auto-sensing 100/1000/2500BASE-T; LACP link aggregation between both ports |
| USB | USB 2.0 host (Type A), sourcing up to 1A / 5W |
| IoT Radio | Integrated Bluetooth 5 and 802.15.4 radio (Zigbee support) |
| GPS | Built-in GPS receivers |
Power
| PoE | 802.3at/bt PoE (class 4 or higher) |
| Unrestricted Operation | DC or 802.3bt (class 5) PoE |
| 802.3af | Not supported (except for AP staging) |
| DC Input | 12 Vdc (nominal, +/- 5%) |
| Max Power (DC) | 20.7 W (26.4 W with USB device) |
| Max Power (PoE) | 23.8 W (29.4 W with USB device) |
Physical & Environmental
| Dimensions | 220 (W) x 220 (D) x 51 (H) mm |
| Weight | 1,300 g |
| Mounting | Mounting bracket pre-installed; mount kits sold separately |
| Operating Temperature | 0 °C to +50 °C |
| Operating Humidity | 5% to 95% non-condensing |
Security & Software
| Security | WPA3 and Enhanced Open; WPA2-MPSK |
| Deployment | Stand-alone or with a gateway; cloud or on-premises management including HPE Aruba Networking Central |
Compatibility & Software Support
What It Is Suited To
Enterprise offices, universities, healthcare and venues that want simultaneous 2.4, 5 and 6 GHz service and redundant uplinks. Pair it with an HPE Aruba Networking CX or Instant On PoE switch that can deliver the PoE class listed in the specifications.
Management Options
Managed through HPE Aruba Networking Central (cloud or on-premises), or with an HPE Aruba Networking gateway/controller. HPE lists minimum software as InstantOS / AOS 8.9.0.0 and AOS 10.4.0.0. Ask us about Central licensing for your deployment.
PoE Switch Requirement
Use an 802.3bt (class 5) port for unrestricted operation; 802.3at (class 4) is the minimum. 802.3af is not supported. Choose multi-gigabit (2.5GbE) switch ports to use the full uplink speed.
Package Contents & Campus Access Point Ordering Information
In the Box
HPE Aruba Networking AP-635 (RW) access point with its mounting bracket pre-installed on the back. No power adapter or ceiling-rail kit is included — HPE sells mount kits separately.
HPE Aruba Networking Campus Access Points at SourceIT — Ordering Information
| HPE Aruba Networking AP-505 (RW) | Wi-Fi 6, dual radio 2x2 (2.4 + 5 GHz), 1.49 Gbps | 1 x 1GbE | R2H28A |
| HPE Aruba Networking AP-515 (RW) | Wi-Fi 6, dual radio 4x4 5 GHz / 2x2 2.4 GHz, 2.69 Gbps | 1 x 2.5GbE Smart Rate + 1 x 1GbE | Q9H62A |
| HPE Aruba Networking AP-535 (RW) | Wi-Fi 6, dual radio 4x4 (2.4 + 5 GHz), 2.97 Gbps | 2 x 5GbE Smart Rate | JZ336A |
| HPE Aruba Networking AP-615 (RW) | Wi-Fi 6E, dual radio tri-band 2x2, 3.6 Gbps | 1 x 2.5GbE Smart Rate | R7J49A |
| AP-635 (RW) (this listing) | Wi-Fi 6E, tri radio 2x2 (2.4 + 5 + 6 GHz), 3.9 Gbps | 2 x 2.5GbE Smart Rate | R7J27A |
Mounting & Support Services
HPE sells mount kits for ceiling rails and solid surfaces for the 630 Series separately. Ask us to quote the right mount kit, and HPE support services if you need them, together with the access point.
Datasheet & Downloads
| HPE QuickSpecs | HPE Aruba Networking 630 Series Campus Access Points QuickSpecs |
| HPE data sheet | HPE Aruba Networking 630 Series Access Points Data Sheet |
| Installation guide | AP-630 Series Installation Guide (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting R7J27A.
Frequently Asked Questions — HPE Aruba Networking AP-635 R7J27A
What is the difference between the AP-635 and AP-615?
The AP-635 has three radios, so 2.4, 5 and 6 GHz run at the same time (up to 3.9 Gbps aggregate), plus two 2.5GbE ports. The AP-615 has two radios that use any two of the three bands.
What PoE does it need?
802.3at (class 4) minimum; 802.3bt (class 5) or DC for unrestricted operation. 802.3af is not supported.
Can I use both Ethernet ports?
Yes. Both are 2.5GbE Smart Rate ports and support LACP link aggregation for redundancy.
Does it need a controller?
No. HPE lists cloud, controller or controllerless operation, managed from HPE Aruba Networking Central.
What warranty do I get?
HPE Aruba Networking hardware limited lifetime warranty, supplied by SourceIT with local support and a GST invoice.
