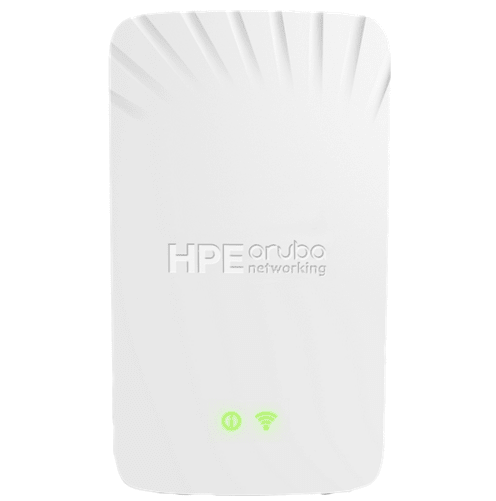

HPE Aruba 505H Wireless Dual Band Access Point

HPE Aruba 505H Wireless Dual Band Access Point (R3V46A) - Lifetime Warranty

Enterprise Wi-Fi 6 Access Point for Hospitality and Branch Deployments

The HPE Aruba 505H Wireless Dual Band Access Point (R3V46A) is a compact enterprise-grade Wi-Fi 6 access point designed specifically for hospitality, student accommodation, branch offices, remote workspaces, and multi-dwelling environments. Delivering secure, high-speed wireless connectivity in a space-efficient design, the Aruba 505H helps organizations provide reliable network access while simplifying deployment and management.

Wi-Fi 6 Performance for Modern Connected Environments

Powered by Wi-Fi 6 (802.11ax) technology, the Aruba 505H improves network efficiency, increases capacity, and enhances performance for connected devices. Users can enjoy smooth access to cloud applications, video conferencing, streaming services, collaboration tools, and business applications even in environments with multiple simultaneous wireless connections.

Compact Design Ideal for In-Room and Wall-Mounted Installations

The Aruba 505H is designed for convenient wall-mounted deployment in hotel rooms, serviced apartments, dormitories, healthcare facilities, and branch offices. Its compact footprint allows organizations to provide dedicated wireless coverage while maintaining a clean and professional appearance within guest rooms and shared spaces.

Advanced Security and Centralized Network Management

Built with enterprise-class security features and Aruba's intelligent network management capabilities, the Aruba 505H helps organizations maintain secure wireless access and centralized control over network infrastructure. IT administrators can simplify deployment, monitoring, and policy management while ensuring a consistent and secure user experience.

Technical Specifications

General
Model: AP-505H (RW)
Part Number: R3V46A
Product Name: HPE Aruba 505H Wireless Dual Band Access Point
Manufacturer: HPE Aruba Networking
Product Type: Hospitality Wireless Access Point
Series: Aruba 500H Series Hospitality Access Points
Deployment Type: Hotels, Student Residences, Dormitories, Branch Offices, Remote Workspaces
Wireless Standard: Wi-Fi 6 (IEEE 802.11ax)
Radio Design: Dual-Radio Access Point
Antenna Type: Internal Antennas
Management Platform: Aruba Central, Aruba Mobility Controllers, Aruba Instant
Warranty: HPE Aruba Limited Lifetime Warranty
Mounting Options: Wall Mount or Optional Desktop Stand

Wireless Specifications
Wireless Standard: IEEE 802.11ax (Wi-Fi 6)

Backward Compatibility:
• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• IEEE 802.11n
• IEEE 802.11ac

Frequency Bands:
• 2.4 GHz
• 5 GHz

Radio Configuration: Dual-Radio
MIMO Configuration: 2x2:2 MU-MIMO
Maximum Aggregate Data Rate: Up to 1.49 Gbps
Maximum 5 GHz Data Rate: Up to 1.2 Gbps
Maximum 2.4 GHz Data Rate: Up to 287 Mbps
Channel Width Support: Up to 80 MHz
MU-MIMO: Supported
OFDMA: Supported
Target Wake Time (TWT): Supported
Beamforming: Supported
Wi-Fi 6 Certified: Supported

Radio Specifications
2.4 GHz Radio: 2x2 MIMO
5 GHz Radio: 2x2 MIMO
Concurrent Dual-Band Operation: Supported
ClientMatch Technology: Supported
RF Optimization: Supported
Sticky Client Mitigation: Supported
High-Density Client Support: Supported

Performance Specifications
Maximum Aggregate Throughput: Up to 1.49 Gbps
Wireless Clients per Radio: Up to 256
OFDMA Resource Units: 8
Voice and Video Optimization: Supported
Low-Latency Wireless Connectivity: Supported
High-Density Environment Support: Supported

Networking Specifications
Uplink Port: 1 x 2.5GbE Smart Rate RJ-45 Port
Uplink Speed: 100/1000/2500 Mbps
Downlink Ports: 4 x Gigabit Ethernet RJ-45 Ports
PoE Out Support: Supported (PSE)
Auto MDI/MDX: Supported
Network Segmentation: Supported
Quality of Service (QoS): Supported

USB & IoT Features
USB Port: 1 x USB Port
Bluetooth: Bluetooth 5 Support
Zigbee Support: IEEE 802.15.4 Support
Integrated IoT Radio: Supported
Asset Tracking: Supported
Location Services: Supported
IoT Sensor Integration: Supported

Security Features
WPA2 Enterprise: Supported
WPA3 Enterprise: Supported
Enhanced Open (OWE): Supported
Dynamic Segmentation: Supported
Policy Enforcement Firewall (PEF): Supported
Role-Based Access Control: Supported
Trusted Platform Module (TPM): Supported
Enterprise Security Framework: Supported

Management Features
Aruba Central Cloud Management: Supported
Aruba Mobility Controllers: Supported
Aruba Instant Mode: Supported
Zero Touch Provisioning (ZTP): Supported
Remote Monitoring: Supported
Firmware Management: Supported
Centralized Policy Management: Supported
AI-Powered Network Insights: Supported

Power Specifications
Power over Ethernet: Supported
PoE Standard: IEEE 802.3at (PoE+)
PoE Out Capability: Supported
DC Power Input: Supported
Intelligent Power Monitoring (IPM): Supported
Power Optimization Features: Supported

Antenna Specifications
Antenna Type: Internal Omni-Directional Antennas
MIMO Configuration: 2x2:2
Coverage Optimization: Supported
Hospitality Environment Coverage: Optimized

Physical Specifications
Form Factor: Hospitality Wall Plate Access Point
Dimensions: 150 x 86 x 47 mm
Weight: Approximately 360 g
Color: White
Mounting Options: Wall Mount or Desktop Stand (Optional)

Features
Wi-Fi 6 (802.11ax) Technology
2x2:2 MU-MIMO Architecture
Up to 1.49 Gbps Aggregate Throughput
2.5GbE Smart Rate Uplink Port
4 x Gigabit Ethernet Downlink Ports
PoE Out Support
Bluetooth 5 and Zigbee Support
USB Port for IoT Devices
Dynamic Segmentation Security
Aruba Central Cloud Management
Zero Touch Provisioning
Hospitality-Optimized Design

Performance & Features
Designed specifically for hospitality, student housing, serviced apartments, and remote office environments
Combines Wi-Fi 6 wireless access with integrated wired connectivity in a compact wall-mounted design
Provides guest room networking with four Gigabit Ethernet ports for TVs, VoIP phones, printers, and wired devices
Supports IoT deployments through integrated Bluetooth, Zigbee, and USB connectivity
Delivers enhanced wireless efficiency through OFDMA and MU-MIMO technologies
Enables secure guest and employee network segmentation with Aruba Dynamic Segmentation
Offers centralized cloud-based management and monitoring through Aruba Central
Built for reliable enterprise-grade wireless connectivity in hospitality environments

Package Contents
HPE Aruba AP-505H Wireless Access Point
Mounting Hardware
Quick Start Guide
Regulatory Documentation

Key Features
Wi-Fi 6 (802.11ax) Technology
2x2:2 MU-MIMO Architecture
Up to 1.49 Gbps Wireless Throughput
2.5GbE Smart Rate Uplink Port
4 x Gigabit Ethernet Downlink Ports
PoE Out Support for Connected Devices
Bluetooth 5 and Zigbee IoT Support
Integrated USB Port
Aruba Central Management Ready
WPA3 Enterprise Security
Hospitality Wall Plate Design
Enterprise-Class Reliability

Typical Use Cases
Hotels and Resorts
Guest Rooms
Student Dormitories
Serviced Apartments
Healthcare Patient Rooms
Remote Branch Offices
Work-From-Home Deployments
Hospitality Networks
Smart Room Deployments
Managed Wi-Fi Services
IoT-Enabled Guest Environments
Multi-Dwelling Unit (MDU) Installations

Ordering Information
Model: HPE Aruba AP-505H (RW)
Part Number: R3V46A
Configuration: Dual-Radio 2x2 Wi-Fi 6 Hospitality Access Point with 2.5GbE Uplink, 4 x Gigabit Downlink Ports, PoE Out and USB

Mounting Kit Options
