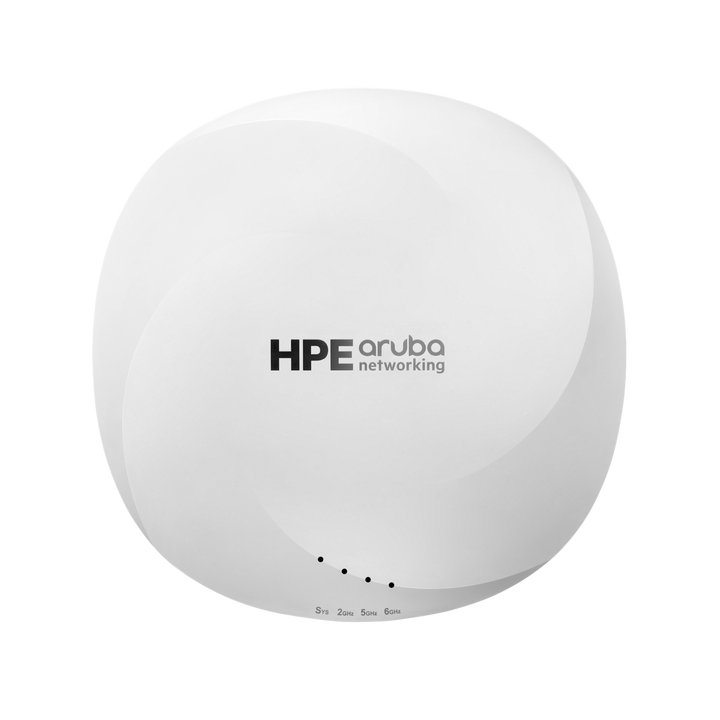

HPE Aruba Networking AP-615 Dual-Radio Tri-Band 2x2 Wi-Fi 6E Indoor Campus Access Point
PRODUCT DESCRIPTION
HPE Aruba Networking AP-615 (RW) Wi-Fi 6E Campus Access Point (R7J49A) - Limited Lifetime Local Warranty
Affordable Wi-Fi 6E with Access to 6 GHz
The HPE Aruba Networking AP-615 (RW) is a dual-radio, tri-band 2x2 Wi-Fi 6E indoor campus access point: its two radios can be tuned to any two of the three bands — 2.4 GHz, 5 GHz or 6 GHz. HPE rates it at up to 574 Mbps on 2.4 GHz, 1.2 Gbps on 5 GHz and 2.4 Gbps on 6 GHz, for up to 3.6 Gbps combined (5 GHz + 6 GHz).
Operating in 6 GHz gives Wi-Fi 6E clients access to up to seven 160 MHz channels, away from congested legacy bands.
2.5 Gbps Smart Rate Uplink
A single HPE Smart Rate Ethernet port auto-negotiates 100/1000/2500BASE-T, so the AP can deliver more than Gigabit throughput over existing copper cabling.
Self-Locating with Built-In GPS and IoT Radio
Built-in GPS receivers (GPS, Galileo, GLONASS and BeiDou) and fine time measurement allow APs to locate themselves automatically. An integrated Bluetooth 5 and 802.15.4 radio adds Zigbee IoT support, and the USB 2.0 port can source up to 5W.
Deploy It Your Way: Cloud, Controller or Stand-Alone
HPE lists the AP-615 as able to run stand-alone (Instant) or with a gateway or controller for greater scalability, security and manageability, managed from HPE Aruba Networking Central in the cloud or on-premises.
Supplied in Singapore with a Limited Lifetime Warranty
SourceIT supplies the AP-615 (RW) locally with a GST invoice. HPE covers its HPE Aruba Networking campus access points with a hardware limited lifetime warranty.
Not sure which access point fits your site? Email sales@sourceit.com.sg with your floor area, user count and switch PoE budget and we will recommend a model.
HPE Aruba Networking AP-615 R7J49A Datasheet — Technical Specifications
General
| Product Name | HPE Aruba Networking AP‑615‑RW Dual Radio Tri Band 2x2 Wi‑Fi 6E Int Antennas Campus AP |
| Part Number | R7J49A (RW — worldwide/rest-of-world regulatory variant) |
| Series | HPE Aruba Networking 610 Series Campus Access Points |
| Manufacturer Warranty | HPE Aruba Networking hardware limited lifetime warranty |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Radios & Data Rates
| Wi-Fi Standard | 802.11ax Wi-Fi 6E |
| Radios | Two radios that can be tuned to any two of the three bands (2.4, 5, 6 GHz), 2x2 MIMO |
| 2.4 GHz | Up to 574 Mbps (2SS HE40) |
| 5 GHz | Up to 1.2 Gbps (2SS HE80) |
| 6 GHz | Up to 2.4 Gbps (2SS HE160) |
| Combined Data Rate | Up to 3.6 Gbps (5 GHz + 6 GHz) |
| Antennas | Integrated downtilt omni-directional antennas for 2x2 MIMO |
| Clients | Up to 512 associated client devices per radio; up to 16 BSSIDs per radio |
Interfaces
| Ethernet | 1 x 2.5 Gbps HPE Smart Rate RJ-45, auto-sensing 100/1000/2500BASE-T (PoE-PD) |
| USB | USB 2.0 host (Type A), sourcing up to 1A / 5W |
| IoT Radio | Integrated Bluetooth 5 and 802.15.4 radio (Zigbee support) |
| GPS | Built-in GPS receivers (GPS, Galileo, GLONASS, BeiDou) |
Power
| Power Options | 12 Vdc input or PoE on E0; DC takes priority |
| 802.3at (class 4) | 25.5 W budget, unrestricted mode, USB enabled |
| 802.3af (class 3) | 13.9 W budget, restricted mode, USB disabled |
| Max Power (DC) | 12.5 W (18.2 W with USB device) |
| Max Power (PoE) | 14.7 W (20.9 W with USB device) |
Physical & Environmental
| Dimensions | 160 (W) x 160 (D) x 39 (H) mm |
| Weight | 520 g |
| Mounting | Mounting bracket pre-installed; ceiling-rail and solid-surface mount kits sold separately |
| Operating Temperature | 0 °C to +50 °C |
| Operating Humidity | 5% to 95% non-condensing |
Security & Software
| Security | WPA3 and Enhanced Open |
| Deployment | Stand-alone or with a gateway; cloud or on-premises management including HPE Aruba Networking Central |
| Minimum Software | InstantOS 8.11.0.0; AOS 10.5.0.0 |
Compatibility & Software Support
What It Is Suited To
Offices, classrooms and retail sites that want to add 6 GHz Wi-Fi 6E capacity with a compact, cost-effective 2x2 access point. Pair it with an HPE Aruba Networking CX or Instant On PoE switch that can deliver the PoE class listed in the specifications.
Management Options
Managed through HPE Aruba Networking Central (cloud or on-premises), or with an HPE Aruba Networking gateway/controller. HPE lists minimum software as InstantOS 8.11.0.0 and AOS 10.5.0.0. Ask us about Central licensing for your deployment.
PoE Switch Requirement
Use an 802.3at (class 4) port for unrestricted operation. On 802.3af (class 3) the AP runs in restricted mode with USB disabled.
Package Contents & Campus Access Point Ordering Information
In the Box
HPE Aruba Networking AP-615 (RW) access point with its mounting bracket pre-installed on the back. No power adapter or ceiling-rail kit is included — HPE sells mount kits separately.
HPE Aruba Networking Campus Access Points at SourceIT — Ordering Information
| HPE Aruba Networking AP-505 (RW) | Wi-Fi 6, dual radio 2x2 (2.4 + 5 GHz), 1.49 Gbps | 1 x 1GbE | R2H28A |
| HPE Aruba Networking AP-515 (RW) | Wi-Fi 6, dual radio 4x4 5 GHz / 2x2 2.4 GHz, 2.69 Gbps | 1 x 2.5GbE Smart Rate + 1 x 1GbE | Q9H62A |
| HPE Aruba Networking AP-535 (RW) | Wi-Fi 6, dual radio 4x4 (2.4 + 5 GHz), 2.97 Gbps | 2 x 5GbE Smart Rate | JZ336A |
| AP-615 (RW) (this listing) | Wi-Fi 6E, dual radio tri-band 2x2, 3.6 Gbps | 1 x 2.5GbE Smart Rate | R7J49A |

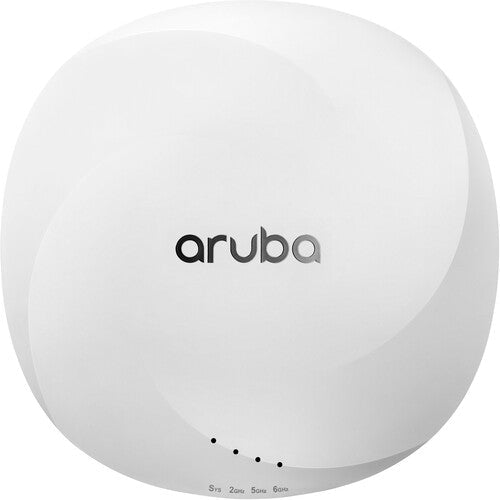

| HPE Aruba Networking AP-635 (RW) | Wi-Fi 6E, tri radio 2x2 (2.4 + 5 + 6 GHz), 3.9 Gbps | 2 x 2.5GbE Smart Rate | R7J27A |
Mounting & Support Services
HPE sells ceiling-rail and solid-surface mount kits for the 610 Series separately. Ask us to quote the right mount kit, and HPE support services if you need them, together with the access point.
Datasheet & Downloads
| HPE QuickSpecs | HPE Aruba Networking 610 Series Campus Access Points QuickSpecs |
| HPE data sheet | HPE Aruba Networking 610 Series Access Points Data Sheet |
| Installation guide | 610 Series Access Point Installation Guide (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting R7J49A.
Frequently Asked Questions — HPE Aruba Networking AP-615 R7J49A
Does the AP-615 use all three bands at once?
No. It has two radios that can be tuned to any two of the three bands (2.4, 5 or 6 GHz). For three simultaneous radios, see the AP-635.
What is the maximum data rate?
Up to 3.6 Gbps combined when operating on 5 GHz and 6 GHz.
What PoE does it need?
802.3at (class 4) for unrestricted operation; on 802.3af (class 3) it runs in restricted mode with USB disabled.
Does my client device need Wi-Fi 6E?
To use the 6 GHz band, yes. Older Wi-Fi 6/5 clients still connect on 2.4 or 5 GHz.
What warranty do I get?
HPE Aruba Networking hardware limited lifetime warranty, supplied by SourceIT with local support and a GST invoice.
