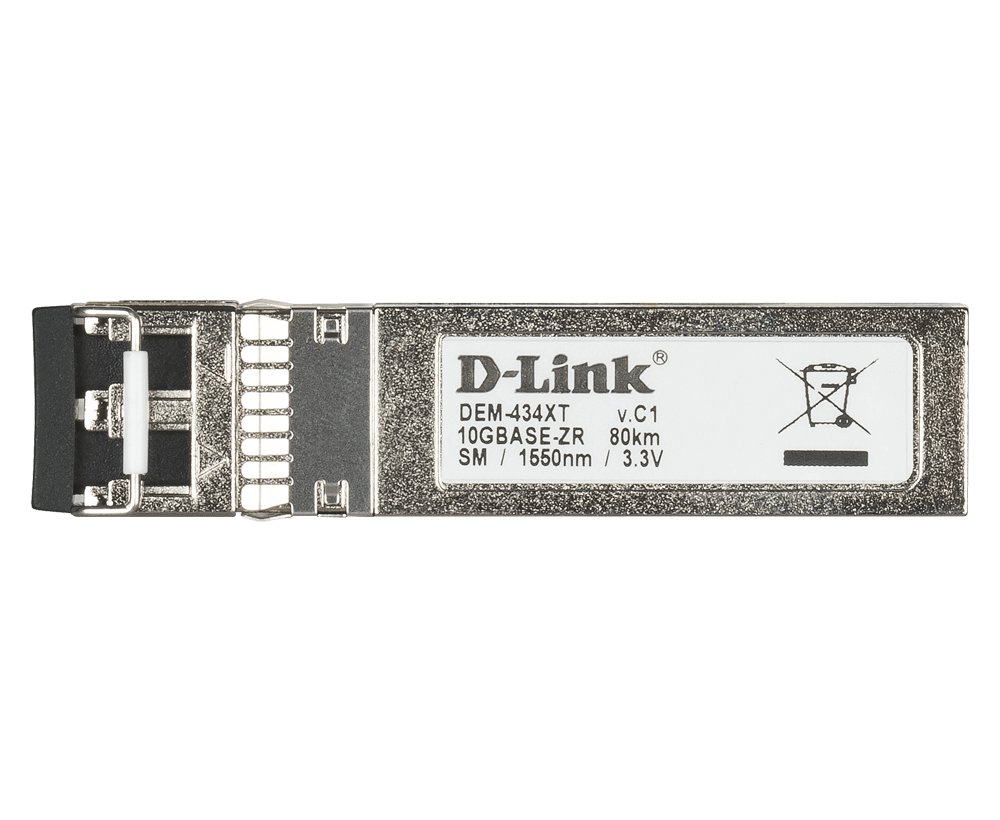

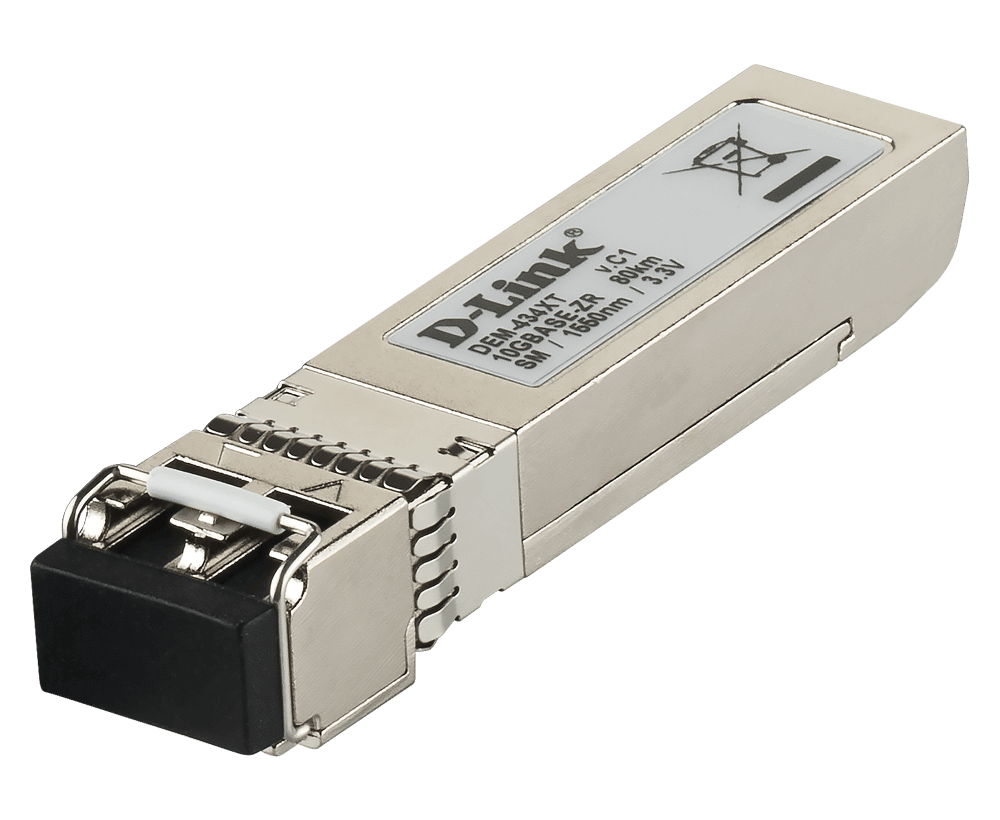

D-Link DEM-434XT 10GBASE-ZR SFP+ Transceiver (80 km)
PRODUCT DESCRIPTION
D-Link DEM-434XT 10GBASE-ZR SFP+ Single-Mode Transceiver, 80 km (DEM-434XT) - 5 Years Local Warranty
10G Links up to 80 km
The D-Link DEM-434XT is a 10GBASE-ZR SFP+ transceiver for long-haul 10G Ethernet. It transmits at 1550 nm over single-mode 9/125 µm fibre with a duplex LC connector and reaches up to 80 km — for inter-site, campus and metro links between 10G switches.
Published Optical Budget
D-Link lists a maximum transmit power of 4 dBm and a receiver sensitivity of -24 dBm, with 3.3 V operation, a 450 mA maximum input current and a rated MTBF of 1,584,786 hours.
Need help choosing? Email sales@sourceit.com.sg with your switch model, fibre or cable type and link distance and we will match the right module for you.
D-Link DEM-434XT Datasheet — Technical Specifications
General
| Product Name | D-Link DEM-434XT 10GBASE-ZR SFP+ Single-Mode Transceiver, 80 km |
| Part Number | DEM-434XT |
| Series | DEM-400 Series 10G SFP+ Transceivers |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Optical Interface
| Standard | IEEE 802.3ae 10GBASE-ZR |
| Data Rate | 10 Gbps |
| Connector | Duplex LC |
| Media | Single-mode fibre 9/125 µm |
| Wavelength | 1550 nm |
| Maximum Distance | 80 km |
| TX Optical Power | Max. 4 dBm |
| RX Optical Power | Max. -7 dBm; sensitivity -24 dBm |
Module
| Power | 3.3 V |
| Maximum Input Current | 450 mA |
| Operating Temperature | 0 to 70 °C |
| Dimensions | 14.3 x 56.5 x 11.85 mm |
| Weight | 20 g |
| MTBF | 1,584,786 hours |
Compatibility & Software Support
Host Ports
Fits a 10G SFP+ slot. D-Link does not publish a host compatibility list for this module — send us your switch model and we will confirm before you order.
Link Planning
For shorter single-mode runs the DEM-432XT (10 km) is the usual choice; share your span length and fibre loss and we will check the budget.
Package Contents & DEM-400 10G SFP+ Ordering Information
D-Link 10G SFP+ Transceivers
| Model | Standard | Media | Distance | Part No. |
| DEM-410T | 10GBASE-T / 1000BASE-T | Copper RJ45 | 30 m Cat 6a (10G) | DEM-410T |
| DEM-431XT | 10GBASE-SR | Multi-mode | 300 m OM3 / 550 m OM4 | DEM-431XT |
| DEM-432XT | 10GBASE-LR | Single-mode | 10 km | DEM-432XT |
| DEM-434XT (this listing) | 10GBASE-ZR, 1550 nm | Single-mode | 80 km | DEM-434XT |
Package contents are not listed by D-Link — ask us if you need confirmation of what is in the box.
Datasheet & Downloads
| D-Link product page | DEM-434XT on dlink.com (specifications) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DEM-434XT.
Frequently Asked Questions — D-Link DEM-434XT
How far can the DEM-434XT reach?
Up to 80 km over single-mode 9/125 µm fibre at 1550 nm.
Is it a 10GBASE-LRM module?
No. D-Link specifies it as IEEE 802.3ae 10GBASE-ZR for long-haul single-mode links.
Does D-Link publish DDM for this module?
D-Link does not state DDM support on its product page — ask us if your monitoring needs it.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
