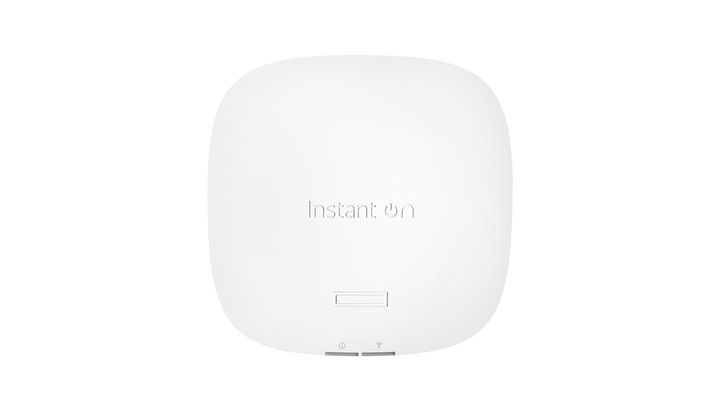

HPE Networking Instant On AP22 Indoor Dual-Band Wi-Fi 6 2x2 Access Point
PRODUCT DESCRIPTION
HPE Networking Instant On AP22 Indoor Wi-Fi 6 Access Point (R4W02A) - 2 Years Local Warranty
Easy, Fast Wi-Fi 6 for Small Offices and Shops
The HPE Networking Instant On AP22 is a dual-radio 2x2 Wi-Fi 6 indoor access point from HPE's Instant On small-business range, built to be deployed and run without a dedicated IT team. It delivers a maximum data rate of 1774 Mbps across its 2.4 GHz and 5 GHz 802.11ax radios.
HPE positions the AP22 for boutique hotels, independent schools, restaurants and professional offices, recommending up to 75 active devices per access point.
Wi-Fi 6 Efficiency and WPA3 Security
HPE lists Wi-Fi CERTIFIED 6 with WPA3 security, 1024-QAM for up to 25% more data, OFDMA, Target Wake Time (TWT) to extend client battery life, and roughly 4x the capacity of 802.11ac access points. Advanced Cellular Coexistence (ACC) filtering helps reduce interference from nearby cellular networks, and older 802.11b/g/n/ac devices remain fully supported.
Power It by PoE or a DC Adapter
The AP22 takes power from an 802.3af PoE switch or injector (10.1 W) or from a DC power adapter (8.8 W). If you do not have a PoE switch, ask us about the Instant On bundle with PSU (R6M51A) or a PoE injector.
One App for Wi-Fi, Switching and Security
Instant On access points are set up and monitored from the HPE Networking Instant On mobile app or web portal, the same platform that runs Instant On switches and Secure Gateways.
Supplied in Singapore with Local Warranty
HPE backs Instant On access points with a two-year warranty and 24/7 phone and chat support. SourceIT supplies them locally in Singapore with a GST invoice.
Not sure whether you need the AP22, AP22D, AP25, AP32 or outdoor AP27? Email sales@sourceit.com.sg with your floor area, user count and cabling, and we will recommend a layout.
HPE Instant On AP22 R4W02A Datasheet — Technical Specifications
General
| Product Name | HPE Networking Instant On Access Point AP22 |
| Part Number | R4W02A |
| HPE Description | HPE Networking Instant On Indoor Access Point 2x2 Wi-Fi 6 (RW) AP22 |
| Series | HPE Networking Instant On access points |
| Manufacturer Warranty | HPE two-year warranty with 24/7 phone and chat support (HPE Networking Instant On) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Wireless
| Wi-Fi Standard | 2.4 GHz 802.11ax (Wi-Fi 6); 5 GHz 802.11ax (Wi-Fi 6) |
| Radios / MIMO | Dual radio, 2x2 (2 spatial streams) |
| Max Data Rate | 1774 Mbps |
| Recommended Max Active Devices | 75 |
| Security | WPA3 |
Power
| Power Options | PoE in: 802.3af, 10.1 W (PoE), or 8.8 W (DC) |
Physical
| Dimensions | 160 mm (W) x 160 mm (D) x 37 mm (H) |
| Deployment | Indoor |
Management
| Options | HPE Networking Instant On mobile app or Instant On web portal |
Figures are taken from HPE's published AP22 product page and QuickSpecs. For anything not listed, refer to the HPE documents linked under Datasheet & Downloads.
Compatibility & Software Support
What It Is Suited To
Boutique hotels, independent schools, restaurants and professional offices that need reliable Wi-Fi 6 coverage for up to 75 active devices per access point.
Management Software
Set up and manage with the HPE Networking Instant On mobile app (iOS and Android) or the Instant On web portal — the same platform used for Instant On switches and Secure Gateways, so wired and wireless can be run from one place.
Client Compatibility
Wi-Fi 6 (802.11ax) clients, with backward compatibility for 802.11b/g/n/ac devices.
Package Contents & Instant On Access Point Ordering Information
In the Box
One HPE Networking Instant On AP22 access point. Power adapter is not included in this SKU (see R6M51A bundle). HPE's QuickSpecs do not list the full carton contents, so confirm mounting hardware with us if it matters to your installation.
HPE Networking Instant On Access Points — Ordering Information
| Instant On AP22 Indoor (this listing) | Dual-band 2x2 Wi-Fi 6, ceiling/wall | R4W02A |
| Instant On AP22 Bundle with PSU | AP22 supplied with power adapter | R6M51A |
| Instant On AP22D Desk/Wall | Dual-band 2x2 Wi-Fi 6, 2.5G uplink + 4 x 1G ports | S1U76A |
| Instant On AP22D Bundle with PSU | AP22D supplied with power adapter | S0J34A |
| Instant On AP22D 5-Pack | Five AP22D access points | S1U81A |
| Instant On AP25 Indoor | Dual-band 4x4 Wi-Fi 6, 2.5G uplink | R9B28A |
| Instant On AP25 Bundle with PSU | AP25 supplied with power adapter | R9B34A |
| Instant On AP32 Indoor | Tri-band 2x2 Wi-Fi 6E, 2.5G uplink | S1T23A |
| Instant On AP32 Bundle with PSU | AP32 supplied with power adapter | S1T29A |
| Instant On AP32 5-Pack | Five AP32 access points | S1T32A |
| Instant On AP27 Outdoor | Dual-band 2x2 Wi-Fi 6, IP67 | S1T37A |
| Instant On AP27 Outdoor Bundle with PSU | AP27 supplied with PoE injector and cord | S1T43A |
Power & Mounting Accessories
HPE lists optional Instant On power accessories for these access points, including the R9M79A 12V/18W Power Adaptor (RW), the R8W31A 802.3af 15.4W PoE Midspan Injector and the R9M77A 30W 802.3at PoE Midspan Injector. Ask us to confirm the right option for your model and installation.
Datasheet & Downloads
| HPE QuickSpecs | HPE Networking Instant On Wi-Fi 6 Access Points QuickSpecs |
| HPE product page | HPE Networking Instant On Access Point AP22 |
| HPE data sheet | HPE Networking Instant On Access Points AP22 Data Sheet |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting R4W02A.
Frequently Asked Questions — HPE Instant On AP22 R4W02A
Is the AP22 Wi-Fi 6 or Wi-Fi 6E?
Wi-Fi 6. It has two 802.11ax radios on 2.4 GHz and 5 GHz. For 6 GHz (Wi-Fi 6E), see the Instant On AP32.
How many devices can it handle?
HPE recommends up to 75 active devices per AP22.
Does it need a PoE switch?
It can be powered by 802.3af PoE (10.1 W) or by a DC adapter (8.8 W). This listing is the access point only; the bundle with PSU is R6M51A.
Is there a controller to buy?
No hardware controller is needed. The AP is managed from the HPE Networking Instant On app or web portal.
What warranty do I get?
HPE's two-year warranty with 24/7 phone and chat support, supplied by SourceIT with local support and a GST invoice.
