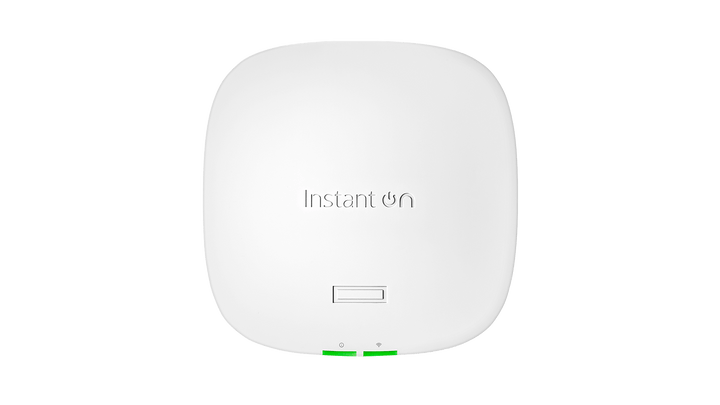

HPE Networking Instant On AP25 Wi-Fi 6 Dual Band Access Point

HPE Networking Instant On AP25 Wi-Fi 6 Dual Band Access Point (R9B28A) - 2 Year Local Warranty

HPE Networking Instant On AP25 802.11ax 4x4 Wi-Fi Dual Band Access Point (R9B28A)

The HPE Networking Instant On AP25 802.11ax 4x4 Wi-Fi Dual Band Access Point (R9B28A) is a high-performance wireless solution designed for small to medium-sized businesses that require reliable, fast, and secure Wi-Fi coverage. With support for Wi-Fi 6 (802.11ax) technology, the AP25 offers superior speed, capacity, and performance over previous Wi-Fi standards. The 4x4 MIMO (Multiple Input, Multiple Output) configuration, combined with dual-band capabilities, makes the AP25 ideal for environments with high device density and bandwidth-intensive applications, such as offices, retail spaces, and hospitality venues.

Wi-Fi 6 for Faster Speeds and Greater Efficiency

The AP25 is built on the latest Wi-Fi 6 (802.11ax) technology, offering improved performance and efficiency, especially in environments with many connected devices. The access point supports a total data rate of up to 3,000 Mbps—1,000 Mbps on the 2.4GHz band and 2,400 Mbps on the 5GHz band. With 4x4 MIMO technology, the AP25 can handle multiple connections simultaneously, ensuring fast, uninterrupted access for all users, even in dense environments with high bandwidth demands. Wi-Fi 6 ensures that your business remains future-proof, able to support the growing number of smart devices in use today and tomorrow.

Dual-Band Support for Maximum Flexibility

The AP25 offers dual-band Wi-Fi, operating on both the 2.4GHz and 5GHz frequencies. The 2.4GHz band provides better range and is ideal for everyday tasks such as email and browsing, while the 5GHz band offers higher speeds with less interference, making it ideal for data-heavy applications like video conferencing, media streaming, and large file transfers. By balancing the load between the two bands, the AP25 optimizes your network's performance and ensures a seamless experience for all users.

Cloud-Based Management for Easy Setup and Control

With the HPE Instant On cloud-based management platform, the AP25 can be easily configured, monitored, and managed from anywhere. Using the Instant On mobile app or the cloud-based web portal, you can quickly set up the access point, monitor network health, and make adjustments as needed. This platform is designed to simplify network management for businesses without dedicated IT staff. With features such as guest networking, traffic monitoring, and real-time analytics, you have complete control over your network, ensuring it remains secure and optimized for performance.

Robust Security and Guest Access

Security is essential in any business network, and the AP25 provides the latest in wireless security features, including WPA3 encryption for better protection against unauthorized access. Additionally, the AP25 supports secure guest access, enabling businesses to offer Wi-Fi to visitors without compromising the security of their internal network. With features like VLAN support, you can further segment your network to isolate traffic and ensure that sensitive data remains secure.

Energy-Efficient and Cost-Effective

The AP25 is designed with energy efficiency in mind. It supports Power over Ethernet (PoE), allowing both power and data to be delivered over a single Ethernet cable, which simplifies installation and reduces the need for additional power outlets. This PoE functionality makes the AP25 a cost-effective solution for businesses looking to enhance their wireless network without the added expense of extra power infrastructure. Its low-maintenance design also helps reduce long-term operational costs, making it a smart investment for businesses of all sizes.

Technical Specifications

General
Model: Instant On AP25 (RW)
Part Number: R9B28A
Product Name: HPE Networking Instant On AP25 Wi-Fi 6 Dual Band Access Point
Manufacturer: HPE Aruba Networking
Product Type: Business Wireless Access Point
Series: HPE Networking Instant On AP25 Series
Deployment Type: Indoor Wireless Networking
Wireless Standard: Wi-Fi 6 (IEEE 802.11ax)
Radio Design: Dual-Radio Access Point
Antenna Type: Internal Antennas
Management Platform: Instant On Mobile App, Instant On Cloud Portal
Warranty: 2-Year Limited Warranty with 24/7 Phone and Chat Support

Wireless Specifications
Wireless Standard: IEEE 802.11ax (Wi-Fi 6)

Backward Compatibility:
• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• IEEE 802.11n
• IEEE 802.11ac

Frequency Bands:
• 2.4 GHz
• 5 GHz

Radio Configuration: Dual-Radio
MIMO Configuration: 4x4:4 MU-MIMO
Maximum Aggregate Data Rate: Up to 5.3 Gbps
Maximum 5 GHz Data Rate: Up to 4.8 Gbps
Maximum 2.4 GHz Data Rate: Up to 574 Mbps
Channel Width Support: Up to 160 MHz
MU-MIMO: Supported
OFDMA: Supported
Target Wake Time (TWT): Supported
Beamforming: Supported
Wi-Fi 6 Certified: Supported

Radio Specifications
2.4 GHz Radio: 4x4 MIMO
5 GHz Radio: 4x4 MIMO
Concurrent Dual-Band Operation: Supported
High-Density Client Support: Supported
RF Optimization: Supported
Coverage Enhancement: Supported
Client Optimization: Supported
Enterprise Wireless Performance: Supported

Performance Specifications
Maximum Aggregate Throughput: Up to 5.3 Gbps
Spatial Streams: 4
Recommended Client Density: Up to 100+ Connected Devices
High-Density Deployment Support: Supported
Voice and Video Optimization: Supported
Cloud Application Optimization: Supported
Low-Latency Wireless Connectivity: Supported
Real-Time Collaboration Support: Supported

Networking Specifications
Ethernet Port: 1 x 2.5GbE Smart Rate RJ-45 Uplink Port
Network Speed: 10/100/1000/2500 Mbps
Network Segmentation: Supported
Smart Mesh Networking: Supported
Wireless Backhaul: Supported
Enterprise Switching Compatibility: Supported

IoT & Smart Features
Bluetooth Low Energy (BLE): Supported
IoT Connectivity: Supported
Smart Mesh Technology: Supported
ClientMatch Technology: Supported
Application Visibility: Supported
Remote Monitoring: Supported
Remote Troubleshooting: Supported

Security Features
WPA2 Personal: Supported
WPA2 Enterprise: Supported
WPA3 Personal: Supported
WPA3 Enterprise: Supported
Enhanced Open (OWE): Supported
Secure Guest Access: Supported
Two-Factor Authentication (2FA): Supported
Enterprise Wireless Security: Supported

Management Features
Instant On Mobile App: Supported
Instant On Cloud Portal: Supported
Cloud-Based Configuration: Supported
Remote Management: Supported
Zero Touch Deployment: Supported
Firmware Updates: Supported
Network Analytics: Supported

Power Specifications
Power over Ethernet: Supported
PoE Standard: IEEE 802.3at (PoE+)
DC Power Input: Supported
Maximum Power Consumption: Up to 20.1W (PoE)
Maximum Power Consumption: Up to 15.9W (DC)
Power Optimization Features: Supported

Antenna Specifications
Antenna Type: Internal Omni-Directional Antennas
Antenna Configuration: 4x4
Coverage Optimization: Supported
High-Density Wireless Coverage: Optimized

Physical Specifications
Form Factor: Indoor Ceiling/Wall Mount Access Point
Dimensions: Approximately 203 x 203 x 51 mm
Weight: Approximately 1.18 kg
Color: White
Mounting Options: Ceiling Mount and Wall Mount

Features
Wi-Fi 6 (802.11ax) Technology
4x4:4 MU-MIMO Architecture
Up to 5.3 Gbps Aggregate Throughput
2.5GbE Smart Rate Ethernet Port
160 MHz Channel Support
OFDMA Technology
Smart Mesh Networking
Bluetooth Low Energy Support
Cloud-Based Management
WPA3 Security
High-Density Wireless Optimization
Enterprise-Class Wireless Performance

Performance & Features
Designed for high-density small and medium business environments
Provides superior wireless coverage and performance through a 4x4 antenna design
Supports bandwidth-intensive applications including video conferencing, cloud collaboration, and unified communications
160 MHz channel support enables faster wireless throughput for modern Wi-Fi 6 devices
2.5GbE uplink eliminates wired bottlenecks and maximizes wireless performance
Smart Mesh technology simplifies wireless expansion without additional cabling
Optimized for environments with more than 100 concurrent users
Cloud-based management enables centralized deployment and monitoring

Package Contents
HPE Networking Instant On AP25 Access Point
Mounting Hardware
Quick Start Guide
Regulatory Documentation

Key Features
Wi-Fi 6 (802.11ax) Technology
4x4:4 MU-MIMO Architecture
Up to 5.3 Gbps Wireless Throughput
2.5GbE Ethernet Uplink Port
160 MHz Channel Support
Bluetooth Low Energy Integration
Smart Mesh Networking
Cloud-Based Management Platform
WPA3 Enterprise Security
PoE+ Powered Deployment
Designed for 100+ Connected Devices
Ideal for High-Density Business Environments

Typical Use Cases
Corporate Offices
Meeting Rooms and Conference Facilities
Educational Institutions
Healthcare Clinics and Hospitals
Retail Stores
Hospitality Environments
Co-Working Spaces
Hybrid Workplace Deployments
High-Density Wireless Networks
Cloud-Managed Business Networks
Video Conferencing Environments
Business Wi-Fi Modernization Projects

Ordering Information
Model: HPE Networking Instant On AP25 (RW)
Part Number: R9B28A
Configuration: Dual-Radio 4x4 Wi-Fi 6 Indoor Access Point with Internal Antennas
