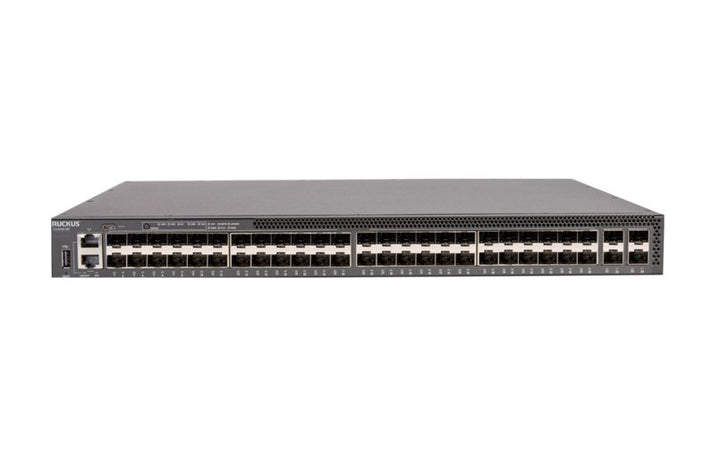

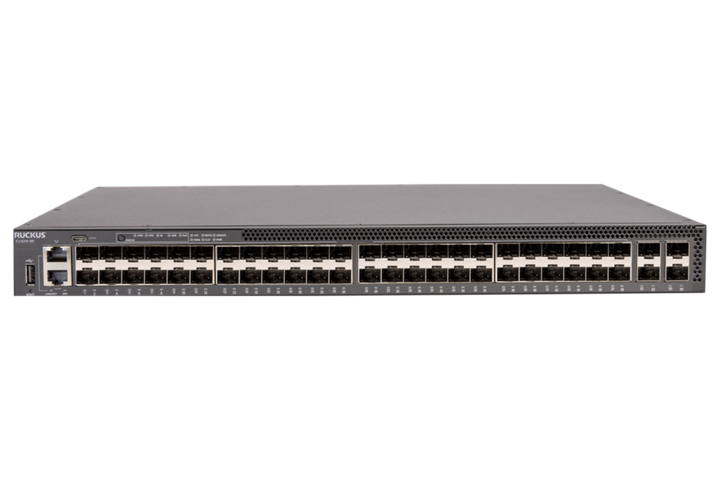

RUCKUS ICX 8200-48F 48-Port Gigabit SFP Stackable Fibre Switch with 4 x 25G SFP28
PRODUCT DESCRIPTION
RUCKUS ICX 8200-48F 48-Port Gigabit SFP Stackable Fibre Switch with 4 x 25G SFP28 (ICX8200-48F) - Limited Lifetime Local Warranty
Fibre Access and Aggregation Switch
The RUCKUS ICX 8200-48F is a 1U stackable fibre switch with 48 x 100/1000 Mbps SFP ports and 4 x 1/10/25 GbE SFP28 ports for uplink or stacking — suited to fibre-to-the-room, building aggregation and long-reach edge links.
25G Uplinks and Stacking up to 12 Switches
RUCKUS rates the ICX 8200-48F at 296 Gbps switching capacity and 219 Mpps forwarding. Up to 12 switches can be stacked, with up to 1.2 Tbps aggregated stacking bandwidth and stacking distances of up to 10 km, so a stack can span floors or buildings and be managed as one switch.
Layer 3 Routing, Upgradable by License
Base software includes IPv4/IPv6 static routing and RIP. The ICX8200-PREM-LIC premium license adds OSPF, VRRP, VRF, GRE, PIM, PBR and VXLAN for larger campus designs.
Cloud, On-Premises or Controller-Less Management
RUCKUS lists three unified management options for the ICX 8200: RUCKUS One (cloud), SmartZone (on premises) and RUCKUS Unleashed (controller-less), alongside CLI, embedded web management, SNMPv3 and sFlow.
Supplied in Singapore with Local Warranty
RUCKUS includes 3 years of remote TAC support with every ICX 8200 model, plus a limited lifetime warranty. SourceIT supplies it locally in Singapore with a GST invoice. Transceivers and the power cord are not included. Email sales@sourceit.com.sg with your port count and uplink plan for a quote.
RUCKUS ICX 8200-48F ICX8200-48F Datasheet — Technical Specifications
General
| Product Name | RUCKUS ICX 8200-48F Switch |
| Part Number | ICX8200-48F |
| RUCKUS Description | RUCKUS ICX 8200 Switch, 48×100/1000 Mbps SFP ports, 4×25 GbE SFP28 stacking/uplink-ports, three-year remote TAC support. Power cord not included. |
| Form Factor | 1U rack-mount |
| Manufacturer Warranty | Limited lifetime warranty; 3 years remote TAC support included (RUCKUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Ports
| Access Ports | 48 x 100/1000 Mbps SFP |
| Uplink / Stacking | 4 x 1/10/25 GbE SFP28 |
| PoE | None (fibre model) |
Performance
| Switching Capacity | 296 Gbps |
| Forwarding Rate | 219 Mpps |
| MAC Addresses | 32K |
| VLANs | 4,095 |
Stacking
| Stack Size | Up to 12 switches |
| Aggregated Stacking Bandwidth | 1.2 Tbps |
| Maximum Stacking Distance | 10 km |
Layer 3
| Base | IPv4/IPv6 static routing, RIP |
| With ICX8200-PREM-LIC | OSPF, VRRP, VRF, GRE, PIM, PBR, VXLAN |
Power & Cooling
| Power Supply | Single integrated supply, 180 W rated max (AC) |
| Power Consumption | 106 W (10% traffic); 118 W (100% traffic) |
| Heat Dissipation | 362 BTU/hr (10% traffic); 402 BTU/hr (100% traffic) |
| Acoustic Level | 41.0 dBA |
Physical & Environmental
| Dimensions | 44.00 cm (W) x 28.00 cm (D) x 4.40 cm (H) |
| Weight | 4.30 kg |
| Operating Temperature | 0°C to 45°C |
Figures are taken from the RUCKUS ICX 8200 data sheet. Values the data sheet does not state clearly for this model are left out; for anything not listed, refer to the RUCKUS documents linked under Datasheet & Downloads.
Compatibility & Software Support
Management
RUCKUS One (cloud), SmartZone (on premises) or RUCKUS Unleashed (controller-less), plus CLI, embedded web management (HTTP/HTTPS), SNMPv3 and sFlow.
Powering Devices
This is a fibre model with no PoE. For PoE+ on the same platform see the ICX 8200-48P (370 W) or ICX 8200-48PF (740 W).
Optics
The SFP28 ports accept 1, 10 and 25 GbE optics. Transceivers are sold separately; ask us for RUCKUS-qualified SFP/SFP+/SFP28 modules.
Package Contents & RUCKUS ICX 8200 Ordering Information
In the Box
One ICX 8200-48F switch. The power cord and transceivers are not included (per the RUCKUS ordering description) — every SFP port needs an optic or DAC. Rack mount kits and console cables are listed by RUCKUS as accessories; confirm with us before ordering if you need them.
RUCKUS ICX 8200 Switches — Ordering Information
| RUCKUS ICX 8200-C08PF | 8 x 1G PoE+, 2 x 10G SFP+, 124 W PoE | ICX8200-C08PF |
| RUCKUS ICX 8200-C08PFV | Pro AV compact: 8 x 1G PoE+, 2 x 10G SFP+, 124 W PoE | ICX8200-C08PFV |
| RUCKUS ICX 8200-C08ZP | 4 x 2.5G + 4 x 10G PoE+++, 2 x 25G SFP28, 240 W PoE | ICX8200-C08ZP |
| RUCKUS ICX 8200-24 | 24 x 1G, 4 x 25G SFP28 | ICX8200-24 |
| RUCKUS ICX 8200-24P | 24 x 1G PoE+, 4 x 25G SFP28, 370 W PoE | ICX8200-24P |
| RUCKUS ICX 8200-24PV | Pro AV: 24 x 1G PoE+, 4 x 25G SFP28, 370 W PoE | ICX8200-24PV |
| RUCKUS ICX 8200-24ZP | 24 x 2.5G PoE+++, 4 x 25G SFP28, 740 W PoE | ICX8200-24ZP |
| RUCKUS ICX 8200-24F | 24 x 1G SFP, 4 x 25G SFP28 | ICX8200-24F |
| RUCKUS ICX 8200-24FX | 16 x 10G SFP+, 8 x 25G SFP28 | ICX8200-24FX |
| RUCKUS ICX 8200-24XP2-E-G | 8 x 10G + 16 x 2.5G PoE+++, 6 x 25G SFP28, 1 PSU, 950 W PoE | ICX8200-24XP2-E-G |
| RUCKUS ICX 8200-24XP2-E2-G | 8 x 10G + 16 x 2.5G PoE+++, 6 x 25G SFP28, 2 PSU, 1900 W PoE | ICX8200-24XP2-E2-G |
| RUCKUS ICX 8200-48 | 48 x 1G, 4 x 25G SFP28 | ICX8200-48 |
| RUCKUS ICX 8200-48P | 48 x 1G PoE+, 4 x 25G SFP28, 370 W PoE | ICX8200-48P |
| RUCKUS ICX 8200-48PF | 48 x 1G PoE+, 4 x 25G SFP28, 740 W PoE | ICX8200-48PF |
| RUCKUS ICX 8200-48PF2-E | 48 x 1G PoE+, hot-swap PSU/fans, 1 PSU, 840 W PoE | ICX8200-48PF2-E |
| RUCKUS ICX 8200-48PF2-E2 | 48 x 1G PoE+, 2 hot-swap PSU, 1480 W PoE | ICX8200-48PF2-E2 |
| RUCKUS ICX 8200-48ZP2-E | 32 x 1G PoE+ + 16 x 2.5G PoE+++, 1 PSU, 800 W PoE | ICX8200-48ZP2-E |
| RUCKUS ICX 8200-48ZP2-E2 | 32 x 1G PoE+ + 16 x 2.5G PoE+++, 2 PSU, 1480 W PoE | ICX8200-48ZP2-E2 |
| RUCKUS ICX 8200-48F (this listing) | 48 x 1G SFP, 4 x 25G SFP28 | ICX8200-48F |
| RUCKUS ICX 8200-48NP2-E-G | 8 x 10G + 40 x 5G PoE+++, 8 x 25G SFP28, 1 PSU, 950 W PoE | ICX8200-48NP2-E-G |
| RUCKUS ICX 8200-48NP2-E2-G | 8 x 10G + 40 x 5G PoE+++, 8 x 25G SFP28, 2 PSU, 1900 W PoE | ICX8200-48NP2-E2-G |
Licences & Accessories
ICX8200-PREM-LIC Layer 3 premium licence; regional power cords including UK; RUCKUS-qualified SFP/SFP+/SFP28 optics and DAC cables. Ask us for the full RUCKUS accessory list.
Datasheet & Downloads
| RUCKUS data sheet | RUCKUS ICX 8200 Data Sheet |
| RUCKUS product page | RUCKUS ICX 8200-48F on ruckusnetworks.com |
| Technical specifications | RUCKUS ICX 8200 Switch Technical Specifications |
| Installation guide | RUCKUS ICX 8200 Hardware Installation Guide |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting ICX8200-48F.
Frequently Asked Questions — RUCKUS ICX 8200-48F ICX8200-48F
Does the ICX 8200-48F support PoE?
No. All 48 access ports are SFP fibre ports; for PoE+ see the 48P or 48PF.
What speeds do the SFP ports run at?
The 48 access ports are 100/1000 Mbps SFP; the 4 SFP28 uplinks run at 1, 10 or 25 GbE.
Are optics included?
No. Transceivers are sold separately — tell us the fibre type and distance and we will quote RUCKUS-qualified optics.
Can I stack it with other ICX 8200 switches?
Yes. Up to 12 ICX 8200 switches per stack over the SFP28 ports, with stacking distances up to 10 km.
Does it do Layer 3 routing?
Static routing (IPv4/IPv6) and RIP are included. OSPF, VRRP, VRF, PIM, PBR, GRE and VXLAN need the ICX8200-PREM-LIC licence.
Can I manage it from the cloud?
Yes — RUCKUS One. It can also be managed by SmartZone, RUCKUS Unleashed, the CLI or the built-in web interface.
What warranty and support come with it?
A RUCKUS limited lifetime warranty and 3 years of remote TAC support, supplied by SourceIT with local support and a GST invoice.
