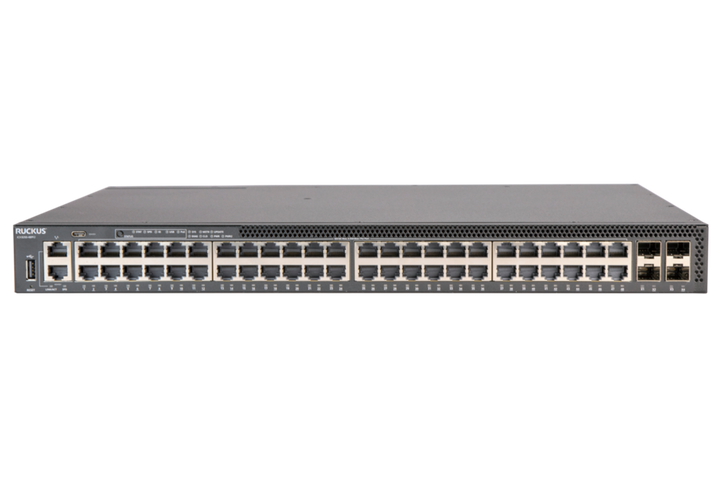

RUCKUS ICX 8200-48PF2-E 48-Port Gigabit PoE+ Switch, Hot-Swap PSU/Fans, 1 PSU
PRODUCT DESCRIPTION
RUCKUS ICX 8200-48PF2-E 48-Port Gigabit PoE+ Switch, Hot-Swap PSU/Fans, 1 PSU (ICX8200-48PF2-E) - Limited Lifetime Local Warranty
48 PoE+ Ports with Field-Replaceable Power and Fans
The RUCKUS ICX 8200-48PF2-E is a 1U stackable access switch with 48 x 10/100/1000 Mbps RJ-45 PoE+ ports (30 W each), 4 x 1/10/25 GbE SFP28 uplink/stacking ports and hot-swap power supplies and fans. This bundle ships with one power supply and one fan, giving an 840 W PoE budget; add a second supply later to reach 1480 W.
25G Uplinks and Stacking up to 12 Switches
RUCKUS rates the ICX 8200-48PF2 at 296 Gbps switching capacity and 220 Mpps forwarding. Up to 12 switches can be stacked, with up to 1.2 Tbps aggregated stacking bandwidth and stacking distances of up to 10 km, so a stack can span floors or buildings and be managed as one switch.
Layer 3 Routing, Upgradable by License
Base software includes IPv4/IPv6 static routing and RIP. The ICX8200-PREM-LIC premium license adds OSPF, VRRP, VRF, GRE, PIM, PBR and VXLAN for larger campus designs.
Cloud, On-Premises or Controller-Less Management
RUCKUS lists three unified management options for the ICX 8200: RUCKUS One (cloud), SmartZone (on premises) and RUCKUS Unleashed (controller-less), alongside CLI, embedded web management, SNMPv3 and sFlow.
Supplied in Singapore with Local Warranty
RUCKUS includes 3 years of remote TAC support with every ICX 8200 model, plus a limited lifetime warranty. SourceIT supplies it locally in Singapore with a GST invoice. Transceivers and the power cord are not included. Email sales@sourceit.com.sg with your port count and uplink plan for a quote.
RUCKUS ICX 8200-48PF2-E ICX8200-48PF2-E Datasheet — Technical Specifications
General
| Product Name | RUCKUS ICX 8200-48PF2-E Switch |
| Part Number | ICX8200-48PF2-E |
| RUCKUS Description | RUCKUS ICX 8200 Switch, 48×10/100/1000 Mbps PoE+ ports, 4×25 GbE SFP28 stacking/uplink-ports, 840 W PoE budget (with one PSU), hot swap power supplies and fans, one power supply and one fan included, three-year remote TAC support. Power cord not included. |
| Form Factor | 1U rack-mount |
| Manufacturer Warranty | Limited lifetime warranty; 3 years remote TAC support included (RUCKUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Ports
| Access Ports | 48 x 10/100/1000 Mbps RJ-45, PoE+ (30 W per port) |
| Uplink / Stacking | 4 x 1/10/25 GbE SFP28 |
| PoE Budget | 840 W with one PSU; 1480 W with two PSUs (one included) |
| Max PoE+ Class 4 Ports | 48 (with two PSUs) |
Performance
| Switching Capacity | 296 Gbps |
| Forwarding Rate | 220 Mpps |
| MAC Addresses | 32K |
| VLANs | 4,095 |
Stacking
| Stack Size | Up to 12 switches |
| Aggregated Stacking Bandwidth | 1.2 Tbps |
| Maximum Stacking Distance | 10 km |
Layer 3
| Base | IPv4/IPv6 static routing, RIP |
| With ICX8200-PREM-LIC | OSPF, VRRP, VRF, GRE, PIM, PBR, VXLAN |
Power & Cooling
| Power Supply | Hot-swap, 920 W rated max each, two slots; one power supply and one fan included |
| Power Consumption | 86 W (10% traffic); 1667 W (100% traffic) |
| Heat Dissipation | 294 BTU/hr (10% traffic); 775 BTU/hr (100% traffic) |
| Fans | Hot-swap fan modules |
| Acoustic Level | 51.0 dBA |
Physical & Environmental
| Dimensions | 44.00 cm (W) x 37.00 cm (D) x 4.40 cm (H) |
| Weight | 6.39 kg (as listed for the 48PF2) |
| Operating Temperature | 0°C to 45°C |
Figures are taken from the RUCKUS ICX 8200 data sheet. Values the data sheet does not state clearly for this model are left out; for anything not listed, refer to the RUCKUS documents linked under Datasheet & Downloads.
Compatibility & Software Support
Management
RUCKUS One (cloud), SmartZone (on premises) or RUCKUS Unleashed (controller-less), plus CLI, embedded web management (HTTP/HTTPS), SNMPv3 and sFlow.
Powering Access Points
With its single PSU the switch delivers 840 W of PoE+; RUCKUS rates up to 48 full-power Class 4 ports once a second supply is fitted (1480 W). The ICX 8200-48PF2-E2 bundle ships with both supplies.
Optics
The SFP28 ports accept 1, 10 and 25 GbE optics. Transceivers are sold separately; ask us for RUCKUS-qualified SFP/SFP+/SFP28 modules.
Package Contents & RUCKUS ICX 8200 Ordering Information
In the Box
One ICX 8200-48PF2-E switch with one power supply and one fan installed. Power cord and transceivers are not included (per the RUCKUS ordering description). Rack mount kits and console cables are listed by RUCKUS as accessories; confirm with us before ordering if you need them.
RUCKUS ICX 8200 Switches — Ordering Information
| RUCKUS ICX 8200-C08PF | 8 x 1G PoE+, 2 x 10G SFP+, 124 W PoE | ICX8200-C08PF |
| RUCKUS ICX 8200-C08PFV | Pro AV compact: 8 x 1G PoE+, 2 x 10G SFP+, 124 W PoE | ICX8200-C08PFV |
| RUCKUS ICX 8200-C08ZP | 4 x 2.5G + 4 x 10G PoE+++, 2 x 25G SFP28, 240 W PoE | ICX8200-C08ZP |
| RUCKUS ICX 8200-24 | 24 x 1G, 4 x 25G SFP28 | ICX8200-24 |
| RUCKUS ICX 8200-24P | 24 x 1G PoE+, 4 x 25G SFP28, 370 W PoE | ICX8200-24P |
| RUCKUS ICX 8200-24PV | Pro AV: 24 x 1G PoE+, 4 x 25G SFP28, 370 W PoE | ICX8200-24PV |
| RUCKUS ICX 8200-24ZP | 24 x 2.5G PoE+++, 4 x 25G SFP28, 740 W PoE | ICX8200-24ZP |
| RUCKUS ICX 8200-24F | 24 x 1G SFP, 4 x 25G SFP28 | ICX8200-24F |
| RUCKUS ICX 8200-24FX | 16 x 10G SFP+, 8 x 25G SFP28 | ICX8200-24FX |
| RUCKUS ICX 8200-24XP2-E-G | 8 x 10G + 16 x 2.5G PoE+++, 6 x 25G SFP28, 1 PSU, 950 W PoE | ICX8200-24XP2-E-G |
| RUCKUS ICX 8200-24XP2-E2-G | 8 x 10G + 16 x 2.5G PoE+++, 6 x 25G SFP28, 2 PSU, 1900 W PoE | ICX8200-24XP2-E2-G |
| RUCKUS ICX 8200-48 | 48 x 1G, 4 x 25G SFP28 | ICX8200-48 |
| RUCKUS ICX 8200-48P | 48 x 1G PoE+, 4 x 25G SFP28, 370 W PoE | ICX8200-48P |
| RUCKUS ICX 8200-48PF | 48 x 1G PoE+, 4 x 25G SFP28, 740 W PoE | ICX8200-48PF |
| RUCKUS ICX 8200-48PF2-E (this listing) | 48 x 1G PoE+, hot-swap PSU/fans, 1 PSU, 840 W PoE | ICX8200-48PF2-E |
| RUCKUS ICX 8200-48PF2-E2 | 48 x 1G PoE+, 2 hot-swap PSU, 1480 W PoE | ICX8200-48PF2-E2 |
| RUCKUS ICX 8200-48ZP2-E | 32 x 1G PoE+ + 16 x 2.5G PoE+++, 1 PSU, 800 W PoE | ICX8200-48ZP2-E |
| RUCKUS ICX 8200-48ZP2-E2 | 32 x 1G PoE+ + 16 x 2.5G PoE+++, 2 PSU, 1480 W PoE | ICX8200-48ZP2-E2 |
| RUCKUS ICX 8200-48F | 48 x 1G SFP, 4 x 25G SFP28 | ICX8200-48F |
| RUCKUS ICX 8200-48NP2-E-G | 8 x 10G + 40 x 5G PoE+++, 8 x 25G SFP28, 1 PSU, 950 W PoE | ICX8200-48NP2-E-G |
| RUCKUS ICX 8200-48NP2-E2-G | 8 x 10G + 40 x 5G PoE+++, 8 x 25G SFP28, 2 PSU, 1900 W PoE | ICX8200-48NP2-E2-G |
Licences & Accessories
ICX8200-PREM-LIC Layer 3 premium licence; spare hot-swap power supplies and fan trays for the FRU models; regional power cords including UK; RUCKUS-qualified SFP/SFP+/SFP28 optics. Ask us for the full RUCKUS accessory list.
Datasheet & Downloads
| RUCKUS data sheet | RUCKUS ICX 8200 Data Sheet |
| RUCKUS product page | RUCKUS ICX 8200-48PF2 on ruckusnetworks.com |
| Technical specifications | RUCKUS ICX 8200 Switch Technical Specifications |
| Installation guide | RUCKUS ICX 8200 Hardware Installation Guide |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting ICX8200-48PF2-E.
Frequently Asked Questions — RUCKUS ICX 8200-48PF2-E ICX8200-48PF2-E
How much PoE does the ICX 8200-48PF2-E provide?
840 W with the included power supply, or 1480 W once a second hot-swap supply is added.
What is the difference between the -E and -E2 bundles?
Same switch: the -E ships with one power supply and one fan, the -E2 with two of each for redundancy and the full 1480 W PoE budget.
Can I stack it with other ICX 8200 switches?
Yes. Up to 12 ICX 8200 switches per stack over the SFP28 ports, with stacking distances up to 10 km.
Does it do Layer 3 routing?
Static routing (IPv4/IPv6) and RIP are included. OSPF, VRRP, VRF, PIM, PBR, GRE and VXLAN need the ICX8200-PREM-LIC licence.
Can I manage it from the cloud?
Yes — RUCKUS One. It can also be managed by SmartZone, RUCKUS Unleashed, the CLI or the built-in web interface.
What warranty and support come with it?
A RUCKUS limited lifetime warranty and 3 years of remote TAC support, supplied by SourceIT with local support and a GST invoice.
