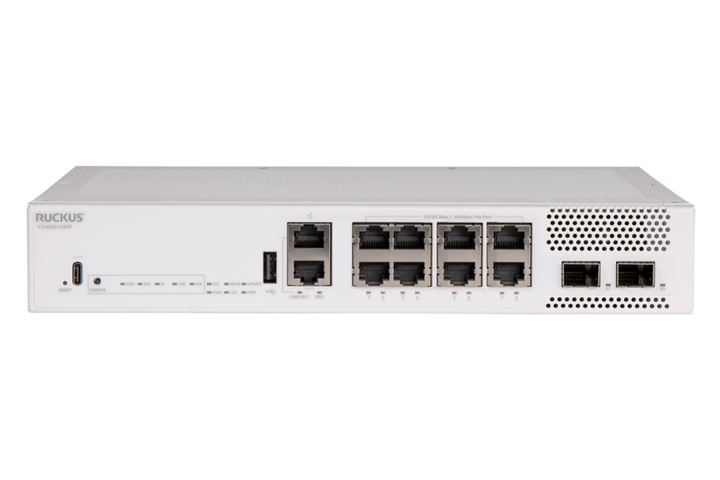

RUCKUS ICX 8200-C08ZP 8-Port Multi-Gigabit PoE+++ Compact Fanless Switch with 2 x 25G SFP28
PRODUCT DESCRIPTION
RUCKUS ICX 8200-C08ZP 8-Port Multi-Gigabit PoE+++ Compact Fanless Switch with 2 x 25G SFP28 (ICX8200-C08ZP) - Limited Lifetime Local Warranty
Compact Multigigabit PoE+++ for Wi-Fi 7
The RUCKUS ICX 8200-C08ZP is a fanless compact switch with 4 x 100/1000/2500 Mbps and 4 x 1/2.5/5/10 Gbps RJ-45 ports, all PoE+++ (up to 90 W per port), plus 2 x 1/10/25 GbE SFP28 uplink/stacking ports. Its 240 W PoE budget feeds high-power Wi-Fi 7 APs, PTZ cameras and displays from a small, silent footprint.
25G Uplinks and Stacking
RUCKUS rates the C08ZP at 200 Gbps switching capacity and 148 Mpps forwarding, with 600 Gbps aggregated stacking bandwidth. It stacks with other ICX 8200 switches (up to 12 per stack) over its two SFP28 ports.
Layer 3 Routing, Upgradable by License
Base software includes IPv4/IPv6 static routing and RIP. The ICX8200-PREM-LIC premium license adds OSPF, VRRP, VRF, GRE, PIM, PBR and VXLAN for larger campus designs.
Cloud, On-Premises or Controller-Less Management
RUCKUS lists three unified management options for the ICX 8200: RUCKUS One (cloud), SmartZone (on premises) and RUCKUS Unleashed (controller-less), alongside CLI, embedded web management, SNMPv3 and sFlow.
Supplied in Singapore with Local Warranty
RUCKUS includes 3 years of remote TAC support with every ICX 8200 model, plus a limited lifetime warranty. SourceIT supplies it locally in Singapore with a GST invoice. Transceivers and the power cord are not included. RUCKUS specifies a power cord with a high-temperature C15 connector for this model. Email sales@sourceit.com.sg with your port count and uplink plan for a quote.
RUCKUS ICX 8200-C08ZP ICX8200-C08ZP Datasheet — Technical Specifications
General
| Product Name | RUCKUS ICX 8200-C08ZP Compact Switch |
| Part Number | ICX8200-C08ZP |
| RUCKUS Description | 4×100/1000/2500 Mbps PoE+++ ports, 4× 1/2.5/5/10Gbps PoE+++ ports, 2×25 GbE SFP28. Power cord not included; must use power cord with high temperature C15 connector. |
| Form Factor | Compact, fanless |
| Manufacturer Warranty | Limited lifetime warranty; 3 years remote TAC support included (RUCKUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Ports
| Access Ports | 4 x 100/1000/2500 Mbps RJ-45 PoE+++ (90 W) + 4 x 1/2.5/5/10 Gbps RJ-45 PoE+++ (90 W) |
| Uplink / Stacking | 2 x 1/10/25 GbE SFP28 |
| PoE Budget | 240 W |
Performance
| Switching Capacity | 200 Gbps |
| Forwarding Rate | 148 Mpps |
| MAC Addresses | 32K |
| VLANs | 4,095 |
Stacking
| Stack Size | Up to 12 switches |
| Aggregated Stacking Bandwidth | 600 Gbps |
Layer 3
| Base | IPv4/IPv6 static routing, RIP |
| With ICX8200-PREM-LIC | OSPF, VRRP, VRF, GRE, PIM, PBR, VXLAN |
Power & Cooling
| Power Supply | Single integrated supply, 305 W |
| Power Consumption | 41 W idle; 300 W max |
| Heat Dissipation | 140 BTU/hr idle; 1,023 BTU/hr max |
| Cooling | Fanless |
Physical & Environmental
| Dimensions | 27.00 cm (W) x 26.00 cm (D) x 4.40 cm (H) |
| Weight | 3.23 kg |
| Operating Temperature | 0°C to 45°C |
Figures are taken from the RUCKUS ICX 8200 data sheet. For anything not listed, refer to the RUCKUS documents linked under Datasheet & Downloads.
Compatibility & Software Support
Management
RUCKUS One (cloud), SmartZone (on premises) or RUCKUS Unleashed (controller-less), plus CLI, embedded web management (HTTP/HTTPS), SNMPv3 and sFlow.
Powering Access Points
Every port supports PoE+++ (802.3bt, up to 90 W) from a shared 240 W budget. The four 10G ports suit RUCKUS Wi-Fi 7 APs such as the R670 and R770 that use multigigabit uplinks; plan the total draw against the 240 W budget.
Optics
The SFP28 ports accept 1, 10 and 25 GbE optics. Transceivers are sold separately; ask us for RUCKUS-qualified modules.
Package Contents & RUCKUS ICX 8200 Ordering Information
In the Box
One ICX 8200-C08ZP switch. The power cord (C15 high-temperature type) and transceivers are not included (per the RUCKUS ordering description). Rack and wall mount kits for compact switches are sold separately.
RUCKUS ICX 8200 Switches — Ordering Information
| RUCKUS ICX 8200-C08PF | 8 x 1G PoE+, 2 x 10G SFP+, 124 W PoE | ICX8200-C08PF |
| RUCKUS ICX 8200-C08PFV | Pro AV compact: 8 x 1G PoE+, 2 x 10G SFP+, 124 W PoE | ICX8200-C08PFV |
| RUCKUS ICX 8200-C08ZP (this listing) | 4 x 2.5G + 4 x 10G PoE+++, 2 x 25G SFP28, 240 W PoE | ICX8200-C08ZP |
| RUCKUS ICX 8200-24 | 24 x 1G, 4 x 25G SFP28 | ICX8200-24 |
| RUCKUS ICX 8200-24P | 24 x 1G PoE+, 4 x 25G SFP28, 370 W PoE | ICX8200-24P |
| RUCKUS ICX 8200-24PV | Pro AV: 24 x 1G PoE+, 4 x 25G SFP28, 370 W PoE | ICX8200-24PV |
| RUCKUS ICX 8200-24ZP | 24 x 2.5G PoE+++, 4 x 25G SFP28, 740 W PoE | ICX8200-24ZP |
| RUCKUS ICX 8200-24F | 24 x 1G SFP, 4 x 25G SFP28 | ICX8200-24F |
| RUCKUS ICX 8200-24FX | 16 x 10G SFP+, 8 x 25G SFP28 | ICX8200-24FX |
| RUCKUS ICX 8200-24XP2-E-G | 8 x 10G + 16 x 2.5G PoE+++, 6 x 25G SFP28, 1 PSU, 950 W PoE | ICX8200-24XP2-E-G |
| RUCKUS ICX 8200-24XP2-E2-G | 8 x 10G + 16 x 2.5G PoE+++, 6 x 25G SFP28, 2 PSU, 1900 W PoE | ICX8200-24XP2-E2-G |
| RUCKUS ICX 8200-48 | 48 x 1G, 4 x 25G SFP28 | ICX8200-48 |
| RUCKUS ICX 8200-48P | 48 x 1G PoE+, 4 x 25G SFP28, 370 W PoE | ICX8200-48P |
| RUCKUS ICX 8200-48PF | 48 x 1G PoE+, 4 x 25G SFP28, 740 W PoE | ICX8200-48PF |
| RUCKUS ICX 8200-48PF2-E | 48 x 1G PoE+, hot-swap PSU/fans, 1 PSU, 840 W PoE | ICX8200-48PF2-E |
| RUCKUS ICX 8200-48PF2-E2 | 48 x 1G PoE+, 2 hot-swap PSU, 1480 W PoE | ICX8200-48PF2-E2 |
| RUCKUS ICX 8200-48ZP2-E | 32 x 1G PoE+ + 16 x 2.5G PoE+++, 1 PSU, 800 W PoE | ICX8200-48ZP2-E |
| RUCKUS ICX 8200-48ZP2-E2 | 32 x 1G PoE+ + 16 x 2.5G PoE+++, 2 PSU, 1480 W PoE | ICX8200-48ZP2-E2 |
| RUCKUS ICX 8200-48F | 48 x 1G SFP, 4 x 25G SFP28 | ICX8200-48F |
| RUCKUS ICX 8200-48NP2-E-G | 8 x 10G + 40 x 5G PoE+++, 8 x 25G SFP28, 1 PSU, 950 W PoE | ICX8200-48NP2-E-G |
| RUCKUS ICX 8200-48NP2-E2-G | 8 x 10G + 40 x 5G PoE+++, 8 x 25G SFP28, 2 PSU, 1900 W PoE | ICX8200-48NP2-E2-G |
Licences & Accessories
ICX8200-PREM-LIC Layer 3 premium licence; ICX7000-C12-RMK rack mount kit and ICX7000-C12-WMK wall mount bracket kit for compact switches; regional power cords including UK.
Datasheet & Downloads
| RUCKUS data sheet | RUCKUS ICX 8200 Data Sheet |
| RUCKUS product page | RUCKUS ICX 8200-C08ZP on ruckusnetworks.com |
| Technical specifications | RUCKUS ICX 8200 Switch Technical Specifications |
| Installation guide | RUCKUS ICX 8200 Hardware Installation Guide |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting ICX8200-C08ZP.
Frequently Asked Questions — RUCKUS ICX 8200-C08ZP ICX8200-C08ZP
How much PoE does the ICX 8200-C08ZP provide?
A 240 W budget shared across 8 PoE+++ ports, up to 90 W per port.
Which ports are multigigabit?
Four ports run at 100M/1G/2.5G and four at 1/2.5/5/10G.
Is it fanless?
Yes, RUCKUS lists the C08ZP as fanless.
Does it do Layer 3 routing?
Static routing (IPv4/IPv6) and RIP are included. OSPF, VRRP, VRF, PIM, PBR, GRE and VXLAN need the ICX8200-PREM-LIC licence.
What warranty and support come with it?
A RUCKUS limited lifetime warranty and 3 years of remote TAC support, supplied by SourceIT with local support and a GST invoice.
