Poly Studio Focus Room Kit For Microsoft Teams
PRODUCT DESCRIPTION
Poly Studio Focus Room Kit for Microsoft Teams — Poly Studio P15 with GC8 (7230-87700-102) - Local Warranty

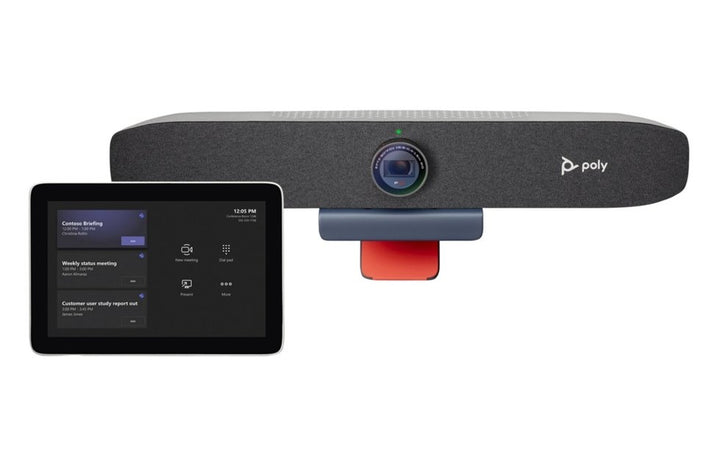

Poly Focus Room Kit for Microsoft Teams Rooms with the Studio P15
The Poly Focus Room Kit is HP's smallest room kit for Microsoft Teams Rooms on Windows, built around the Poly Studio P15 personal video bar, the Poly GC8 touch controller and a certified conferencing PC. It turns a focus room, phone booth or one-to-two person space into a proper Teams room with 4K video, beamforming audio and a familiar one-touch console on the table.
Poly Studio P15 4K Personal Video Bar
The Studio P15 delivers 2160p 4K UHD video at 30 fps through a single lens with a 90-degree diagonal field of view and 4x zoom, plus an integrated privacy shutter. Automatic camera framing keeps the presenter centred as they move, so a focus room looks as composed on camera as a much larger space.
Beamforming Audio with NoiseBlockAI and Acoustic Fence
A three-element beamforming microphone array and an integrated speaker handle the room audio, with Poly NoiseBlockAI, Poly Acoustic Fence and acoustic echo cancellation working to suppress keyboard clatter, corridor noise and voices from outside the space. In an open Singapore office floorplate, that is the difference between a usable focus room and one nobody books twice.
Poly GC8 One-Touch Control at the Table
The kit includes the Poly GC8, an 8-inch WXGA touch controller that connects to the conferencing PC over USB and gives the familiar Microsoft Teams Rooms console at the table. Integrated HDMI and USB Type-A inputs on the GC8 let a guest share from a laptop without hunting for a cable behind the display.
Ideal For
The Poly Focus Room Kit is ideally suited to organisations equipping focus rooms, booths and one-to-two person spaces as full Microsoft Teams Rooms on Windows, where a full video bar would be oversized but a webcam-and-laptop setup is not professional enough.
Poly Focus Room Kit Datasheet — Technical Specifications
Kit Overview
| Kit name (HP) | Poly Focus Room Kit with Poly Studio P15 |
| Part Number | 7230-87700-102 |
| Manufacturer | Poly (HP) |
| Platform | Microsoft Teams Rooms on Windows |
| Video device | Poly Studio P15 personal video bar |
| Controller | Poly GC8 touch controller (USB) |
| Conferencing PC | Lenovo ThinkSmart Core or Dell OptiPlex 7080 XE, per HP's setup sheet |
| Room guidance | Focus room / personal space — the Studio P15 is HP's personal video bar |
| Warranty | Local Warranty (Singapore) |
HP publishes these kits by name rather than by part number, and does not publish a seat count or room dimension for the kit as a whole — the room guidance below comes from HP's specification for the video device inside the kit.
Component: Poly Studio P15 Personal Video Bar
| Model | Poly Studio P15 personal video bar |
| Part Number | 842D1AA |
| Camera | Single lens with integrated privacy shutter |
| Resolution | 2160p 4K UHD (3840 x 2160); 1080p; 720p |
| Frame rate | 30 fps |
| Zoom | 4x (HP does not state optical or digital for this model) |
| Field of view | 90° DFOV |
| Pan / tilt / zoom | Manual pan, tilt and zoom control |
| Speaker | Single integrated speaker |
| Microphones | Three-element beamforming microphone array |
| Audio processing | Poly NoiseBlockAI; Poly Acoustic Fence; acoustic echo cancellation |
| Connectivity | USB Type-C (130 cm cable supplied); UAC plug-and-play |
| Dimensions | 425 x 70 x 78 mm with monitor clamp; 425 x 65 x 78 mm without |
| Weight | 0.682 kg |
| Mounting | Adjustable removable monitor clamp; tripod-ready |
| Power | 12 V / 3 A external adapter |
| Certification | Microsoft Teams; Zoom; certified to work with Chromebook |
Component: Poly GC8 Touch Controller
| Model | Poly GC8 touch controller |
| Part Number | 2200-30780-001 / 875J6AA |
| Display | 20.3 cm (8") diagonal, WXGA 1280 x 800, IPS, 16:10 |
| Viewing angle | 75° horizontal and vertical; positioning angle 60° |
| Ports | 1 x USB Type-C (5 Gbps); 1 x USB Type-A (5 Gbps); 1 x 3.5 mm audio jack; 1 x Mini HDMI |
| Power | 100–240 VAC, 12 V, 36 W or 60 W — external power supply (no PoE) |
| Dimensions (W x D x H) | 205 x 123 x 112 mm |
| Weight | 771 g (1.7 lb) |
| Colour | White |
| Operating temperature | 0 to 40 °C (32 to 104 °F) |
| Operating altitude | 3,048 m (10,000 ft) |
| Security | Kensington-style lock slot |
| Certification | Microsoft Teams certified |
| Package contents | GC8 controller; USB Type-A to micro USB cable; HDMI to mini HDMI cable |
Compatibility & Software Support
Platform
This is a kit for Microsoft Teams Rooms on Windows. The meeting experience runs on a certified conferencing PC; the Poly GC8 provides table-side control and the Poly Studio P15 provides the room's video and audio.
Microsoft Teams Rooms licence: HP's Poly Room Kits solution guide states “You must have a Microsoft Teams Rooms license to set up your Poly Room Kits for Microsoft Teams Rooms on Windows.” The licence is not included with the hardware and is ordered separately.
Certifications
HP states the Poly GC8 is Microsoft Teams certified. For the Poly Studio P15, HP states Certified for Microsoft Teams, Certified for Zoom and certified to work with Chromebook.
Operating systems and device mode
The Poly video device in this kit is a USB peripheral, so outside the Teams Rooms application it can also be used as a standard USB camera and audio device by a laptop in BYOD mode. HP publishes a BYOD solution for Poly room kits that lets a personal computer access the room peripherals — see the Poly Microsoft Teams Room Base Kit and the Poly BYOD kits for the required switching hardware.
Standards-based and third-party calling
Standards-based SIP/H.323 calling is a function of a Poly video codec such as the Poly G7500 or a Studio X-series system, not of a Teams Rooms on Windows PC kit. If SIP or H.323 registration is a requirement, specify a Poly codec-based room instead.
Management
Poly peripherals are provisioned, monitored and updated through Poly Lens. The Teams Rooms device itself is managed from the Microsoft Teams Admin Centre.
Conferencing PC: HP's setup sheets for this kit name the conferencing PC as a Lenovo ThinkSmart Core or Dell OptiPlex 7080 XE. Confirm the exact compute shipped against your quotation, as HP also builds Teams Rooms bundles around the HP Mini Conferencing PC under different part numbers.
Current HP lineup: HP Singapore's Microsoft Teams Rooms bundle page now builds rooms around the Poly Studio Base Kit G9 Plus — an HP Mini IP conferencing PC with a Poly TC10 controller — paired with the Studio V12 (approx. 15 x 10 ft), Studio V52 (approx. 20 x 15 ft), Studio V72 (approx. 28 x 15 ft) or the Studio E60 / Studio E70 cameras. Note the controller changed from GC8 to TC10 in that lineup. HP has not published an end-of-life notice for the kit on this page, but it has been superseded by that range — contact SourceIT to confirm current availability and lead time.
Package Contents & Poly Room Kit Ordering Information
Kit contents
- Poly Studio P15 personal video bar and included cables
- Poly GC8 touch controller
- Conferencing PC (Lenovo ThinkSmart Core or Dell OptiPlex 7080 XE)
- Cable management bracket
- EDID emulator (optional)
- Optional second monitor supported
Cabling
HP's Focus Room Kit setup sheet covers a 10 m USB-A to USB-C cable for the GC8, a 10 m USB 3.1 cable, and optional 25 m and 40 m USB-A to USB-C runs, plus Ethernet, 3.5 mm audio and power cabling. HDMI cables are not supplied. Displays are not included in the kit.
About the “+487P-” suffix: some Poly room kit part numbers are quoted as a hardware SKU plus a second code beginning 487P (for example 7230-87700-102+487P-87700-112). The 487P code is a Poly+ support service attach, not an extra hardware item — the hardware content of the kit is unchanged. Ask SourceIT which support term is attached to your quotation.
Poly Room Kit Ordering Information
| Poly Studio Focus Room Kit for Microsoft Teams — Studio P15 + GC8 (this listing) | 7230-87700-102 |
| Poly Studio Small Room Kit for Microsoft Teams — Studio R30 + GC8 | 7230-87600-102 |
| Poly Studio Small/Medium Room Kit for Microsoft Teams — Studio USB + GC8 | 7230-87710-102 |
| Poly Studio Large Room Kit for Microsoft Teams — Studio E70 + GC8 | 7230-87720-102 |
| Poly Studio Small Room Kit for MS Teams — Studio R30 USB bar + GC8 | 9C913AA |
| Poly Studio Medium Room Kit for MS Teams — Studio USB video bar + GC8 | 9C981AA |
| Poly Studio Large Room Kit for MS Teams — Studio E70 smart camera + GC8 | 9R6F2AA |
Controllers Used with Poly Room Kits
| Poly Studio TC8 touch controller (PoE, 8-inch) | 2200-30760-001 / 875J0AA |
| Poly TC10 touch controller & scheduler, Black (PoE, 10.1-inch) | 875K5AA |
| Poly TC10 touch controller & scheduler, White (PoE, 10.1-inch) | 875J5AA |
| Poly GC8 touch controller (USB, 8-inch) | 2200-30780-001 / 875J6AA |
Buy the Components Separately
| Poly Studio P15 video bar | Video device supplied in this kit |
| Poly GC8 touch controller | 2200-30780-001 / 875J6AA |
Datasheet & Downloads
Official HP Poly documentation for this room kit and its components:
- Poly Room Kits for Microsoft Teams Rooms on Windows Solution Guide (HP-hosted PDF)
- Poly Focus Room Kit with Poly Studio P15 setup sheet (HP-hosted PDF)
- HP product page — Poly Studio P15
- HP product specifications — Poly GC8 touch controller (875J6AA)
- Poly Room Kits Safety and Regulatory Notices (HP-hosted PDF)
- HP Singapore — Poly Microsoft Teams Rooms bundles
SourceIT can also supply the Poly Lens deployment guide and the current GC8 and VideoOS release notes on request.
Frequently Asked Questions — Poly Focus Room Kit
What is actually in this kit?
HP's solution guide describes it as the Poly Studio P15 personal video bar and included cables, with the Poly GC8 touch controller and a conferencing PC. Displays and HDMI cables are not supplied.
How big a room does it suit?
It is built on the Studio P15, which HP classes as a personal video bar, so this is the kit for focus rooms, booths and very small spaces. For a small meeting room of three to five people, step up to the Small Room Kit with the Studio R30; for six to nine people use the Small/Medium Room Kit with the Studio USB bar.
Is a room PC included, and do I need a Teams licence?
A conferencing PC is part of the kit — HP's setup sheet names the Lenovo ThinkSmart Core or Dell OptiPlex 7080 XE. A Microsoft Teams Rooms licence is required and is not included; HP states you must have one to set the kit up.
What is the “+487P” code on the part number?
It is a Poly+ support service attach rather than an extra hardware item. The hardware content of the kit does not change.
Can we use the room gear from a laptop?
The Studio P15 is a USB peripheral, so a laptop can use it as a camera and audio device. For a proper switched BYOD experience alongside the Teams Rooms PC, add the Poly BYOD kit for Poly Studio room kits.
Is this kit still current?
HP has not published an end-of-life notice for it, but its Singapore Teams Rooms bundle range has moved to the Studio Base Kit G9 Plus with the TC10 controller paired with Studio V-series bars. Contact SourceIT for current availability and lead time.
Is this covered by warranty in Singapore?
Yes. Every Poly Focus Room Kit sold by SourceIT comes with local Singapore warranty and a GST invoice.
