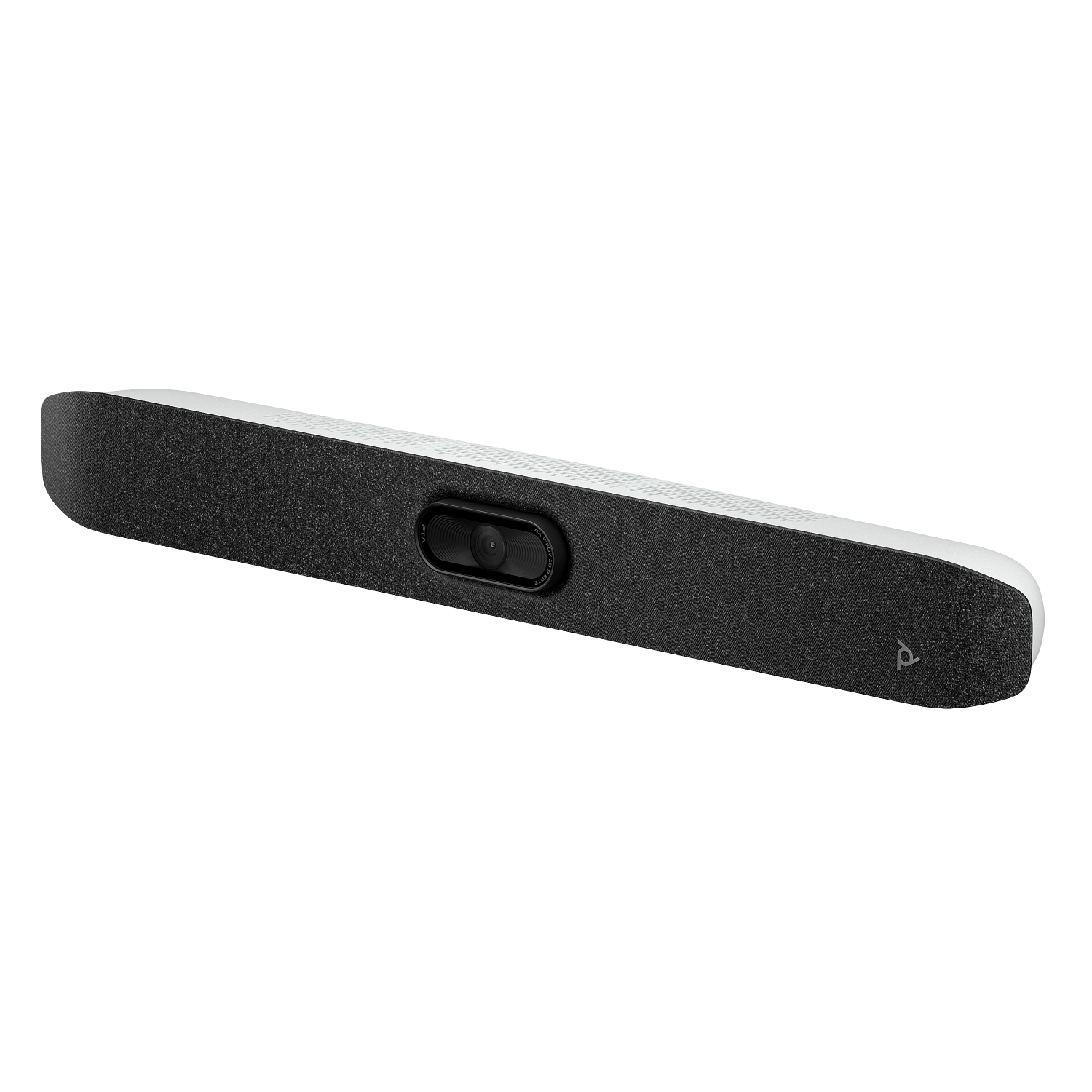

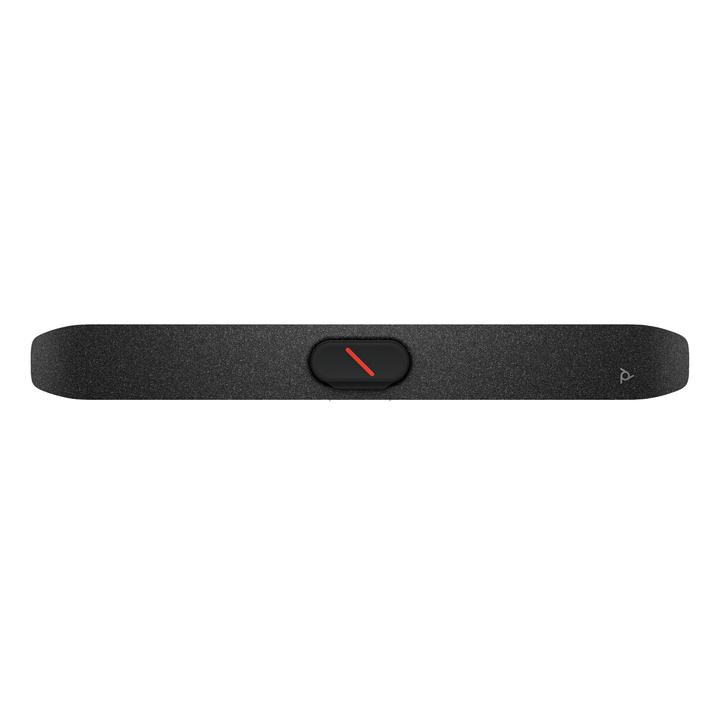

Poly Studio V12 USB Video Bar
PRODUCT DESCRIPTION
Poly Studio V12 USB Video Bar (A9DD8AA) - Local Warranty
Please note: HP supplies A9DD8AA without a power supply. The Studio V12 must be powered either by a PoE++ injector (B5NH6AA) or by a USB-C power adapter (B92SVAA), ordered separately. Contact SourceIT and we will quote the right power option with the bar.
Poly Studio V12 4K USB Video Bar for Small Meeting Rooms

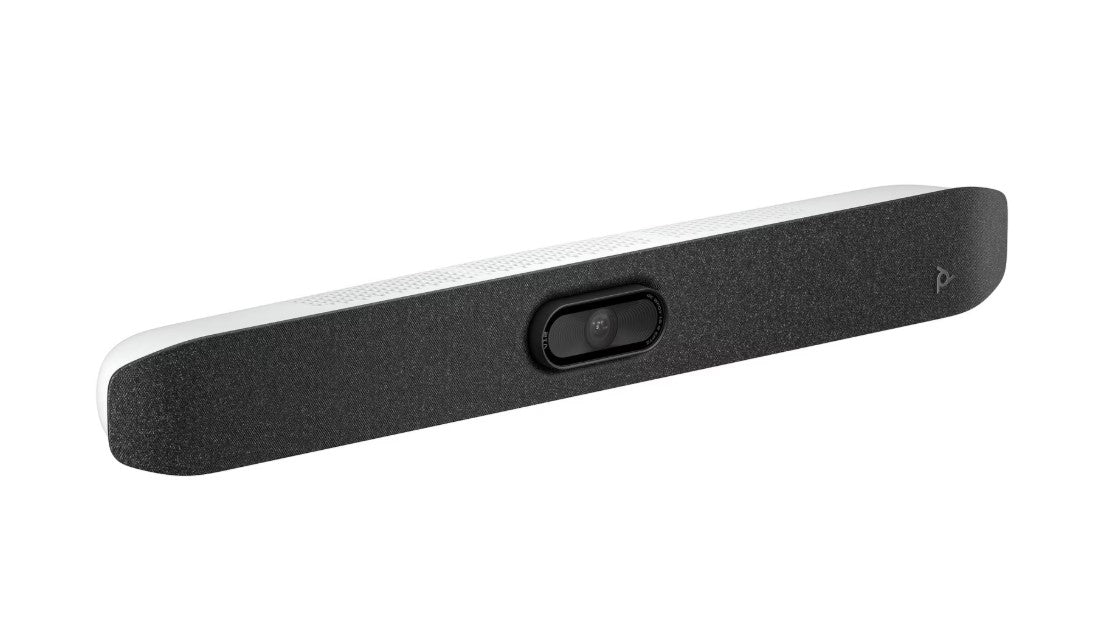

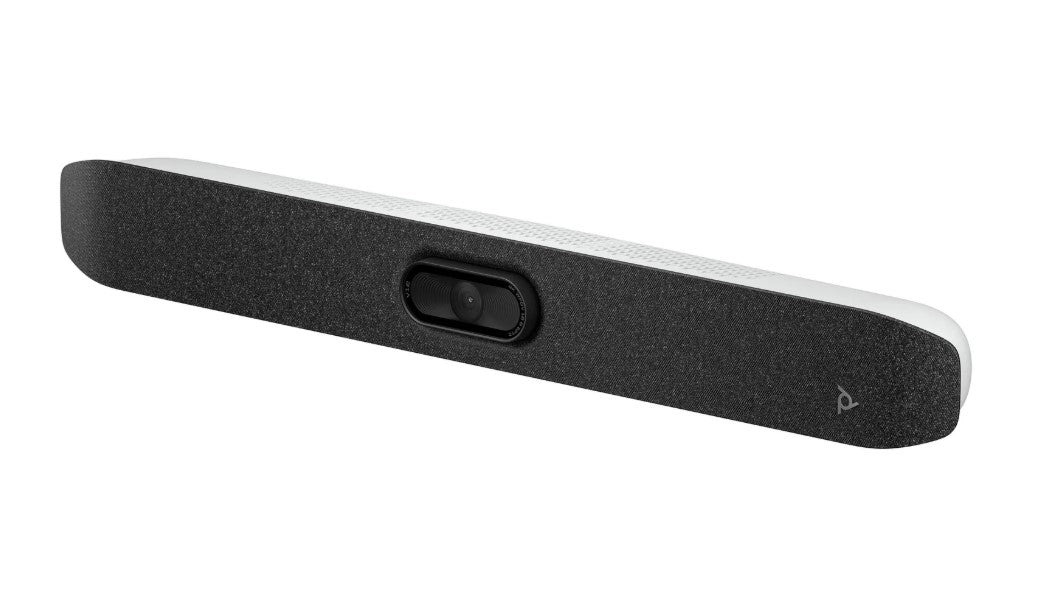

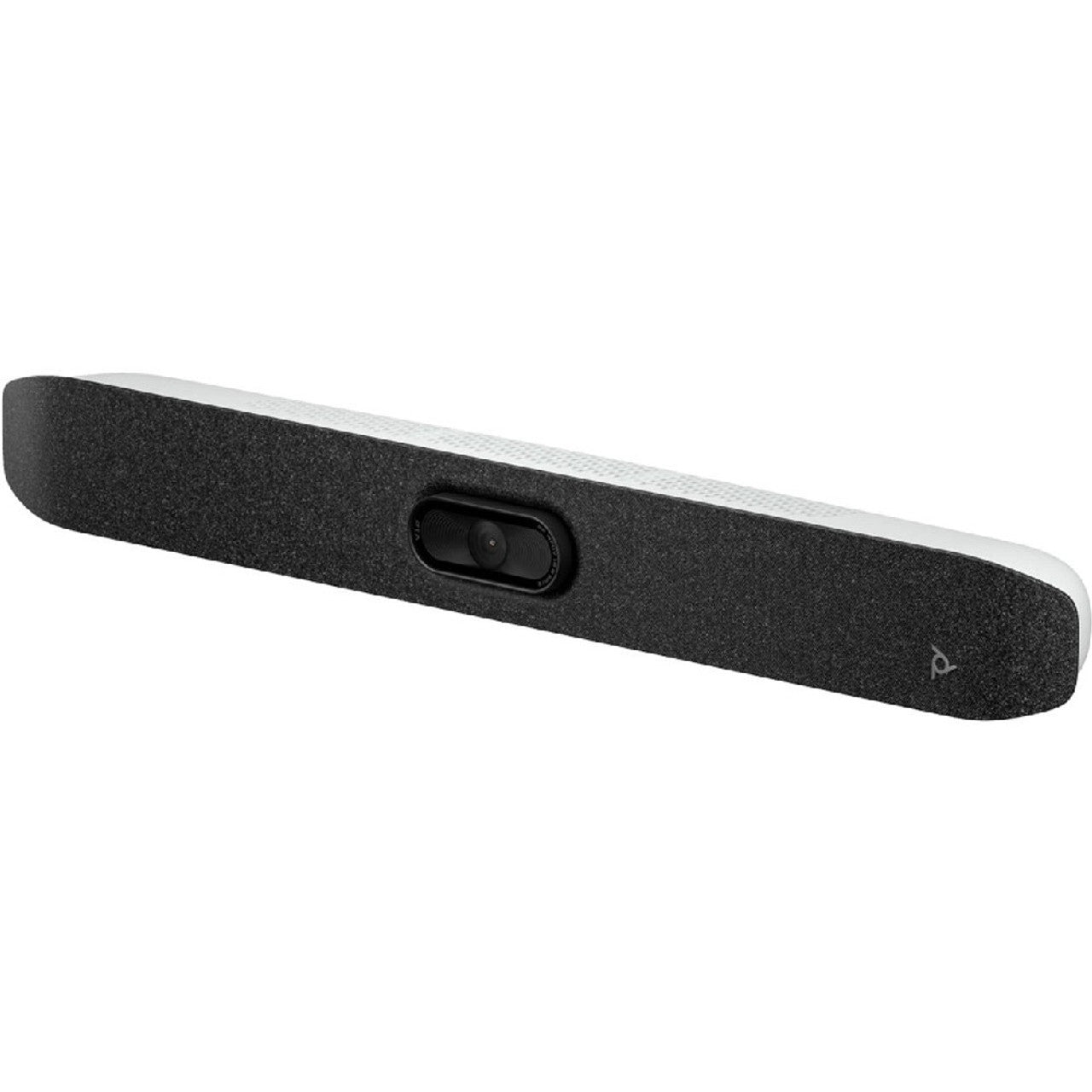

The Poly Studio V12 is HP’s compact USB video bar for small conference spaces. A single 20 MP lens captures 4K UHD 3840 x 2160 at 30 fps across a 132° diagonal field of view, and Poly DirectorAI keeps the room framed automatically. It is certified for Microsoft Teams and certified for Zoom, connects over USB-C to any PC or Mac, and clamps straight onto the room display — the clamp is in the box.
20 MP 4K Camera with DirectorAI Speaker, People and Group Framing
Small rooms are unforgiving: people sit close, off-centre and at the edge of frame. The V12’s 132° DFOV / 120° HFOV lens takes in the whole table, and DirectorAI applies speaker framing, people framing and group framing to crop intelligently rather than showing an empty room. Zoom is 5x digital with fixed focus, and a removable privacy cap covers the lens when the room is idle.
Four-Microphone Beamforming Array with NoiseBlockAI and Acoustic Fence
Four digital MEMS microphones form a beamforming array with pickup to 4.57 m (15 ft), backed by Poly NoiseBlockAI for background noise and Poly Acoustic Fence to keep corridor and neighbouring-desk chatter out of the call. Stereo speakers rated 2 x 5 W cover 100 Hz to 20 kHz — enough presence for a small room without the boom of an oversized driver.
Flexible Power and Cabling for Singapore Fit-Outs
The V12 takes power either from a PoE++ injector over its gigabit RJ-45 or from a 65 W USB-C adapter, so it can be installed where there is structured cabling but no convenient power outlet. Two USB-C and two USB-A ports at 5 Gbps handle the host connection and peripherals, with Wi-Fi 802.11a/b/g/n/ac and Bluetooth 5.0 on board. HP builds the chassis from at least 65% post-consumer recycled plastic and ships it in paper-based packaging.
Ideal For
Small meeting rooms, focus rooms and satellite offices in Singapore that run Microsoft Teams or Zoom from a room PC or a BYOD laptop and want a 4K bar that mounts on the display and draws power over the network cable.
Poly Studio V12 Datasheet — Technical Specifications
General
| Model | Poly Studio V12 |
| Part Number | A9DD8AA |
| UPC | 198415942395 |
| Regulatory model | PATX-STV-12R |
| Type | USB video bar — no built-in compute |
| Room size | Small rooms / small conference spaces |
| Certifications | Certified for Microsoft Teams; Certified for Zoom; Google Meet experience through the connected Mac or PC |
| Standards | UVC 1.1 and above |
| Management | Poly Lens remote device management |
| Colour | White |
| Manufacturer | Poly (HP) |
| Warranty | Local Warranty (Singapore) |
Camera
| Lens configuration | Single-lens, 20 MP |
| Resolution | 2160p 4K UHD (3840 x 2160) |
| Frame rate | 30 fps |
| Zoom | 5x digital zoom (no optical zoom) |
| Field of view | 132° DFOV; 120° HFOV |
| Focus | Fixed focus |
| Poly DirectorAI | Speaker framing, people framing, group framing |

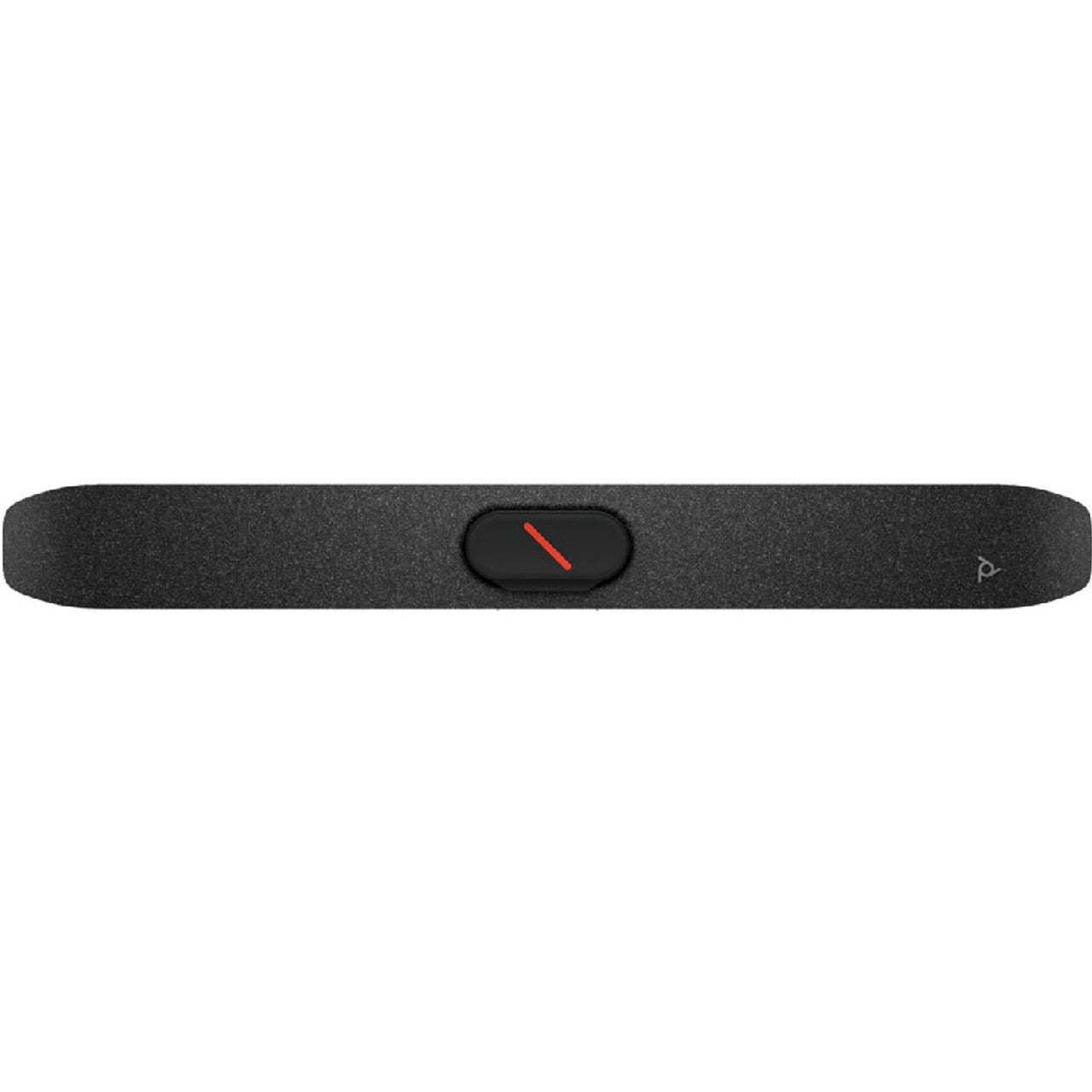

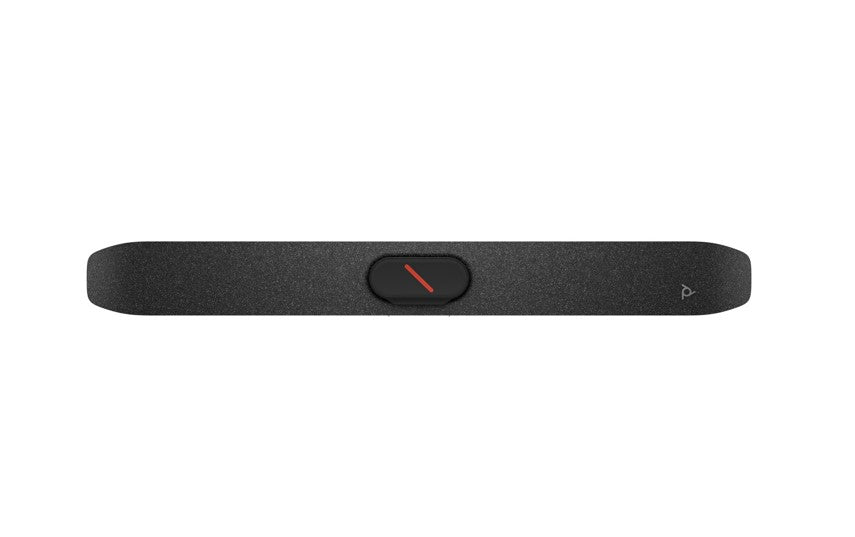

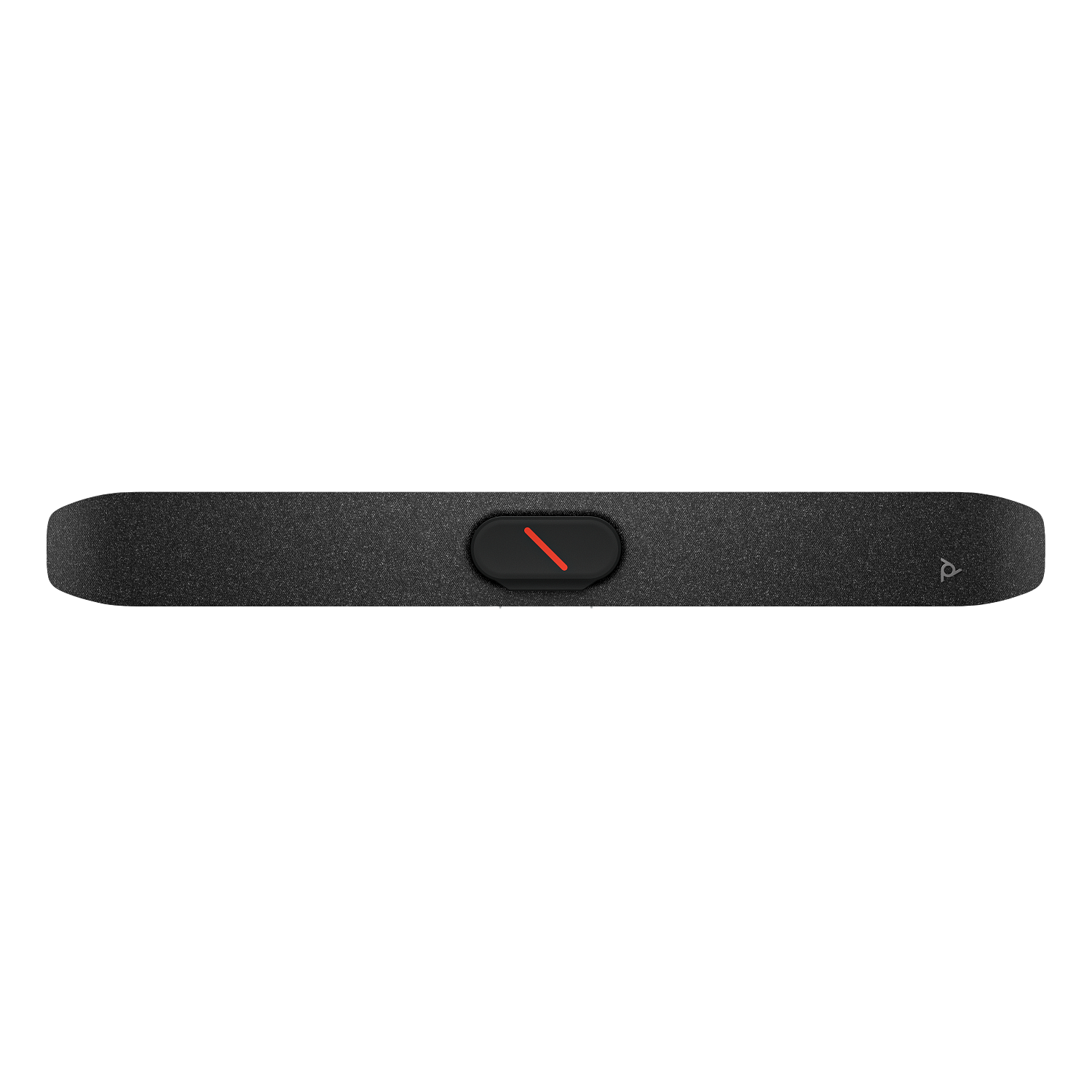

| Privacy | Attachable / removable privacy cap |
Audio
| Speakers | Stereo speakers, 2 x 5 W |
| Speaker bandwidth | 100 Hz – 20 kHz |
| Speaker sensitivity | 80 dB (1 W / 1 m) |
| Microphones | Four digital MEMS microphones, beamforming array |
| Microphone bandwidth | 120 Hz – 20 kHz |
| Signal-to-noise ratio | 65 dB |
| Pickup range | Up to 4.57 m (15 ft) |
| Audio processing | Poly NoiseBlockAI; Poly Acoustic Fence |
Connectivity

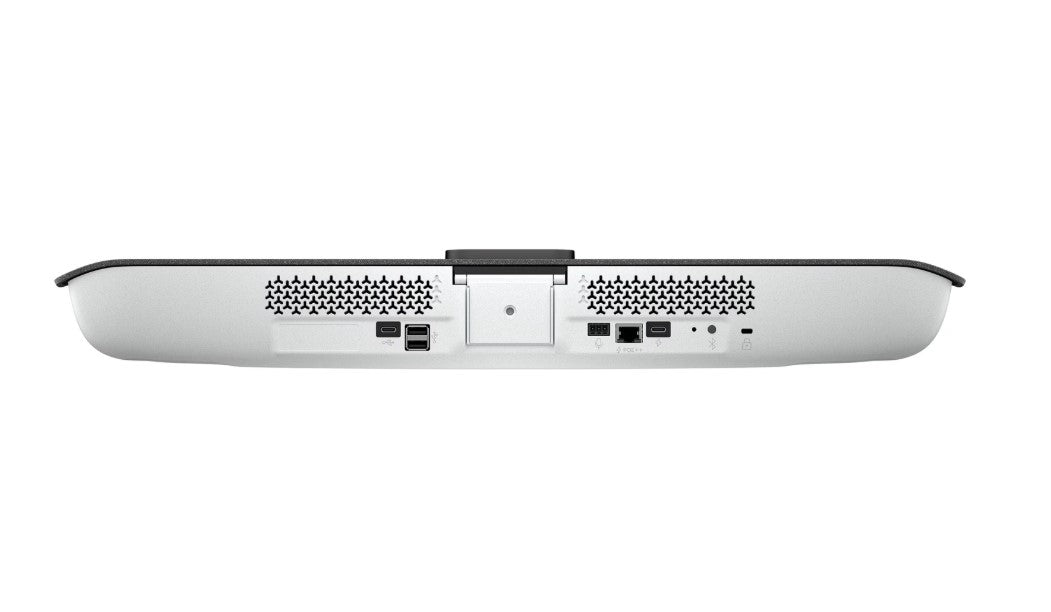

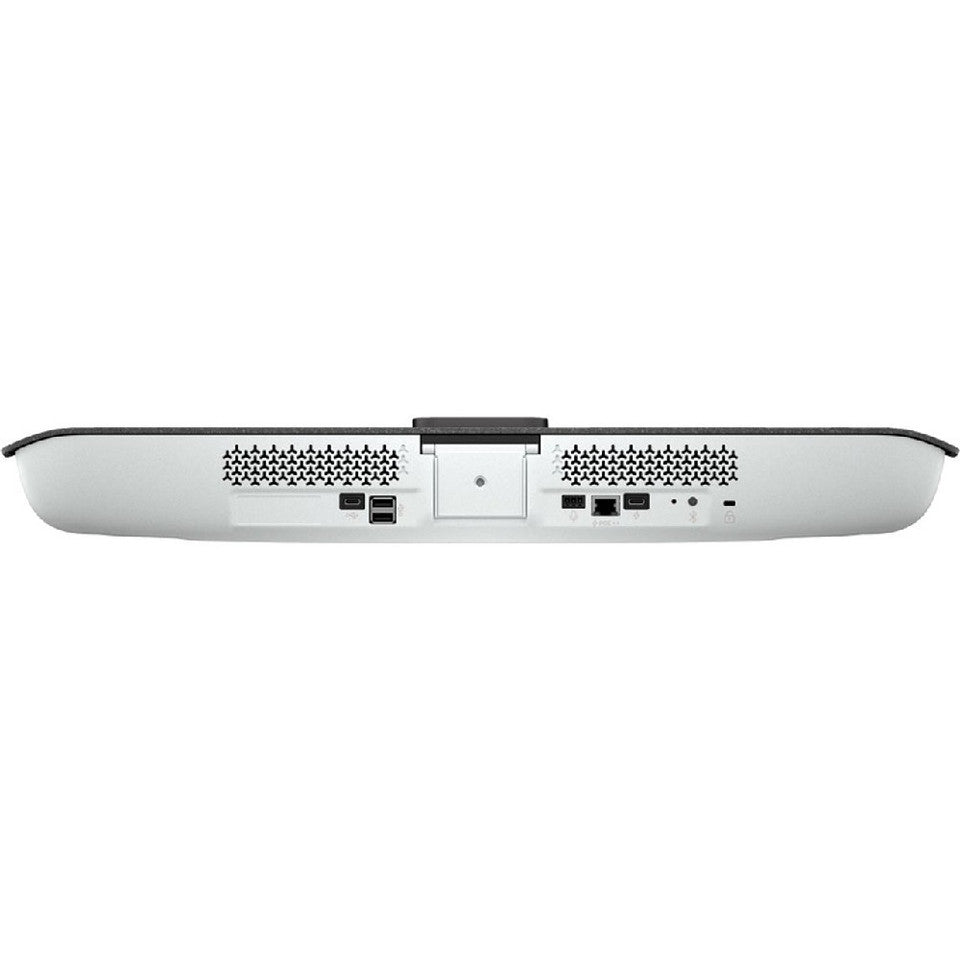

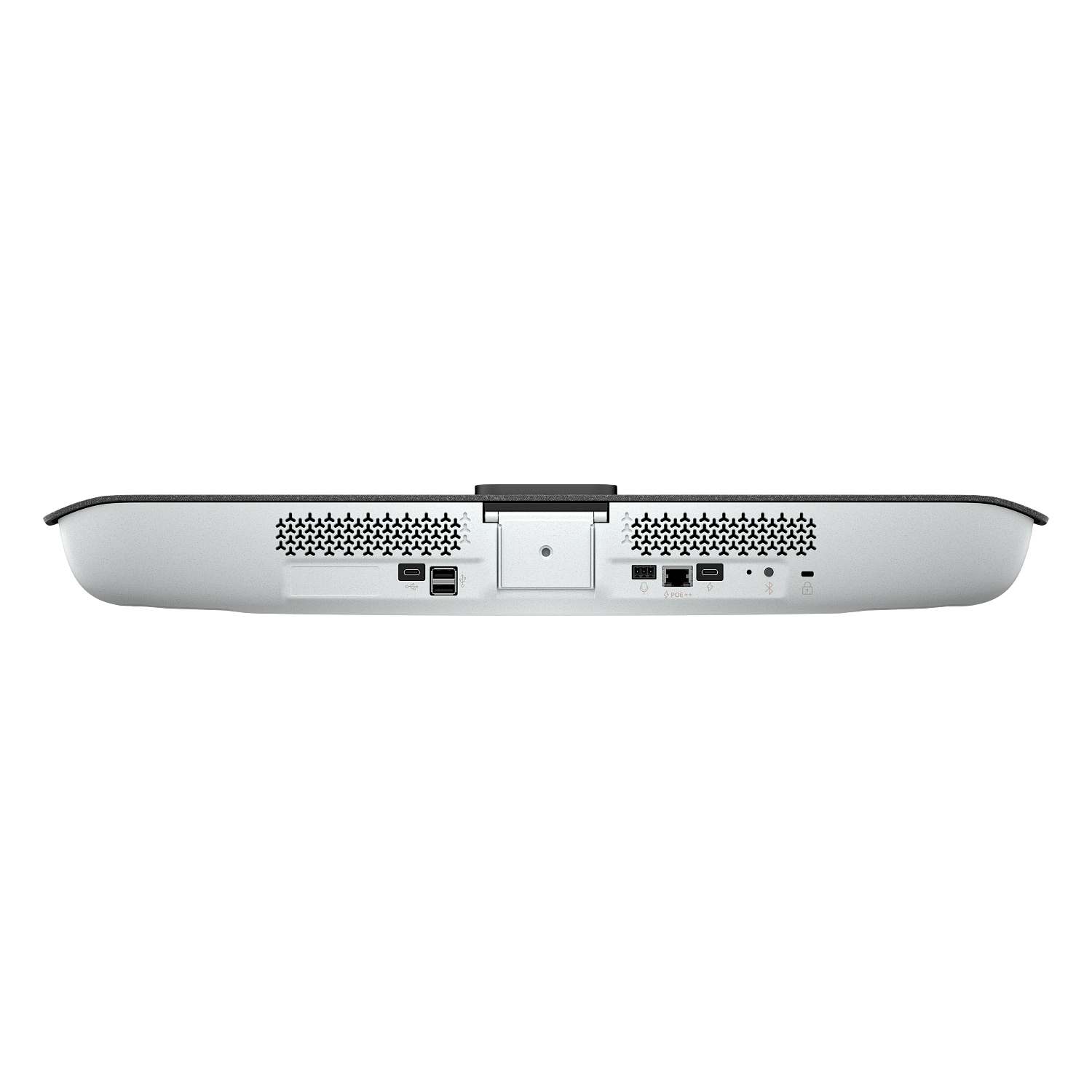

| USB | 2 x USB Type-C (5 Gbps; one accepts the 65 W USB-C power adapter); 2 x USB Type-A (5 Gbps) |
| Ethernet | 1 x RJ-45 10/100/1000 Mbps with PoE++ power support |
| Wi-Fi | 802.11a/b/g/n/ac |
| Bluetooth | Bluetooth 5.0 |
| HDMI | None |
Design & Power
| Dimensions | 6.7 x 57.7 x 7.8 cm (2.63 x 22.7 x 3.07 in) |
| Weight | 1.35 kg |
| Package | 18.7 x 66.7 x 11.4 cm; 2.81 kg |
| Power | External — PoE++ injector with power cord or USB-C power adapter with power cord; 100–240 VAC 50/60 Hz. A9DD8AA ships without a power supply |
| Mounting | Removable monitor / display clamp included; optional table stand 875L5AA, VESA and wall mount 875L6AA |
| Optional accessories | Remote control 875L4AA; PoE++ adapter B5NH6AA; USB-C power adapter B92SVAA |
| Sustainability | At least 65% post-consumer recycled plastic; paper-based packaging |
Compatibility & Software Support
The Poly Studio V12 is a USB peripheral with no built-in compute. The meeting application runs on the PC, Mac or room compute appliance it is connected to, which is how the same bar serves Teams, Zoom and Google Meet.
| Built-in compute | None — USB connection to a PC or Mac running the video application |
| Microsoft Teams | Certified for Microsoft Teams |
| Zoom | Certified for Zoom |
| Google Meet | The Google Meet experience runs through the connected Mac or PC; HP does not list a Google Meet certification for this model |
| Host operating systems | PC or Mac (HP does not publish specific OS version requirements for this model) |
| USB device mode | Yes — UVC 1.1 and above; presents as a standard USB camera, speaker and microphone |
| Device management | Poly Lens remote device management |
Poly Studio USB Video Bar Range at SourceIT
| Model | Part Number | Positioned For |
| Poly Studio R30 USB Video Bar | 842D2AA | Small rooms (3–5 people) |
| Poly Studio V12 USB Video Bar (this listing) | A9DD8AA | Small conference spaces |
| Poly Studio USB Video Bar | 7200-85830-102 / 842D4AA | Medium rooms (6–9 people) |
| Poly Studio V52 USB Video Bar | A09D4AA | Small to medium rooms |
| Poly Studio V72 USB Video Bar | AV1E3AA | Large rooms |
Package Contents & Poly Studio USB Video Bar Ordering Information
What’s in the Box (A9DD8AA)
Poly Studio V12; USB Type-C cable (1.83 m); Ethernet cable (2 m); removable privacy cap; removable monitor clamp; quick start guide. A power supply is not included — order a PoE++ injector (B5NH6AA) or a USB-C power adapter (B92SVAA) alongside the bar.
Poly Studio USB Video Bar Ordering Information
| Model | Part Number | Positioned For |
| Poly Studio R30 USB Video Bar | 842D2AA | Small rooms (3–5 people) |
| Poly Studio V12 USB Video Bar (this listing) | A9DD8AA | Small conference spaces |
| Poly Studio USB Video Bar | 7200-85830-102 / 842D4AA | Medium rooms (6–9 people) |
| Poly Studio V52 USB Video Bar | A09D4AA | Small to medium rooms |
| Poly Studio V72 USB Video Bar | AV1E3AA | Large rooms |
Studio V12 Optional Accessories
| Accessory | Part Number |
| Poly Studio V12 Table Stand | 875L5AA |
| Poly Studio V12 VESA and Wall Mount | 875L6AA |
| Poly Studio V12 Remote Control | 875L4AA |
| Poly PoE++ Adapter | B5NH6AA |
| Poly USB-C Power Adapter | B92SVAA |
Datasheet & Downloads
Frequently Asked Questions — Poly Studio V12
Is the Poly Studio V12 really a 4K camera?
Yes. HP specifies a single 20 MP lens capturing 2160p 4K UHD (3840 x 2160) at 30 fps, with a 132° diagonal and 120° horizontal field of view. Zoom is 5x digital — there is no optical zoom.
Does the Studio V12 come with a power supply?
No. A9DD8AA is supplied without a power supply. Power it from a PoE++ injector (B5NH6AA) over its gigabit RJ-45 port, or from a 65 W USB-C power adapter (B92SVAA). SourceIT can quote either option with the bar.
How does the V12 compare with the Studio V52, V72 and R30?
The V12 is the small-room model. The Studio V52 steps up for small-to-medium rooms and the Studio V72 is the dual-camera large-room bar with 7.62 m reach. The older Studio R30 is also a small-room bar but with a single mono speaker and a three-microphone array, against the V12’s stereo speakers and four-microphone array.
Do I need a room PC or licence with the Studio V12?
Yes. The V12 has no built-in compute — it is a USB peripheral, so a PC, Mac or room compute appliance runs the meeting platform and holds the room licence. For a self-contained room system with compute inside the bar, consider the Poly Studio X30.
How large a room will the Studio V12 cover?
HP positions it for small rooms and small conference spaces. Microphone pickup is rated to 4.57 m (15 ft), which is the practical limit on table length.
How does the Studio V12 mount to a display?
A removable monitor clamp is included in the box. HP also lists an optional table stand (875L5AA) and a VESA and wall mount (875L6AA) for other placements.
Does the Studio V12 have an HDMI port?
No. The V12 connects to the host over USB-C only. HP does not list any HDMI input or output on this model.
Does the Poly Studio V12 come with warranty in Singapore?
Yes. Every Poly Studio V12 sold by SourceIT comes with local Singapore warranty and a GST invoice.
