Poly Studio Large Room Kit For Microsoft Teams
PRODUCT DESCRIPTION
Poly Studio Large Room Kit for Microsoft Teams — Poly Studio E70 with GC8 (7230-87720-102) - Local Warranty

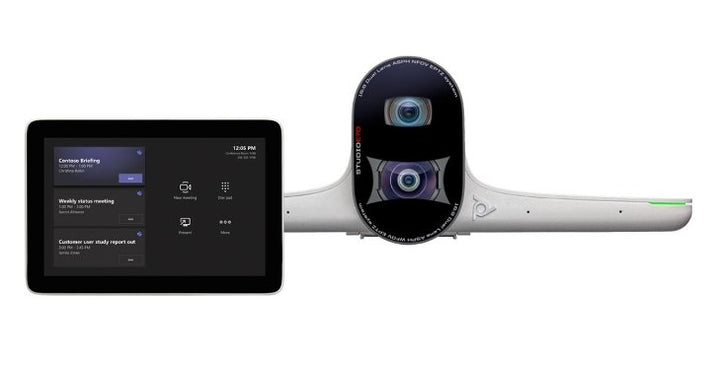

Poly Large Room Kit for Microsoft Teams Rooms with the Studio E70
The Poly Large Room Kit is the flagship Microsoft Teams Rooms on Windows package in Poly's GC8-based range, built around the dual-sensor Poly Studio E70 smart camera, the Poly GC8 touch controller and a certified conferencing PC. HP classes the Studio E70 as a large-room camera for ten or more people, making this the kit for boardrooms and training rooms.
Dual 20 MP 4K Sensors with DirectorAI Framing
The Studio E70 uses a dual-lens design with two 20-megapixel 4K sensors covering a 78-degree and 140-degree diagonal field of view (120-degree and 70-degree horizontal), with 7.3x digital zoom and a camera range to 7.62 metres. Poly DirectorAI drives speaker framing, people framing, group framing and a DirectorAI perimeter, tracking the conversation across a long boardroom table.
Camera Only — Plan the Room Audio Separately
The Studio E70 is a camera: HP publishes no microphone or speaker specification for it. In this kit the meeting audio comes from the conferencing PC's chosen audio device, so specify the room audio to match the space. HP's GC8 release notes list the Poly Trio C60 and Poly Sync 40 USB among the tested Poly audio peripherals for GC8-based Teams Rooms.
PoE-Capable Camera and Motorised Privacy Shutter
Unusually in this range, the Studio E70 supports Power over Ethernet at 802.3af Class 3, 15.4 W, alongside its external 12 VDC supply, and carries an RJ-45 port as well as USB Type-C. A motorised, integrated electronic privacy shutter closes the lens when the room is not in use — a point that matters for boardrooms handling sensitive discussions.
Ideal For
The Poly Large Room Kit is ideally suited to organisations equipping boardrooms, training rooms and other ten-plus seat Microsoft Teams Rooms on Windows that need intelligent multi-sensor framing rather than a single fixed wide shot.
Poly Large Room Kit Datasheet — Technical Specifications
Kit Overview
| Kit name (HP) | Poly Large Room Kit with Poly Studio E70 |
| Part Number | 7230-87720-102 |
| Manufacturer | Poly (HP) |
| Platform | Microsoft Teams Rooms on Windows |
| Video device | Poly Studio E70 smart camera |
| Controller | Poly GC8 touch controller (USB) |
| Conferencing PC | Lenovo ThinkSmart Core or Dell OptiPlex 7080 XE, per HP's setup sheet |
| Room guidance | Large rooms, 10+ people (HP's classification for the Studio E70) |
| Warranty | Local Warranty (Singapore) |
HP publishes these kits by name rather than by part number, and does not publish a seat count or room dimension for the kit as a whole — the room guidance below comes from HP's specification for the video device inside the kit.
Component: Poly Studio E70 Smart Camera
| Model | Poly Studio E70 smart camera |
| Part Number | 842F8AA |
| Camera | Dual-lens design with two 20 MP 4K sensors |
| Resolution | 2160p 4K UHD (3840 x 2160) |
| Zoom | 7.3x digital (HP states digital) |
| Field of view | DFOV 78° and 140°; HFOV 120° and 70° |
| Framing | Poly DirectorAI — speaker framing, people framing, group framing, DirectorAI perimeter |
| Camera range | Up to 7.62 m (25 ft) |
| Privacy | Motorised integrated electronic privacy shutter |
| Ports | 1 x USB Type-C (5 Gbps); 1 x RJ-45 |
| PoE | Power over Ethernet 802.3af, 15.4 W, Class 3 |
| Power | 100–240 VAC 50/60 Hz, 1.5 A input; 12 VDC, 5 A, 60 W external supply |
| Room size | Large rooms, 10+ people |
| Dimensions | 321 x 102 x 89.1 mm |
| Weight | 907 g |
| Mounting | Wall mount kit included; VESA mount available |
| Colour | White |
| Environment | 0 to 40 °C; humidity 15–80%; altitude up to 4,877 m (16,000 ft) |
| Certification | Microsoft Teams; Zoom |
| Note | The Studio E70 is a camera only — HP publishes no microphone or speaker specification for it, so room audio comes from the paired audio device |
Component: Poly GC8 Touch Controller
| Model | Poly GC8 touch controller |
| Part Number | 2200-30780-001 / 875J6AA |
| Display | 20.3 cm (8") diagonal, WXGA 1280 x 800, IPS, 16:10 |
| Viewing angle | 75° horizontal and vertical; positioning angle 60° |
| Ports | 1 x USB Type-C (5 Gbps); 1 x USB Type-A (5 Gbps); 1 x 3.5 mm audio jack; 1 x Mini HDMI |
| Power | 100–240 VAC, 12 V, 36 W or 60 W — external power supply (no PoE) |
| Dimensions (W x D x H) | 205 x 123 x 112 mm |
| Weight | 771 g (1.7 lb) |
| Colour | White |
| Operating temperature | 0 to 40 °C (32 to 104 °F) |
| Operating altitude | 3,048 m (10,000 ft) |
| Security | Kensington-style lock slot |
| Certification | Microsoft Teams certified |
| Package contents | GC8 controller; USB Type-A to micro USB cable; HDMI to mini HDMI cable |
Compatibility & Software Support
Platform
This is a kit for Microsoft Teams Rooms on Windows. The meeting experience runs on a certified conferencing PC; the Poly GC8 provides table-side control and the Poly Studio E70 provides the room's video — HP publishes no microphone or speaker specification for it, so room audio is supplied by a separate audio device.
Microsoft Teams Rooms licence: HP's Poly Room Kits solution guide states “You must have a Microsoft Teams Rooms license to set up your Poly Room Kits for Microsoft Teams Rooms on Windows.” The licence is not included with the hardware and is ordered separately.
Certifications
HP states the Poly GC8 is Microsoft Teams certified. For the Poly Studio E70, HP states Certified for Microsoft Teams and Certified for Zoom.
Operating systems and device mode
The Poly video device in this kit is a USB peripheral, so outside the Teams Rooms application it can also be used as a standard USB camera and audio device by a laptop in BYOD mode. HP publishes a BYOD solution for Poly room kits that lets a personal computer access the room peripherals — see the Poly Microsoft Teams Room Base Kit and the Poly BYOD kits for the required switching hardware.
Standards-based and third-party calling
Standards-based SIP/H.323 calling is a function of a Poly video codec such as the Poly G7500 or a Studio X-series system, not of a Teams Rooms on Windows PC kit. If SIP or H.323 registration is a requirement, specify a Poly codec-based room instead.
Management
Poly peripherals are provisioned, monitored and updated through Poly Lens. The Teams Rooms device itself is managed from the Microsoft Teams Admin Centre.
Conferencing PC: HP's setup sheets for this kit name the conferencing PC as a Lenovo ThinkSmart Core or Dell OptiPlex 7080 XE. Confirm the exact compute shipped against your quotation, as HP also builds Teams Rooms bundles around the HP Mini Conferencing PC under different part numbers.
Current HP lineup: HP Singapore's Microsoft Teams Rooms bundle page now builds rooms around the Poly Studio Base Kit G9 Plus — an HP Mini IP conferencing PC with a Poly TC10 controller — paired with the Studio V12 (approx. 15 x 10 ft), Studio V52 (approx. 20 x 15 ft), Studio V72 (approx. 28 x 15 ft) or the Studio E60 / Studio E70 cameras. Note the controller changed from GC8 to TC10 in that lineup. HP has not published an end-of-life notice for the kit on this page, but it has been superseded by that range — contact SourceIT to confirm current availability and lead time.
Package Contents & Poly Room Kit Ordering Information
Kit contents
- Poly Studio E70 camera and included cables
- Poly GC8 touch controller
- Conferencing PC (Lenovo ThinkSmart Core or Dell OptiPlex 7080 XE)
- Optional PoE injector for the Studio E70
Cabling
HP's setup sheet for this kit covers a 10 m USB-A to USB-C cable for the Studio E70, a 10 m USB-A to USB-C cable for the GC8 and a 3.5 mm audio out connection, with optional 25 m and 40 m USB runs and an optional PoE injector. HP's setup sheet notes the Studio E70 is shipped separately. Displays are not included.
About the “+487P-” suffix: some Poly room kit part numbers are quoted as a hardware SKU plus a second code beginning 487P (for example 7230-87700-102+487P-87700-112). The 487P code is a Poly+ support service attach, not an extra hardware item — the hardware content of the kit is unchanged. Ask SourceIT which support term is attached to your quotation.
Poly Room Kit Ordering Information
| Poly Studio Focus Room Kit for Microsoft Teams — Studio P15 + GC8 | 7230-87700-102 |
| Poly Studio Small Room Kit for Microsoft Teams — Studio R30 + GC8 | 7230-87600-102 |
| Poly Studio Small/Medium Room Kit for Microsoft Teams — Studio USB + GC8 | 7230-87710-102 |
| Poly Studio Large Room Kit for Microsoft Teams — Studio E70 + GC8 (this listing) | 7230-87720-102 |
| Poly Studio Small Room Kit for MS Teams — Studio R30 USB bar + GC8 | 9C913AA |
| Poly Studio Medium Room Kit for MS Teams — Studio USB video bar + GC8 | 9C981AA |
| Poly Studio Large Room Kit for MS Teams — Studio E70 smart camera + GC8 | 9R6F2AA |
Controllers Used with Poly Room Kits
| Poly Studio TC8 touch controller (PoE, 8-inch) | 2200-30760-001 / 875J0AA |
| Poly TC10 touch controller & scheduler, Black (PoE, 10.1-inch) | 875K5AA |
| Poly TC10 touch controller & scheduler, White (PoE, 10.1-inch) | 875J5AA |
| Poly GC8 touch controller (USB, 8-inch) | 2200-30780-001 / 875J6AA |
Buy the Components Separately
| Poly Studio E70 smart camera | Video device supplied in this kit |
| Poly GC8 touch controller | 2200-30780-001 / 875J6AA |
Datasheet & Downloads
Official HP Poly documentation for this room kit and its components:
- Poly Room Kits for Microsoft Teams Rooms on Windows Solution Guide (HP-hosted PDF)
- HP Singapore — Poly Studio E70 smart camera
- HP product specifications — Poly GC8 touch controller (875J6AA)
- Poly Room Kits Safety and Regulatory Notices (HP-hosted PDF)
- HP Singapore — Poly Microsoft Teams Rooms bundles
SourceIT can also supply the Poly Lens deployment guide and the current GC8 and VideoOS release notes on request.
Frequently Asked Questions — Poly Large Room Kit
Does this kit include room audio?
The Studio E70 is a camera only — HP publishes no microphone or speaker specification for it. Room audio must be specified separately; HP's GC8 release notes name the Poly Trio C60 and Poly Sync 40 USB among the tested Poly audio devices for GC8-based Teams Rooms.
How big a room does the Studio E70 cover?
HP classes it as a large-room camera for ten or more people, with a camera range to 7.62 metres and dual sensors covering up to a 140-degree diagonal field of view. For six to nine people the Studio USB based kit is more appropriate; for three to five, the Studio R30 based kit.
Is the zoom optical or digital?
HP states 7.3x digital zoom for the Studio E70. It is the only camera in this kit range for which HP publishes the zoom type. For optical zoom in a large room, the Poly Studio E60 is the MPTZ camera in the SourceIT catalogue.
Can the Studio E70 be powered over Ethernet?
Yes. HP specifies Power over Ethernet 802.3af, 15.4 W, Class 3 for the Studio E70, alongside its external 12 VDC 5 A supply. The Poly GC8 controller in the kit is not PoE and needs mains power.
Do I need a room PC and a Microsoft Teams Rooms licence?
The conferencing PC is part of this kit — HP's setup sheet names the Lenovo ThinkSmart Core or Dell OptiPlex 7080 XE. A Microsoft Teams Rooms licence is required and is not included.
How does this differ from the 9R6F2AA large room kit?
The 9R6F2AA kit is the Studio E70 plus GC8 pairing under an HP SKU. This 7230-87720-102 listing is the legacy Poly part number for the room kit including the conferencing PC. Ask SourceIT which configuration is currently stocked.
Is this covered by warranty in Singapore?
Yes. Every Poly Large Room Kit sold by SourceIT comes with local Singapore warranty and a GST invoice.
