Poly GC8 Touch Controller For Poly Room Kits
PRODUCT DESCRIPTION
Poly GC8 USB Touch Controller for Microsoft Teams Rooms (2200-30780-001 / 875J6AA) - Local Warranty
Poly GC8 8-Inch USB Touch Controller for Microsoft Teams Rooms on Windows
The Poly GC8 is the tabletop touch controller for a Microsoft Teams Rooms on Windows deployment. It connects by USB to the room's certified conferencing PC and gives users an 8-inch WXGA touchscreen to join meetings, share content and manage calls, with HDMI and USB inputs at the table for laptop sharing. Microsoft Teams certified by HP, it is the controller supplied in Poly's room kits for Teams Rooms on Windows.

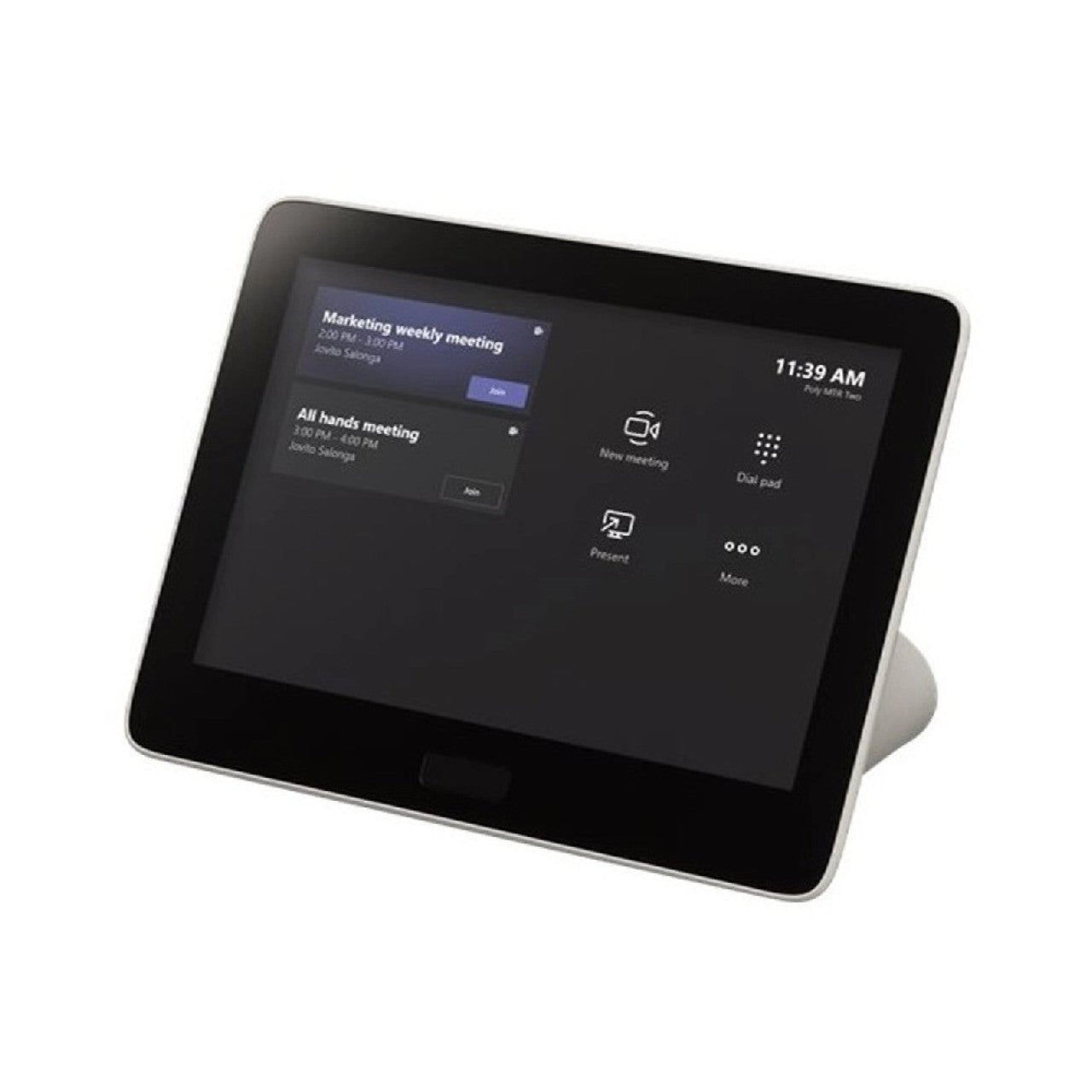

8-Inch WXGA IPS Touchscreen at the Table
The GC8 uses an 8-inch IPS panel at WXGA 1280 x 800 in 16:10, with a 75-degree viewing angle horizontally and vertically and a 60-degree positioning angle. The familiar Microsoft Teams Rooms console sits within easy reach of every seat, so joining a meeting is a single tap for any user regardless of how often they use the room.

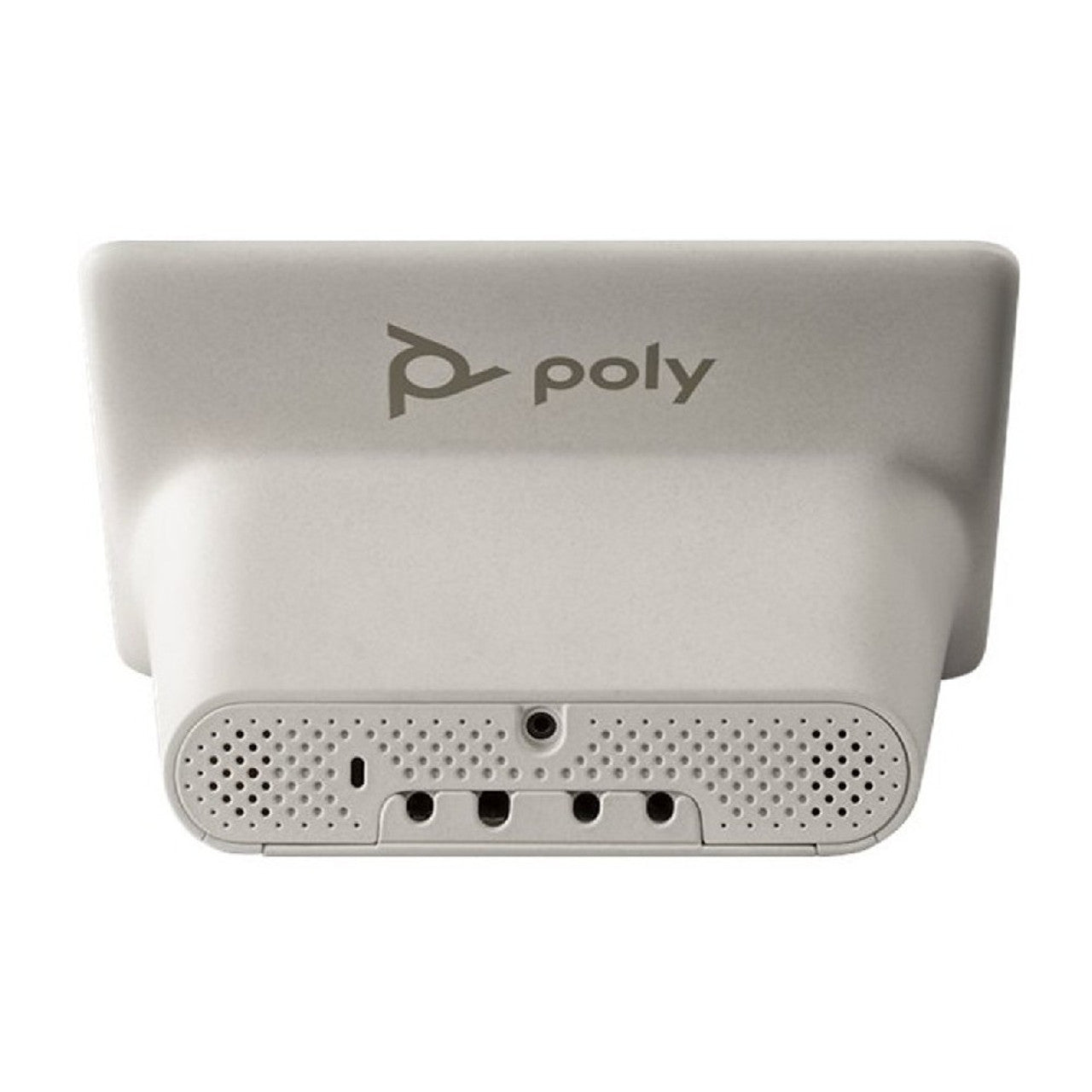

Laptop Content Sharing Built Into the Controller
Integrated HDMI and USB Type-A inputs let a presenter connect a laptop directly at the table rather than running cables to a rack, alongside a USB Type-C port and a 3.5 mm audio jack. For rooms where the conferencing PC is hidden in a credenza, HP supports an optional 10 m active optical USB cable or a USB 2.0 extender over CAT5e for runs up to 100 metres.
USB-Connected, Mains Powered — Not a PoE Controller
The GC8 attaches to the conferencing PC over USB and takes power from an external supply rated 100–240 VAC, 12 V, 36 W or 60 W. HP publishes no Ethernet port and no Power over Ethernet capability for this model, so plan a power outlet at the table position. Rooms that need a PoE tabletop panel should specify the Poly Studio TC8 or the Poly TC10 instead.
Ideal For
The Poly GC8 is ideally suited to Singapore organisations standardising on Microsoft Teams Rooms on Windows with a certified conferencing PC from HP, Lenovo or Dell, and to sites replacing or adding a controller to an existing Poly room kit built around the GC8.
Poly GC8 Datasheet — Technical Specifications
General
| Model | Poly GC8 touch controller |
| Part Number | 2200-30780-001 / 875J6AA |
| Manufacturer | Poly (HP) |
| Type | USB tabletop touch controller for Microsoft Teams Rooms on Windows conferencing PCs |
| Colour | White |
| Certification | Microsoft Teams certified |
| Warranty | Local Warranty (Singapore) |
Display
| Screen size | 20.3 cm (8-inch) diagonal |
| Resolution | WXGA 1280 x 800 |
| Aspect ratio | 16:10 |
| Panel | IPS |
| Viewing angle | 75° horizontal and vertical |
| Positioning angle | 60° |
Connectivity & Power
| Ports | 1 x USB Type-C (5 Gbps signalling rate); 1 x USB Type-A (5 Gbps signalling rate); 1 x 3.5 mm audio jack; 1 x Mini HDMI |
| Connection to room PC | USB cable to the conferencing PC |
| Table-side content sharing | Integrated HDMI and USB Type-A inputs for connecting a laptop at the table |
| Cable extension | Optional 10 m active optical USB cable, or a USB 2.0 extender over CAT5e up to 100 m |
| Power | 100–240 VAC, 12 V, 36 W or 60 W — external power supply |
| Power over Ethernet | Not supported — HP publishes no PoE capability and no Ethernet port for the GC8 |
Design & Environment
| Dimensions (W x D x H) | 205 x 123 x 112 mm |
| Weight | 771 g (1.7 lb) |
| Security | Standard Kensington lock slot |
| Operating temperature | 0 to 40 °C (32 to 104 °F) |
| Non-operating temperature | -20 to 60 °C |
| Operating altitude | 3,048 m (10,000 ft) |
| Classification codes | ECCN 5A992; HTS 8471601050; UNSPSC 31121120 |
Compatibility & Software Support
The Poly GC8 is the table-side touch controller for a Microsoft Teams Rooms on Windows deployment. It connects by USB to the room's conferencing PC rather than pairing over the network to a Poly room system, which makes it architecturally different from the Poly TC8 and TC10.
Certification
HP states the GC8 is Microsoft Teams certified. HP publishes no Zoom or Google Meet certification for this model.
Tested conferencing PCs
HP's GC8 release notes list the following conferencing PCs as tested: HP Mini Conferencing PC with Microsoft Teams Rooms, Lenovo ThinkSmart Edition Tiny, Lenovo ThinkSmart Core and Dell OptiPlex 7080 XE.
Tested Poly audio and video peripherals
HP's GC8 release notes list testing with the Poly Trio C60, Poly Sync 40 USB, Poly Studio USB video bar, Poly Studio R30, Poly Studio P15 and Poly Studio E70.
Poly room kits that include the GC8
The GC8 is the controller supplied in Poly's room kits for Microsoft Teams Rooms on Windows:
Management
Poly devices are provisioned, monitored and updated through Poly Lens. Microsoft Teams Rooms devices are additionally managed from the Microsoft Teams Admin Centre.
Package Contents & Poly Controller Ordering Information
In the box
GC8 controller; USB Type-A to micro USB cable; HDMI to mini HDMI cable.
HP does not list an AC power adapter or a country power cord in the GC8 box contents, and the GC8 has no PoE option — confirm the power supply arrangement with SourceIT when ordering.
Poly Touch Controller Ordering Information
| Poly Studio TC8 touch controller (PoE, 8-inch) | 2200-30760-001 / 875J0AA |
| Poly TC10 touch controller & scheduler, Black (PoE, 10.1-inch) | 875K5AA |
| Poly TC10 touch controller & scheduler, White (PoE, 10.1-inch) | 875J5AA |
| Poly GC8 touch controller (USB, 8-inch) (this listing) | 2200-30780-001 / 875J6AA |
Poly Room Kits Supplied with the GC8
Datasheet & Downloads
Frequently Asked Questions — Poly GC8
Is the Poly GC8 powered over Ethernet?
No. HP specifies the GC8 with an external power supply at 100–240 VAC, 12 V, 36 W or 60 W, and lists no Ethernet port and no PoE capability for this model. If you need a PoE-powered tabletop controller, the Poly Studio TC8 (802.3af Class 3) and the Poly TC10 (802.3at Class 0) are the PoE options.
What does the GC8 connect to?
It connects by USB to a Windows conferencing PC running Microsoft Teams Rooms. HP's release notes list the HP Mini Conferencing PC with Microsoft Teams Rooms, Lenovo ThinkSmart Edition Tiny, Lenovo ThinkSmart Core and Dell OptiPlex 7080 XE as tested. It does not pair over the network with a Poly Studio X or G-series room system — use the TC8 or TC10 for those.
Do I need a room PC and a Microsoft Teams Rooms licence?
Yes. The GC8 is a controller only. A Microsoft Teams Rooms on Windows deployment needs a certified conferencing PC and a Microsoft Teams Rooms licence, both purchased separately from the controller.
Can people plug a laptop into the GC8 to share content?
Yes. HP lists integrated HDMI and USB Type-A inputs on the GC8 for laptop content sharing at the table, alongside the USB Type-C port and a 3.5 mm audio jack.
How far can the GC8 sit from the room PC?
HP notes an optional 10 m active optical USB cable, and a USB 2.0 extender over CAT5e for runs up to 100 m, so the controller can sit at the table while the PC lives in a credenza or rack.
Which Poly room kits include a GC8?
All four Poly room kits for Microsoft Teams Rooms on Windows ship with a GC8: the Focus kit with Studio P15, the Small kit with Studio R30, the Small/Medium kit with Studio USB and the Large kit with Studio E70. HP's current Teams Rooms bundles have moved to the TC10 controller with the Studio Base Kit G9 Plus.
What colour is the GC8?
HP lists the GC8 colour as white.
Is this covered by warranty in Singapore?
Yes. Every Poly GC8 sold by SourceIT comes with local Singapore warranty and a GST invoice.
