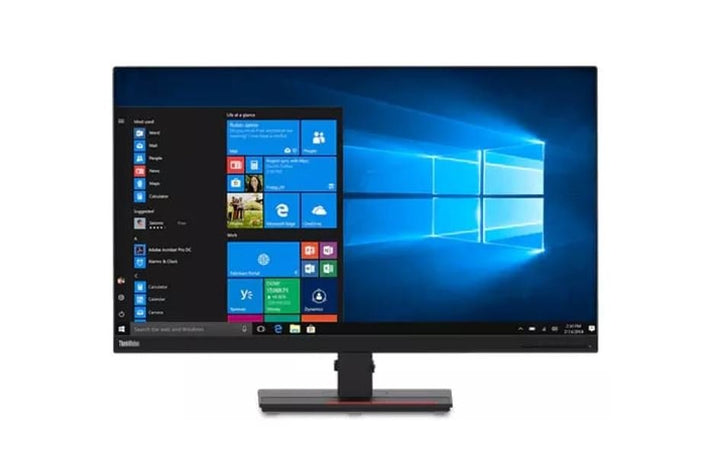

Lenovo ThinkVision T32h-20 32" Class WQHD LCD Monitor
PRODUCT DESCRIPTION
Lenovo ThinkVision T32h-20 (61F1GAR2WW) - 3 Years Local Warranty
A 31.5-Inch QHD Monitor With 75 W USB-C Docking — the Previous Generation
The ThinkVision T32h-20 is a 31.5-inch 2560 x 1440 IPS display whose USB-C port carries video, data and up to 75 W of charging on one cable. It is the earlier generation of this size in the ThinkVision line: Lenovo's specification sheet for it is dated January 2023, and several regional versions of this model are marked Withdrawn on PSREF.
What You Gain by Moving to the T32h-30 Instead
We would rather you knew. The current T32h-30 adds gigabit Ethernet (this model has none), raises USB-C power delivery from 75 W to 90 W, moves to DisplayPort 1.4 and HDMI 2.x, adds Eyesafe 2.0 and TCO 9.0 certification, slims the bottom bezel from 24.1 mm to 18.6 mm and gains 20 mm of height adjustment. It is linked in the ordering table below.
What This Model Still Does Better
One thing, and it is not nothing: tilt range. The T32h-20 tilts -5° to +35° against the -30's +23.5°. If the monitor sits low, or on a standing desk used from varying heights, that extra 11.5° of back-tilt is genuinely useful. It also draws less power — 28 W typical against 32 W.
Two Corrections to This Listing
This page previously stated the warranty as one year in the heading and three years in the specification table. Lenovo publishes 3-year courier or carry-in service for this model — that is Lenovo's exact wording, and it differs from the "3-year limited warranty" phrasing used on the newer models. The page also listed no USB-C at all, on a monitor whose defining feature is its 75 W USB-C port. Both are corrected here.
Specification note. Every figure on this page is taken from Lenovo's own PSREF specification sheet for the ThinkVision T32h-20, with any item drawn from Lenovo's product datasheet instead labelled as such in the table. Lenovo publishes monitor specifications per model rather than per part number — the PSREF sheet we link does not itself list this SKU, and the suffix on a part number governs market and packaging rather than the panel or the ports. Where Lenovo publishes no figure, this page says so rather than estimating one, and where two Lenovo documents disagree we show the disagreement. Specifications and prices are subject to change by Lenovo without notice.
Lenovo ThinkVision T32h-20 Datasheet — Technical Specifications
General
| Product | Lenovo ThinkVision T32h-20 |
| Part Number | 61F1GAR2WW |
| Machine Type | 61F1 |
| Type | 31.5-inch QHD USB-C monitor (previous generation) |
| Warranty | 3-year courier or carry-in service — Lenovo's published wording for this model, which differs from the "3-year limited warranty" used on the -30 generation |
| Local Warranty (Singapore) | Included with every SourceIT purchase, with GST invoice |
Panel & Image
| Screen Size | 31.5" (marketed by Lenovo as 32") |
| Panel Type | 3-side NearEdgeless In-Plane Switching (IPS). Lenovo's datasheet states a WLED backlight; the PSREF sheet omits the backlight row |
| Resolution | 2560 x 1440 (QHD), 94 dpi |
| Aspect Ratio | 16:9 |
| Max Viewing Area | 698.1 x 392.7 mm |
| Pixel Pitch | 0.273 x 0.273 mm |
| Refresh Rate | 60 Hz |
| Response Time | 4 ms Extreme mode / 6 ms Normal mode |
| Brightness | 350 cd/m² |
| Contrast Ratio | 1000:1 typical; 3,000,000:1 dynamic |
| Colour Gamut | 99% sRGB. Lenovo publishes no DCI-P3, NTSC or Adobe RGB figure for this model, and no CIE standard |
| Colour Depth | Lenovo publishes 1.07 billion colours but states no bit depth for this model |
| Viewing Angles | 178° horizontal / 178° vertical (at CR 10:1, per Lenovo's datasheet) |
| Surface | Anti-glare (Lenovo datasheet) |
| Bezel | 2 mm sides, 2 mm top, 24.12 mm bottom |
Connectivity
| USB-C | 1 x USB-C 3.1 Gen 1 upstream — DisplayPort 1.2 Alt Mode, data, and up to 75 W power delivery on a single cable |
| Video Inputs | 1 x HDMI 1.4, 1 x DisplayPort 1.2, plus video over the USB-C port |
| DisplayPort Out | None |
| USB Hub | 4 x USB 3.1 Gen 1 downstream, one with BC charging. The upstream connection is the USB-C port — there is no separate USB-B upstream |
| Network | None. This model has no Ethernet port. The T32h-30, T32p-30 and T34w-30 all add gigabit Ethernet |
| Audio Out | 1 x 3.5 mm |
| Speakers | None, and no modular soundbar option is published for this model — unlike the -30 generation, which supports the MS30 |
| Security | Kensington Security Slot |
Stand & Ergonomics
| Tilt | -5° to +35° — more back-tilt than the -30 generation's +23.5° |
| Swivel | 45° left and right |
| Pivot | -90° to +90° |
| Height Adjustment | Up to 135 mm |
| VESA | 100 x 100 mm |
Power & Certifications
| Power Consumption | 28 W typical / 138 W maximum |
| ENERGY STAR Power-On | 21.6 W; TEC 69.2 kWh |
| Sleep / Off Mode | < 0.5 W |
| Switch-off Mode | < 0.3 W |
| Power Supply | Internal, AC 100–240 V, 50–60 Hz |
| Certifications | ENERGY STAR certified; EPEAT Gold; TCO Certified 8.0; TCO edge 2.0; RoHS; TÜV Rheinland Eye Comfort |
| Eyesafe / EU Energy Label | Not published by Lenovo for this model. The newer T32h-30 adds Eyesafe Certified 2.0 |
Physical
| Dimensions with Stand | 714.6 x 235.0 x 469.4 mm at lowest; 604.4 mm high at highest |
| Head Only | 714.6 x 51.0 x 426.0 mm |
| Weight | 9.85 kg with stand; 6.78 kg head only |
| Packaged | 845 x 528 x 190 mm; 12.96 kg |
Compatibility & Fit
Should you buy this or the T32h-30? For most buyers, the -30. It adds gigabit Ethernet, 90 W of USB-C power delivery instead of 75 W, DisplayPort 1.4, Eyesafe 2.0 and TCO 9.0, a slimmer bottom bezel and 20 mm more height adjustment, and it is the model Lenovo is currently documenting — its specification sheet is dated November 2025 against January 2023 for this one. Several regional versions of the T32h-20 are marked Withdrawn on PSREF.
The cases where this model still makes sense. Two. First, tilt: -5° to +35° here against +23.5° on the -30, which matters if the monitor sits below eye level or on a sit-stand desk. Second, fleet consistency — if you already run T32h-20s and want the next desk to match exactly, buying the same model is worth something. It also draws less power, at 28 W typical against 32 W.
The single-cable question. The USB-C port carries DisplayPort 1.2 Alt Mode video, USB data for the four-port hub, and up to 75 W back to the laptop. For a standard business ultrabook that is one cable for everything except the network — there is no Ethernet port on this model, so a laptop docking here still needs Wi-Fi or its own adapter. Check your laptop's charging requirement against 75 W; a mobile workstation drawing 135 W or 170 W will still need its own power supply.
Cables in the box are region-dependent. Lenovo flags the DisplayPort cable and the USB-C-to-USB-A cable as North America only. For a Singapore order, assume you receive the USB-C to USB-C cable and the power cable, and ask us to add anything else you need.
Package Contents & ThinkVision Ordering Information
In the box, per Lenovo PSREF:
- Monitor with stand
- 1 x USB-C to USB-C cable (1.8 m)
- 1 x power cable (1.8 m)
- 1 x DisplayPort cable (1.8 m) — North America only
- 1 x USB-C to USB-A cable (1.8 m) — North America only
- Quick setup guide
For a Singapore order, do not count on the DisplayPort or USB-C-to-USB-A cables — Lenovo restricts both to North America. Tell us how you intend to connect and we will make sure the right cable is in the box.
ThinkVision T-Series Ordering Information
| 63B0MAR6MY | ThinkVision T22i-30 — 21.5" FHD IPS, 4-port USB hub, full ergonomic stand |
| 63CFMARXMY | ThinkVision T24i-30 — 23.8" FHD IPS, 4-port USB hub, full ergonomic stand |
| 63FFMAR1MY | ThinkVision T24d-30 — 24" WUXGA 16:10, 1500:1, speakers, 100 Hz |
| 63A4MAR1WW | ThinkVision T27i-30 — 27" FHD IPS, 300 nits, 4-port USB hub |
| 61F1GAR2WW (this listing) | ThinkVision T32h-20 — 31.5" QHD, USB-C 75 W, previous generation |
| 63D3GAR1WW | ThinkVision T32h-30 — 31.5" QHD, USB-C 90 W dock, gigabit Ethernet |
| 63D2GAR1WW | ThinkVision T32p-30 — 31.5" 4K, USB-C 90 W dock, GbE, KVM |
| 63D4GAR1WW | ThinkVision T34w-30 — 34" 21:9 curved 1500R VA, USB-C 75 W dock, GbE |
Datasheet & Downloads
- Lenovo PSREF specification sheet — ThinkVision T32h-20 (PDF)
- Lenovo ThinkVision T32h-20 product datasheet (PDF)
PSREF is Lenovo's own Product Specifications Reference and is the source for every figure on this page unless the table says otherwise. PSREF publishes its spec sheets per model rather than per part number, so this SKU does not appear inside the PDF itself; a per-part-number detail page also exists at psref.lenovo.com and will render in a normal browser if you need this exact configuration confirmed before ordering. Ask us and we will pull it for you.
Frequently Asked Questions — Lenovo ThinkVision T32h-20
Is the warranty one year or three?
Three. Lenovo's wording for this specific model is "3-year courier or carry-in service", which is slightly different from the "3-year limited warranty" phrasing on the newer -30 models. Our earlier version of this page said one year in the heading and three in the table; that contradiction is fixed.
Does it have a USB-C port?
Yes — and it is the reason to buy this monitor. One USB-C cable carries DisplayPort 1.2 Alt Mode video, USB data for the four-port hub and up to 75 W of charging to the laptop. Our earlier version of this page listed no USB-C at all, which badly undersold the product. That is corrected.
Does it have Ethernet?
No. The T32h-20 has no RJ45 port. The newer T32h-30, T32p-30 and T34w-30 all add gigabit Ethernet through the USB-C dock. If a wired network connection over one cable is part of your plan, choose one of those instead.
Is this model discontinued?
Lenovo marks several regional versions of the T32h-20 as Withdrawn on PSREF, and its specification sheet dates from January 2023 while the -30 generation's is from November 2025. We could not confirm the withdrawn status for this exact part number, so we are telling you what we found rather than asserting either way. If long-term availability of a matching model matters for a fleet rollout, the T32h-30 is the safer specification.
Should I buy this or the T32h-30?
For most buyers, the T32h-30 — it adds Ethernet, 90 W instead of 75 W, DisplayPort 1.4, Eyesafe 2.0, TCO 9.0 and 20 mm more lift. Buy the T32h-20 if you need its wider +35° back-tilt, if you are matching an existing fleet, or if the price difference decides it.
