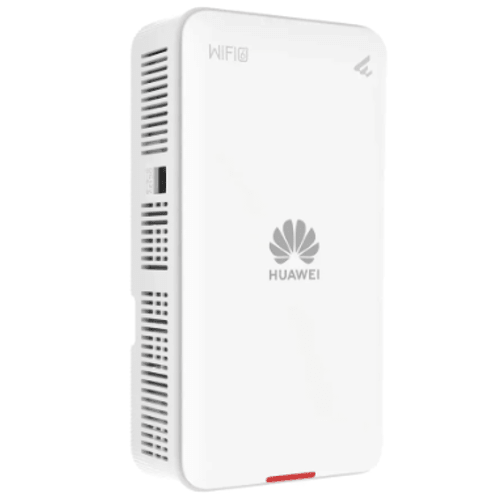

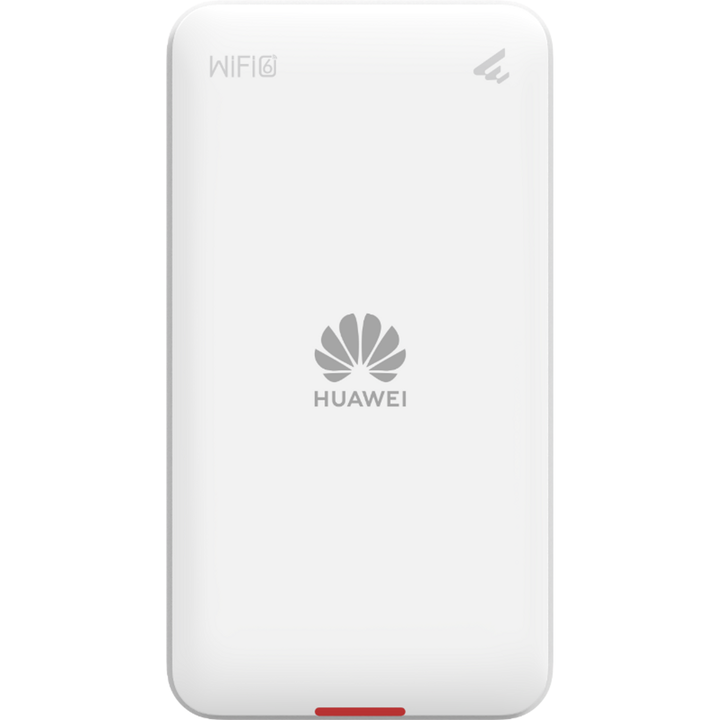

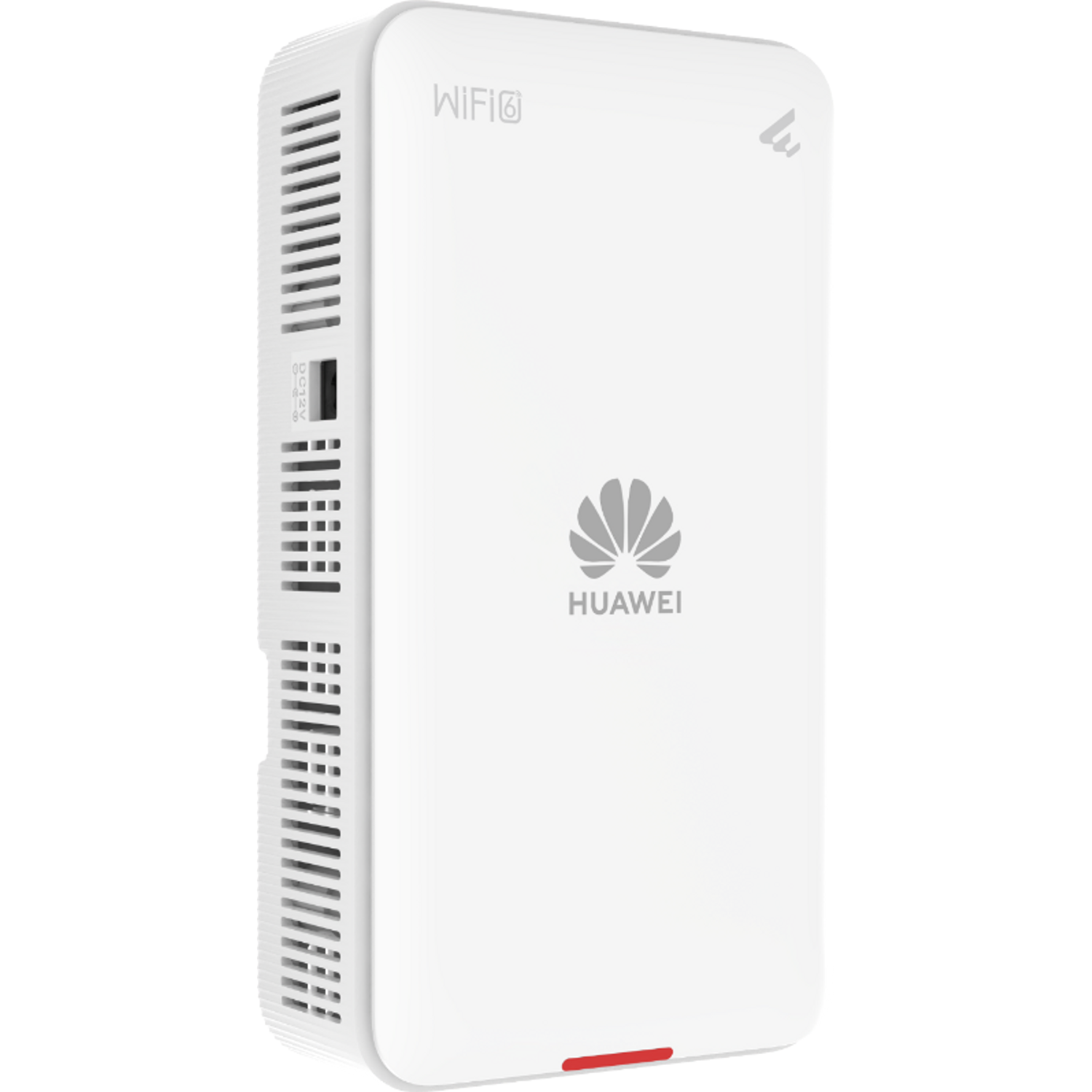

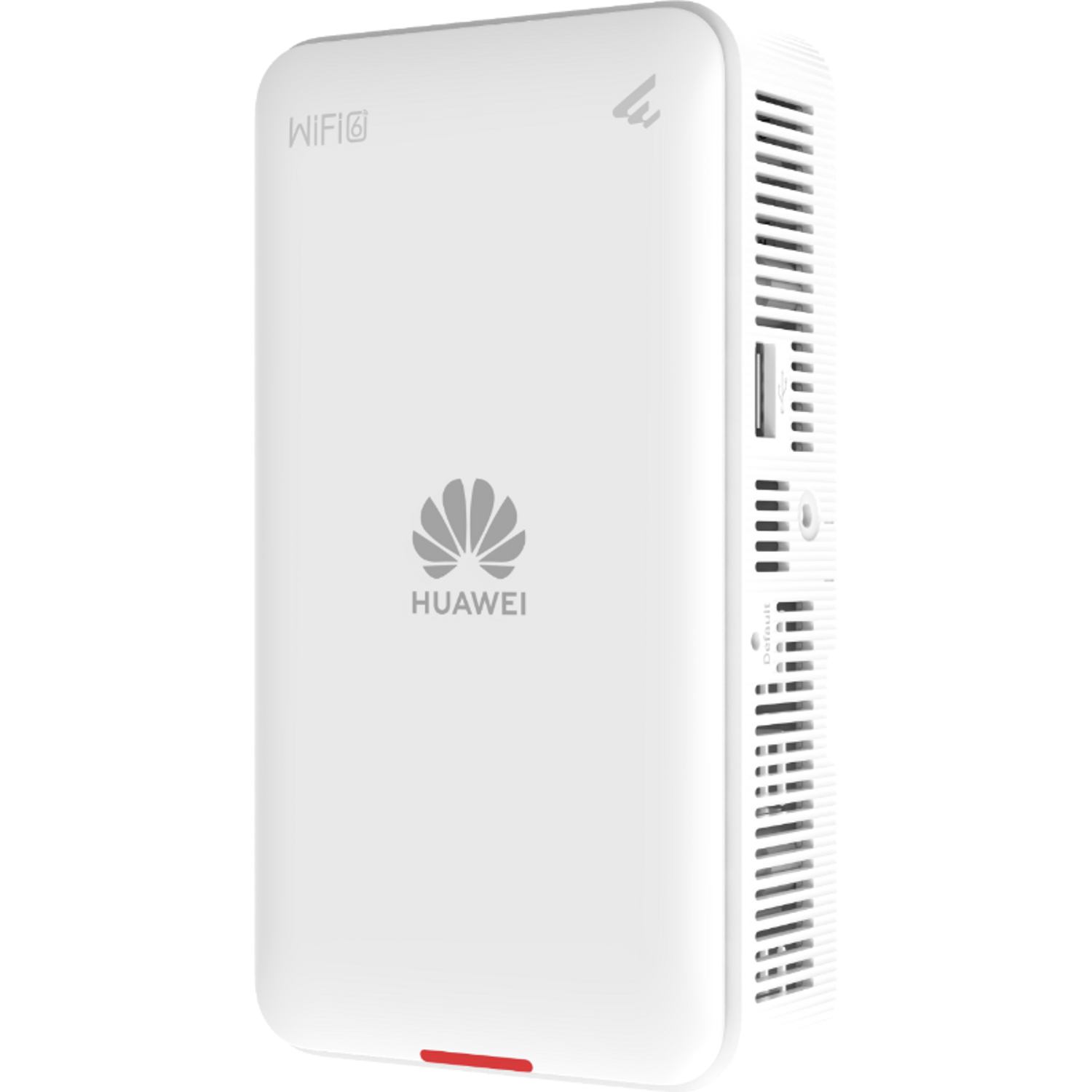

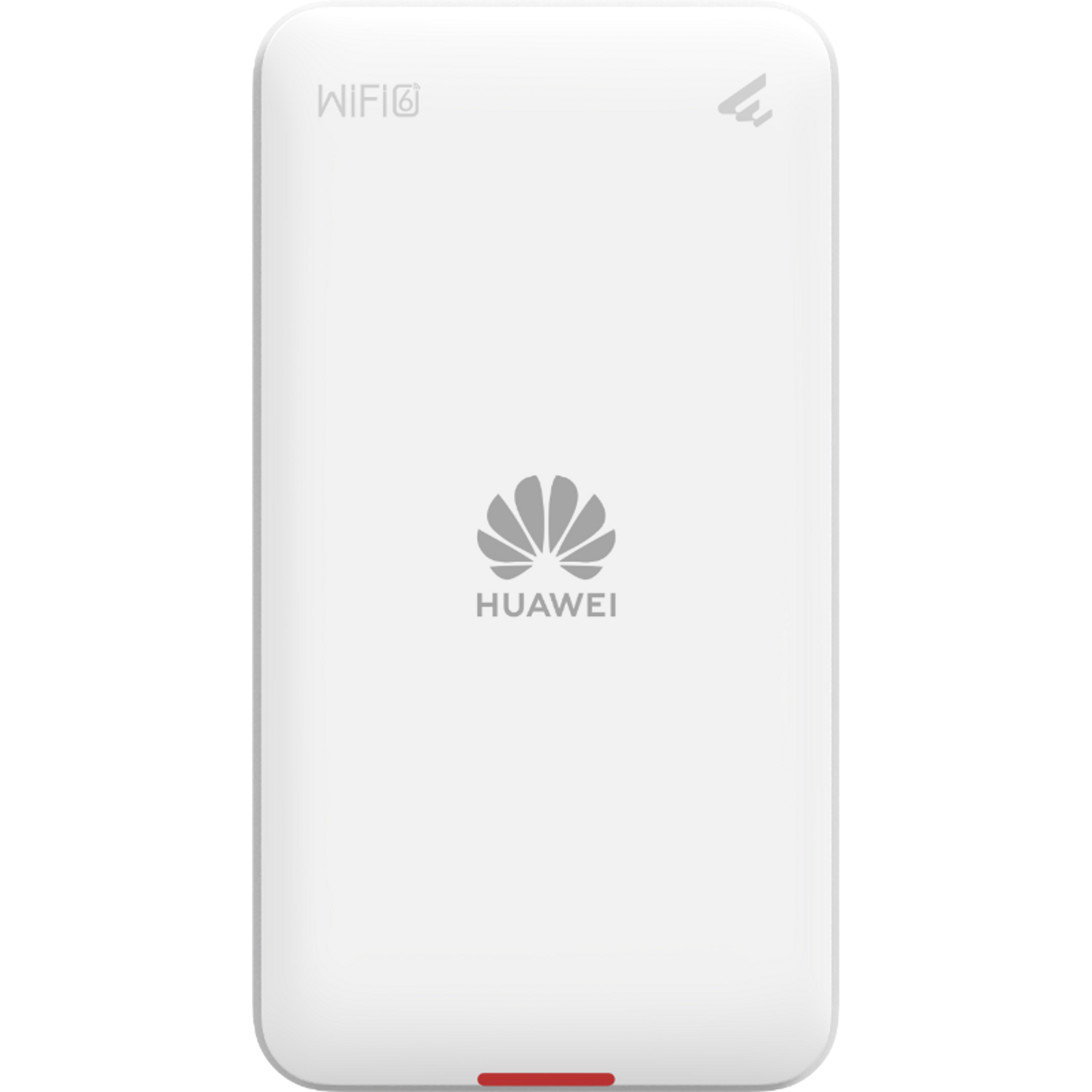

Huawei eKitEngine AP263 Wi-Fi 6 Wall Plate Access Point, 2 x GE, USB, BLE
PRODUCT DESCRIPTION
Huawei eKitEngine AP263 Wi-Fi 6 (802.11ax) Wall Plate Access Point (AP263) - 1 Year Local Warranty
Wi-Fi 6 in a Wall Plate
The Huawei eKitEngine AP263 is a Wi-Fi 6 (802.11ax) wall-plate access point that mounts on a standard junction box, making it ideal for hotel rooms, dormitories, classrooms and small offices. Dual radios, each 2x2 MIMO, deliver up to 2.975 Gbps.
Extra Wired Port, USB and Bluetooth
Two Gigabit RJ45 ports let you connect a wired device such as a desk phone, TV or PC at the wall. Huawei also lists a USB port and built-in BLE.
Coverage and Capacity
Built-in smart antennas give an optimal signal distance of 13 m. Huawei recommends 64 users per AP, with a maximum of 256.
PoE or DC Powered
Power the AP263 from an IEEE 802.3at/af PoE switch or a 12 V DC supply; maximum consumption is 12 W.
Need help choosing? Email sales@sourceit.com.sg with the number of rooms, users per room and your existing cabling and we will size it for you.
Huawei AP263 Datasheet — Technical Specifications
General
| Product Name | Huawei eKitEngine AP263 Wi-Fi 6 Wall Plate Access Point |
| Model | AP263 |
| Part Number | 50084981 |
| Type | Indoor wall-plate AP |
| Local Warranty (Singapore) | 1 year carry-in warranty, supplied by SourceIT with a GST invoice |
Wireless
| Wi-Fi Standard | 2.4 GHz: 802.11b/g/n/ax; 5 GHz: 802.11a/n/ac/ac Wave 2/ax |
| Radios | 2 (2.4 GHz + 5 GHz) |
| MIMO | 2x2 on 2.4 GHz and 2x2 on 5 GHz |
| Device Rate | Up to 2.975 Gbps |
| Max. Channel Bandwidth | 2.4 GHz: 40 MHz; 5 GHz: 160 MHz |
| Max. Transmit Power | 20 dBm per chain, 23 dBm combined (2.4 GHz and 5 GHz); BLE <10 dBm |
| Antennas | Built-in smart antennas; 2.4 GHz 2 dBi/chain peak (1 dBi combined), 5 GHz 3 dBi/chain peak (1 dBi combined), BLE 4 dBi |
| Users | Recommended 64; maximum 256 |
| Optimal Signal Distance | 13 m |
Interfaces & Power

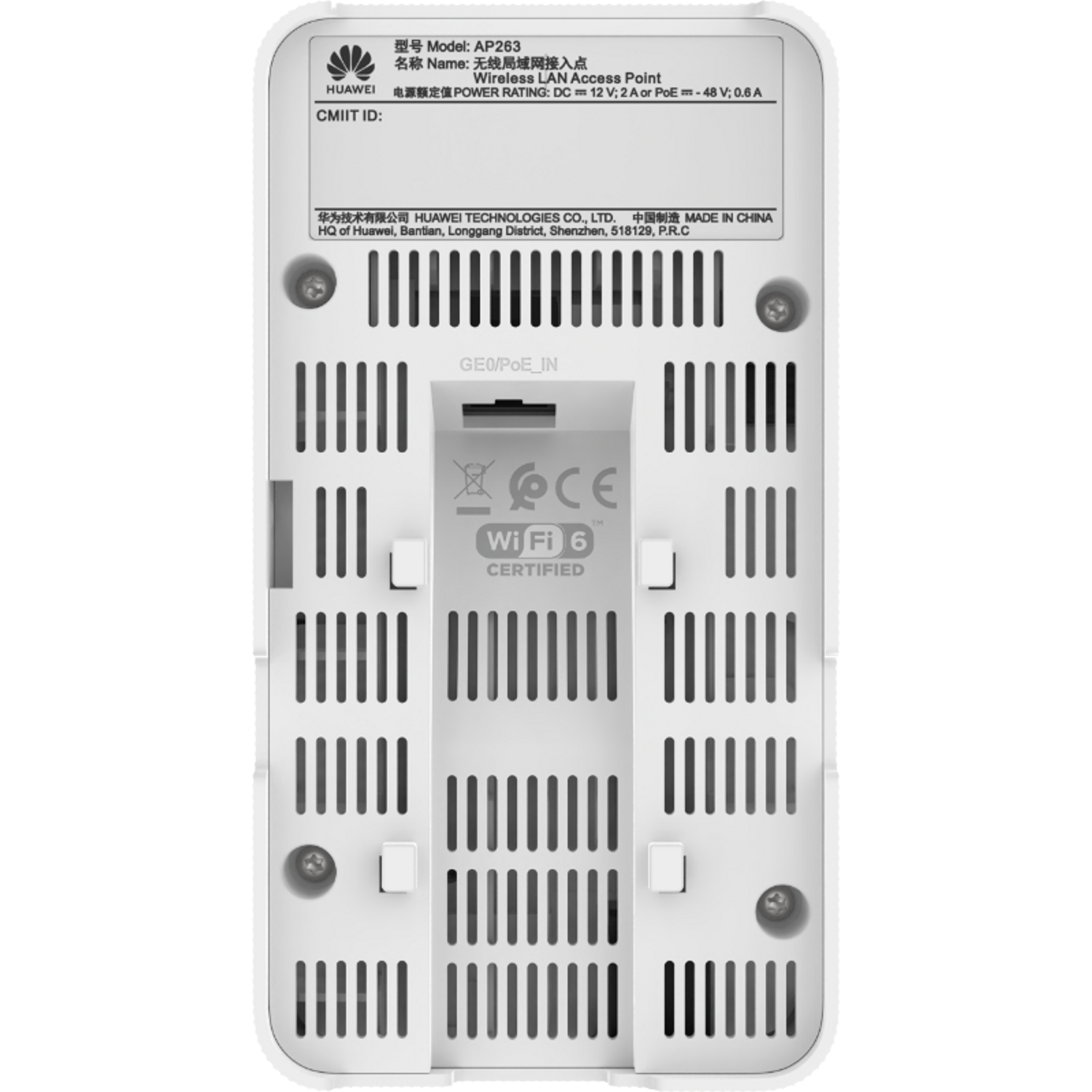

| Ethernet | 2 x GE RJ45 (10/100/1000M auto-sensing) |
| Other | USB, BLE |

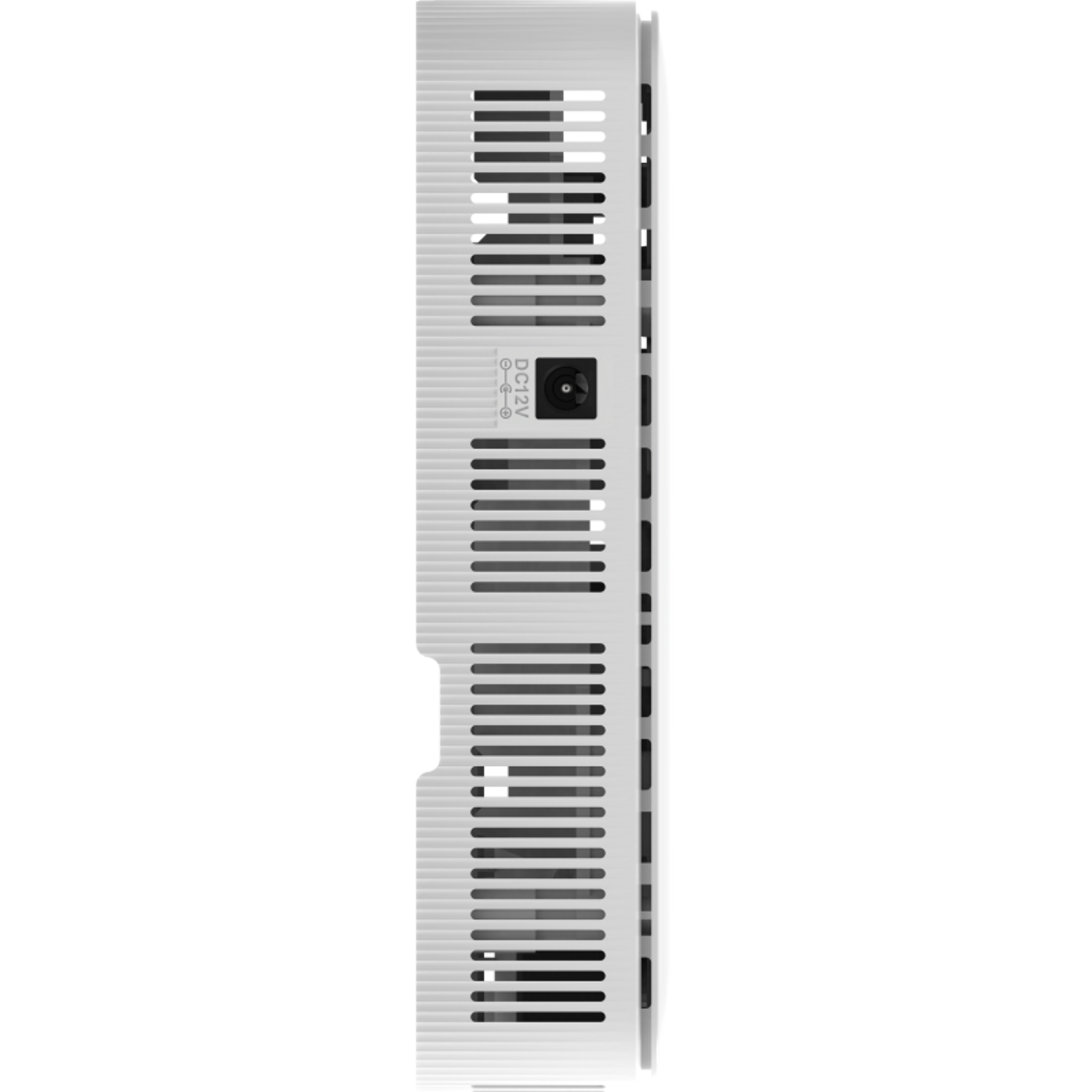

| Power Input | 12 V DC ±10% or PoE (IEEE 802.3at/af) |
| Max. Power Consumption | 12 W |
Physical & Environmental
| Dimensions | 160 x 86 x 38 mm |
| Weight | 0.32 kg (0.542 kg packed) |
| Installation | Desk, wall, ceiling (gypsum board), junction box (86 mm / 1-gang 120 mm / octagonal) |
| Operating Temperature | 0 to 40 °C |
| Operating Humidity | 5% to 95% RH, non-condensing |
Specifications from Huawei's official eKit product page for the AP263 (part number 50084981).
Compatibility & Software Support
Management
Works with Huawei eKit WLAN management: the AC650 wireless access controller and the eKitEngine S380 multi-service gateway (built-in WAC). Ask us to confirm firmware compatibility for your controller.
Powering the AP
IEEE 802.3at or 802.3af PoE (e.g. Huawei eKitEngine S110 or S310 PoE switches) or a 12 V DC adapter.
Typical Use
Hotel rooms, dormitories, classrooms, clinics and small offices where an AP per room is installed at the wall.
Package Contents & Huawei eKit WLAN Ordering Information
Huawei eKit WLAN Models
| Model | Type | Key Spec | Part No. |
| AP362 | Wi-Fi 6 wall/ceiling AP | 2.975 Gbps, 1 x GE | AP362 |
| AP263 (this listing) | Wi-Fi 6 wall-plate AP | 2.975 Gbps, 2 x GE, USB, BLE | AP263 |
| AC650-128AP | Wireless access controller | Manages up to 128 APs | AC650-128AP |
| AC650-256AP | Wireless access controller | Manages up to 256 APs | AC650-256AP |
Package contents are not listed on Huawei's eKit product page — ask us if you need confirmation of the included accessories.
Datasheet & Downloads
| Huawei eKit product page | AP263 on ekit.huawei.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting AP263.
Frequently Asked Questions — Huawei AP263
Does it fit a standard wall box?
Huawei lists junction-box installation for 86 mm, 1-gang 120 mm and octagonal boxes, as well as desk, wall and gypsum-board ceiling mounting.
Can I connect a wired device to it?
Yes. The AP263 has two Gigabit RJ45 ports.
What PoE does it need?
IEEE 802.3at or 802.3af PoE; maximum consumption is 12 W. It can also run from a 12 V DC input.
How many users can it handle?
Huawei recommends 64 users and supports a maximum of 256 access users.
What warranty do I get?
1 year local carry-in warranty in Singapore, supplied by SourceIT with a GST invoice.
