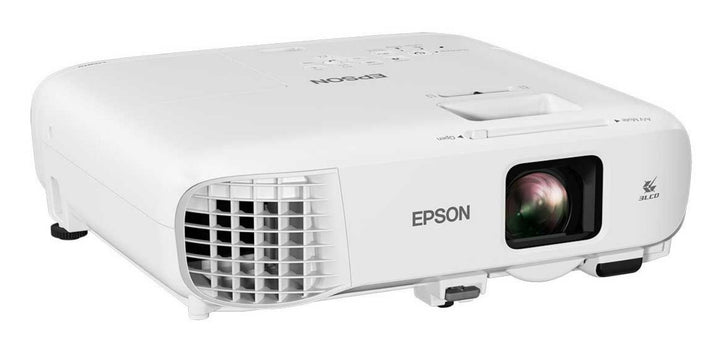

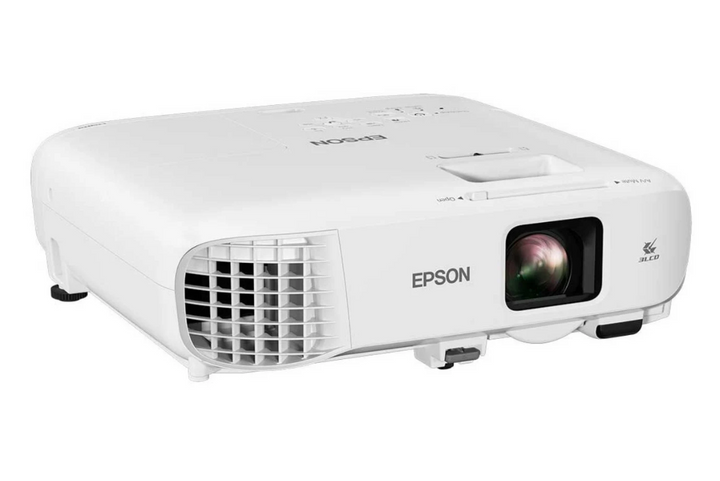

Epson EB-982W WXGA 3LCD Projector
PRODUCT DESCRIPTION
Epson EB-982W WXGA 3LCD Projector (V11H987052) - 3 Years Singapore Local Warranty
4,200 Lumens of Widescreen WXGA for Bright Classrooms and Training Rooms
The EB-982W delivers 4,200 lumens of both colour and white brightness in native WXGA at a 16:10 aspect ratio, which is a genuinely bright installation projector for a Singapore classroom or corporate training room where the lights stay on. Epson's three-chip 3LCD design produces the same brightness for colour as for white, so coloured charts, highlighted text and branded slides hold their saturation instead of dulling. The widescreen 16:10 shape matches the way most teaching and presentation material is now authored.
1.6x Optical Zoom and ±30° Keystone for Awkward Rooms
A 1.6x manual optical zoom with a throw ratio of 1.38 to 2.24 gives real placement latitude: the same projector can be ceiling mounted well back in a long room or much closer in a short one, and Epson specifies image sizes from 29 to 280 inches. Vertical and horizontal keystone correction of ±30 degrees, with automatic vertical correction, plus Quick Corner handles rooms where the mount cannot sit square to the screen — which describes most retrofit installations in existing buildings.
Fifty-User Moderator Function for Managed Classroom Collaboration
With Epson iProjection, up to 50 users can connect and share content from laptops or mobile devices, and the integrated Moderator function decides whose screen is actually displayed. In a classroom or a workshop that is the difference between collaboration and chaos: the teacher or facilitator holds control while students queue up contributions. Wired LAN supports centralised monitoring and control for an estate, and wireless connectivity is provided through the Epson ELPAP11 wireless LAN module.
Dual HDMI, a Microphone Input and a 16 W Speaker in One Unit
Two HDMI inputs cover a room PC and a visiting laptop without a switcher, with two D-Sub 15-pin inputs and a composite input keeping older visualisers and classroom equipment in service and a D-Sub output available for a confidence monitor. A dedicated microphone input feeds the 16 W speaker, so a presenter's microphone can be reinforced without a separate amplifier. RS-232C is available for control systems, and the unit weighs approximately 3.1 kg for a straightforward ceiling mount.
Epson EB-982W Datasheet — Technical Specifications
General
| Product | Epson EB-982W WXGA 3LCD Projector |
| Part Number (SKU) | V11H987052 |
| Projector Type | Standard-throw installation projector for corporate and education use |
| Projection Technology | 3LCD, RGB liquid crystal shutter projection system |
| Interactivity | Not an interactive model — no pen or finger touch |
| Local Warranty (Singapore) | Supplied by SourceIT with GST invoice |
Projection & Optics
| Native Resolution | WXGA |
| Aspect Ratio | 16:10 |
| LCD Size | 0.59" (C2fine) |
| White Light Output | 4,200 lm |
| Colour Light Output | 4,200 lm |
| Contrast Ratio | 16,000:1 |
| Screen Size (Projection Distance) — Wide | 29" to 280" [0.85 to 8.45 m] |
| Screen Size (Projection Distance) — Tele | 29" to 280" [1.40 to 13.71 m] |
| Lens Type | Optical zoom (manual) / focus (manual) |
| Zoom Ratio | 1 – 1.6 |
| Throw Ratio | 1.38 – 2.24 (wide to tele) |
| Focal Length | 18.20 – 29.20 mm |
| F-Number | 1.51 – 1.99 |
| Vertical / Horizontal Keystone | ±30° / ±30° (automatic vertical keystone only) |
| Quick Corner | Yes |
Light Source
| Type | 230 W UHE lamp |
| Lamp Life (Normal / Eco) | 6,500 / 17,000 hours |
Connectivity
| Digital Input | HDMI x 2 |
| Analogue Input | D-Sub 15-pin x 2; Composite RCA x 1 |
| Output Terminal | D-Sub 15-pin x 1 |
| Audio Input | Stereo mini x 2; 2 x RCA (white and red) x 1 |
| Audio Output | Stereo mini jack x 1 |
| Microphone Input | Stereo mini x 1 |
| Control I/O | RS-232C x 1 |
| USB | Type A x 1 (wireless LAN, firmware update, copy OSD settings); Type B x 1 (firmware update, copy OSD settings) |
| Wired Network | Wired LAN x 1 |
| Wireless Network | Wireless x 1 via the Epson ELPAP11 module |
| Wireless Standards | IEEE 802.11a/b/g/n |
| Wireless Security | Infrastructure: OPEN, WPA2/WPA3-PSK; Access Point: OPEN, WPA2-PSK (AES) |
Audio & Features
| Internal Speaker | 16 W |
| Collaboration | Epson iProjection with integrated Moderator function — up to 50 users connected |
Physical & Environmental
| Weight | Approx. 3.1 kg |
| Dimensions Excluding Feet (W x H x D) | 309 x 90 x 282 mm |
| Air Filter | High efficiency filter; maintenance cycle 10,000 / 20,000 hours |
| Fan Noise (Normal / Eco) | 37 dB / 28 dB |
| Operating Temperature | Low altitude: 5 – 40 °C; high altitude: 5 – 35 °C |
Power
| Power Supply Voltage | 100 – 240 V AC ±10%, 50/60 Hz |
Specifications are taken from Epson's published product data for this model. Where Epson does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Mounting and placement
At approximately 3.1 kg and 309 x 90 x 282 mm, the EB-982W is a straightforward ceiling mount using a standard Epson projector mount, and it is light enough to be table sited for temporary use. The 1.6x optical zoom and a throw ratio of 1.38 to 2.24 give useful latitude on mount position, and Epson specifies image sizes from 29 to 280 inches. Allow access to the high-efficiency air filter, which has a 10,000 to 20,000 hour maintenance cycle, and to the lamp for replacement.
Correcting geometry in an existing room
Vertical and horizontal keystone correction of ±30 degrees, with automatic vertical correction, plus Quick Corner, means the projector can be mounted off the screen's centre line and still produce a square image. That matters in retrofit installations where ceiling services, lighting or an existing mount position dictate where the projector can physically go. Use optical correction sparingly where possible — a squarely mounted projector will always look sharper than a heavily keystoned one.
What it connects to
Two HDMI inputs cover a room PC and a visiting laptop simultaneously. Two D-Sub 15-pin inputs and a composite RCA input keep older visualisers, document cameras and classroom PCs usable, and the D-Sub output can feed a confidence monitor. Two stereo mini audio inputs and an RCA stereo pair handle audio from those sources, and a dedicated microphone input feeds the 16 W speaker. A USB Type B port supports firmware updates and OSD setting copies across a fleet.
Network, wireless and classroom control
Wired LAN supports centralised monitoring, scheduling and control across an estate. Wireless connectivity uses the Epson ELPAP11 module in the USB Type A port, supporting IEEE 802.11a/b/g/n with WPA2/WPA3-PSK security on infrastructure connections. Epson iProjection allows up to 50 users to connect from laptops or mobile devices, with the integrated Moderator function controlling whose content is displayed. RS-232C is available where a control system drives the room.
Related models on our store
For a laser light source in a similar standard-throw role, see the Epson EB-L200W or the Full HD Epson EB-L200F. For higher resolution in the same installation class, see the Epson EB-2265U.
Package Contents & Epson Corporate and Education Range
In the box
- Epson EB-982W WXGA 3LCD projector
- Power cable
- Remote control with batteries
- Printed documentation
Package contents follow Epson's product data for this model; items not listed by Epson are not claimed here. The ELPAP11 wireless LAN module and ceiling mounts are optional accessories and are not included.
Epson corporate and education standard-throw range
| Model | Resolution and light source |
| EB-E12 | XGA — lamp |
| EB-W55 | WXGA — lamp |
| EB-W51 | WXGA — lamp |
| EB-982W (this listing) | WXGA, 4,200 lm — lamp |
| EB-FH52 | Full HD — lamp |
| EB-FH54 | Full HD, wireless — lamp |
| EB-2165W | WXGA — lamp, installation class |
| EB-2265U | WUXGA — lamp, installation class |
| EB-L200W | WXGA — laser |
| EB-L200F | Full HD — laser |
Datasheet & Downloads
SourceIT can email the current data sheet revision on request together with a quotation.
Frequently Asked Questions — Epson EB-982W
Is this a laser projector or a lamp projector?
The EB-982W uses a 230 W UHE lamp, not a laser light source. Epson rates the lamp at 6,500 hours in Normal mode and up to 17,000 hours in ECO mode, which is a long life for a lamp-based projector, but it is a consumable and will eventually need replacing. If you want a lamp-free installation with no consumable to budget for, look at the laser EB-L200W in WXGA or the EB-L200F in Full HD.
What does the "W" in EB-982W mean?
It denotes WXGA resolution in a 16:10 widescreen aspect ratio. Epson uses "F" for Full HD 1080p models, "U" for WUXGA and "E" or "X" for XGA. So the EB-982W is the widescreen WXGA model in this family; there is no Full HD variant of this exact model number.
How far back does it need to be mounted?
It is a standard-throw projector with a throw ratio of 1.38 to 2.24 and a 1.6x optical zoom, so it mounts back in the room rather than close to the wall. Epson specifies image sizes from 29 to 280 inches, with the wide setting reaching 280 inches at 8.45 m and the tele setting at 13.71 m. If your room cannot accommodate that distance, an ultra-short throw model such as the EB-770F is the better choice.
Is it an interactive projector?
No. The EB-982W is a display projector with no pen and no touch unit. For writing and annotation directly on the projected image, look at Epson's interactive models such as the EB-770Fi or the EB-760Wi.
What is the Moderator function, and how many people can connect?
Using Epson iProjection, up to 50 users can connect to the projector from laptops or mobile devices. The integrated Moderator function lets the teacher or chair decide whose screen is actually shown, rather than allowing anyone connected to take over the display. In a classroom or workshop that control is what makes 50-user access usable rather than disruptive.
Does it have built-in Wi-Fi?
Epson's specification lists wireless for this model as being provided by the ELPAP11 module, which fits the USB Type A port. Wired LAN is built in and is what most schools and offices use for monitoring and control. If wireless presenting matters to your deployment, ask us to include the ELPAP11 module with your quotation.
Can it handle a presenter's microphone?
Yes. There is a dedicated microphone input feeding the 16 W internal speaker, so a handheld or lapel microphone can be reinforced through the projector in a normal classroom or training room without a separate amplifier. For a hall or where music playback quality matters, use the audio output into a proper room sound system instead.
What warranty and paperwork comes with it?
Every unit sold by SourceIT carries local Singapore warranty and is invoiced with a GST invoice. Support and warranty claims are handled locally rather than through an overseas grey-market channel.
