Epson EB-E12 XGA 3LCD Projector
PRODUCT DESCRIPTION
Epson EB-E12 XGA 3LCD Projector (V11HB55052) - Local Warranty
3,600 Lumens of Colour Brightness for Everyday Classrooms and Meeting Rooms
The EB-E12 delivers 3,600 lumens of white light output and 3,600 lumens of colour light output, with a centre reading of 3,700 lumens. Epson quotes both figures because its 3LCD engine splits light across three panels simultaneously rather than spinning a colour wheel, so a red bar chart or a company logo is as bright as a white slide. In a Singapore training room or tutorial centre where the lights stay on, that is the difference between legible and washed out. Eco mode drops output to 2,200 lumens for darker rooms and extended lamp life.
Native XGA in 4:3 — Built for Documents, Not Films
A 0.55-inch C2 Fine panel carries 786,432 dots per colour channel at 1024 x 768 in a 4:3 frame. That is deliberately document-shaped: spreadsheets, worksheets, exam papers and visualiser output fill the screen without letterboxing, and text stays crisp because the image is mapped one pixel to one pixel rather than scaled. A 15,000:1 contrast ratio keeps black text properly black on a white page, which is what a classroom actually reads all day.
Twin HDMI Inputs and Instant Switching Between Two Sources
Two HDMI Type A inputs with HDCP 1.4 let a room keep a fixed PC on one port and leave the second free for a visiting laptop, a streaming stick or a document camera — no unplugging behind a lectern mid-session. A USB Type B port is provided for firmware updates and for copying menu settings from one unit to another, which is genuinely useful when you are commissioning a dozen identical rooms and want them all configured the same way.
Low Running Cost and Long Service Intervals
The 210 W UHE lamp is rated at 6,000 hours in normal mode and 12,000 hours in eco mode, with the air filter on exactly the same schedule, so there is only one maintenance event to plan rather than two. Draw is 332 W in normal mode and 231 W in extended mode, with eco standby at 0.3 W. Fan noise is 37 dB normal and 28 dB in eco. The unit starts up in under seven seconds, powers down instantly with no cool-down wait, and supports direct power on and off from a wall switch.
Epson EB-E12 Datasheet — Technical Specifications
General
| Product | Epson EB-E12 XGA 3LCD Projector |
| Part Number (SKU) | V11HB55052 |
| Projection Technology | RGB liquid crystal shutter projection system (3LCD) |
| Native Resolution | XGA 1024 x 768 |
| Aspect Ratio | 4:3 |
| LCD Panel | 0.55” C2 Fine, poly-silicon TFT active matrix, 786,432 dots x 3, cross stripe |
| Light Source | 210 W UHE lamp |
| Light Source Life | 6,000 hours (Normal) / 12,000 hours (Eco) |
| GTIN | 010343334181 |
| Local Warranty (Singapore) | 3 years — supplied by SourceIT with a GST invoice |
Projection & Optics
| White Light Output (Normal / Eco) | 3,600 lm / 2,200 lm |
| Colour Light Output | 3,600 lm |
| Light Output (Centre) | 3,700 lm |
| Contrast Ratio | 15,000:1 |
| Projection Lens | No optical zoom / manual focus |
| F-Number | 1.44 |
| Focal Length | 16.7 mm |
| Throw Ratio | 1.44 – 2.88 |
| Digital Zoom Ratio | 1.0 – 2.0 |
| Screen Size (Zoom Wide) | 30” – 350” [0.87 – 10.34 m] |
| Screen Size (Zoom Tele) | 15” – 175” |
| Keystone Correction | Vertical / Horizontal: ±30° / ±30° |
Light Source
| Lamp Type | 210 W UHE |
| Lamp Life (Normal / Eco) | 6,000 hours / 12,000 hours |
| Air Filter Maintenance Cycle | 6,000 hours (Normal) / 12,000 hours (Eco) |
Connectivity
| Digital Input | HDMI Type A x 2 (HDCP 1.4) |
| USB Input | USB Type B x 1 (firmware update, copy OSD settings) |
| Network | Not available on this model |
Audio & Features
| Internal Speaker | Monaural 2 W x 1 |
| Start-Up Period | Less than 7 seconds (Epson logo); warm-up period 30 seconds |
| Cool Down Period | Instant Off |
| Direct Power On / Off | Yes |
Physical & Environmental
| Dimensions Excluding Feet (W x D x H) | 302 x 234 x 77 mm |
| Weight | Approx. 2.4 kg |
| Fan Noise (Normal / Eco) | 37 dB / 28 dB |
| Operating Temperature | Low altitude (0 – 2,286 m): 5 – 40 °C; high altitude (over 2,286 m): 5 – 35 °C; 20% – 80% humidity, no condensation |
| Operating Altitude | Over 1,500 m with High Altitude Mode: 0 – 3,048 m |
Power
| Power Supply Voltage | 100 – 240 V AC ±10%, 50/60 Hz |
| Power Consumption (Normal / Extended) | 332 W / 231 W |
| Standby (Eco) | 0.3 W |
Specifications are taken from Epson's published product data for this model. Where Epson does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Mounting and orientation
At 302 x 234 x 77 mm excluding feet and approximately 2.4 kg, the EB-E12 fits any standard universal projector ceiling bracket and sits comfortably on a lectern shelf or trolley. Vertical and horizontal keystone correction of plus or minus 30 degrees compensates when the unit cannot sit on the screen centre line. Size the bracket drop from the 1.44 to 2.88 throw ratio and your intended screen width.
What it connects to

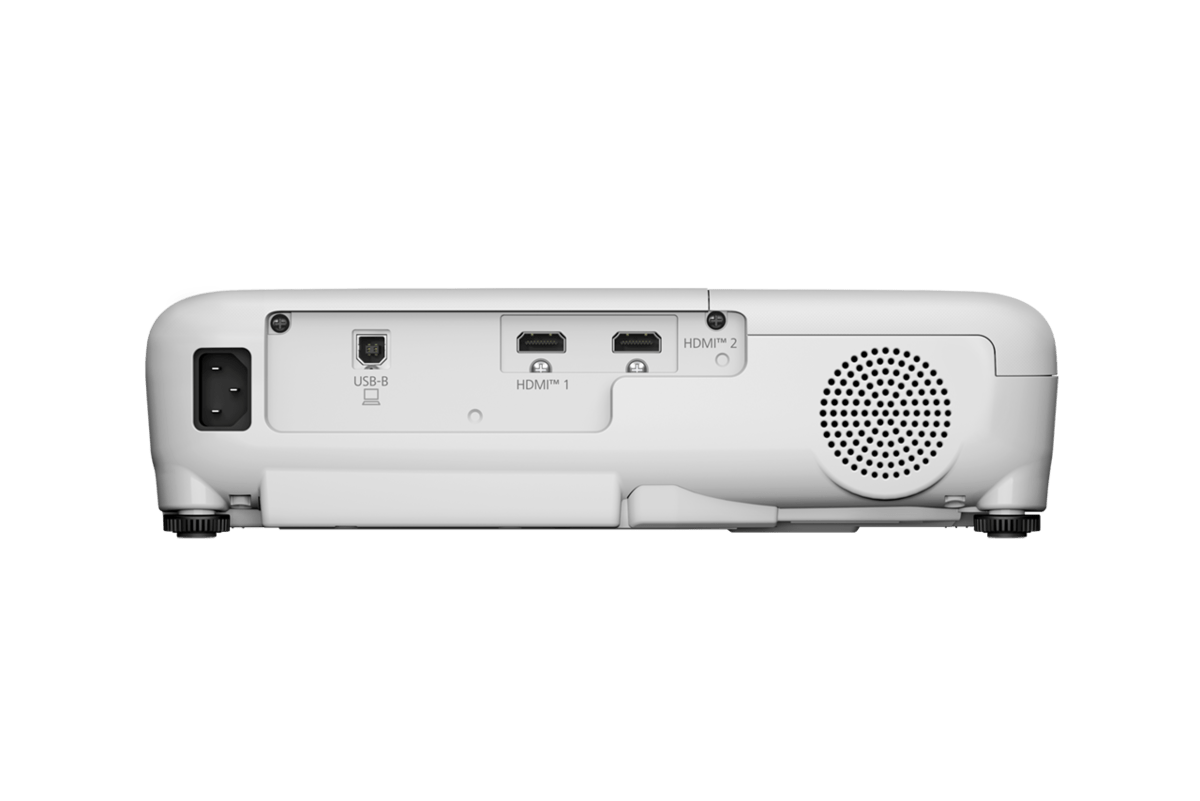

Two HDMI Type A inputs with HDCP 1.4 support take laptops, mini-PCs, document cameras, media players, streaming sticks and room control system outputs. Note that this model has no VGA (D-Sub 15-pin) input, no composite input, no audio in or out jacks and no RS-232C port — if a legacy VGA source or an external sound feed is part of your room, plan for an HDMI converter or choose a model with those ports.
Network and content management
The EB-E12 has no wired or wireless LAN, so it cannot be monitored with Epson Projector Management or fed by Epson iProjection wireless sharing. The USB Type B port handles firmware updates and copying on-screen display settings between units, which speeds up a multi-room rollout. For networked management or wireless casting, look at the EB-FH54 or the EB-L200F.
Where it sits in the range
The EB-E12 is the current XGA entry model. Its closest relative on this store is the EB-E01, which is slightly dimmer at 3,300 lumens but retains a VGA input for older sources.
Package Contents & Epson EB-E Series Range
In the box
- Epson EB-E12 projector
- Remote control with batteries
- Power cable
- Quick start guide
Package contents follow Epson's product data for this model; items not listed by Epson are not claimed here.
Epson EB-E series range
| Model | Resolution & throw |
| EB-E01 | XGA 1024 x 768, 4:3, 3,300 lumens, UHE lamp |
| EB-E12 (this listing) | XGA 1024 x 768, 4:3, 3,600 lumens, UHE lamp |
Datasheet & Downloads
- Epson Singapore — EB-E12 XGA 3LCD Projector (V11HB55052)
- Epson Singapore — EB-E12 support, drivers and manuals
SourceIT can e-mail the current Epson data sheet revision for this model together with a quotation — just ask when you enquire. Every unit is supplied with a Singapore local warranty and a GST invoice.
Frequently Asked Questions — Epson EB-E12
Does the EB-E12 have a VGA input?
No. Epson's published connectivity for this model lists two HDMI Type A inputs and one USB Type B port only; D-Sub 15-pin analogue input is not fitted. If you still run VGA cabling or an older visualiser, the EB-E01 keeps a VGA input, or you can add an external VGA-to-HDMI converter.
Is XGA enough, or should I buy Full HD?
XGA 1024 x 768 in 4:3 suits documents, spreadsheets, worksheets and visualiser work, where the taller frame is an advantage and text is rendered one pixel to one pixel. If your content is mainly widescreen video, 16:9 slide decks or anything cinematic, step up to the EB-FH52 or EB-FH54 at native 1920 x 1080.
How big an image can it throw, and from how far?
At the wide end it covers 30 to 350 inches from 0.87 to 10.34 metres; at the tele end the range is 15 to 175 inches. The throw ratio is 1.44 to 2.88. There is no optical zoom — focus is manual and the 1.0 to 2.0 zoom is digital — so set image size by moving the projector rather than by zooming, to keep full resolution.
Does it have a built-in speaker?
Yes, a single 2 W monaural speaker. That is adequate for voice prompts or a short clip in a quiet tutorial room but not for a class of thirty or for anything with music. There is no audio output jack on this model, so room audio needs to come from your source device or a separate audio path rather than from the projector.
How long before I need to service it?
The 210 W UHE lamp is rated at 6,000 hours in normal mode and 12,000 hours in eco mode, and the air filter cycle is identical, so both consumables come due at the same time. Fan noise is 37 dB in normal mode and 28 dB in eco mode.
Can I switch it off at the wall?
Yes. The EB-E12 supports direct power on and off and uses Instant Off with no cool-down wait, so it can be wired into a room control system or a wall switch. Start-up to the Epson logo is under seven seconds with a 30-second warm-up to full brightness.
What do the letters in Epson's model codes mean?
EB is the business projector line. E marks the entry lamp series, W means WXGA widescreen, X means XGA, and FH means Full HD. An L before the number, as in EB-L200F, indicates a laser light source; an S in the suffix, as in EB-L200SW, indicates short throw; and the final letter gives the resolution.
What warranty and paperwork do I get from SourceIT?
Every unit is supplied by SourceIT with a three-year Singapore local warranty and a full GST invoice, so the projector can go straight onto your company's asset register and be serviced locally without shipping it overseas.
