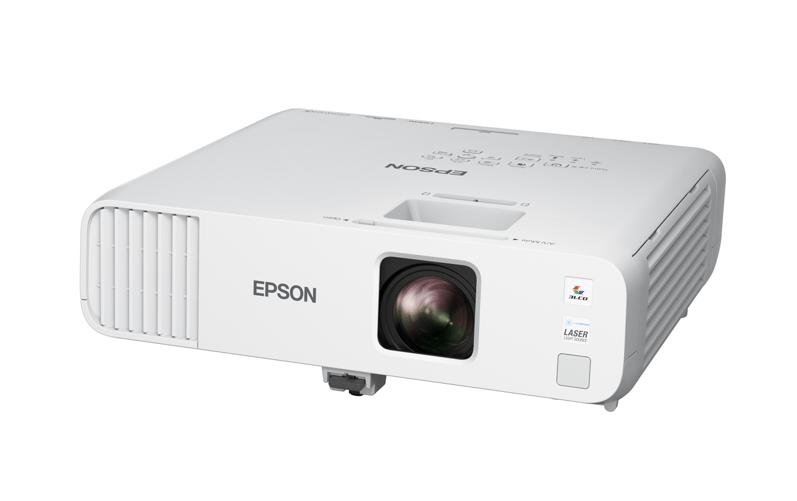

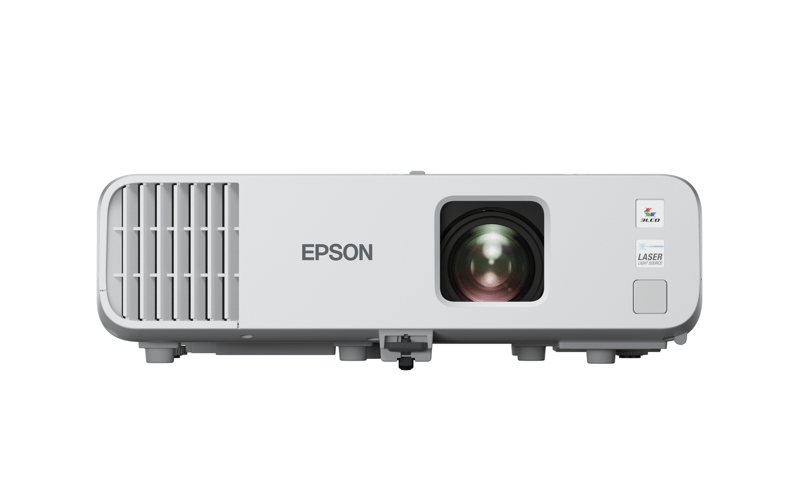

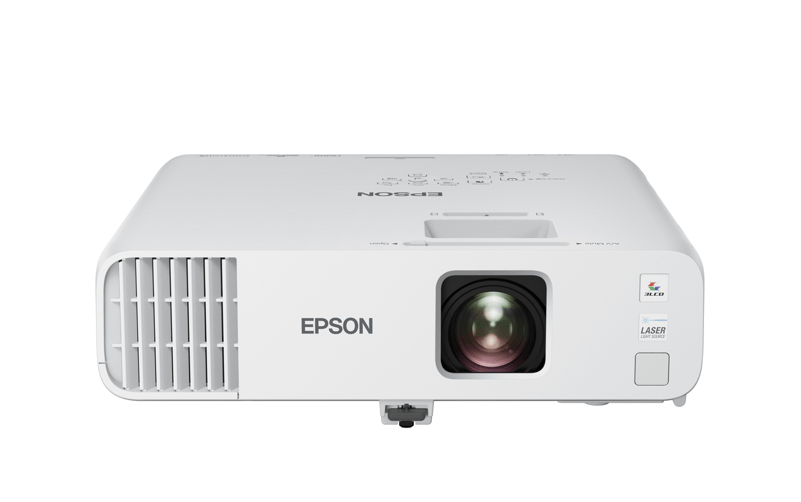

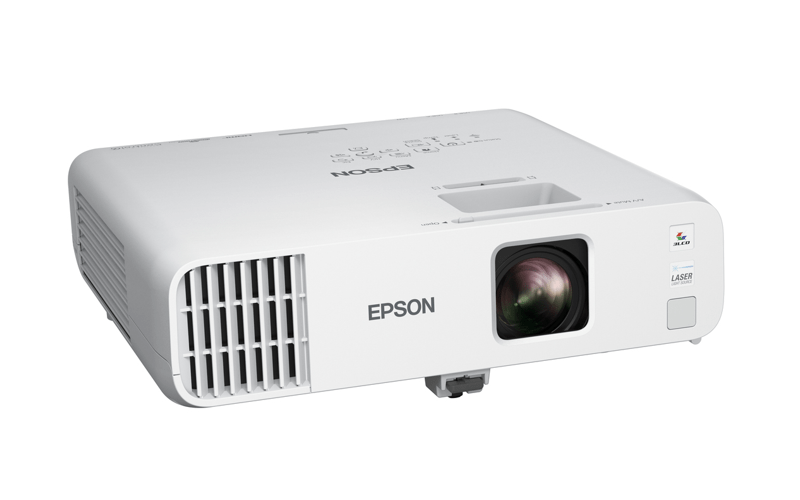

Epson EB-L260F Full HD Standard-Throw Laser Projector
PRODUCT DESCRIPTION
Epson EB-L260F Full HD Standard-Throw 3LCD Laser Projector with Built-in Wireless (V11HA69080) - Local Warranty
4,600 Lumens of Full HD Laser Brightness
The EB-L260F is the brightest model in this laser range, publishing 4,600 lumens of colour light output and 4,600 lumens of white light output from a 0.62-inch C2 Fine 3LCD panel at native 1080p, dropping to 3,200 lumens in economy mode. Because Epson's three-panel engine handles red, green and blue at once rather than sequencing a colour wheel, colour brightness equals white brightness — a brand palette or a photographic slide holds its saturation in a lit boardroom, lecture theatre or hotel function room.
A Scalable Display From 31 to 310 Inches
Epson quotes a flexible scalable display from 31 inches all the way up to 310 inches, so one model covers a huddle room and a function hall. Combined with 360-degree installation freedom, 16:6 ultra-widescreen support and a contrast ratio of 5,000,000:1, that makes the EB-L260F as useful for a permanent signage or feature-wall installation as it is for a conventional presentation screen. Deep blacks and defined shadow detail hold up even when the room lights stay on.
Wireless, Smart-Stick Ready and Built for Hybrid Meetings
Built-in wireless supports screen mirroring from laptops, tablets and phones without cabling, and the projector will auto power-on over HDMI for Microsoft Teams Rooms deployments — walk in, start the meeting, the screen comes up. A smart stick connects easily for streaming content, and HDMI, USB and LAN inputs cover wired sources. For a meeting room that turns over every half hour, removing the cable hunt is the feature people actually notice.
Fit and Forget: 20,000-Hour Laser, Edge Blending and Multi-Projection
The laser light source is rated at 20,000 hours of virtually maintenance-free operation, so there is no lamp to stock, change or budget for. Installation is deliberately straightforward: the projector is light and compact, supports 360-degree mounting without compromising image quality, offers HDMI output for daisy-chaining and supports edge blending plus multi-projection and signage functions so several units can build one continuous image across a long wall.
Epson EB-L260F Datasheet — Technical Specifications
General
| Product | Epson EB-L260F Full HD Standard-Throw 3LCD Laser Projector with Built-in Wireless |
| Part Number (SKU) | V11HA69080 |
| Projection Technology | 3LCD Technology, RGB liquid crystal shutter |
| Native Resolution | Full HD 1080p |
| LCD Panel | 0.62-inch with C2 Fine |
| Throw Type | Standard throw |
| Light Source | Laser |
| Light Source Life | Up to 20,000 hours |
| GTIN | 8715946715452 |
| Local Warranty (Singapore) | 3 years — supplied by SourceIT with a GST invoice |
Projection & Optics
| Colour Light Output | 4,600 lumens (3,200 lumens in economy), in accordance with IDMS15.4 |
| White Light Output | 4,600 lumens (3,200 lumens in economy), in accordance with ISO 21118:2020 |
| Contrast Ratio | 5,000,000:1 |
| Display Size | 31 inches to 310 inches |
| Ultra-Widescreen Support | 16:6 |
| Installation | 360-degree installation supported |
Light Source
| Type | Laser |
| Light Source Life | Up to 20,000 hours, virtually maintenance-free |
Connectivity
| Digital Input | HDMI |
| HDMI Output | Yes |
| USB | USB |
| Network I/O | LAN |
| Wireless | Built-in wireless; screen mirroring |
| Smart Stick | Easy smart stick connection |
| Auto Power-On | MTR auto power-on by HDMI |
Audio & Features
| Edge Blending | Yes |
| Multi-Projection and Signage Function | Yes |
Physical & Environmental
| Dimensions | 325 x 299 x 90 mm |
| Weight | 4.5 kg |
Specifications are taken from Epson's published product data for this model. Where Epson does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Mounting and orientation
The EB-L260F supports 360-degree installation without compromising display quality, so it can be ceiling-hung, table-placed, tilted or rotated for portrait signage work. At 325 x 299 x 90 mm and 4.5 kg it fits a standard universal projector bracket. 16:6 ultra-widescreen output is supported for letterbox and feature-wall applications.
What it connects to
HDMI, USB and LAN inputs cover laptops, mini-PCs, media players and control systems, and an HDMI output allows daisy-chaining to a second display or projector. A smart stick connects directly for streaming content, and MTR auto power-on over HDMI wakes the projector when a Microsoft Teams Room session starts.
Network, wireless and content management
Built-in wireless supports screen mirroring from laptops, tablets and phones, and a LAN port brings the unit onto a managed network. Multi-projection and signage functions plus edge blending allow two or more units to be aligned into a single continuous wide image, which is what makes this model suitable for permanent installations as well as meeting rooms.
Where it sits in the range
The EB-L260F is the Full HD standard-throw laser model in this generation. The short-throw equivalents are the EB-L210SF in Full HD and the EB-L210SW in WXGA. The preceding standard-throw generation is the EB-L200F in Full HD and the EB-L200W in WXGA.
Package Contents & Epson EB-L210 / EB-L260 Laser Range
In the box
- Main unit
- HDMI cable
- Power cable
- Remote control including batteries
- Quick start guide
Package contents follow Epson's product data for this model; items not listed by Epson are not claimed here.
Epson EB-L210 / EB-L260 laser range
| Model | Resolution & throw |
| EB-L210SF | Full HD 1920 x 1080, short throw, 4,000 lumens |
| EB-L210SW | WXGA 1280 x 800, short throw, 4,000 lumens |
| EB-L260F (this listing) | Full HD 1920 x 1080, standard throw, 4,600 lumens |
Datasheet & Downloads
- Epson — EB-L260F Projector product page and specifications
- Epson Singapore — EB-L260F support, drivers and manuals
SourceIT can e-mail the current Epson data sheet revision for this model together with a quotation — just ask when you enquire. Every unit is supplied with a Singapore local warranty and a GST invoice.
Frequently Asked Questions — Epson EB-L260F
Is the EB-L260F short throw or standard throw?
Standard throw. It needs conventional projection distance and covers a scalable display from 31 to 310 inches. If your room lacks the depth for that, the short-throw models in the same generation are the EB-L210SF in Full HD and the EB-L210SW in WXGA, both of which work from under a metre.
How does it compare with the EB-L200F?
The EB-L260F is the newer standard-throw Full HD laser model and is brighter at 4,600 lumens against the 4,500 of the EB-L200F, with a 5,000,000:1 contrast ratio against 2,500,000:1. It adds 360-degree installation, 16:6 ultra-widescreen, HDMI output, MTR auto power-on and smart stick support. The EB-L200F has the wider published port list including RS-232C and twin D-Sub inputs.
Do I ever need to replace a lamp?
No. This is a laser projector rated at up to 20,000 hours of virtually maintenance-free operation. There is no lamp to buy or stock, no lamp-change downtime, and brightness stays far more consistent over life than a UHE lamp manages.
Will it work with Microsoft Teams Rooms?
Yes. Epson lists MTR auto power-on by HDMI, meaning the projector wakes automatically when a Teams Rooms session starts sending signal, so nobody has to find a remote before a meeting. Combined with built-in wireless screen mirroring and easy smart stick connection, it suits a hybrid meeting room where people just walk in and start.
Can it be used for digital signage rather than presentations?
Yes. 360-degree installation, 16:6 ultra-widescreen support, a signage function and edge blending make it suitable for permanent installations — a feature wall in a lobby, a retail display, or a long blended image across several units. A 310-inch maximum display size gives plenty of scale.
Is 4,600 lumens enough for a bright room?
Yes for a boardroom, lecture theatre, classroom or hotel function room with normal ceiling lighting. Epson publishes 4,600 lumens for both colour and white light output, so colours do not dim against white content. Economy mode drops both to 3,200 lumens for darker rooms and quieter running.
Can I daisy-chain it to a second display?
Yes. An HDMI output is provided, so a source can be passed through to a second projector or display, and edge blending with multi-projection support lets several units be aligned into one continuous image.
What warranty and paperwork do I get from SourceIT?
Every unit is supplied by SourceIT with a three-year Singapore local warranty and a full GST invoice, so the projector can go straight onto your company's asset register and be serviced locally without shipping it overseas.
