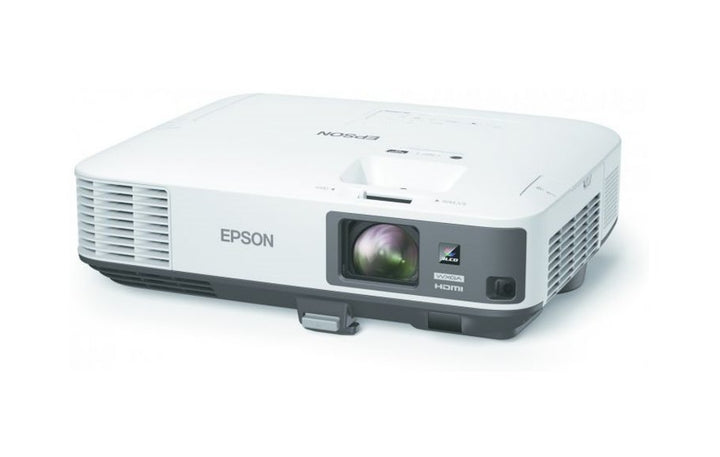

Epson EB-2165W Projector
PRODUCT DESCRIPTION
Epson EB-2165W WXGA 3LCD Projector (V11H817052) - 3 Years Singapore Local Warranty
5,500 Lumens of WXGA Widescreen for Large Rooms
The EB-2165W puts 5,500 lumens of white light output and 5,500 lumens of colour light output behind a native WXGA 1280 x 800 panel. The 16:10 shape suits widescreen decks and video, while the brightness is aimed at rooms that cannot be darkened: a lecture theatre with clerestory glazing, a training room lit for note-taking, or a conference hall where catering and circulation continue during a session. Contrast is rated at 15,000:1, so detail holds up rather than flattening once ambient light lands on the screen.
HDBaseT for Single-Cable Rack Integration
An HDBaseT input carries Full HD video, audio, Ethernet and serial control down a single Cat 5e or Cat 6 run from an equipment rack, which removes the need for separate video, control and network cabling to the ceiling position. For a fitted-out Singapore office floor or a campus lecture block where the rack sits in a comms room and the projector is 40 metres away above a raked floor, that single-cable approach is the difference between a clean install and a bundle of parallel runs through a congested ceiling void.
Wireless, Wi-Di and Miracast Included as Standard
Unlike the EB-2065 and EB-2155W below it, the EB-2165W includes wireless connectivity along with Wi-Di and Miracast certification rather than treating them as an optional module. A presenter can mirror a laptop or compatible device without a cable, and a visiting speaker can get onto the screen without an adapter being found. Combined with the wired RJ45 port and the HDBaseT input, that gives a room three independent routes to picture, which is useful redundancy when a session cannot be delayed.
1.6x Optical Zoom and 30 to 300 Inches of Reach
The 1 to 1.6 optical zoom covers 30 to 300 inches, needing 0.86 to 8.95 m at the wide end and 1.45 to 14.79 m at the tele end, with a throw ratio of 1.38 to 2.28 and an offset of 10:1. An 80-inch image sits between 2.36 and 3.92 m. That latitude lets the ceiling plate avoid beams, sprinklers and lighting tracks, and vertical and horizontal keystone correction of ±30 degrees plus Quick Corner square the picture from an off-axis mount.
Epson EB-2165W Datasheet — Technical Specifications
General
| Product | Epson EB-2165W WXGA 3LCD Projector |
| Part Number (SKU) | V11H817052 |
| Projector Type | 3LCD lamp installation projector |
| Native Resolution | WXGA (1280 x 800), 16:10 |
| Brightness | 5,500 lm white light output; 5,500 lm colour light output |
| GTIN | 8715946633768 |
| Local Warranty (Singapore) | Supplied by SourceIT with GST invoice |
Projection & Optics
| Projection System | Epson 3LCD, 3-chip technology |
| LCD Panel | 0.76-inch panel |
| Contrast Ratio | 15,000:1 |
| Zoom | 1 – 1.6 (optical) |
| Screen Size | 30” – 300” [0.86 – 8.95 m] (zoom: wide); 30” – 300” [1.45 – 14.79 m] (zoom: tele) |
| Projection Distance | 80” screen 2.36 – 3.92 m |
| Throw Ratio | 1.38 (zoom: wide), 2.28 (zoom: tele) |
| Lens | F-number 1.5 – 2.0; focal length 23 – 38.4 mm; manual focus |
| Offset | 10:1 |
| Keystone Correction | Vertical ±30°; horizontal ±30° |
Light Source
| Type | 300 W UHE lamp |
| Life (Normal / Eco) | 5,000 / 10,000 hours |
| Replacement Lamp | ELPLP95 |
Connectivity
| Digital Input | HDMI x 2 (1 x MHL) |
| HDBaseT | HDBaseT x 1 |
| Analogue Input | D-Sub 15-pin (RGB) x 2; RCA composite (yellow) x 1 |
| Output | D-Sub 15-pin x 1 (black moulding); stereo mini audio x 1 |
| Audio Input | RCA (red/white) x 1; stereo mini jack x 2 |
| Control I/O | USB 2.0 Type B x 1; RS-232C x 1 |
| USB | USB Type A x 1 (USB memory / Epson document camera); USB 2.0 Type B (three-in-one USB Display) |
| Network | RJ45 x 1 (100 Mbps) |
| Wireless Connectivity | Included |
| Wi-Di / Miracast | Included |
Audio & Features
| Internal Speaker | 16 W |
| Network Projection | Epson network projection, control and management; message broadcasting |
| Presentation Features | PC-free presentations, USB Plug 'n Play, AV Mute slide, split screen |
| Colour Modes | Dynamic, Presentation, Cinema, sRGB, Blackboard, DICOM SIM |
| Instant Off / Auto Power On / Direct Power On-Off | Yes |
| Security | Padlock and security cable hole; Kensington-style lock provision; wireless LAN unit lock; password protect function |
Physical & Environmental
| Dimensions (excluding feet, W x H x D) | 377 x 110 x 291 mm |
| Weight | Approx. 4.8 kg |
| Fan Noise (Normal / Eco) | 39 dB / 29 dB |
Power
| Power Consumption (Normal / Eco) | 450 W / 360 W |
Specifications are taken from Epson's published product data for this model. Where Epson does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Mounting and positioning
The EB-2000 series is built for permanent installation as much as for a trolley. The body measures 377 x 110 x 291 mm excluding feet, and Epson publishes ceiling pipe options ELPFP13 (668 – 918 mm) and ELPFP14 (918 – 1,168 mm) for dropping it below a slab. Vertical and horizontal keystone correction of ±30 degrees, automatic keystone correction and Quick Corner between them cover an off-axis mount, so the projector does not have to sit on the screen centre line in a room where services already occupy the ceiling.
What it connects to
Two HDMI inputs, one of them MHL-capable, sit alongside two D-Sub 15-pin computer inputs, a composite video input and a D-Sub monitor output. Audio arrives on an RCA pair and two stereo mini jacks with a stereo mini output for a room amplifier. A USB Type A port drives an Epson document camera or reads a memory stick for computer-free presenting, and the three-in-one USB Display connection sends picture, audio and control over a single USB cable from a laptop.
HDBaseT and control system integration
The HDBaseT input carries video, audio, Ethernet and serial control over one Cat 5e or Cat 6 run, which is the tidiest way to reach a ceiling position from a rack. RS-232C and a USB Type B control port are also provided. Epson's network projection and management tools, along with message broadcasting, run over the RJ45 connection so lamp hours and power state can be monitored centrally.
Wireless and screen mirroring
Wireless connectivity is included on this model, as are Wi-Di and Miracast certification, so no optional wireless unit is needed for cable-free presenting. That is the main practical difference from the EB-2155W and the EB-2065, where the wireless unit is an optional extra.
Consumables and security
The projector takes the ELPLP95 replacement lamp, rated at 5,000 hours in Normal mode and 10,000 hours in Eco. Physical security covers a padlock and security cable hole, a Kensington-style lock provision and a wireless LAN unit lock, with a password protect function covering power on, network access and the user logo.
Package Contents & Epson EB-2000 Series Range
In the box
- Projector main unit
- Remote control with batteries
- Power cable
- User documentation
Package contents follow Epson's product data for this model; items not listed by Epson are not claimed here.
Epson EB-2000 Series range
| Model | Resolution & light source |
| Epson EB-2065 | XGA (1024 x 768), 5,500 lm, lamp |
| Epson EB-2155W | WXGA (1280 x 800), 5,000 lm, lamp |
| EB-2165W (this listing) | WXGA (1280 x 800), 5,500 lm, lamp |
| Epson EB-2255U | WUXGA (1920 x 1200), 5,000 lm, lamp |
| Epson EB-2265U | WUXGA (1920 x 1200), 5,500 lm, lamp |
Datasheet & Downloads
Epson Singapore no longer lists a product page for this model. SourceIT can email the current data sheet revision, the user's guide and a formal quotation on request.
Frequently Asked Questions — Epson EB-2165W
What resolution and brightness does the EB-2165W have?
Native WXGA 1280 x 800 at 16:10, rated at 5,500 lumens white light output and 5,500 lumens colour light output, with a 15,000:1 contrast ratio.
Does it have HDBaseT?
Yes. It has one HDBaseT input, which carries Full HD video, audio, Ethernet and serial control over a single Cat 5e or Cat 6 cable from an equipment rack.
Is wireless presenting included or optional?
Included. Wireless connectivity, Wi-Di and Miracast are all standard on this model, unlike the EB-2065 and EB-2155W where the wireless unit is optional.
Which lamp does it take and how long does it last?
The ELPLP95, a 300 W UHE lamp, rated at 5,000 hours in Normal mode and 10,000 hours in Eco.
How far from the screen does it need to be?
The 1 to 1.6 optical zoom gives a throw ratio of 1.38 to 2.28. An 80-inch image sits between 2.36 and 3.92 m, and the projector covers 30 to 300 inches overall.
How does it compare with the EB-2265U?
Both are 5,500-lumen models sharing the chassis, lamp and HDBaseT input. The EB-2165W has a WXGA 1280 x 800 panel; the EB-2265U has a WUXGA 1920 x 1200 panel for more detail.
Can it be monitored and controlled from a facilities desk?
Yes. Epson's network projection, control and management tools run over the RJ45 port, with message broadcasting, and RS-232C is available for a control system.
What warranty and invoicing applies?
This unit carries local Singapore warranty, and SourceIT issues a GST invoice with every unit sold.
