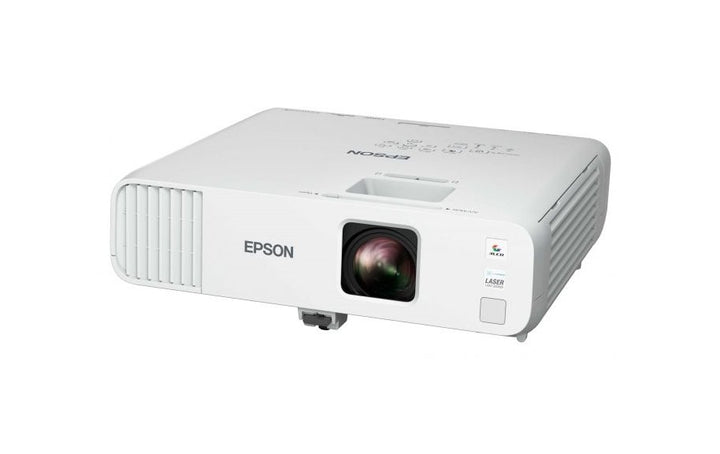

Epson EB-L200W Projector
PRODUCT DESCRIPTION
Epson EB-L200W WXGA Standard-Throw 3LCD Laser Projector with Built-in Wireless (V11H991052) - Local Warranty
4,200 Lumens of WXGA Laser Brightness for Classrooms and Conference Halls
The EB-L200W pairs a WXGA 1280 x 800 panel with 4,200 lumens of colour light output and 4,200 lumens of white light output, dropping to 2,940 lumens in economy mode. Epson's 3LCD engine splits light across three panels at once, so colour brightness matches white brightness and a chart or a logo does not fade against a white slide. The 16:10 widescreen frame suits modern laptop output natively, which means no letterboxing when a presenter plugs in and mirrors their screen.
Standard Throw With a 1.62x Optical Zoom and a 282-Inch Reach
A manual optical zoom of 1.0 to 1.62 and a throw ratio of 1.38 to 2.24 cover 29 to 282 inches from 85 to 851 centimetres, with a 60-inch image landing at 179 cm. The F1.51 to F1.99 lens runs 18.2 to 29.2 mm with manual focus. Vertical and horizontal keystone correction of plus or minus 30 degrees plus manual Quick Corner adjustment let you square a genuinely awkward install — a projector offset in two axes can still be brought back to a rectangle without moving the bracket.
Maintenance-Free Laser Operation Backed by a 20,000-Hour Filter Cycle
The laser diode light source removes lamp replacement from the running cost entirely, and the electrostatic air filter is rated at 20,000 hours, so the whole unit can be left alone for years at a time. For a school, a training provider or a facilities team looking after dozens of rooms, that is the single biggest saving this model offers over a lamp projector. Start-up is under eight seconds with a 30-second warm-up, quick start-up displays in under five seconds, and direct power on and off is supported.
Built-in Wireless With Enterprise Security
Wireless LAN is built in and runs IEEE 802.11a, b, g, n and ac across 2.4 and 5 GHz in both infrastructure and access point (Wi-Fi Direct) modes. Security covers WPA2 and WPA3-PSK as well as WPA2 and WPA3-EAP with PEAP, PEAP-TLS, EAP-TLS and EAP-FAST, which is the list a corporate or campus IT team will ask for before the device joins the staff network. Where the network is off limits, Wi-Fi Direct lets presenters connect straight to the projector.
Epson EB-L200W Datasheet — Technical Specifications
General
| Product | Epson EB-L200W WXGA Standard-Throw 3LCD Laser Projector |
| Part Number (SKU) | V11H991052 |
| Projection Technology | Epson 3LCD |
| Native Resolution | WXGA 1280 x 800 |
| LCD Panel | 0.59” C2Fine |
| Throw Type | Standard throw |
| Light Source | Laser diode |
| GTIN | 8715946672666 |
| Local Warranty (Singapore) | 3 years — supplied by SourceIT with a GST invoice |
Projection & Optics
| Colour Light Output | 4,200 lm |
| White Light Output (Normal / Eco) | 4,200 lm / 2,940 lm |
| Contrast Ratio | 2,500,000:1 |
| Projection Lens | Optical zoom (manual) / focus (manual) |
| Zoom Ratio | 1.0 – 1.62 (optical zoom) |
| F-Number | 1.51 – 1.99 |
| Focal Length | 18.2 – 29.2 mm |
| Throw Ratio Range | 1.38 – 2.24 |
| Screen Size (Zoom Wide) | 29” to 282” screen (85 – 851 cm) |
| Standard Size | 60” screen at 179 cm |
| Keystone Correction | Vertical / Horizontal: ±30° / ±30° (zoom centre) |
| Quick Corner | Yes (manual) |
Light Source
| Type | Laser diode |
| Light Source Life | Up to 20,000 hours |
| Air Filter Type | Electrostatic filter |
| Air Filter Maintenance Cycle | 20,000 hours |
Connectivity
| Wireless LAN | Built-in |
| Wireless Standards | IEEE 802.11b (2.4 GHz) 11 Mbps; 802.11g (2.4 GHz) 54 Mbps; 802.11n (2.4 GHz) 72.2 Mbps; 802.11a (5 GHz) 54 Mbps; 802.11n (5 GHz) 150 Mbps; 802.11ac (5 GHz) 325 Mbps |
| Wireless Modes | Infrastructure, Access Point (Wi-Fi Direct) |
| Wireless Security | Infrastructure: Open, WPA2 / WPA3-PSK, WPA2 / WPA3-EAP (PEAP, PEAP-TLS, EAP-TLS, EAP-FAST); Access Point (Wi-Fi Direct): WPA2-PSK (AES) |
| Wired and Other Inputs | HDMI, USB, VGA |
Audio & Features
| Built-in Speaker | 16 W |
| Start-Up Period | Less than 8 seconds; warm-up period 30 seconds |
| Quick Start-Up | Less than 5 seconds (display) |
| Direct Power On / Off | Yes |
Physical & Environmental
| Dimensions, Open (D x W x H) | 299 x 325 x 90 mm |
| Weight | Approx. 4.1 kg |
| Operating Altitude | Over 1,500 m with High Altitude Mode: 0 – 3,048 m |
Power
| Direct Power On / Off | Yes |
Specifications are taken from Epson's published product data for this model. Where Epson does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Mounting and orientation
At 299 x 325 x 90 mm and approximately 4.1 kg, the EB-L200W fits a standard universal projector ceiling bracket or a tabletop. A 1.38 to 2.24 throw ratio with 1.62x optical zoom usually lets it reuse an existing ceiling position. Vertical and horizontal keystone correction of plus or minus 30 degrees plus manual Quick Corner handle an install that is off centre in both axes.
What it connects to
HDMI, VGA and USB connections cover laptops, mini-PCs, media players and older desktops and visualisers. Because the exact port count varies by regional SKU, ask SourceIT to confirm the connector list against the current Epson data sheet revision for V11H991052 with your quotation.
Network, wireless and content management
Wireless LAN is built in, running IEEE 802.11a/b/g/n/ac across 2.4 and 5 GHz in both infrastructure and access point (Wi-Fi Direct) modes. Enterprise security covers WPA2 and WPA3-PSK and WPA2 and WPA3-EAP with PEAP, PEAP-TLS, EAP-TLS and EAP-FAST, so the projector can be onboarded onto a managed corporate or campus network.
Where it sits in the range
The EB-L200W is the WXGA standard-throw model. Its Full HD standard-throw sibling is the EB-L200F; the short-throw models are the EB-L200SW in WXGA and the EB-L200SX in XGA. Do not confuse the L200W with the L200SW — the S is what makes it short throw.
Package Contents & Epson EB-L200 Series Range
In the box
- Epson EB-L200W projector
- Remote control with batteries
- Power cable
- Quick start guide
Package contents follow Epson's product data for this model; items not listed by Epson are not claimed here.
Epson EB-L200 series range
| Model | Resolution & throw |
| EB-L200F | Full HD 1920 x 1080, standard throw, 4,500 lumens |
| EB-L200W (this listing) | WXGA 1280 x 800, standard throw, 4,200 lumens |
| EB-L200SW | WXGA 1280 x 800, short throw, 3,800 lumens |
| EB-L200SX | XGA 1024 x 768, short throw, 3,600 lumens |
Datasheet & Downloads
- Epson — EB-L200W WXGA Standard-Throw Laser Projector with Built-in Wireless
- Epson Singapore — EB-L200W support, drivers and manuals
SourceIT can e-mail the current Epson data sheet revision for this model together with a quotation — just ask when you enquire. Every unit is supplied with a Singapore local warranty and a GST invoice.
Frequently Asked Questions — Epson EB-L200W
The EB-L200 codes look almost identical — which one am I actually buying?
Read the suffix. S means short throw, and the final letter is the resolution: F is Full HD 1920 x 1080, W is WXGA 1280 x 800 and X is XGA 1024 x 768. So EB-L200F is Full HD standard throw, EB-L200W is WXGA standard throw, EB-L200SW is WXGA short throw and EB-L200SX is XGA short throw. A standard-throw unit sits several metres back; a short-throw unit sits under a metre from the wall.
What is the difference between the EB-L200W and the EB-L200SW?
The S. The EB-L200W is a standard-throw projector with a 1.38 to 2.24 throw ratio — it sits several metres from the screen. The EB-L200SW is short throw with a 0.48 to 0.65 throw ratio, sitting well under a metre from the wall. Both are WXGA 1280 x 800. The standard-throw W is brighter at 4,200 lumens against 3,800 and reaches a much larger image; the short-throw SW is the one to buy when the room simply has no depth.
And the difference from the EB-L200F?
Resolution and brightness. The EB-L200F is Full HD 1920 x 1080 at 4,500 lumens; the EB-L200W is WXGA 1280 x 800 at 4,200 lumens. Both are standard throw in the same chassis. If your content includes video, detailed spreadsheets or 16:9 decks, the F is worth the step up; for general presentation work WXGA is usually enough.
Does it need a lamp change?
No. It uses a laser diode light source rated at up to 20,000 hours, and the electrostatic air filter is on a 20,000-hour maintenance cycle, so there are no routine consumables to budget for over a typical deployment life.
How large an image will it produce and from what distance?
29 to 282 inches, from 85 to 851 centimetres, with a 60-inch image at 179 cm. The throw ratio is 1.38 to 2.24 and the optical zoom is 1.0 to 1.62. For a 100-inch 16:10 image (about 2.15 m wide) expect roughly 3.0 to 4.8 metres depending on zoom setting.
Will our IT team approve it on the corporate Wi-Fi?
It supports WPA2 and WPA3-PSK plus WPA2 and WPA3-EAP with PEAP, PEAP-TLS, EAP-TLS and EAP-FAST, which covers most enterprise 802.1X setups. If network access is not granted, access point mode (Wi-Fi Direct) with WPA2-PSK (AES) lets presenters connect directly to the projector instead.
How quickly does it come on?
Start-up is under eight seconds with a 30-second warm-up to full brightness, and quick start-up puts an image on screen in under five seconds. Direct power on and off means it can be wired to a wall switch or room controller.
Can it handle an install where it is offset from the screen?
Yes. Vertical and horizontal keystone correction of plus or minus 30 degrees at the zoom centre position, combined with manual Quick Corner adjustment of each image corner independently, will square up most off-axis mounting positions without relocating the bracket.
What warranty and paperwork do I get from SourceIT?
Every unit is supplied by SourceIT with a three-year Singapore local warranty and a full GST invoice, so the projector can go straight onto your company's asset register and be serviced locally without shipping it overseas.
