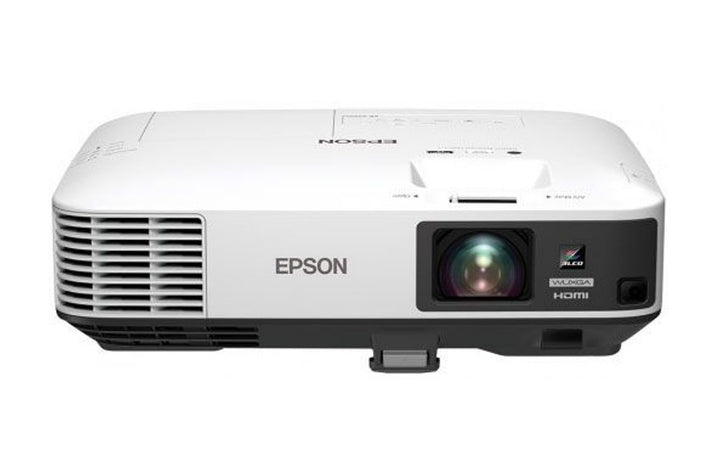

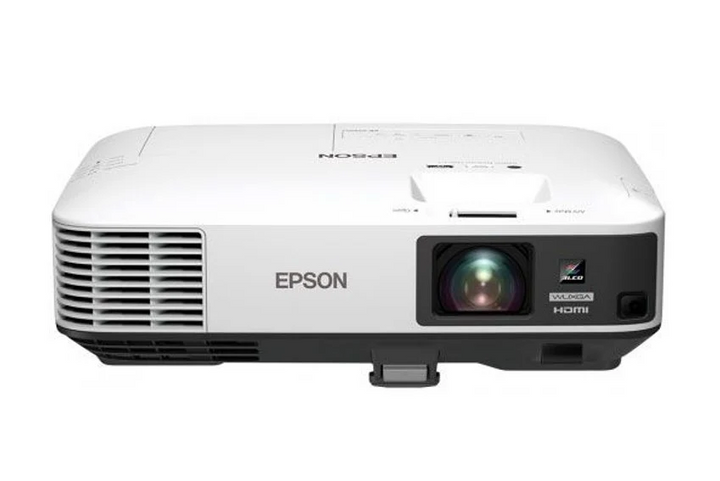

Epson EB-2265U WUXGA 3LCD Projector
PRODUCT DESCRIPTION
Epson EB-2265U WUXGA 3LCD Projector (V11H814052) - 3 Years Singapore Local Warranty
WUXGA 1920 x 1200 at 5,500 Lumens
The EB-2265U is the top of the EB-2000 family: a native WUXGA 1920 x 1200 panel on a 0.76-inch 3LCD chip, rated at 5,500 lumens white light output and 5,500 lumens colour light output with a 15,000:1 contrast ratio. That pairing of maximum resolution and maximum brightness in the range suits the rooms that have to do both jobs at once: a large, lit boardroom where the material on screen is a drawing or a model rather than a headline, and where the audience at the back still needs to read the annotations.
HDBaseT Plus Wireless and Miracast Included
An HDBaseT input carries Full HD video, audio, Ethernet and serial control from an equipment rack over a single Cat 5e or Cat 6 cable, while wireless connectivity and Wi-Di/Miracast certification are included as standard rather than as an optional module. That gives a room three independent paths to picture: structured cabling from the rack, the wired RJ45 network, and wireless mirroring for a visiting presenter. In a building where a delayed start costs real money, that redundancy is worth specifying.
50 to 300 Inches With 1.6x Optical Zoom and 10:1 Offset
The 1 to 1.6 optical zoom covers 50 to 300 inches, needing 1.46 to 8.95 m at the wide end and 2.43 to 14.79 m at the tele end, with a throw ratio of 1.38 to 2.28 and a 10:1 offset. An 80-inch image sits between 2.36 and 3.92 m. The 10:1 offset means the projector mounts well above the top of the image, which keeps it clear of sightlines in a flat-floor room. Keystone correction of ±30 degrees in both axes covers what the optics cannot.
Built for a Managed Estate
Epson's network projection, control and management tools run over the RJ45 port along with message broadcasting, so lamp hours, power state and input selection can be seen from a facilities desk rather than by walking the building. Security covers a padlock and cable hole, a Kensington-style lock provision, a wireless LAN unit lock and password protection for power on, network and the user logo. The DICOM SIM colour mode is included alongside the usual presentation and sRGB modes for medical teaching use.
Epson EB-2265U Datasheet — Technical Specifications
General
| Product | Epson EB-2265U WUXGA 3LCD Projector |
| Part Number (SKU) | V11H814052 |
| Projector Type | 3LCD lamp installation projector |
| Native Resolution | WUXGA (1920 x 1200), 16:10 |
| Brightness | 5,500 lm white light output; 5,500 lm colour light output |
| GTIN | 8715946678767 |
| Local Warranty (Singapore) | Supplied by SourceIT with GST invoice |
Projection & Optics
| Projection System | Epson 3LCD, 3-chip technology |
| LCD Panel | 0.76-inch panel |
| Contrast Ratio | 15,000:1 |
| Zoom | 1 – 1.6 (optical) |
| Screen Size | 50” – 300” [1.46 – 8.95 m] (zoom: wide); 50” – 300” [2.43 – 14.79 m] (zoom: tele) |
| Projection Distance | 80” screen 2.36 – 3.92 m |
| Throw Ratio | 1.38 (zoom: wide), 2.28 (zoom: tele) |
| Lens | F-number 1.5 – 2.0; focal length 23 – 38.4 mm; manual focus |
| Offset | 10:1 |
| Keystone Correction | Vertical ±30°; horizontal ±30° |
Light Source
| Type | 300 W UHE lamp |
| Life (Normal / Eco) | 5,000 / 10,000 hours |
Connectivity
| Digital Input | HDMI x 2 (1 x MHL) |
| HDBaseT | HDBaseT x 1 |
| Analogue Input | D-Sub 15-pin (RGB) x 2; RCA composite (yellow) x 1 |
| Output | D-Sub 15-pin x 1 (black moulding); stereo mini audio x 1 |
| Audio Input | RCA (red/white) x 1; stereo mini jack x 2 |
| Control I/O | USB 2.0 Type B x 1; RS-232C x 1 |
| USB | USB Type A x 1 (USB memory / Epson document camera); USB 2.0 Type B (three-in-one USB Display) |
| Network | RJ45 x 1 (100 Mbps) |
| Wireless Connectivity | Included |
| Wi-Di / Miracast | Included |
Audio & Features
| Internal Speaker | 16 W |
| Network Projection | Epson network projection, control and management; message broadcasting |
| Presentation Features | PC-free presentations, USB Plug 'n Play, AV Mute slide, split screen |
| Colour Modes | Dynamic, Presentation, Cinema, sRGB, Blackboard, DICOM SIM |
| Instant Off / Auto Power On / Direct Power On-Off | Yes |
| Security | Padlock and security cable hole; Kensington-style lock provision; wireless LAN unit lock; password protect function |
Physical & Environmental
| Dimensions (excluding feet, W x H x D) | 377 x 110 x 291 mm |
| Weight | Approx. 4.9 kg |
| Fan Noise (Normal / Eco) | 39 dB / 29 dB |
Power
| Power Consumption (Normal / Eco) | 450 W / 360 W |
| Power Consumption (Standby) | 0.5 W (communication off) |
Specifications are taken from Epson's published product data for this model. Where Epson does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Mounting and positioning
The EB-2000 series is built for permanent installation as much as for a trolley. The body measures 377 x 110 x 291 mm excluding feet, and Epson publishes ceiling pipe options ELPFP13 (668 – 918 mm) and ELPFP14 (918 – 1,168 mm) for dropping it below a slab. Vertical and horizontal keystone correction of ±30 degrees, automatic keystone correction and Quick Corner between them cover an off-axis mount, so the projector does not have to sit on the screen centre line in a room where services already occupy the ceiling.
What it connects to
Two HDMI inputs, one MHL-capable, sit alongside two D-Sub 15-pin computer inputs, composite video and a D-Sub monitor output. Audio arrives on an RCA pair and two stereo mini jacks with a stereo mini output for a room amplifier. A USB Type A port drives an Epson document camera or reads a memory stick for computer-free presenting, and the three-in-one USB Display connection carries picture, audio and control from a laptop over one USB cable.
HDBaseT and control system integration
The HDBaseT input carries video, audio, Ethernet and serial control over a single Cat 5e or Cat 6 run from a rack, which is normally the cleanest route to a ceiling position on a fitted floor. RS-232C and a USB Type B control port are provided as well, and Epson's network projection, control, management and message broadcasting tools run over the RJ45 port.
Wireless and screen mirroring
Wireless connectivity is included on this model together with Wi-Di and Miracast certification, so no optional wireless unit is required. That is the practical difference from the EB-2255U beneath it, where the wireless radio is an optional module.
Consumables and security
The lamp is a 300 W UHE type rated at 5,000 hours in Normal mode and 10,000 hours in Eco. Physical security covers a padlock and security cable hole, a Kensington-style lock provision and a wireless LAN unit lock, with password protection over power on, network access and the user logo. Epson lists the ELPFP13 and ELPFP14 ceiling pipes for this chassis.
Package Contents & Epson EB-2000 Series Range
In the box
- Projector main unit
- Remote control with batteries
- Power cable
- User documentation
Package contents follow Epson's product data for this model; items not listed by Epson are not claimed here.
Epson EB-2000 Series range
| Model | Resolution & light source |
| Epson EB-2065 | XGA (1024 x 768), 5,500 lm, lamp |
| Epson EB-2155W | WXGA (1280 x 800), 5,000 lm, lamp |
| Epson EB-2165W | WXGA (1280 x 800), 5,500 lm, lamp |
| Epson EB-2255U | WUXGA (1920 x 1200), 5,000 lm, lamp |
| EB-2265U (this listing) | WUXGA (1920 x 1200), 5,500 lm, lamp |
Datasheet & Downloads
Epson Singapore no longer lists a product page for this model. SourceIT can email the current data sheet revision, the user's guide and a formal quotation on request.
Frequently Asked Questions — Epson EB-2265U
What is the correct part number for this projector?
The Epson part number for the EB-2265U is V11H814052. It is the WUXGA 5,500-lumen model at the top of the EB-2000 range.
What resolution and brightness does it have?
Native WUXGA 1920 x 1200 at 16:10, rated at 5,500 lumens white light output and 5,500 lumens colour light output, with a 15,000:1 contrast ratio.
Does it include HDBaseT and wireless?
Yes to both. It has one HDBaseT input, and wireless connectivity with Wi-Di and Miracast is included as standard rather than as an optional module.
How long does the lamp last?
The 300 W UHE lamp is rated at 5,000 hours in Normal mode and 10,000 hours in Eco mode.
How far from the screen does it mount?
The 1 to 1.6 optical zoom gives a throw ratio of 1.38 to 2.28 with a 10:1 offset. An 80-inch image sits between 2.36 and 3.92 m, and the projector covers 50 to 300 inches.
What does the 'U' suffix mean in Epson's naming?
In this range the suffix indicates panel resolution: no suffix for XGA on the EB-2065, 'W' for WXGA on the EB-2155W and EB-2165W, and 'U' for WUXGA on the EB-2255U and EB-2265U.
Is there a colour mode for medical images?
A DICOM SIM colour mode is included alongside Dynamic, Presentation, Cinema, sRGB and Blackboard. It is a simulation mode intended for teaching, not for diagnostic reporting.
What warranty and invoicing applies?
This unit carries local Singapore warranty, and SourceIT issues a GST invoice with every unit sold.
