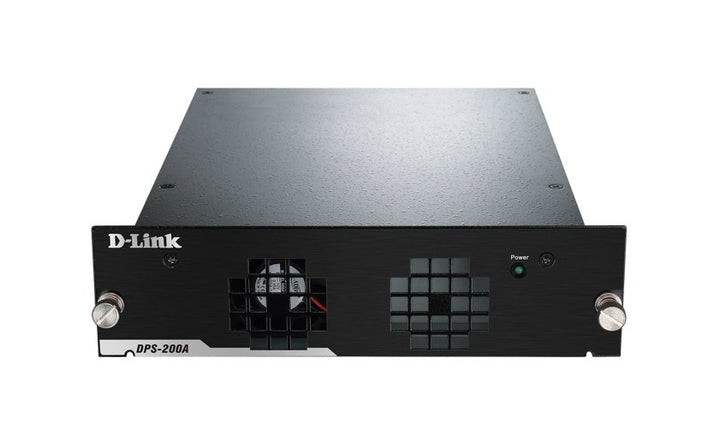

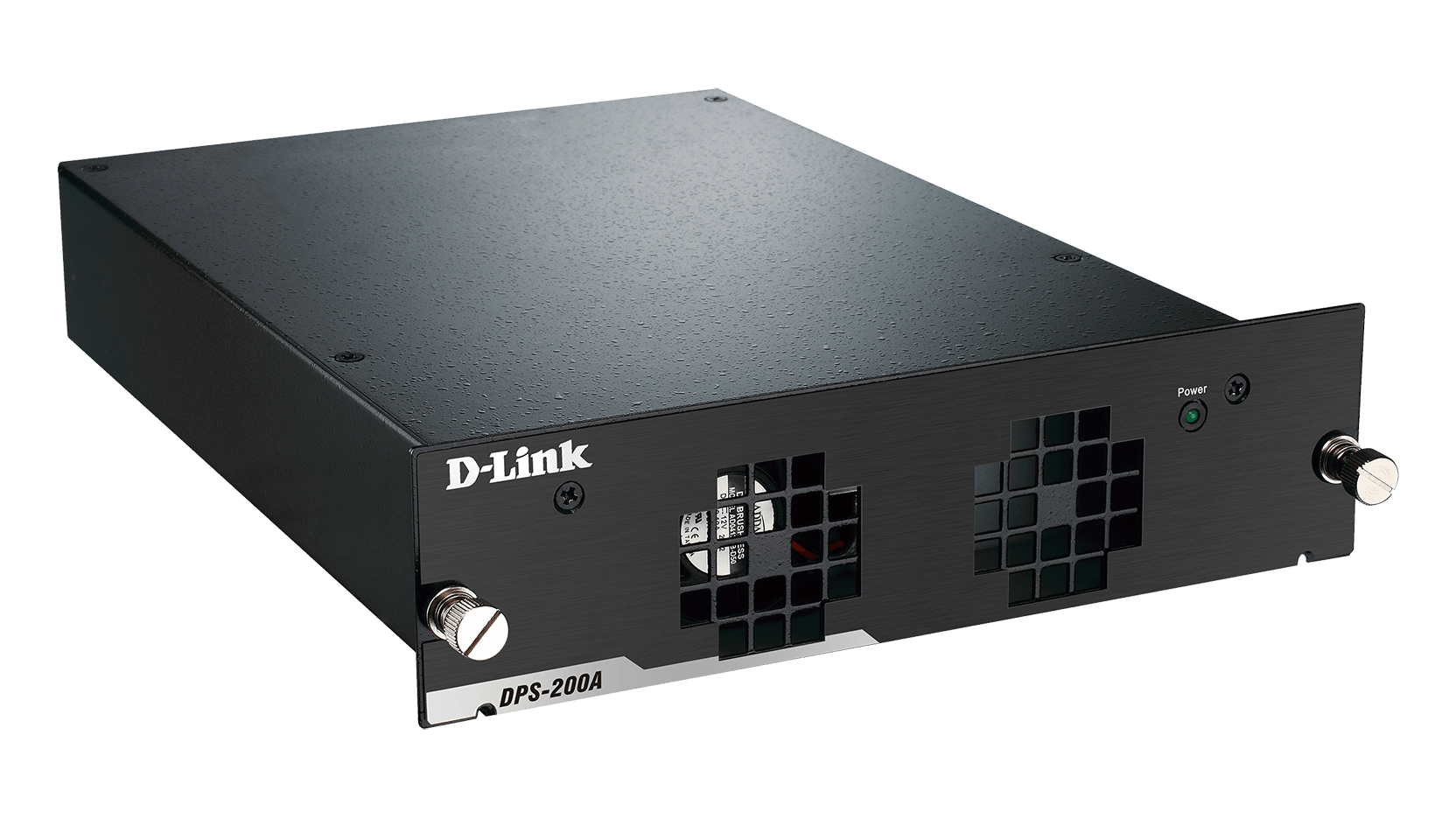

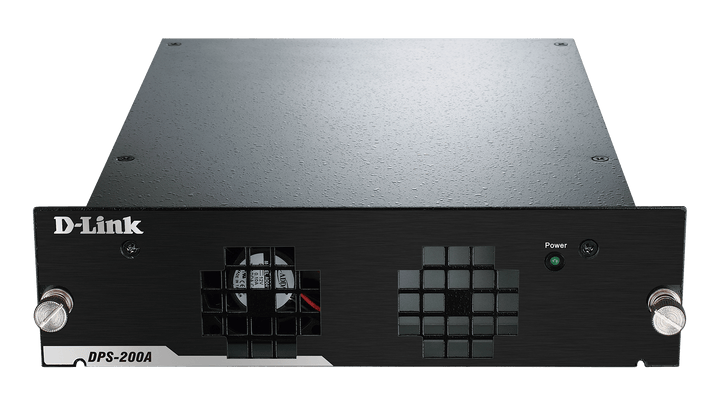

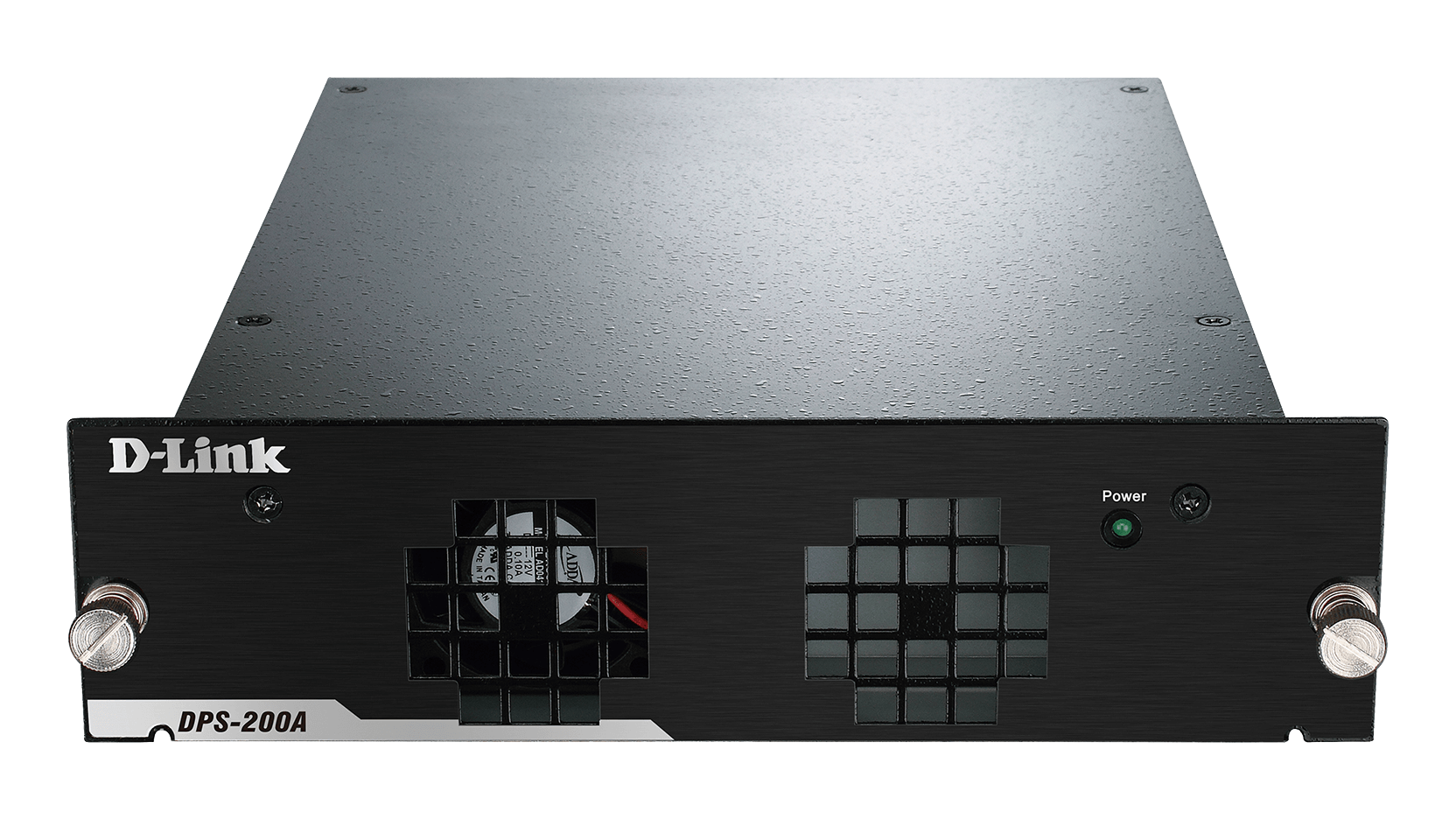

D-Link DPS-200A 60W Redundant Power Supply
PRODUCT DESCRIPTION
D-Link DPS-200A 60W Modular Redundant Power Supply (DPS-200A) - 1 Year Local Warranty
Backup Power for D-Link Managed Switches
The D-Link DPS-200A is a 60-watt modular redundant power supply (RPS) for D-Link managed switches. Connected to a supported switch, it takes over if the switch's internal power supply fails, keeping the network running.
Supported Switches
D-Link lists the DGS-3120-24TC, DGS-3120-24SC and DWS-3160-24TC as compatible, and the DGS-3000-10TC when used with the DPS-CB150-2PS adapter cable.

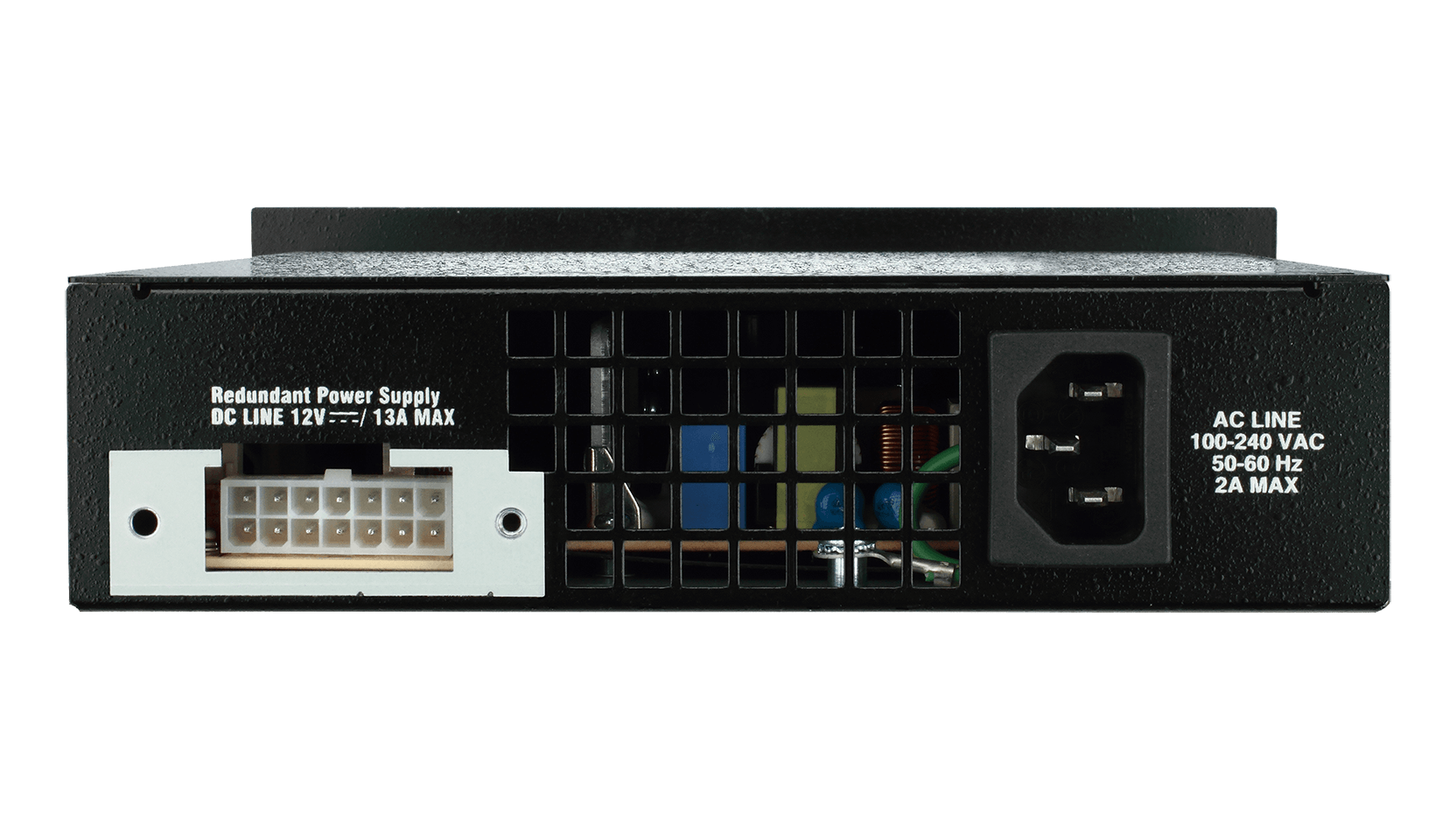

Wide-Range AC Input
The unit accepts 90 to 264 V AC at 47 to 63 Hz with 75% efficiency, and D-Link rates it at an MTBF of 400,000 hours.
Not sure which RPS your switch needs? Email sales@sourceit.com.sg with your switch model and we will confirm the right unit and cable.
D-Link DPS-200A Datasheet — Technical Specifications
General
| Product Name | D-Link DPS-200A Modular Redundant Power Supply |
| Part Number | DPS-200A |
| Output Power | 60 W |
| Local Warranty (Singapore) | 1 year, supplied by SourceIT with a GST invoice |
Electrical
| Input Voltage | 90 to 264 V AC |
| Input Frequency | 47 to 63 Hz |
| Max Input Current | 1 A at 240 V AC |
| Max Inrush Current | 60 A at 230 V AC |
| Efficiency | 75% |
Physical & Environmental
| Dimensions | 172 x 257 x 43 mm |
| Panel Size | 196 x 52 mm |
| Weight | 1.51 kg |
| Operating Temperature | 0 to 50 °C |
| Storage Temperature | -45 to 85 °C |
| Operating Humidity | 10 to 90% RH |
| Storage Humidity | 10 to 95% RH |
| MTBF | 400,000 hours |
Compatibility & Software Support
Compatible Switches (per D-Link)
DGS-3120-24TC, DGS-3120-24SC, DWS-3160-24TC; DGS-3000-10TC with the DPS-CB150-2PS adapter.
Installation
D-Link's DPS series datasheet describes the DPS-200A/500A modules as stand-alone units or mountable in a 19-inch multi-slot chassis. Ask us before ordering a DPS-800 chassis for this module.
Package Contents & DPS Redundant Power Supply Ordering Information
Datasheet & Downloads
| D-Link datasheet | DPS Series Datasheet (PDF) |
| D-Link product page | DPS-200A on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DPS-200A.
Frequently Asked Questions — D-Link DPS-200A
Which switches does it support?
D-Link lists the DGS-3120-24TC, DGS-3120-24SC, DWS-3160-24TC, and the DGS-3000-10TC with the DPS-CB150-2PS adapter.
Is it suitable for PoE switches?
No. At 60 W it backs up switch system power; D-Link's DPS-700 is the RPS for its PoE switches.
Is the DPS-200A still current?
dlink.com lists the DPS-200A as End of Life (phased out 30/09/2019). Please confirm availability with us before ordering.
What warranty do I get?
1 year local warranty in Singapore, supplied by SourceIT with a GST invoice.
