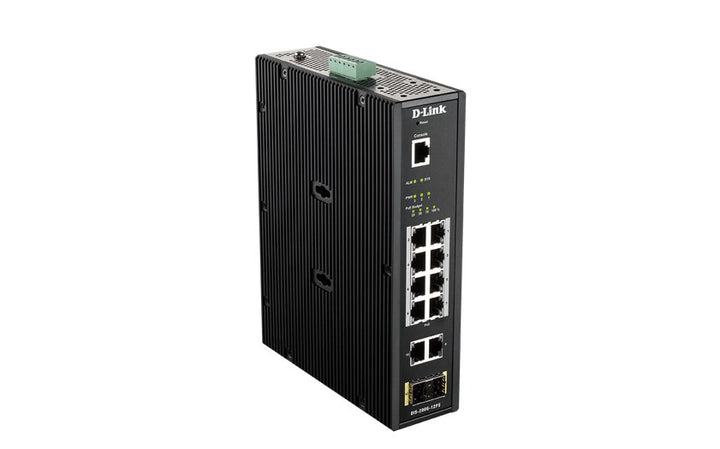

D-Link DIS-200G-12PSW Industrial Gigabit Smart Managed PoE Switch, Wide Temp
PRODUCT DESCRIPTION
D-Link DIS-200G-12PSW 12-Port Gigabit Smart Managed Industrial PoE Switch, Wide Temp, 240 W PoE Budget (DIS-200G-12PSW) - 5 Years Local Warranty
Managed PoE+ for Harsh Environments
The D-Link DIS-200G-12PSW is an industrial smart managed switch with 8 x 10/100/1000BASE-T PoE ports, 2 x 10/100/1000BASE-T ports, 2 x SFP ports and an RJ-45 console port. The PoE ports support IEEE 802.3af/at at up to 30 W per port with a 240 W total budget for IP cameras, access points and field devices.
Wide-Temperature, Fanless Design
An IP30-rated fanless metal casing operates from -40 to 75 °C and is tested for shock (IEC 60068-2-27), free fall (IEC 60068-2-32) and vibration (IEC 60068-2-6). It mounts on a DIN rail or wall, or in a 19-inch rack with the optional rack kit.
Resilient Networking
G.8032 ERPS ring, STP/RSTP/MSTP and 802.3ad link aggregation keep links up, with 6 kV surge protection on the Ethernet ports and dual power inputs for redundancy.
Easy Management
Manage it through a web UI (IPv4/IPv6), D-Link Network Assistant, CLI or SNMP v1/v2c/v3, with Auto-Surveillance VLAN 2.0, cable diagnostics and SFP digital diagnostics monitoring.
Need help choosing? Email sales@sourceit.com.sg with your device count, PoE loads and power source and we will size the switch and power supply for you.
D-Link DIS-200G-12PSW Datasheet — Technical Specifications
General
| Product Name | D-Link DIS-200G-12PSW 12-Port Gigabit Smart Managed Industrial PoE Switch, Wide Temp |
| Part Number | DIS-200G-12PSW |
| Series | DIS-200G Industrial Gigabit Smart Managed Switches (hardware A1) |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces
| PoE Ports | 8 x 10/100/1000BASE-T |
| Copper Ports | 2 x 10/100/1000BASE-T |
| SFP Ports | 2 x SFP |
| Console | 1 x RJ-45 |
PoE
| PoE Standard | IEEE 802.3af / 802.3at |
| Per-Port Power | Up to 30 W |
| PoE Budget | Max. 240 W |
Performance
| Switching Capacity | 24 Gbps |
| Max. Forwarding Rate | 17.85 Mpps |
| MAC Address Table | Up to 8K entries |
| Transmission Method | Store-and-forward |
| Jumbo Frames | Up to 9600 bytes |
Power
| Input | 48–54 VDC terminal block (dual input) or 54 VDC 4-pin DIN (single input) |
| Max. Power Consumption | 260 W (PoE on) |
| Standby Power | 7.02 W |
| Heat Dissipation | 887.16 BTU/hr (PoE on) |
| Surge Protection | 6 kV on Ethernet ports |
Physical & Environmental
| Dimensions | 210 x 171.2 x 53 mm |
| Weight | 1.76 kg |
| Enclosure | IP30-rated metal casing, fanless |
| Mounting | DIN rail / wall / rack (with optional kit) |
| Operating Temperature | -40 to 75 °C |
| Storage Temperature | -40 to 85 °C |
| Humidity | 0% to 95% RH, non-condensing |
| MTBF | 156,452 hours |
Certifications
| Safety | UL 60950-1 |
| EMC / EMI | CE, FCC, BSMI; CISPR 22, FCC Part 15B Class A |
| EMS | EN 61000-4-2 / -4-3 / -4-4 / -4-5 / -4-6 / -4-8 |
| Mechanical | IEC 60068-2-27 shock, IEC 60068-2-32 free fall, IEC 60068-2-6 vibration |
Compatibility & Software Support
Management
Web UI (IPv4/IPv6), D-Link Network Assistant (DNA), industry-standard CLI, SNMP v1/v2c/v3 with traps, Telnet server, SNTP, DHCP client, TFTP client, system log, D-Link Discovery Protocol and dual firmware images.
Layer 2 & Security Features
IEEE 802.1Q VLANs (128 static groups, 4094 VIDs), Auto-Surveillance VLAN 2.0, voice and asymmetric VLAN, GVRP; STP/RSTP/MSTP; G.8032 ERPSv1 single ring; 802.3ad link aggregation (6 groups, 8 ports each); IGMP/MLD snooping (256 groups); port mirroring; loopback detection; 802.1p QoS with 4 queues, SPQ/WRR and bandwidth control; D-Link Safeguard, traffic segmentation, storm control, SSH/SSL, port security, DoS prevention, web-based access control and RADIUS; cable diagnostics, SFP DDM and LLDP; 802.3az EEE.
Optional Accessories (per D-Link)
DIS-PWR180AC/M 180 W, 100–240 VAC in / 54 VDC out power adapter; DIS-200G-RPK180 rack kit with 180 W power supply; DIS-RK200G 19-inch rack kit; industrial SFP modules such as DIS-S301SX and DIS-S310LX.
Package Contents & DIS-200G Ordering Information
DIS-200G Models
| Model | Ports | PoE / Temp |
| DIS-200G-12PS | 8 x GE PoE + 2 x GE + 2 x SFP | 240 W / -40 to 65 °C |
| DIS-200G-12PSW (this listing) | 8 x GE PoE + 2 x GE + 2 x SFP | 240 W / -40 to 75 °C |
| DIS-200G-12SW | 10 x GE + 2 x SFP | — / -40 to 75 °C |
Package contents are not listed in D-Link's datasheet — ask us to confirm. Power supply, rack kit and SFP modules are sold separately.
Datasheet & Downloads
| D-Link datasheet | DIS-200G Series Datasheet (PDF) |
| D-Link product page | DIS-200G-12PSW on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DIS-200G-12PSW.
Frequently Asked Questions — D-Link DIS-200G-12PSW
How much PoE power does it provide?
Up to 30 W per port on 8 ports (IEEE 802.3af/at), 240 W in total.
What is the difference from the DIS-200G-12PS?
The W model is rated for -40 to 75 °C operation; the DIS-200G-12PS is rated -40 to 65 °C.
Can it run from AC mains?
It takes DC input. D-Link offers the DIS-PWR180AC/M 180 W adapter (54 VDC out) and the DIS-200G-RPK180 rack kit with power supply.
Does it support ring redundancy?
Yes, G.8032 ERPS (single ring) plus STP, RSTP and MSTP.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
