D-Link DXS-1210-28T 28-Port 10G Smart Managed Switch
PRODUCT DESCRIPTION
D-Link DXS-1210-28T 28-Port 10G Smart Managed Switch with 4 x 25G SFP28 (DXS-1210-28T) - 5 Years Local Warranty

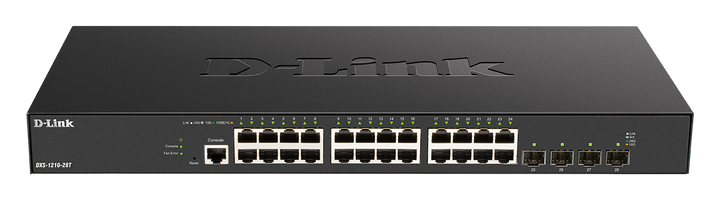

24 x 10GBASE-T with 25G Uplinks
The D-Link DXS-1210-28T is a 10 Gigabit smart managed switch in D-Link's DXS-1210 series. It provides 24 x 10GBASE-T RJ45 ports and 4 x 10/25G SFP28 ports, making it a fit for server rooms, NAS/storage links and 10G aggregation.
Performance
D-Link rates the DXS-1210-28T at 680 Gbps switching capacity and 505.92 Mpps maximum forwarding rate, with up to 32,000 MAC address entries and jumbo frames up to 12,288 bytes.
L2 Features and Static Routing
802.1D/w/s spanning tree, LACP link aggregation (8 groups, 8 ports per group), IGMP snooping, LLDP and Auto Surveillance/Voice VLAN are supported, and static routing (128 IPv4 / 64 IPv6 entries) lets the switch route between VLANs.
Security and Management
802.1X, IP-MAC-Port Binding, ARP spoofing prevention, DHCP server screening and the D-Link Safeguard Engine protect the network. Manage it through the web GUI, the D-Link Network Assistant utility, full CLI (RJ45 console) and SNMP v1/v2c/v3.
Need help choosing? Email sales@sourceit.com.sg with your port count and uplink needs and we will size it for you.
D-Link DXS-1210-28T Datasheet — Technical Specifications
General
| Product Name | D-Link DXS-1210-28T 28-Port 10G Smart Managed Switch |
| Part Number | DXS-1210-28T |
| Series | DXS-1210 10 Gigabit Ethernet Smart Managed Switches |
| Hardware Version | A1 |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces
| 10G Copper Ports | 24 x 10GBASE-T RJ45 |
| Uplink Ports | 4 x 10/25G SFP28 |
| Console Port | RJ45 console |
Performance
| Switching Capacity | 680 Gbps |
| Maximum Forwarding Rate | 505.92 Mpps |
| MAC Address Table | Up to 32,000 entries per device |
| Jumbo Frames | Up to 12,288 bytes |
Physical & Environmental
| Dimensions | 441 x 209.5 x 44 mm |
| Weight | 3.07 kg |
| Power Input | 100–240 VAC |
| Power Consumption | Max 90 W (100 V) / 87.3 W (240 V); standby 33.3 W (100 V) / 33 W (240 V) |
| Cooling | 2 x smart fan; 51.9 dB(A) high speed, 40.0 dB(A) low speed |
| Operating Temperature | -5 to 50 °C |
| Storage Temperature | -20 to 70 °C |
| Operating Humidity | 0% to 95% non-condensing |
Compatibility & Software Support
Software Features (per D-Link datasheet)
| Layer 2 | 4K VLAN groups; Auto Surveillance VLAN and Auto Voice VLAN; 802.1D STP, 802.1w RSTP, 802.1s MSTP; LACP link aggregation (max 8 groups, 8 ports per group); IGMP snooping; LLDP |
| Static Routing | Max 128 IPv4 and 64 IPv6 static route entries; 4 IPv4/IPv6 interfaces |
| QoS | 8 queues per port; Strict Priority Queue (SPQ) and Weighted Round Robin (WRR) |
| ACL | Max 1536 ingress and 1024 egress ACL entries |
| Security | 802.1X; IP-MAC-Port Binding; ARP spoofing prevention; DHCP server screening; D-Link Safeguard Engine |
| Management | Web GUI, D-Link Network Assistant utility, full CLI via console/Telnet, SNMP v1/v2c/v3 |
Compatible D-Link Transceivers & Cables (per datasheet)
| 25G SFP28 Transceivers | DEM-S2801SR (25G SFP28 multi-mode, 100 m), DEM-S2810LR (25G SFP28 single-mode, 10 km) |
| 25G DAC | DEM-CB100S28 (SFP28 to SFP28, 1 m) |
All four SFP28 ports must run at the same speed (10G or 25G), per D-Link. Ask us before using third-party modules.
Package Contents & DXS-1210 Series Ordering Information

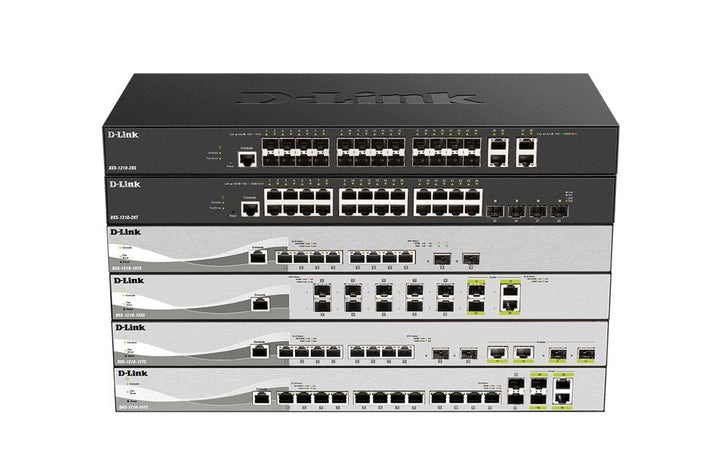

DXS-1210 Series Models
| Model | Ports |
| DXS-1210-10TS | 8 x 10GBASE-T (multi-gig) + 2 x 10G SFP+ |
| DXS-1210-12TC | 8 x 10GBASE-T (multi-gig) + 2 x 10G SFP+ + 2 x 10GBASE-T/SFP+ combo |
| DXS-1210-12SC | 10 x 10G SFP+ + 2 x 10GBASE-T/SFP+ combo |
| DXS-1210-16TC | 12 x 10GBASE-T (multi-gig) + 2 x 10G SFP+ + 2 x 10GBASE-T/SFP+ combo |
| DXS-1210-28T (this listing) | 24 x 10GBASE-T + 4 x 10/25G SFP28 |
Package contents are not listed in D-Link's datasheet — ask us if you need confirmation of the included power cord and rack-mount kit.
Datasheet & Downloads
| D-Link datasheet | DXS-1210-28T / 28S Datasheet (PDF) |
| D-Link product page | DXS-1210-28T on dlink.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DXS-1210-28T.
Frequently Asked Questions — D-Link DXS-1210-28T
Can the SFP28 ports run at 25G and 10G at the same time?
No. D-Link states that all four SFP28 ports must operate at the same speed, either 10G or 25G.
Does it route between VLANs?
Yes, with static routing: up to 128 IPv4 and 64 IPv6 static routes on 4 IP interfaces per the datasheet. D-Link's product page lists lower figures (32/32 routes), so ask us if you need a larger routing table. Dynamic routing protocols are not listed.
Can it be stacked?
Stacking is not listed in D-Link's datasheet for the DXS-1210-28T.
Is it fanless?
No. D-Link lists 2 smart fans (40.0–51.9 dB(A)).
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
