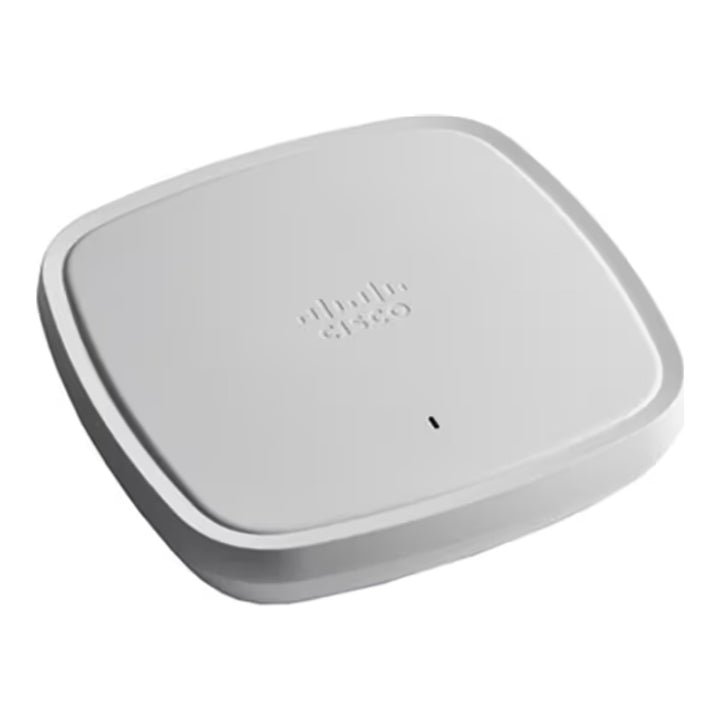

Cisco Catalyst 9130AX Series Access Points

Cisco Catalyst 9130AX Series Access Points Wi-Fi 6 certified, S Domain (C9130AXI-S) - Local Warranty

Enterprise-Class Wi-Fi 6 Access Point for High-Density Networks

The Cisco Catalyst 9130AX Series Access Point Wi-Fi 6 Certified, S Domain (C9130AXI-S) is a premium enterprise wireless access point designed to deliver exceptional performance, scalability, and reliability for modern digital workplaces. Powered by Wi-Fi 6 (802.11ax) technology, the Catalyst 9130AX provides enhanced network capacity, improved efficiency, and superior wireless experiences for organizations operating in high-density environments.

Advanced Wi-Fi 6 Performance for Modern Workloads

Built to support growing demands from cloud applications, video conferencing, unified communications, IoT devices, and hybrid work environments, the Cisco Catalyst 9130AX delivers high-speed wireless connectivity with improved throughput and reduced latency. Its advanced Wi-Fi 6 capabilities help organizations support more users and devices while maintaining optimal network performance.

Designed for Enterprise and Mission-Critical Deployments

The Cisco Catalyst 9130AX is ideal for corporate offices, educational institutions, healthcare facilities, government agencies, hospitality venues, and large enterprise campuses. Its robust architecture enables organizations to deploy secure and scalable wireless infrastructure capable of supporting business-critical applications and future networking requirements.

Intelligent Security and Cisco Network Integration

Integrated with Cisco's enterprise networking ecosystem, the Catalyst 9130AX offers advanced security, policy enforcement, network analytics, and centralized management capabilities. Organizations can simplify wireless operations, improve network visibility, and enhance security posture while delivering a seamless user experience across the enterprise.

Technical Specifications

General
Model: Catalyst 9130AXI
Part Number: C9130AXI-S
Product Name: Cisco Catalyst 9130AX Series Access Point Wi-Fi 6 Certified, S Domain
Manufacturer: Cisco Systems
Product Type: Enterprise Indoor Wireless Access Point
Wireless Standard: IEEE 802.11ax (Wi-Fi 6)
Wi-Fi Certification: Wi-Fi 6 Certified
Radio Architecture: Dual-Band Concurrent 8x8:8 MU-MIMO
Deployment Type: Indoor Enterprise WLAN
Form Factor: Ceiling Mount / Wall Mount
Management Options: Cisco Catalyst 9800 Controllers, Cisco DNA Center, Cisco Catalyst Center
Target Environment: Enterprise, Education, Healthcare, Retail, Hospitality, Government
Regulatory Domain: S Domain
Warranty: Cisco Limited Lifetime Hardware Warranty

Wireless Specifications
Wi-Fi Standard: IEEE 802.11ax (Wi-Fi 6)
Backward Compatibility: 802.11a/b/g/n/ac Wave 2
Frequency Bands: 2.4 GHz and 5 GHz
Radio Configuration: Dual-Band Concurrent
Spatial Streams: 8x8:8 MU-MIMO
Maximum Aggregate Data Rate: Up to 5.38 Gbps
2.4 GHz Data Rate: Up to 1.148 Gbps
5 GHz Data Rate: Up to 4.8 Gbps
Maximum Concurrent Clients: Enterprise High-Density Support
Channel Width Support: 20 MHz, 40 MHz, 80 MHz, 160 MHz
Modulation: Up to 1024-QAM
OFDMA: Supported
MU-MIMO: Supported
Uplink MU-MIMO: Supported
Downlink MU-MIMO: Supported
Target Wake Time (TWT): Supported
BSS Coloring: Supported
Beamforming: Supported
Band Steering: Supported
Load Balancing: Supported

Cisco RF Technologies
Cisco CleanAir Pro: Supported
ClientLink 4.0: Supported
Flexible Radio Assignment (FRA): Supported
Optimized Roaming: Supported
Radio Resource Management (RRM): Supported
Interference Detection and Mitigation: Supported
Dynamic Channel Assignment: Supported
Transmit Power Control: Supported
Spectrum Intelligence: Supported

Antenna Specifications
Antenna Type: Internal Integrated Antennas
Antenna Configuration: 8x8 Internal Antenna Array
Beamforming Technology: Supported
Coverage Optimization: Supported
High-Density RF Design: Supported

Security Features
WPA2-Personal: Supported
WPA2-Enterprise: Supported
WPA3-Personal: Supported
WPA3-Enterprise: Supported
Enhanced Open (OWE): Supported
802.1X Authentication: Supported
RADIUS Authentication: Supported
MAC Authentication: Supported
Identity Services Engine (ISE) Integration: Supported
Secure Boot: Supported
Trustworthy Solutions Framework: Supported
Encrypted Traffic Analytics (ETA): Supported

Network Features
IPv4 Support: Supported
IPv6 Support: Supported
VLAN Support: Supported
Dynamic VLAN Assignment: Supported
Guest Access: Supported
Captive Portal: Supported
Fast Secure Roaming: Supported
Quality of Service (QoS): Supported
Application Visibility and Control (AVC): Supported
Multicast Optimization: Supported
Mesh Networking: Supported
Client Load Balancing: Supported

IoT & Smart Building Support
Bluetooth 5 Low Energy (BLE): Integrated
IoT Radio: Supported
Location Services: Supported
Asset Tracking: Supported
Telemetry Services: Supported
Smart Building Integration: Supported

Wired Connectivity
Network Ports:
• 1 x 5 Gigabit Multigigabit Ethernet (mGig) Port
• 1 x 1 Gigabit Ethernet Auxiliary Port

Ethernet Standards:
• 10/100/1000 Mbps
• 2.5 Gigabit Ethernet
• 5 Gigabit Ethernet

USB Port: 1 x USB 2.0
Console Port: Supported

Power Specifications
Power Input: IEEE 802.3at PoE+
Enhanced Features Power: IEEE 802.3bt UPOE/UPOE+ Recommended
External Power Adapter: Optional
Maximum Power Consumption: Approximately 31W
Energy Efficient Operation: Supported

Management & Monitoring
Cisco Catalyst 9800 Controller Support: Supported
Cisco DNA Center Support: Supported
Cisco Catalyst Center Support: Supported
Web-Based Management: Supported
SNMP Monitoring: Supported
Centralized Policy Management: Supported
Network Analytics: Supported
AI Network Assurance: Supported
Remote Troubleshooting: Supported
Firmware Management: Supported
Real-Time Telemetry: Supported

Voice & Collaboration Optimization
Wi-Fi Multimedia (WMM): Supported
Voice Prioritization: Supported
Video Prioritization: Supported
Microsoft Teams Optimization: Supported
Cisco Webex Optimization: Supported
Zoom Optimization: Supported
Fast Roaming for Voice Devices: Supported
Low Latency Communications: Supported

Design & Construction
Color: White
Form Factor: Indoor Access Point
Mounting Type: Ceiling, Wall, T-Bar
Enclosure Material: Enterprise-Grade Polycarbonate
Deployment Location: Indoor Use Only
High-Density Design: Supported

Environmental Specifications
Operating Temperature: 0°C to 50°C
Storage Temperature: -30°C to 70°C
Operating Humidity: 10% to 90% Non-Condensing

Physical Specifications
Dimensions: Approximately 241 mm x 241 mm x 57 mm
Weight: Approximately 1.6 kg
Color: White
Mounting Options: Ceiling, Wall, T-Bar Mount

Package Contents
Cisco Catalyst 9130AXI Access Point
Mounting Hardware
Installation Guide
Regulatory Documentation

Key Features
Wi-Fi 6 (802.11ax) Enterprise Access Point
8x8:8 MU-MIMO Architecture
Up to 5.38 Gbps Aggregate Throughput
Cisco CleanAir Pro Technology
Cisco ClientLink 4.0 Technology
Flexible Radio Assignment (FRA)
5 Gigabit Multigigabit Ethernet Uplink
Integrated Bluetooth 5 BLE Radio
WPA3 Enterprise Security
High-Density User Optimization
Cisco DNA and Catalyst Center Integration
AI-Driven Network Analytics and Assurance

Performance & Features
Designed for mission-critical enterprise wireless deployments
Provides exceptional performance in high-density environments such as auditoriums, lecture halls, convention centers, and large offices
Optimizes RF performance automatically using Cisco CleanAir Pro and RRM technologies
Supports bandwidth-intensive applications including 4K video, collaboration platforms, cloud applications, and real-time communications
Enables secure and scalable wireless infrastructure for modern digital workplaces
Delivers enhanced roaming performance for voice and video communications
Supports IoT, asset tracking, and location-based services through integrated BLE capabilities
Built for large-scale enterprise WLAN deployments requiring maximum performance, security, and reliability

Typical Use Cases
Enterprise Headquarters
Large Corporate Offices
Universities and Lecture Halls
Healthcare Campuses
Hotels and Convention Centers
Government Facilities
Retail Malls
Manufacturing Facilities
High-Density Public Venues
Microsoft Teams Deployments
Cisco Webex Deployments
Zoom Rooms Connectivity
Smart Building Infrastructure
Mission-Critical Enterprise Wireless Networks
Large Campus WLAN Deployments
