Cisco Catalyst 9115AX Series Access Points

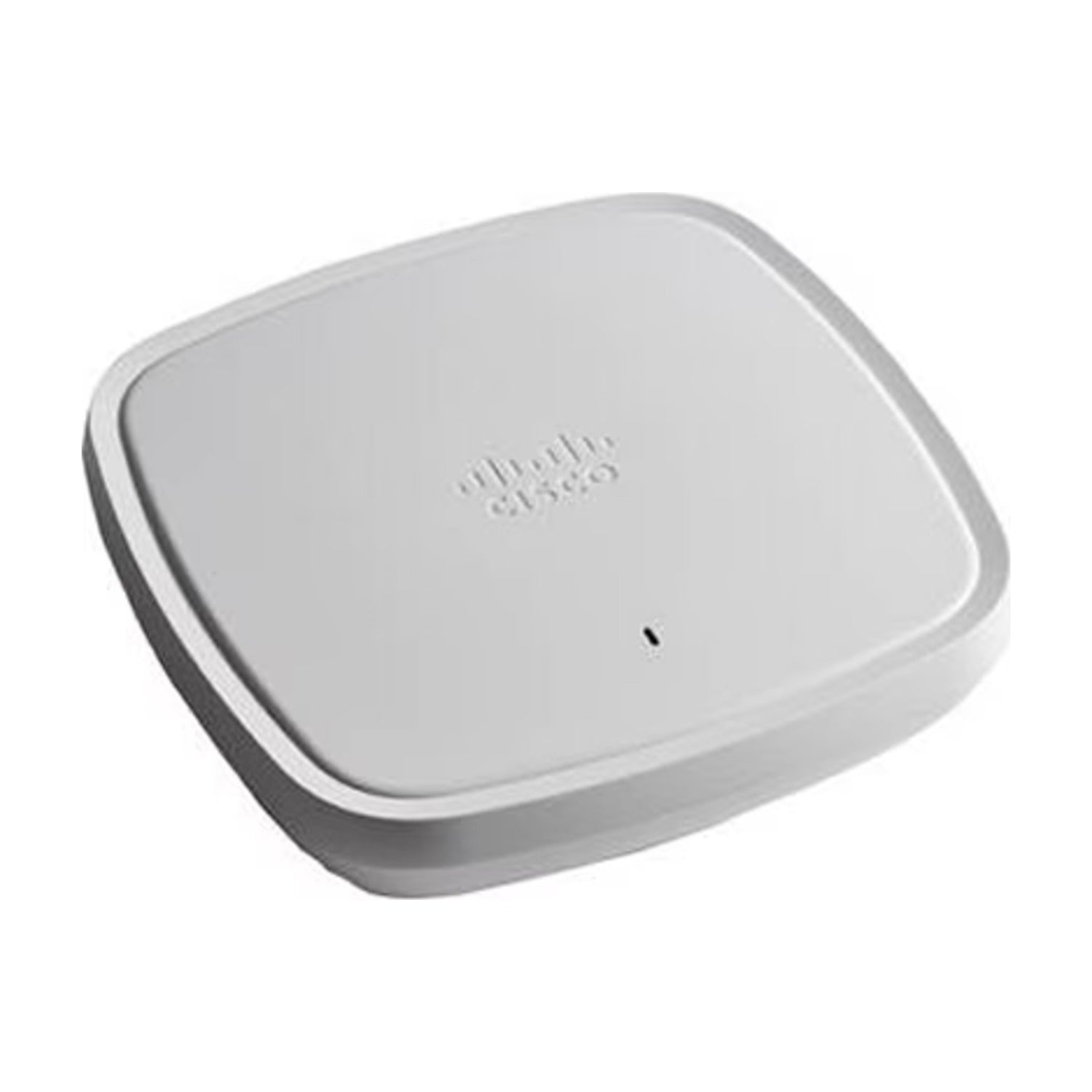

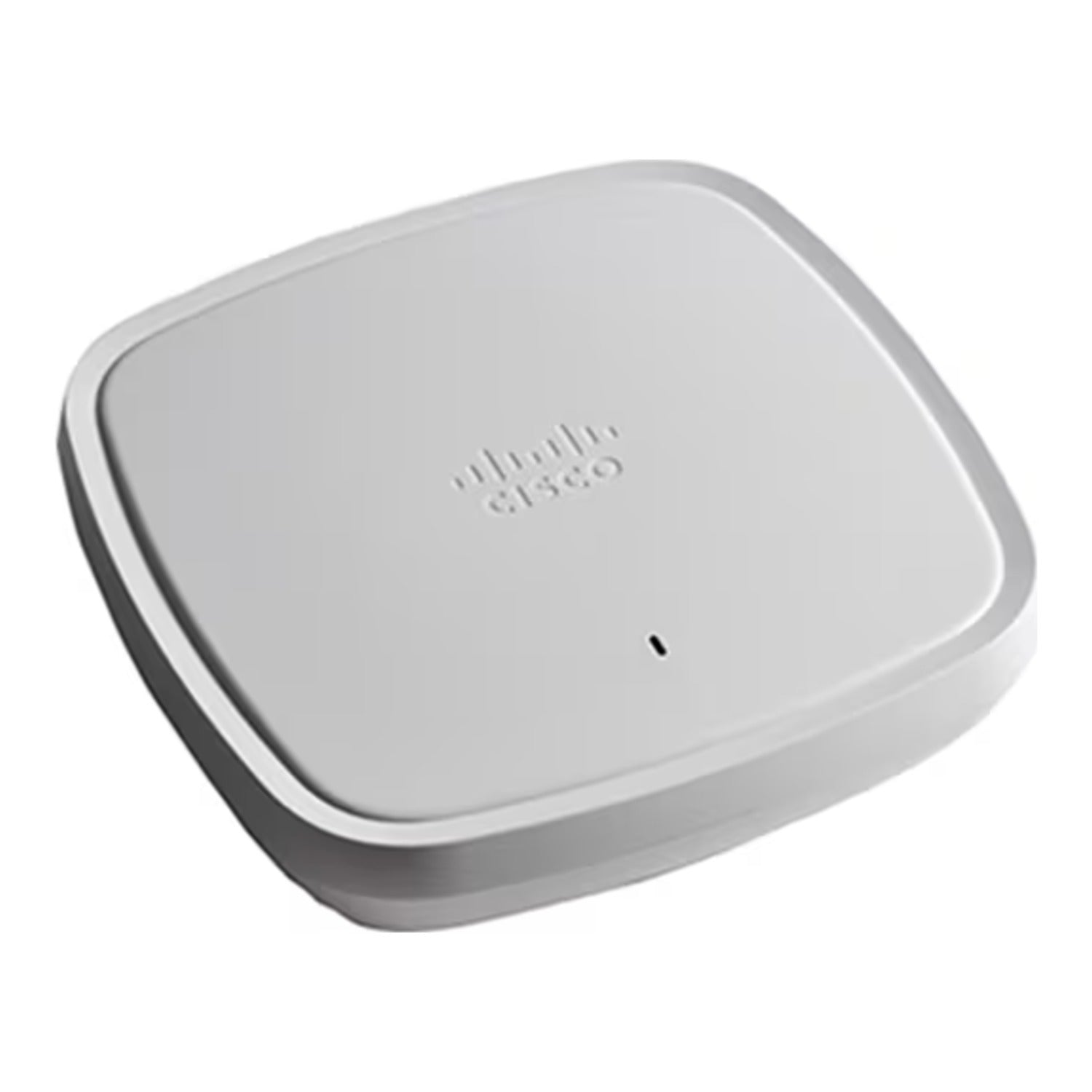

Cisco Catalyst 9115AX Series Wi-Fi 6 Access Points Internal antenna; Wi-Fi 6; 4x4:4 MIMO, S Domain (C9115AXI-S) - Local Warranty

Cisco Catalyst 9115AX Series Access Point – Next-Gen Wireless for Enterprise Networks

The Cisco Catalyst 9115AX Series Access Point (C9115AXI-S) is a Wi-Fi 6 (802.11ax) enabled access point designed to deliver fast, reliable, and secure wireless connectivity in enterprise environments. Built to support the next generation of wireless technology, it features 4x4:4 MIMO with four spatial streams, allowing multiple devices to communicate simultaneously without network congestion. This access point is equipped with an internal antenna, offering a sleek, space-saving design for seamless deployment in office buildings, schools, hospitals, and other indoor spaces.

C9115AXI-S Wi-Fi 6 Access Point – Unrivaled Speed, Capacity, and Efficiency

The C9115AXI-S Wi-Fi 6 Access Point is a future-ready solution, offering Wi-Fi 6 (802.11ax) support for faster speeds, higher capacity, and reduced latency. With features like OFDMA (Orthogonal Frequency Division Multiple Access) and Multi-User MIMO (MU-MIMO), this access point can efficiently handle multiple devices and high-density environments. This technology allows simultaneous data transmission to multiple devices, improving overall network performance. The access point also offers backward compatibility with older Wi-Fi standards (802.11a/b/g/n/ac), ensuring smooth connectivity for legacy devices.

Indoor Wireless Access Point – Compact, Discreet, and Versatile Design

The Cisco Catalyst 9115AXI-S is an indoor access point built to blend into modern office spaces, classrooms, and retail environments. Its internal antenna design ensures that there is no need for bulky external antennas, creating a clean, minimalist look. The device is compact, lightweight, and easy to mount, making it ideal for ceiling or wall installations. This space-saving design is perfect for environments where aesthetics and unobstructed access points are essential for a professional appearance. Despite its compact form, it offers enterprise-grade wireless performance, supporting high-speed Wi-Fi for multiple users and devices.

4x4:4 MIMO with Four Spatial Streams – Maximum Performance and Coverage

The 4x4:4 MIMO technology in the Cisco C9115AXI-S allows it to support four spatial streams, ensuring faster speeds, better coverage, and higher device capacity. The access point can send and receive data on four streams simultaneously, enabling better performance for bandwidth-intensive applications like HD video streaming, cloud applications, and video conferencing. The MU-MIMO (Multi-User MIMO) feature ensures that multiple devices can connect simultaneously, reducing wait times for data transmission. This is crucial for large enterprises and educational institutions with a high density of devices.

Technical Specifications

General
Model: Catalyst 9115AXI
Part Number: C9115AXI-S
Product Name: Cisco Catalyst 9115AX Series Wi-Fi 6 Access Point
Manufacturer: Cisco Systems
Product Type: Enterprise Indoor Wireless Access Point
Wireless Standard: IEEE 802.11ax (Wi-Fi 6)
Wi-Fi Certification: Wi-Fi 6 Certified
Radio Architecture: Dual-Band Concurrent 4x4:4 MU-MIMO
Antenna Type: Internal Antenna
Deployment Type: Indoor Enterprise WLAN
Management Options: Cisco Catalyst 9800 Controllers, Cisco DNA Center, Cisco Catalyst Center, Embedded Wireless Controller
Target Environment: Enterprise, Education, Hospitality, Healthcare, Retail, Government
Regulatory Domain: S Domain
Warranty: Cisco Limited Lifetime Hardware Warranty

Wireless Specifications
Wi-Fi Standard: IEEE 802.11ax (Wi-Fi 6)
Backward Compatibility: 802.11a/b/g/n/ac Wave 2
Frequency Bands: 2.4 GHz and 5 GHz
Radio Configuration: Dual-Band Concurrent
Spatial Streams: 4x4:4 MU-MIMO
Maximum Aggregate Data Rate: Up to 5.38 Gbps
2.4 GHz Data Rate: Up to 1.148 Gbps
5 GHz Data Rate: Up to 4.8 Gbps
Maximum Concurrent Clients: Enterprise High-Density Support
Channel Width Support: 20 MHz, 40 MHz, 80 MHz, 160 MHz
Modulation: Up to 1024-QAM
OFDMA: Supported
MU-MIMO: Supported
Uplink OFDMA: Supported
Downlink OFDMA: Supported
Target Wake Time (TWT): Supported
BSS Coloring: Supported
Beamforming: Supported
Band Steering: Supported
Load Balancing: Supported

RF Technologies
Cisco CleanAir Pro: Supported
ClientLink 4.0: Supported
Radio Resource Management (RRM): Supported
Flexible Radio Assignment (FRA): Supported
Dynamic Channel Assignment: Supported
Transmit Power Control: Supported
Interference Detection and Mitigation: Supported
Optimized Roaming: Supported
Spectrum Intelligence: Supported
Coverage Optimization: Supported

Antenna Specifications
Antenna Type: Internal Integrated Antennas
Antenna Configuration: 4x4 Internal Antenna Array
Beamforming Technology: Supported
Coverage Enhancement: Supported
RF Optimization: Supported
High-Density Wireless Design: Supported

Security Features
WPA2-Personal: Supported
WPA2-Enterprise: Supported
WPA3-Personal: Supported
WPA3-Enterprise: Supported
Enhanced Open (OWE): Supported
802.1X Authentication: Supported
RADIUS Authentication: Supported
MAC Authentication: Supported
Cisco Identity Services Engine (ISE): Supported
Secure Boot: Supported
Trustworthy Solutions Framework: Supported
Encrypted Traffic Analytics (ETA): Supported

Network Features
IPv4 Support: Supported
IPv6 Support: Supported
VLAN Support: Supported
Dynamic VLAN Assignment: Supported
Guest Access: Supported
Captive Portal: Supported
Fast Secure Roaming: Supported
Quality of Service (QoS): Supported
Application Visibility and Control (AVC): Supported
Multicast Optimization: Supported
Client Load Balancing: Supported
Policy-Based Networking: Supported
Mesh Networking: Supported

IoT & Location Services
Bluetooth Low Energy (BLE): Integrated
BLE Radio Version: Bluetooth 5.0
IoT Radio: Supported
Asset Tracking: Supported
Location Analytics: Supported
Telemetry Services: Supported
Beacon Services: Supported
Smart Building Integration: Supported

Wired Connectivity
Network Ports:
• 1 x Multigigabit Ethernet Port

Ethernet Standards:
• 100/1000 Mbps
• 2.5 Gigabit Ethernet
• 5 Gigabit Ethernet

USB Port: 1 x USB 2.0
Console Access: Supported

Power Specifications
Power Input: IEEE 802.3at PoE+
Enhanced Features Power: IEEE 802.3bt UPOE Recommended
External Power Adapter: Optional
Maximum Power Consumption: Approximately 22W
Energy Efficient Operation: Supported
Power Saving Features: Supported

Management & Monitoring
Cisco Catalyst 9800 Controller Support: Supported
Cisco DNA Center Support: Supported
Cisco Catalyst Center Support: Supported
Embedded Wireless Controller Support: Supported
Web-Based Management: Supported
SNMP Monitoring: Supported
Centralized Policy Management: Supported
Network Analytics: Supported
AI-Assisted Troubleshooting: Supported
Firmware Management: Supported
Remote Diagnostics: Supported
Real-Time Telemetry: Supported
Client Analytics: Supported

Voice & Collaboration Optimization
Wi-Fi Multimedia (WMM): Supported
Voice Prioritization: Supported
Video Prioritization: Supported
Microsoft Teams Optimization: Supported
Cisco Webex Optimization: Supported
Zoom Optimization: Supported
Fast Roaming for Voice Devices: Supported
Low Latency Communications: Supported

Design & Construction
Color: White
Form Factor: Indoor Access Point
Mounting Type: Ceiling Mount, Wall Mount, T-Bar Mount
Enclosure Material: Enterprise-Grade Polycarbonate
Deployment Location: Indoor Use Only
Enterprise-Class Design: Supported

Environmental Specifications
Operating Temperature: 0°C to 50°C
Storage Temperature: -30°C to 70°C
Operating Humidity: 10% to 90% Non-Condensing

Physical Specifications
Dimensions: Approximately 221 mm x 221 mm x 51 mm
Weight: Approximately 1.1 kg
Color: White
Mounting Options: Ceiling, Wall, T-Bar Mount

Package Contents
Cisco Catalyst 9115AXI Access Point
Mounting Hardware
Installation Guide
Regulatory Documentation

Key Features
Wi-Fi 6 (802.11ax) Certified Access Point
Dual-Band 4x4:4 MU-MIMO Architecture
Up to 5.38 Gbps Aggregate Throughput
Cisco CleanAir Pro Technology
Cisco ClientLink 4.0 Technology
Flexible Radio Assignment (FRA)
Multigigabit Ethernet Connectivity
Integrated Bluetooth 5.0 BLE Radio
WPA3 Enterprise Security
Embedded Wireless Controller Support
AI-Driven Analytics and Network Assurance
Enterprise-Class Performance and Reliability

Performance & Features
Designed for medium to high-density enterprise wireless deployments
Delivers high-performance Wi-Fi 6 connectivity for modern digital workplaces
Provides superior RF optimization through Cisco CleanAir Pro and ClientLink technologies
Supports bandwidth-intensive applications including video conferencing, cloud applications, collaboration platforms, and real-time communications
Enables secure, scalable, and centrally managed wireless infrastructure
Delivers seamless roaming for mobile users and voice-over-Wi-Fi deployments
Supports IoT, location analytics, asset tracking, and smart building applications through integrated BLE capabilities
Provides an ideal balance between performance, coverage, and deployment flexibility for enterprise environments

Typical Use Cases
Corporate Offices
Meeting Rooms and Boardrooms
Educational Institutions
Healthcare Facilities
Hotels and Hospitality Venues
Retail Stores
Government Agencies
Branch Offices
Manufacturing Facilities
Hybrid Workplace Deployments
Microsoft Teams Rooms Connectivity
Cisco Webex Deployments
Zoom Rooms Connectivity
Enterprise WLAN Refresh Projects
Smart Building Infrastructure
Business-Critical Wireless Networks
Medium to High-Density User Environments
