Cisco Catalyst 9105AX Series Access Points

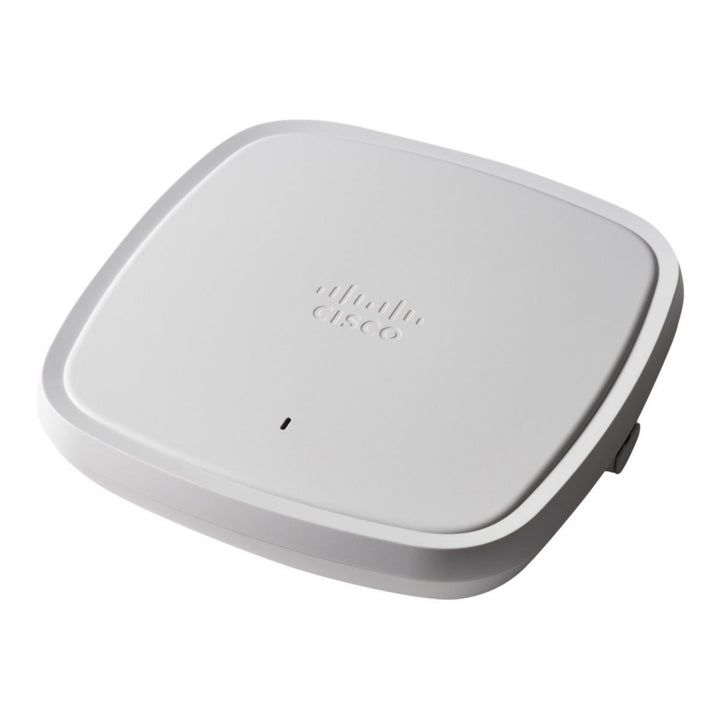

Cisco Catalyst 9105AX Series Access Points Indoor Access Point, Internal antenna; Wi-Fi 6; 2x2 MIMO with two spatial streams, S Domain (C9105AXI-S) - Local Warranty

Cisco Catalyst 9105AX Series Access Point – Next-Gen Wireless Connectivity

The Cisco Catalyst 9105AX Series Access Point (C9105AXI-S) is a high-performance indoor access point designed to deliver next-generation Wi-Fi 6 (802.11ax) connectivity. With 2x2 MIMO and two spatial streams, it provides enhanced wireless speeds, capacity, and coverage. This access point supports high-density environments, making it ideal for offices, classrooms, retail stores, and healthcare facilities. Built with an internal antenna and compact design, it offers seamless integration into any indoor environment, reducing visual clutter while maintaining optimal wireless coverage.

C9105AXI-S Wi-Fi 6 Access Point – Advanced Wireless Technology

The C9105AXI-S Wi-Fi 6 Access Point leverages Wi-Fi 6 (802.11ax) technology, offering superior speed, efficiency, and device capacity compared to previous Wi-Fi generations. It supports multi-user MIMO (MU-MIMO) and OFDMA (Orthogonal Frequency Division Multiple Access), allowing multiple devices to connect simultaneously with minimal interference. This advanced capability is crucial for dense environments with high device counts, ensuring faster speeds, lower latency, and improved user experience. With backward compatibility, it works with legacy Wi-Fi devices, making it a future-proof investment for business networks.

Indoor Wireless Access Point – Compact, Discreet, and Efficient

The Cisco Catalyst 9105AXI-S is an indoor access point with a sleek, compact form factor that blends seamlessly into modern workspaces. The internal antenna reduces clutter and eliminates the need for external antennas, providing a clean, professional appearance. Its compact design makes it ideal for deployment in environments where aesthetics and space utilization are essential. Despite its small size, it delivers enterprise-grade performance, making it suitable for indoor spaces like office buildings, schools, hospitals, and retail stores.

2x2 MIMO with Two Spatial Streams – Superior Speed and Coverage

Equipped with 2x2 MIMO (Multiple Input Multiple Output) technology, the C9105AXI-S supports dual spatial streams, ensuring stronger, faster, and more stable wireless connections. This technology increases data throughput, extends Wi-Fi coverage, and enhances performance for multiple connected devices. With support for multi-user MIMO (MU-MIMO), the access point allows for simultaneous multi-device communication, significantly improving network efficiency. This feature is essential for supporting bandwidth-intensive applications like video streaming, online meetings, and cloud-based applications.

Technical Specifications

General
Model: Catalyst 9105AXI
Part Number: C9105AXI-S
Product Name: Cisco Catalyst 9105AX Series Indoor Access Point
Manufacturer: Cisco Systems
Product Type: Enterprise Indoor Wireless Access Point
Wireless Standard: IEEE 802.11ax (Wi-Fi 6)
Wi-Fi Certification: Wi-Fi 6 Certified
Radio Architecture: Dual-Band Concurrent 2x2:2 MU-MIMO
Antenna Type: Internal Antenna
Deployment Type: Indoor Enterprise WLAN
Management Options: Cisco Catalyst 9800 Controllers, Cisco DNA Center, Cisco Catalyst Center, Embedded Wireless Controller
Target Environment: Small Business, Enterprise Branch Offices, Retail, Education, Hospitality, Healthcare
Regulatory Domain: S Domain
Warranty: Cisco Limited Lifetime Hardware Warranty

Wireless Specifications
Wi-Fi Standard: IEEE 802.11ax (Wi-Fi 6)
Backward Compatibility: 802.11a/b/g/n/ac Wave 2
Frequency Bands: 2.4 GHz and 5 GHz
Radio Configuration: Dual-Band Concurrent
Spatial Streams: 2x2:2 MU-MIMO
Maximum Aggregate Data Rate: Up to 1.775 Gbps
2.4 GHz Data Rate: Up to 575 Mbps
5 GHz Data Rate: Up to 1.2 Gbps
Maximum Concurrent Clients: Enterprise-Class Support
Channel Width Support: 20 MHz, 40 MHz, 80 MHz
Modulation: Up to 1024-QAM
OFDMA: Supported
MU-MIMO: Supported
Uplink OFDMA: Supported
Downlink OFDMA: Supported
Target Wake Time (TWT): Supported
BSS Coloring: Supported
Beamforming: Supported
Band Steering: Supported
Load Balancing: Supported

RF Technologies
Cisco CleanAir: Supported
ClientLink Technology: Supported
Radio Resource Management (RRM): Supported
Dynamic Channel Assignment: Supported
Transmit Power Control: Supported
Interference Detection: Supported
Spectrum Intelligence: Supported
Optimized Roaming: Supported
Coverage Optimization: Supported

Antenna Specifications
Antenna Type: Internal Integrated Antennas
Antenna Configuration: 2x2 Internal Antenna Array
Beamforming Technology: Supported
Coverage Enhancement: Supported
High-Efficiency RF Design: Supported

Security Features
WPA2-Personal: Supported
WPA2-Enterprise: Supported
WPA3-Personal: Supported
WPA3-Enterprise: Supported
Enhanced Open (OWE): Supported
802.1X Authentication: Supported
RADIUS Authentication: Supported
MAC Authentication: Supported
Cisco Identity Services Engine (ISE): Supported
Secure Boot: Supported
Trustworthy Solutions Framework: Supported
Encrypted Traffic Analytics (ETA): Supported

Network Features
IPv4 Support: Supported
IPv6 Support: Supported
VLAN Support: Supported
Dynamic VLAN Assignment: Supported
Guest Access: Supported
Captive Portal: Supported
Fast Secure Roaming: Supported
Quality of Service (QoS): Supported
Application Visibility and Control (AVC): Supported
Multicast Optimization: Supported
Client Load Balancing: Supported
Policy-Based Networking: Supported

IoT & Location Services
Bluetooth Low Energy (BLE): Integrated
BLE Radio Version: Bluetooth 5.0
Asset Tracking Support: Supported
Location Analytics: Supported
Telemetry Services: Supported
IoT Integration: Supported
Beacon Services: Supported

Wired Connectivity
Network Ports: 1 x Gigabit Ethernet Uplink Port
Ethernet Standards: 10/100/1000 Mbps
PoE Standard: IEEE 802.3af PoE
PoE+ Support: IEEE 802.3at
Console Access: Supported via Management Interface

Power Specifications
Power Input: IEEE 802.3af PoE
Enhanced Features Power: IEEE 802.3at PoE+
External Power Adapter: Optional
Maximum Power Consumption: Approximately 13W
Energy Efficient Operation: Supported
Power Saving Features: Supported

Management & Monitoring
Cisco Catalyst 9800 Controller Support: Supported
Cisco DNA Center Support: Supported
Cisco Catalyst Center Support: Supported
Embedded Wireless Controller Support: Supported
Web-Based Management: Supported
SNMP Monitoring: Supported
Centralized Policy Management: Supported
Network Analytics: Supported
AI-Assisted Troubleshooting: Supported
Firmware Management: Supported
Remote Diagnostics: Supported
Real-Time Telemetry: Supported

Voice & Collaboration Optimization
Wi-Fi Multimedia (WMM): Supported
Voice Prioritization: Supported
Video Prioritization: Supported
Microsoft Teams Optimization: Supported
Cisco Webex Optimization: Supported
Zoom Optimization: Supported
Fast Roaming for Voice Devices: Supported
Low Latency Communications: Supported

Design & Construction
Color: White
Form Factor: Indoor Access Point
Mounting Type: Ceiling Mount, Wall Mount, T-Bar Mount
Enclosure Material: Enterprise-Grade Polycarbonate
Deployment Location: Indoor Use Only
Compact Enterprise Design: Supported

Environmental Specifications
Operating Temperature: 0°C to 50°C
Storage Temperature: -30°C to 70°C
Operating Humidity: 10% to 90% Non-Condensing

Physical Specifications
Dimensions: Approximately 200 mm x 200 mm x 45 mm
Weight: Approximately 0.8 kg
Color: White
Mounting Options: Ceiling, Wall, T-Bar Mount

Package Contents
Cisco Catalyst 9105AXI Indoor Access Point
Mounting Hardware
Installation Guide
Regulatory Documentation

Key Features
Wi-Fi 6 (802.11ax) Certified Access Point
Dual-Band 2x2:2 MU-MIMO Architecture
Up to 1.775 Gbps Aggregate Throughput
Internal Antenna Design
Cisco CleanAir Technology
Cisco ClientLink Technology
Integrated Bluetooth 5.0 BLE Radio
Gigabit Ethernet Uplink
WPA3 Enterprise Security
Embedded Wireless Controller Support
AI-Driven Network Visibility and Analytics
Enterprise-Class Security and Management

Performance & Features
Designed for small and medium-sized enterprise deployments requiring reliable Wi-Fi 6 connectivity
Provides improved network efficiency through OFDMA, MU-MIMO, and BSS Coloring technologies
Optimizes wireless performance using Cisco RF intelligence and automatic radio resource management
Supports voice, video conferencing, cloud applications, and business-critical workloads
Enables secure and scalable wireless networking with centralized management capabilities
Delivers seamless roaming for mobile users and collaboration platforms
Integrated BLE radio supports asset tracking, location services, and IoT applications
Offers enterprise-grade performance in a compact and cost-effective form factor

Typical Use Cases
Small and Medium Business Networks
Branch Offices
Retail Stores
Classrooms and Educational Facilities
Hotels and Hospitality Venues
Healthcare Clinics
Professional Services Offices
Reception Areas
Meeting Rooms
Remote and Satellite Offices
Microsoft Teams Deployments
Cisco Webex Deployments
Zoom Rooms Connectivity
Guest Wireless Networks
Enterprise Edge Wireless Infrastructure
Hybrid Workplace Environments
