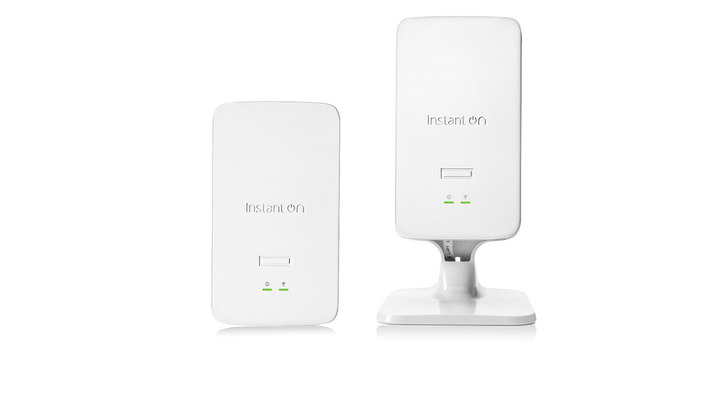

HPE Networking Instant On AP22D Wi-Fi 6 Desk/Wall Access Point

HPE Networking Instant On AP22D 2x2 Wi-Fi 6 Desk/Wall Access Point (S1U76A)

The HPE Networking Instant On AP22D 2x2 Wi-Fi 6 Desk/Wall Access Point (S1U76A) is a high-performance, flexible wireless access point designed for small to medium-sized businesses that require reliable, fast, and secure Wi-Fi connectivity. With the latest Wi-Fi 6 (802.11ax) technology, the AP22D delivers enhanced speed, capacity, and efficiency, making it an excellent choice for businesses with high device density and bandwidth-intensive applications. Its versatile desk or wall-mountable design allows for easy installation, whether in offices, conference rooms, retail spaces, or other professional environments.

Wi-Fi 6 for Better Speed, Capacity, and Efficiency

The AP22D is powered by Wi-Fi 6 technology, offering up to 1,775 Mbps combined throughput (574 Mbps on 2.4GHz and 1,201 Mbps on 5GHz). Wi-Fi 6 significantly improves speed, capacity, and overall network efficiency compared to previous Wi-Fi generations, making it ideal for environments where numerous devices are connected simultaneously. This ensures seamless connectivity for high-demand applications, including video conferencing, large file transfers, and cloud services, all while minimizing latency and congestion.

Flexible Desk/Wall Mountable Design

The AP22D’s design allows for flexible installation, either as a desk mount or wall mount, providing businesses with versatile deployment options based on their space and network layout. This makes it a perfect choice for businesses that want to integrate Wi-Fi 6 into their existing infrastructure without requiring a traditional ceiling-mounted access point. Its discreet design ensures it can be easily integrated into a variety of office and business environments while maintaining a professional aesthetic.

Cloud-Based Management for Easy Setup and Monitoring

With HPE Instant On cloud-based management, businesses can easily set up, monitor, and manage their Wi-Fi network remotely. The Instant On mobile app or web portal provides an intuitive interface for configuring the network, managing security settings, and troubleshooting. This easy-to-use platform allows administrators to create guest networks, set access controls, monitor bandwidth usage, and ensure network security—all from anywhere, anytime. The cloud management platform ensures you don’t need on-site IT expertise, making it ideal for businesses with limited IT resources.

Robust Security Features

The AP22D supports WPA3 encryption, the latest and most secure Wi-Fi security standard, to ensure your business network remains protected against unauthorized access. It also offers secure guest access and VLAN support, enabling businesses to isolate network traffic and ensure sensitive data remains protected. This enhanced security makes the AP22D suitable for any business environment, from small offices to larger retail spaces and hospitality venues.

Energy-Efficient and Cost-Effective

Designed to minimize operational costs, the AP22D is energy-efficient, supporting Power over Ethernet (PoE). This allows both power and data to be delivered over a single Ethernet cable, eliminating the need for additional power adapters or outlets. Its PoE capability simplifies installation and reduces cabling costs, making it an ideal choice for businesses looking to reduce their total cost of ownership while improving network performance.

Technical Specifications

General
Model: Instant On AP22D
Part Number: S1U76A
Product Name: HPE Networking Instant On AP22D Wi-Fi 6 Desk/Wall Access Point
Manufacturer: HPE Aruba Networking
Product Type: Business Wireless Access Point
Series: HPE Networking Instant On AP22D Series
Deployment Type: Indoor Wireless Networking
Wireless Standard: Wi-Fi 6 (IEEE 802.11ax)
Form Factor: Desktop or Wall-Mount Access Point
Antenna Type: Internal Antennas
Management Platform: Instant On Mobile App, Instant On Cloud Portal
Warranty: 2-Year Limited Warranty with 24/7 Phone and Chat Support

Wireless Specifications
Wireless Standard: IEEE 802.11ax (Wi-Fi 6)

Backward Compatibility:
• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• IEEE 802.11n
• IEEE 802.11ac

Frequency Bands:
• 2.4 GHz
• 5 GHz

Radio Configuration: Dual-Radio
MIMO Configuration: 2x2:2 MU-MIMO
Maximum Aggregate Data Rate: Up to 1.7 Gbps
Maximum 5 GHz Data Rate: Up to 1.2 Gbps
Maximum 2.4 GHz Data Rate: Up to 574 Mbps
Channel Width Support: Up to 80 MHz
MU-MIMO: Supported
OFDMA: Supported
Beamforming: Supported
Target Wake Time (TWT): Supported
WPA3 Security: Supported

Radio Specifications
2.4 GHz Radio: 2x2 MIMO
5 GHz Radio: 2x2 MIMO
Concurrent Dual-Band Operation: Supported
Smart Roaming: Supported
Client Optimization: Supported
High-Density Client Support: Supported

Performance Specifications
Maximum Aggregate Throughput: Up to 1.7 Gbps
Recommended User Capacity: Up to 50 Concurrent Devices
Voice and Video Optimization: Supported
Cloud Application Support: Supported
Low-Latency Wireless Connectivity: Supported
Real-Time Collaboration Support: Supported

Networking Specifications
Uplink Port: 1 x 2.5GbE RJ-45 Ethernet Port
Downlink Ports: 4 x 1GbE RJ-45 Ethernet Ports
PoE Pass-Through Port: 1 x PoE Out Port (802.3af)
Switching Functionality: Integrated Gigabit Switch
Network Segmentation: Supported
VLAN Support: Supported
Smart Mesh Networking: Supported

IoT & Smart Features
Bluetooth: Bluetooth Low Energy (BLE) Support
Smart Mesh Technology: Supported
Application Visibility: Supported
Remote Monitoring: Supported
Remote Troubleshooting: Supported
Guest Network Support: Supported

Security Features
WPA2 Personal: Supported
WPA2 Enterprise: Supported
WPA3 Personal: Supported
WPA3 Enterprise: Supported
Enhanced Open (OWE): Supported
Secure Guest Access: Supported
Role-Based Access Policies: Supported
Enterprise Wireless Security: Supported

Management Features
Instant On Mobile App: Supported
Instant On Cloud Portal: Supported
Cloud-Based Configuration: Supported
Remote Management: Supported
Zero Touch Deployment: Supported
Firmware Updates: Supported
Network Analytics: Supported

Power Specifications
Power over Ethernet Input: Supported
PoE Standard Input: IEEE 802.3at (PoE+)
DC Power Input: Supported
PoE Pass-Through Output: IEEE 802.3af
Maximum Power Consumption: Approximately 20W
Power Optimization Features: Supported

Antenna Specifications
Antenna Type: Internal Omni-Directional Antennas
2.4 GHz Antenna Gain: Up to 4.3 dBi
5 GHz Antenna Gain: Up to 5.8 dBi
Coverage Optimization: Supported
Office and Hospitality Coverage: Optimized

Physical Specifications
Form Factor: Desktop / Wall-Mount Access Point
Color: White
Mounting Options: Desk Mount or Wall Mount
Dimensions: Approximately 150 x 86 x 40 mm
Weight: Approximately 400 g

Features
Wi-Fi 6 (802.11ax) Technology
2x2 MU-MIMO Architecture
Integrated 4-Port Gigabit Switch
2.5GbE Uplink Port
PoE Pass-Through Support
Smart Mesh Networking
Cloud-Based Management
WPA3 Security
Bluetooth Support
Compact Desk or Wall Mount Design
Zero Touch Deployment
Enterprise-Class Wireless Performance

Performance & Features
Designed for hotel rooms, dormitories, classrooms, branch offices, and remote workspaces
Combines a Wi-Fi 6 access point and Gigabit Ethernet switch in a single compact device
Provides reliable wireless connectivity and wired device expansion from one network outlet
Supports modern collaboration applications including Microsoft Teams, Zoom, and Google Meet
Smart Mesh technology enables flexible wireless network expansion without additional cabling
Offers centralized cloud management through the Instant On platform
Delivers improved wireless efficiency with OFDMA and MU-MIMO technologies
Optimized for small business, hospitality, education, and remote office deployments

Package Contents
HPE Networking Instant On AP22D Access Point
Mounting Hardware
Quick Start Guide
Regulatory Documentation

Key Features
Wi-Fi 6 (802.11ax) Technology
2x2 MU-MIMO Wireless Architecture
Up to 1.7 Gbps Wireless Throughput
2.5GbE Uplink Port
4 x Gigabit Ethernet Downlink Ports
Integrated Network Switch Functionality
PoE Pass-Through Support
Cloud-Based Management Platform
WPA3 Enterprise Security
Smart Mesh Networking
Desk or Wall Mount Design
Ideal for Hospitality and Branch Office Deployments

Typical Use Cases
Hotel Guest Rooms
Student Dormitories
Serviced Apartments
Small Offices
Remote Branch Offices
Meeting Rooms
Classrooms
Retail Stores
Reception Areas
Remote Workstations
Healthcare Consultation Rooms
Managed Wi-Fi Deployments

Ordering Information
Model: HPE Networking Instant On AP22D
Part Number: S1U76A
Configuration: Dual-Radio Wi-Fi 6 Access Point with Integrated 4-Port Gigabit Switch
