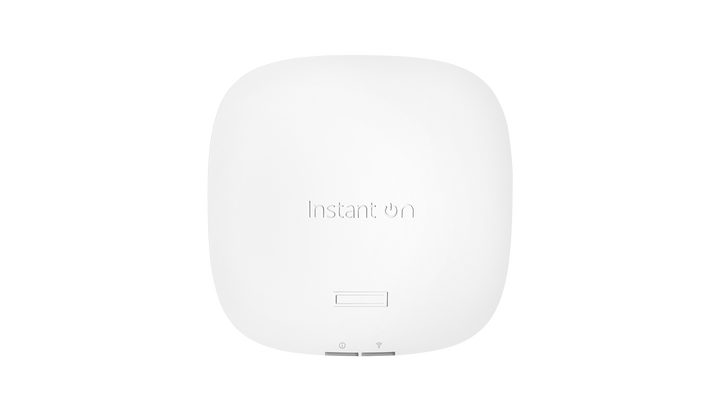

HPE Networking Instant On AP22 Wi-Fi 6 Access Point with Power Adapter

HPE Networking Instant On AP22 Wi-Fi 6 Access Point with Power Adapter (R6M51A) - 2 Years Local Warranty

*Includes Power Adapter

Reliable Wi-Fi 6 Connectivity for Small and Growing Businesses

The HPE Networking Instant On AP22 Wi-Fi 6 Access Point with Power Adapter (R6M51A) is a powerful wireless networking solution designed for small businesses, retail stores, cafés, professional offices, educational institutions, and hospitality environments. Leveraging Wi-Fi 6 technology, the AP22 delivers faster wireless speeds, improved efficiency, and enhanced user experiences for today's connected workplaces.

Advanced Wi-Fi 6 Performance for Modern Workloads

Built with the latest 802.11ax Wi-Fi 6 standard, the Instant On AP22 provides increased network capacity, improved device handling, and lower latency compared to previous wireless generations. It is ideal for supporting cloud applications, video conferencing, VoIP communications, online collaboration tools, and multiple connected devices operating simultaneously.

Simple Deployment with Included Power Adapter

The HPE Networking Instant On AP22 comes bundled with a power adapter, allowing businesses to deploy wireless networks quickly without requiring separate power accessories. Its compact design and straightforward setup process make it an excellent choice for organizations looking to upgrade their wireless infrastructure with minimal complexity.

Cloud-Based Management with Enterprise-Grade Security

Managed through the Instant On cloud platform, the AP22 enables administrators to monitor, configure, and manage wireless networks from anywhere. Advanced security features help protect users, devices, and business data while providing secure guest access, network segmentation, and centralized management capabilities for growing organizations.

Technical Specifications

General
Model: Instant On AP22 (RW) with Power Adapter
Part Number: R6M51A
Product Name: HPE Networking Instant On AP22 Wi-Fi 6 Access Point with Power Adapter
Manufacturer: HPE Aruba Networking
Product Type: Business Wireless Access Point
Series: HPE Networking Instant On AP22 Series
Deployment Type: Indoor Wireless Networking
Wireless Standard: Wi-Fi 6 (IEEE 802.11ax)
Radio Design: Dual-Radio Access Point
Antenna Type: Internal Antennas
Management Platform: Instant On Mobile App, Instant On Cloud Portal
Included Accessories: Power Adapter Included
Warranty: 2-Year Limited Warranty with 24/7 Phone and Chat Support
Recommended Environment: Small Business, Retail, Education, Healthcare, Office, Hybrid Workplaces

Wireless Specifications
Wireless Standard: IEEE 802.11ax (Wi-Fi 6)

Backward Compatibility:
• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• IEEE 802.11n
• IEEE 802.11ac

Frequency Bands:
• 2.4 GHz
• 5 GHz

Radio Configuration: Dual-Radio
MIMO Configuration: 2x2:2 MU-MIMO
Maximum Aggregate Data Rate: Up to 1.77 Gbps
Maximum 5 GHz Data Rate: Up to 1.2 Gbps
Maximum 2.4 GHz Data Rate: Up to 574 Mbps
Channel Width Support: Up to 80 MHz
MU-MIMO: Supported
OFDMA: Supported
Beamforming: Supported
Target Wake Time (TWT): Supported
Wi-Fi CERTIFIED 6™: Supported

Radio Specifications
2.4 GHz Radio: 2x2 MIMO
5 GHz Radio: 2x2 MIMO
Concurrent Dual-Band Operation: Supported
RF Optimization: Supported
Client Optimization: Supported
High-Density Client Support: Supported
Smart Roaming: Supported
Wireless Mesh Support: Supported

Performance Specifications
Maximum Aggregate Throughput: Up to 1.77 Gbps
Recommended Active Devices: Up to 75 Devices
Voice and Video Optimization: Supported
Cloud Application Optimization: Supported
Low-Latency Wireless Connectivity: Supported
Hybrid Workplace Optimization: Supported
Video Conferencing Support: Supported

Networking Specifications
Ethernet Port: 1 x Gigabit Ethernet RJ-45 Port
Network Speed: 10/100/1000 Mbps
Network Segmentation: Supported
Smart Mesh Networking: Supported
Wireless Backhaul: Supported
Enterprise Switching Compatibility: Supported

IoT & Smart Features
Bluetooth Low Energy (BLE): Supported
Integrated Bluetooth Radio: Supported
Smart Mesh Technology: Supported
Application Visibility: Supported
Remote Monitoring: Supported
Remote Troubleshooting: Supported
Guest Network Support: Supported

Security Features
WPA2 Personal: Supported
WPA2 Enterprise: Supported
WPA3 Personal: Supported
WPA3 Enterprise: Supported
Enhanced Open (OWE): Supported
Secure Guest Access: Supported
Role-Based Access Policies: Supported
Enterprise Wireless Security: Supported

Management Features
Instant On Mobile App: Supported
Instant On Cloud Portal: Supported
Cloud-Based Configuration: Supported
Remote Management: Supported
Zero Touch Deployment: Supported
Firmware Updates: Supported
Network Analytics: Supported
Multi-Site Management: Supported

Power Specifications
Power over Ethernet: Supported
PoE Standard: IEEE 802.3af (PoE)
PoE Standard: IEEE 802.3at (PoE+)
DC Power Input: Supported
Included Power Adapter: Yes
Maximum Power Consumption: Approximately 10.1W
Power Optimization Features: Supported

Antenna Specifications
Antenna Type: Internal Omni-Directional Antennas
MIMO Configuration: 2x2:2
Coverage Optimization: Supported
Enterprise Indoor Coverage: Optimized
Ceiling and Wall Mount Deployment: Supported

Physical Specifications
Form Factor: Indoor Ceiling/Wall Mount Access Point
Dimensions: 160 x 160 x 37 mm
Color: White
Mounting Options: Ceiling Mount and Wall Mount
Deployment Environment: Indoor Use

Features
Wi-Fi 6 (802.11ax) Technology
2x2:2 MU-MIMO Architecture
Up to 1.77 Gbps Aggregate Throughput
Dual-Band Wireless Connectivity
OFDMA Technology
Smart Mesh Networking
Integrated Bluetooth Low Energy Radio
Cloud-Based Management
WPA3 Security
Zero Touch Deployment
Included Power Adapter
Enterprise-Class Wireless Performance

Performance & Features
Designed for small businesses seeking affordable enterprise-grade Wi-Fi 6 connectivity
Provides improved wireless efficiency through OFDMA and MU-MIMO technologies
Supports video conferencing, cloud applications, VoIP, and collaboration platforms
Built-in Smart Mesh capabilities help extend wireless coverage without additional cabling
Offers centralized cloud management through the Instant On platform
Optimized for offices, retail stores, healthcare clinics, and classrooms
Supports secure employee and guest wireless access with WPA3 security
Delivers reliable wireless performance for modern business environments

Package Contents
HPE Networking Instant On AP22 Access Point
Power Adapter
Mounting Hardware
Quick Start Guide
Regulatory Documentation

Key Features
Wi-Fi 6 (802.11ax) Technology
2x2:2 MU-MIMO Architecture
Up to 1.77 Gbps Wireless Throughput
Dual-Band 2.4 GHz and 5 GHz Operation
Smart Mesh Networking Support
Bluetooth Low Energy Integration
Cloud-Based Management Platform
WPA3 Enterprise Security
PoE and PoE+ Support
Included Power Adapter
Supports Up to 75 Active Devices
Designed for Small and Medium Businesses

Typical Use Cases
Small and Medium Business Networks
Corporate Offices
Retail Stores
Healthcare Clinics
Educational Institutions
Meeting Rooms
Hybrid Workplaces
Cloud-Managed Wireless Networks
Video Conferencing Environments
Guest Wi-Fi Deployments
Remote Branch Offices
Business Wi-Fi Modernization Projects

Ordering Information
Model: HPE Networking Instant On AP22 (RW) with Power Adapter
Part Number: R6M51A
Configuration: Dual-Radio 2x2 Wi-Fi 6 Indoor Access Point with Included Power Adapter
