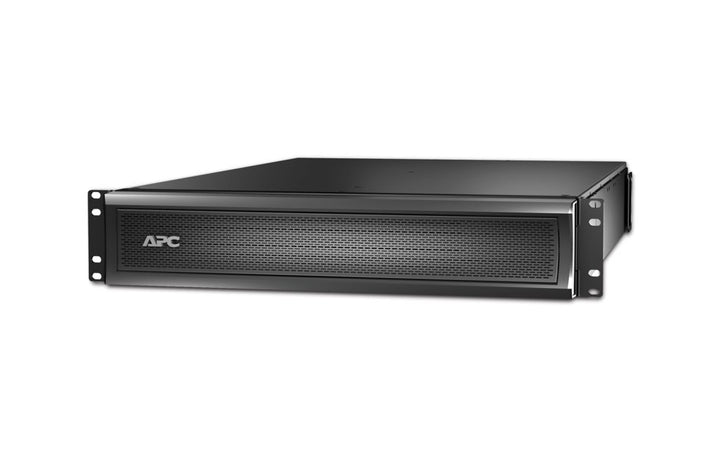

APC Smart-UPS X Battery pack for Extended runtime (SMX120RMBP2U)

  • $1,965.00
    Unit price per
  • Save $390
Tax included. Shipping calculated at checkout.


APC Smart-UPS X Battery pack for Extended runtime, Rack/Tower 2U, 120Vdc (SMX120RMBP2U) - 2 Years Local Warranty [Authorized Reseller]

Easily connect this external battery pack to an existing APC Smart-UPS X to instantly increase the amount of battery runtime to connected devices during a power outage. Please refer to your APC Smart-UPS X manual to confirm compatibility with this external battery back. The battery pack offers easy plug-and-play installation onto an operating APC Smart-UPS, ensuring power availability while runtime capacity is added. Through the APC Smart-UPS’ intelligent battery management and precision charging, the battery pack maintains the UPS system’s performance, reliability, and useful life. The APC battery pack provides scalable runtime to the APC Smart-UPS X, allowing multiple battery packs to be quickly added if the need arises. The battery pack operates equally in tower configuration, standing next to an APC Smart-UPS, or in rack-mount configuration, mounted below the UPS. Package Includes APC SMX120RMBP2U External Battery Pack, installation guide, and rack-mounting brackets.

  • Number of rack unit
  • 2U
  • Battery Type
  • Lead-Acid battery
  • Provided Equipment
  • Installation guide
  • Rack Mounting brackets
  • Physical
  • Color
  • Black
  • Height
  • 3.35 in (8.5 cm)
  • Width
  • 17.01 in (43.2 cm)
  • Depth
  • 26.26 in (66.7 cm)
  • Net Weight
  • 124.25 lb(US) (56.36 kg)
  • Mounting Mode
  • Rack-mounted
  • USB compatible
  • No
  • Environmental
  • Ambient Air Temperature for Operation
  • 32…104 °F (0…40 °C)
  • Relative Humidity
  • 0…95 %
  • Operating altitude
  • 0...10000 ft
  • Ambient Air Temperature for Storage
  • 5…113 °F (-15…45 °C)
  • Storage Relative Humidity
  • 0…95 %
  • Storage altitude
  • 0…50000 ft (0.00…15240.00 m)
  • Batteries & Runtime
  • Battery blocks per string
  • 10
  • Device mounting
  • Enclosed battery cartridge
  • Included Battery Modules
  • 0
  • Battery Slots Empty
  • 0
  • RBC Quantity
  • 2
  • Battery Voltage
  • 120 V
  • Replacement battery
  • APCRBC118
  • Ordering and shipping details
  • Category
  • 11309-APC RESALE PRODUCTS
  • Discount Schedule
  • APC1
  • GTIN
  • 731304295839
  • Returnability
  • No
  • Packing Units
  • Unit Type of Package 1
  • PCE
  • Number of Units in Package 1
  • 1
  • Package 1 Height
  • 9.57 in (24.3 cm)
  • Package 1 Width
  • 23.46 in (59.6 cm)
  • Package 1 Length
  • 34.21 in (86.9 cm)
  • Package 1 Weight
  • 140.30 lb(US) (63.64 kg)
  • Unit Type of Package 2
  • PAL
  • Number of Units in Package 2
  • 6
  • Package 2 Height
  • 34.25 in (87 cm)
  • Package 2 Width
  • 39.37 in (100 cm)
  • Package 2 Length
  • 47.24 in (120 cm)
  • Package 2 Weight
  • 859.80 lb(US) (390 kg)
  • Contractual warranty
  • Warranty
  • 2 years repair or replace
