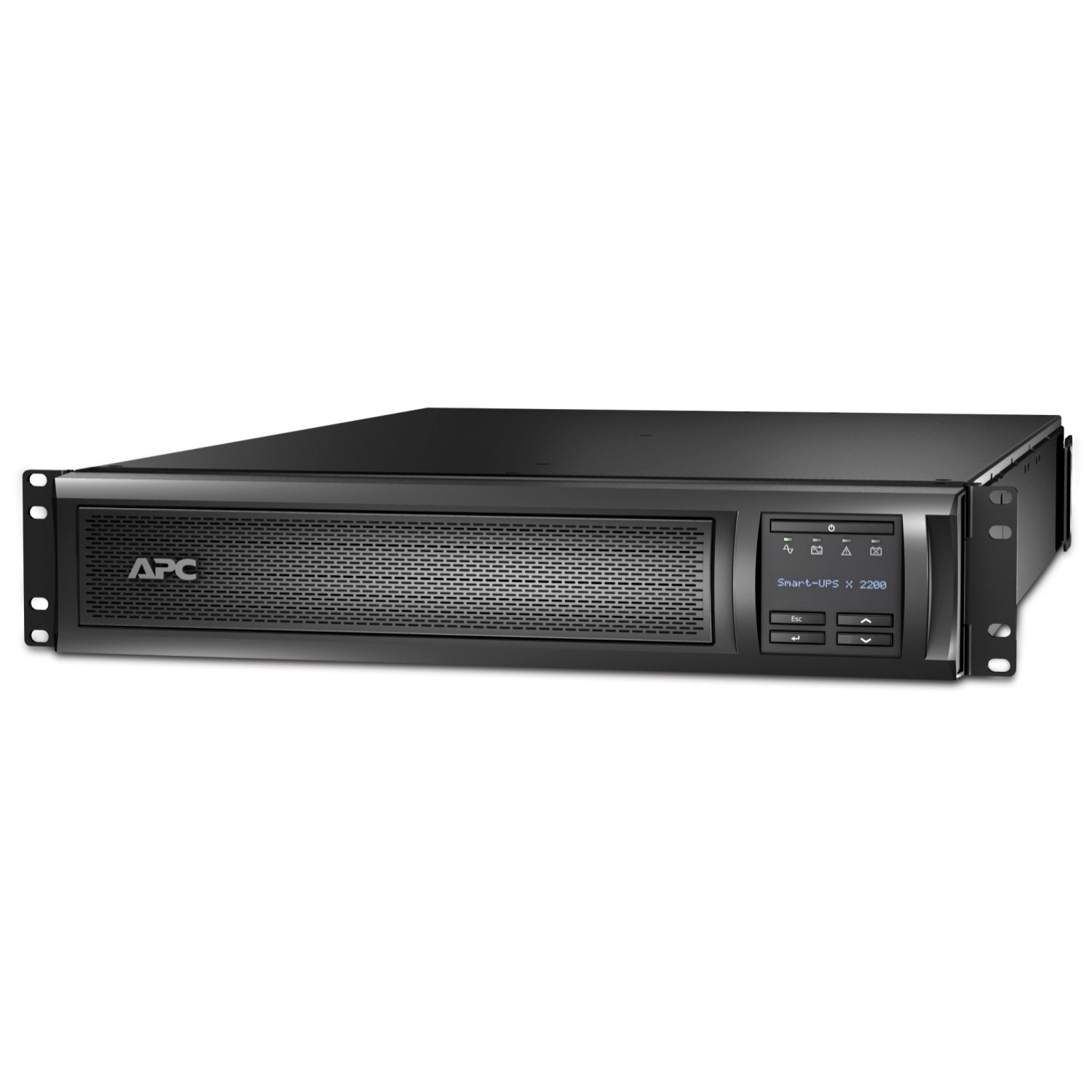

APC Smart-UPS X 2200VA LCD 200-240V Rack/Tower

APC Smart-UPS X 2200VA Rack/Tower LCD 200-240V (SMX2200RMHV2U) - 2 Years Local Warranty

Reliable Power Protection

The APC Smart-UPS X 2200VA (SMX2200RMHV2U) is a high-performance line-interactive UPS rated at 2200VA / 1980W, delivering dependable power protection for server rooms and critical applications. Its rack/tower convertible design integrates easily into existing IT infrastructure while keeping equipment online during outages and voltage events.

User-Friendly LCD Interface

A built-in LCD screen makes it easy to monitor the health of your power supply, displaying key information such as input/output voltage, load percentage and estimated battery runtime. The intuitive interface lets you quickly assess status and configure settings without specialised tools.

High-Efficiency Performance

Operating across a 200-240V input range, the SMX2200RMHV2U suits a wide variety of environments. Energy-saving features such as automatic voltage regulation and Green Mode help reduce energy consumption while ensuring clean, reliable power delivery to connected equipment.

Flexible Installation Options

Designed for convenience, the Smart-UPS X 2200VA can be mounted in a 2U rack or used as a standalone tower, letting you customise placement based on your server room or data centre layout. Hot-swappable batteries simplify maintenance with minimal downtime.

Peace of Mind Protection

Backed by UL, cUL, CE and RoHS compliance, the Smart-UPS X 2200VA safeguards critical equipment against surges, spikes and outages. Its advanced features and robust design make it an ideal choice for ensuring uninterrupted power and business continuity.

Technical Specifications

• Type: Line-Interactive UPS System
• Model Number: SMX2200RMHV2U
• Power Capacity: 2200VA / 1980W
• Form Factor: Rackmount / Tower (2U)
• Input Voltage: 200-240V AC
• Input Frequency: 50/60Hz ± 3 Hz (auto-sensing)
• Output Voltage: 200-240V AC
• Outlets: (8) x IEC C13 outlets, (2) x IEC C19 outlets
• Battery Type: Sealed Lead-Acid (SLA), VRLA (Valve Regulated Lead Acid)
• Battery Runtime: Extended runtime with optional external battery packs (exact runtime varies based on load)
• Transfer Time: 2-4 milliseconds typical
• Surge Protection: Yes, for connected devices
• Monitoring: LCD display with real-time status and battery condition monitoring; USB, Serial and SmartSlot communication
• Compatibility: Designed for 200-240V applications; ideal for servers, network equipment and critical devices
• Operating Temperature Range: 0°C to 40°C (32°F to 104°F)
• Humidity: 0% to 95% non-condensing
• Certifications: UL, cUL, CE, RoHS compliant
• Dimensions (H x W x D): 3.5 in (88.9mm) x 17.3 in (438mm) x 18.1 in (459mm)
• Weight: Approximately 21.5 kg (47.5 lbs)

Ideal Use Case: Ideal for server rooms and data centres needing high-capacity 200-240V power protection for servers, networking and critical equipment in rack or tower form.

GTIN/UPC: 731304283284
